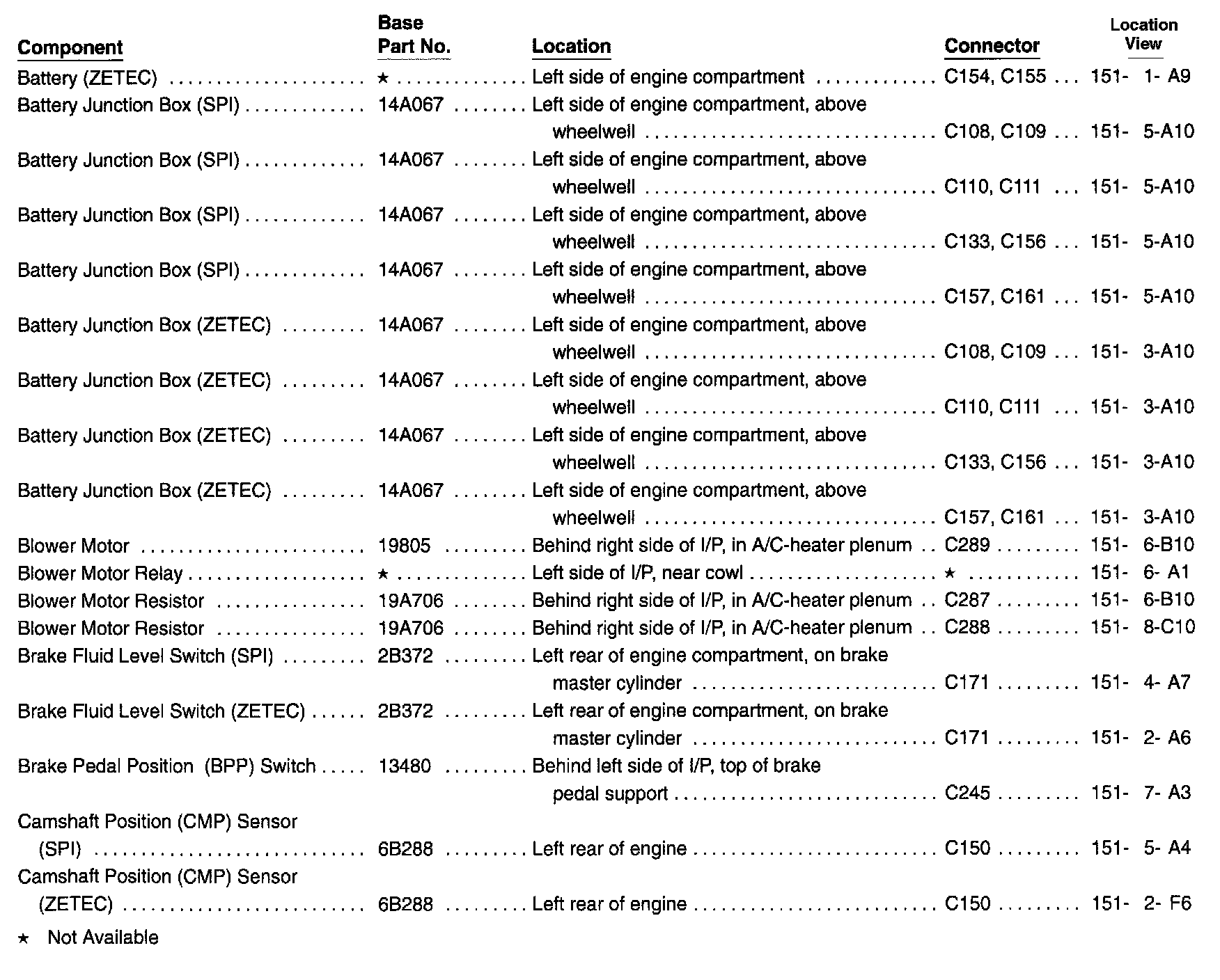

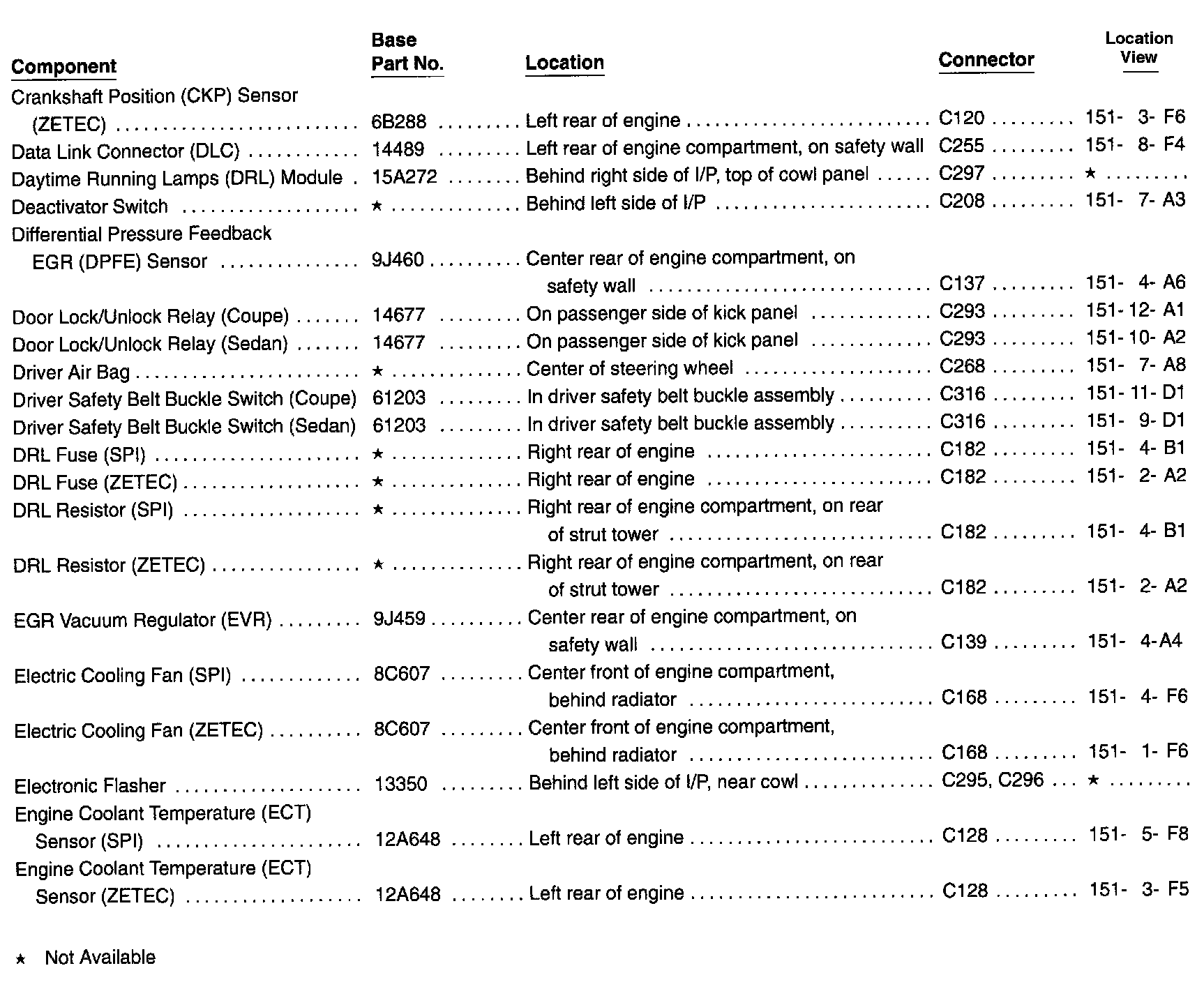

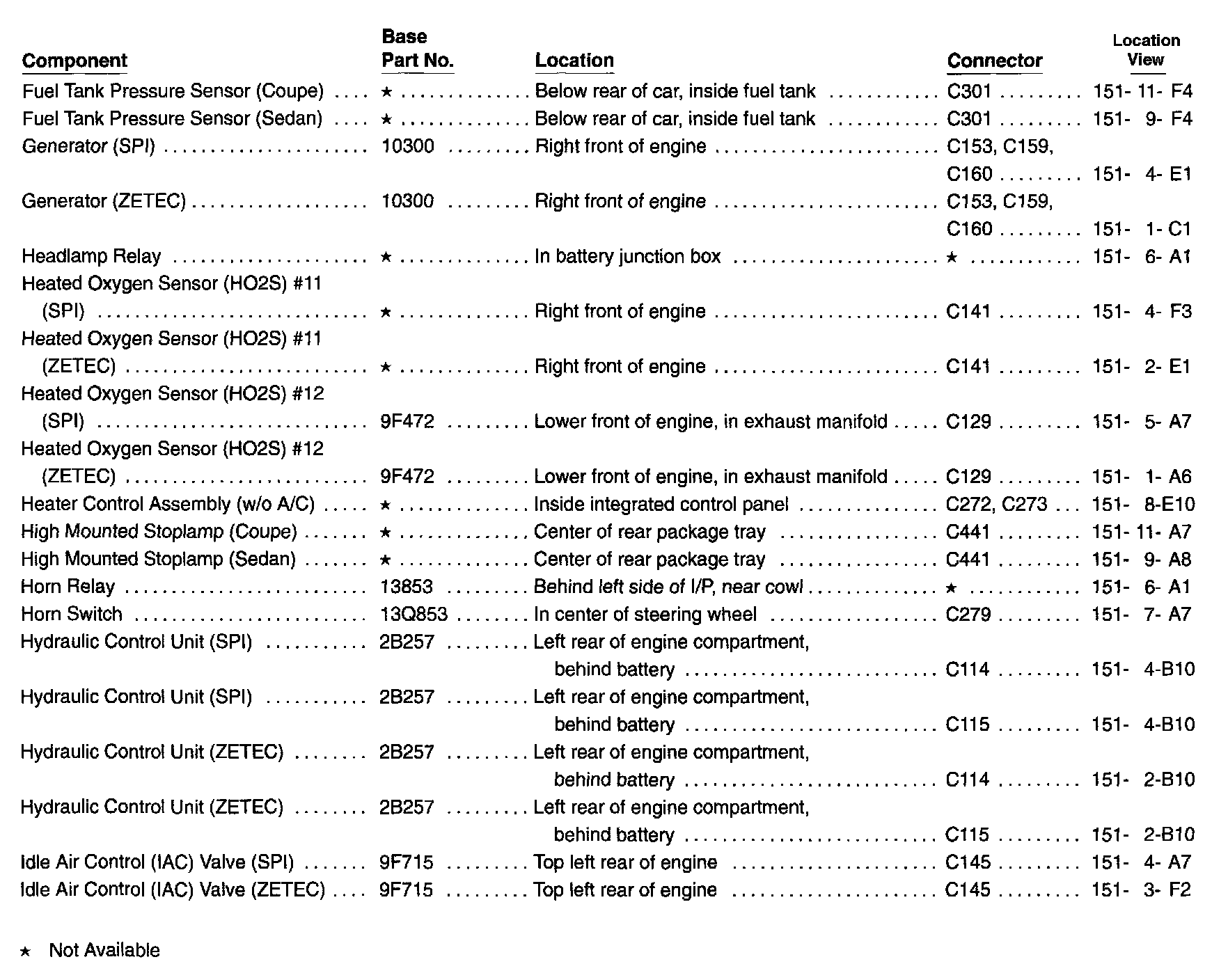

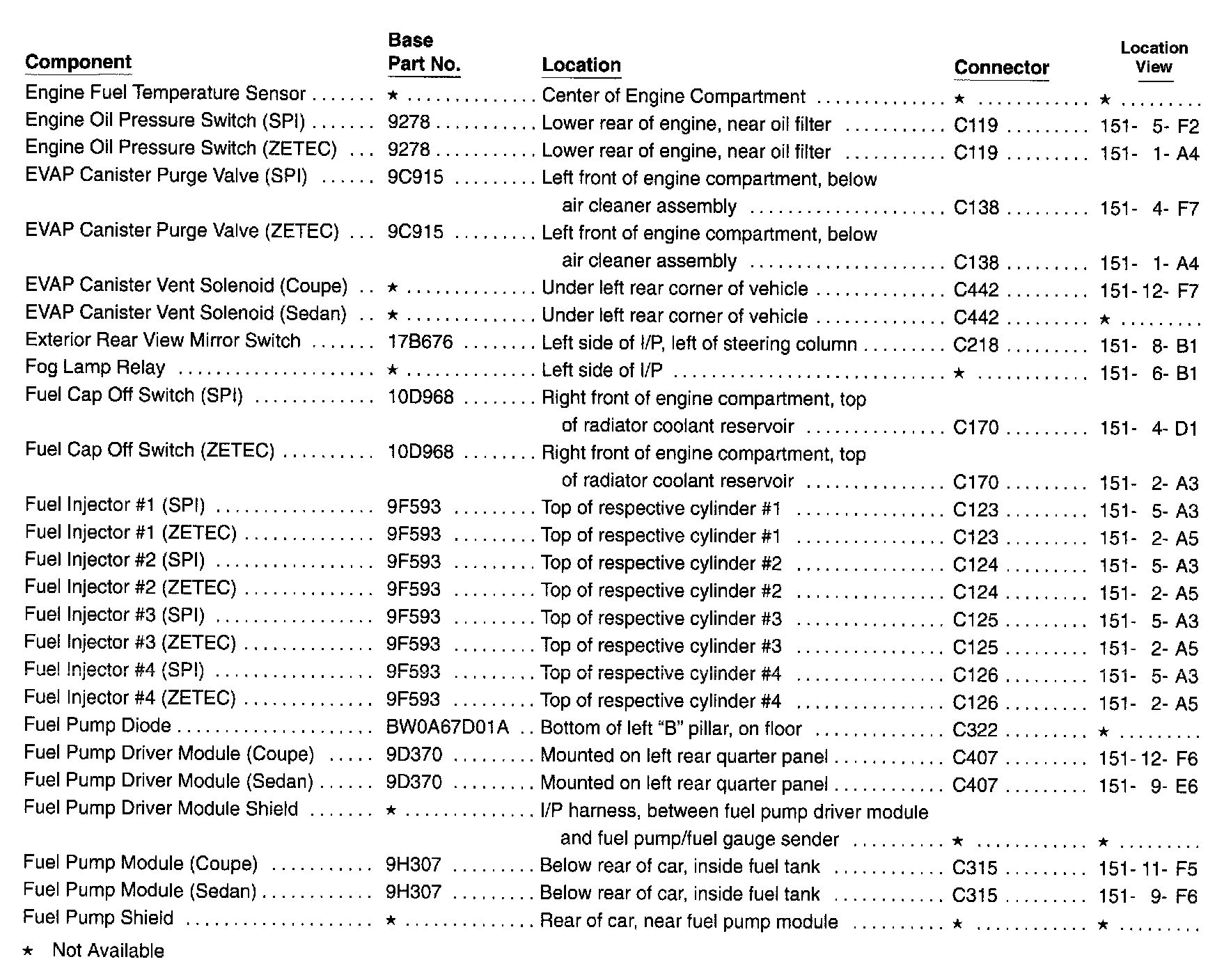

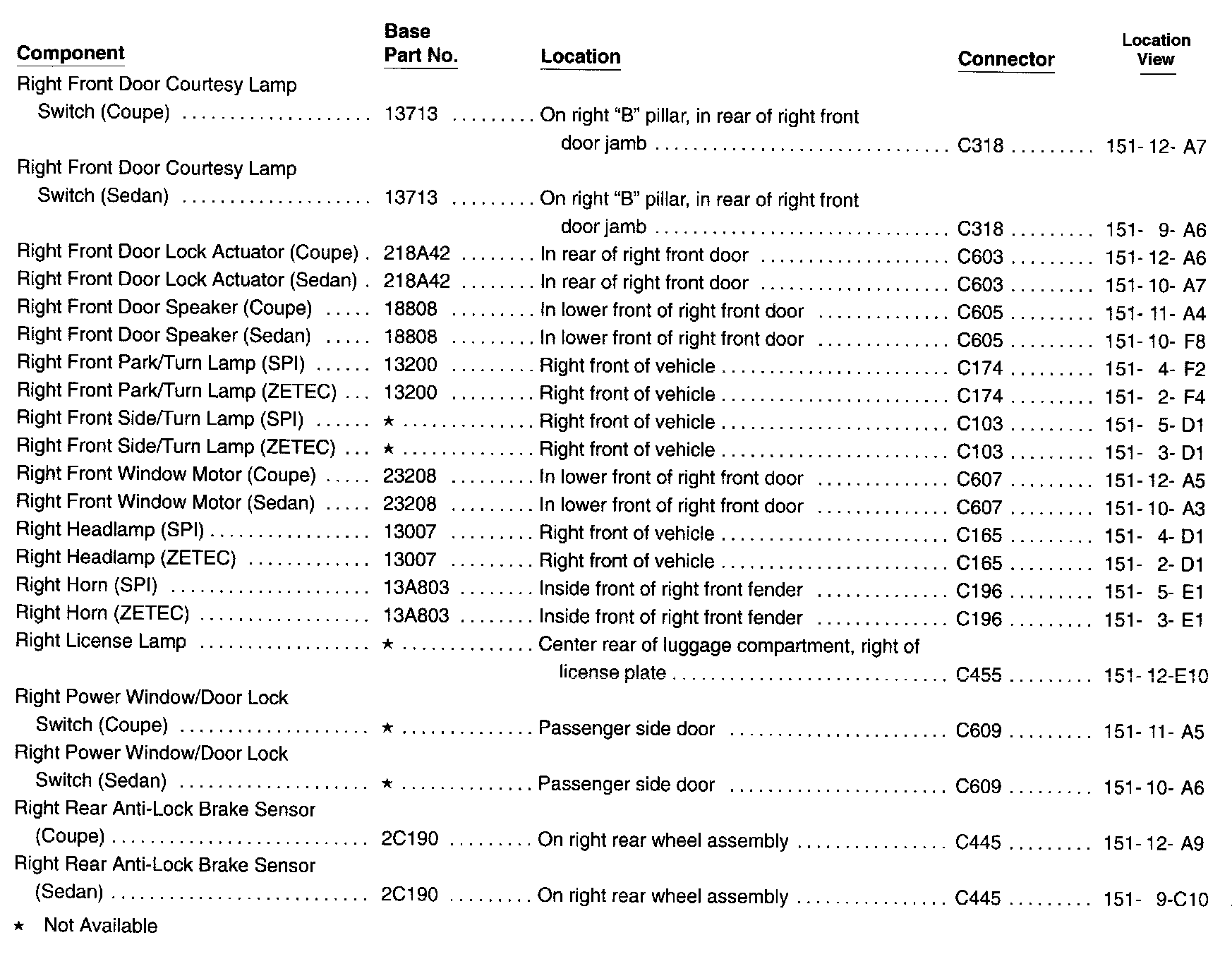

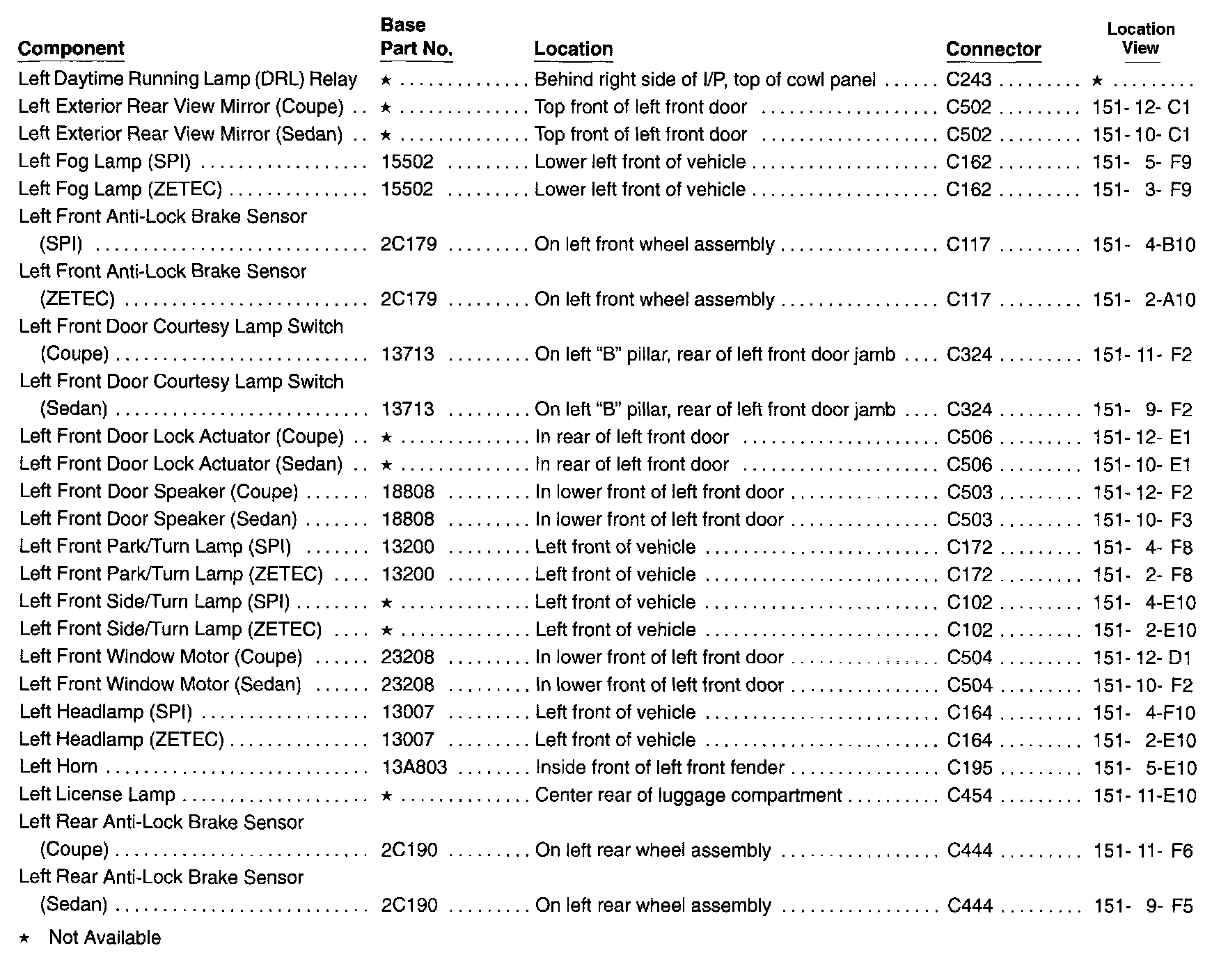

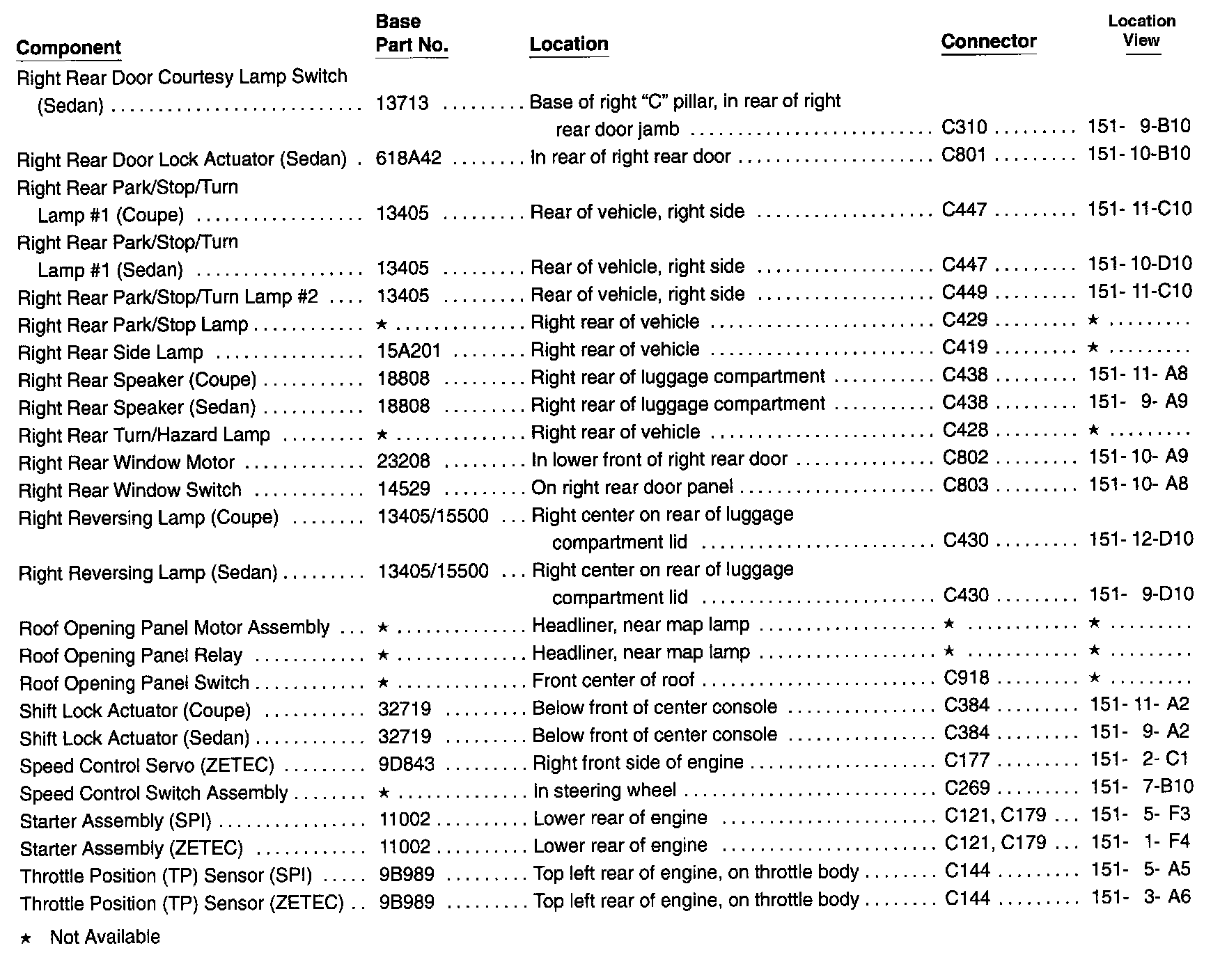

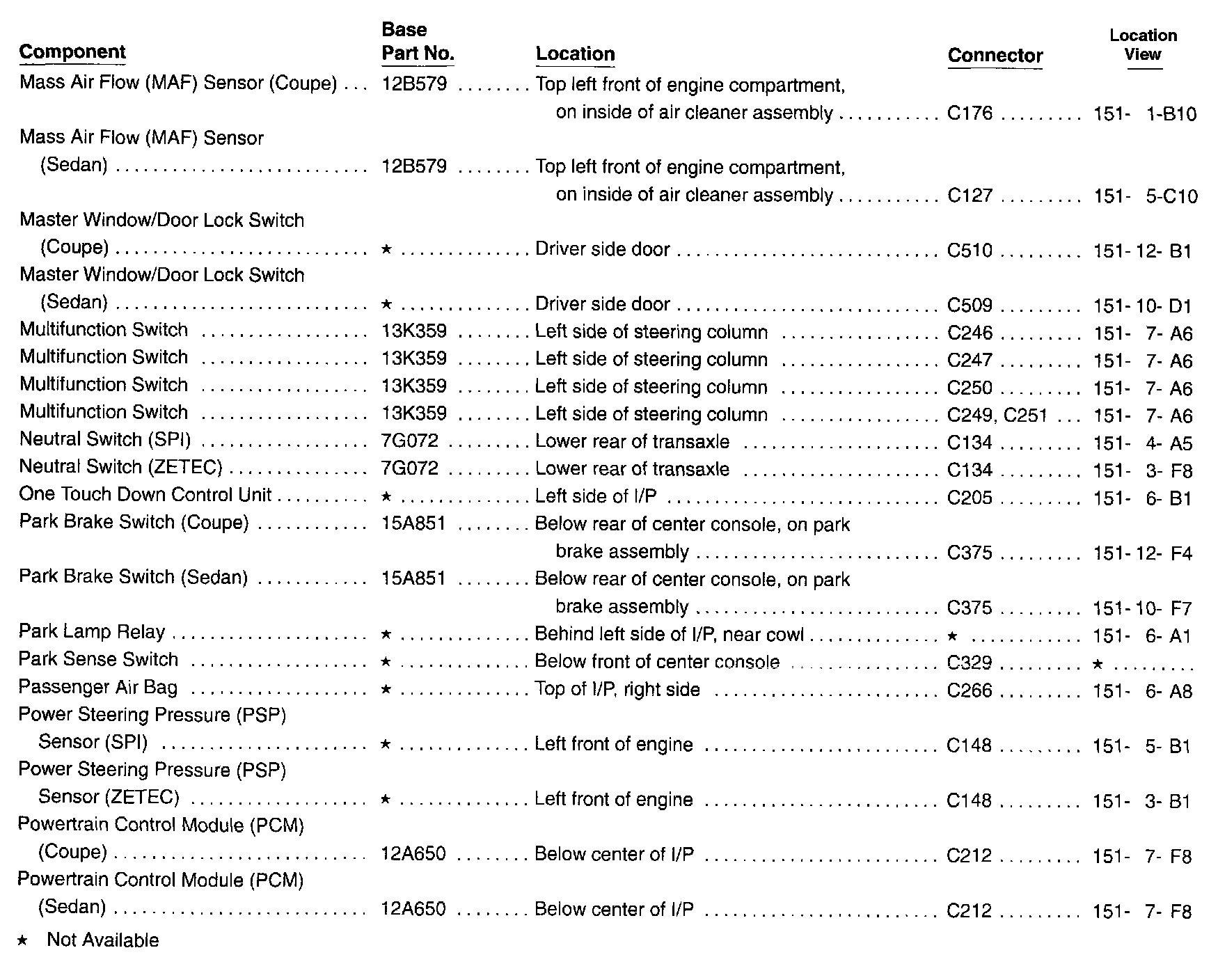

Components

A/C - Ba:






Ba - Ca:






CD - Cr:






Cr - En:






En - Fu:






Fu - Id:






Ig - In:






In - Kn:






Left Daytime - Left Rear:






Le - Ma:






Ma - Po:






Pr - Ri:






Right Front - Right Rear:






Ri - Th:






Tr - Wi:
