Home >> Ford >> 2001 >> Escort ZX2 L4-2.0L DOHC VIN 3 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 53

Diagram Set 53

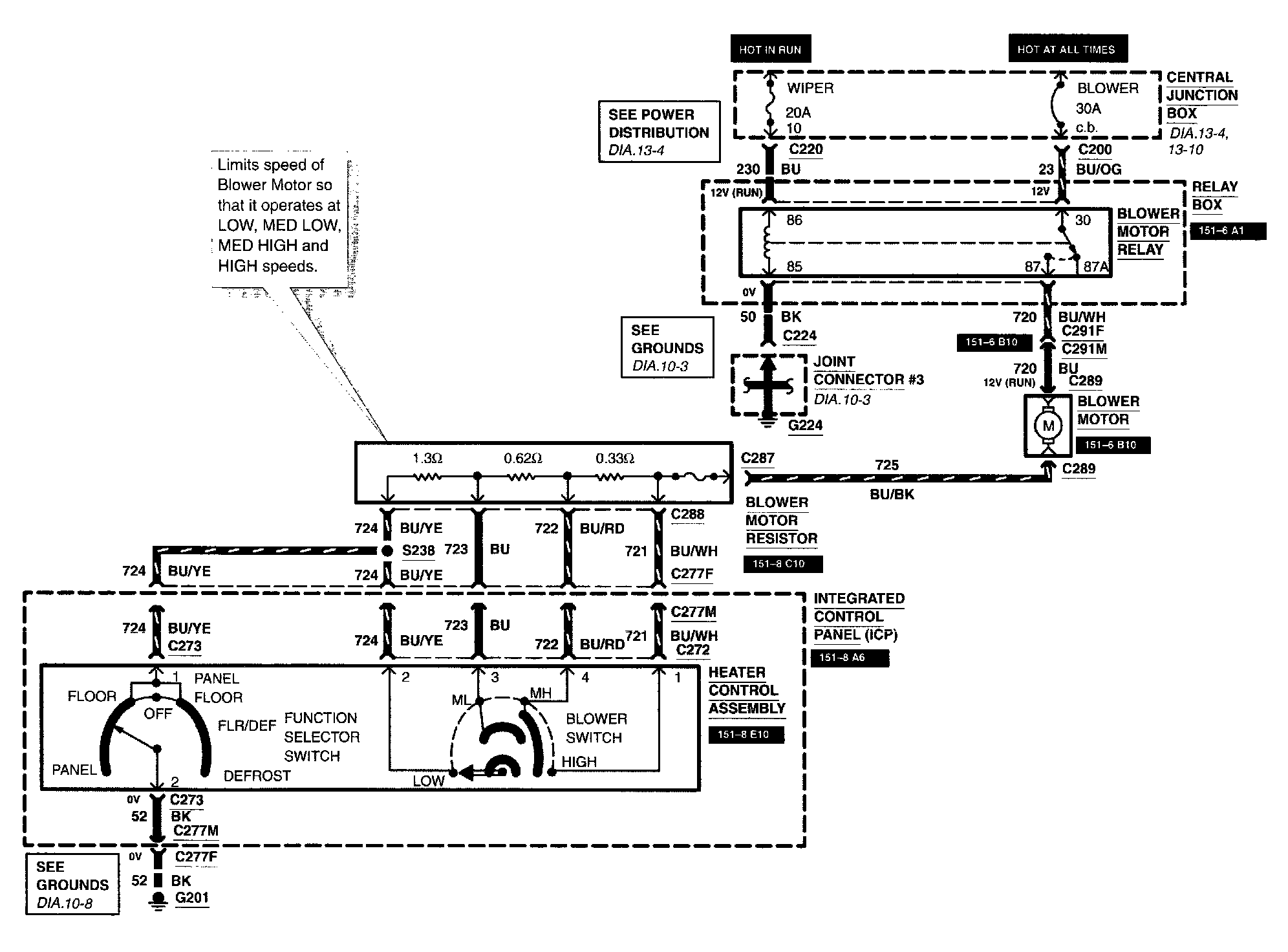

Diagram 53-1:
