Temperature Control Switch

REMOVAL
1. Remove the control assembly.

2. Remove the temperature control selector knob.

3. Remove the screw and the temperature control switch with the heater temperature cable attached.

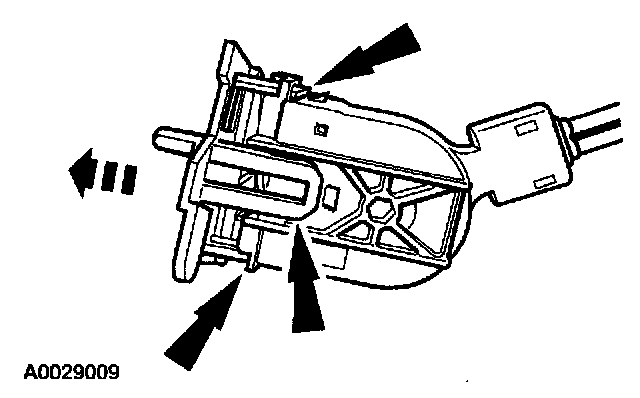

4. Release the three clips, and disconnect the temperature control switch from the temperature cable.

INSTALLATION
1. To install, reverse the removal procedure.
