LH and Center

Radio Removing Tool:

SPECIAL TOOL(S)

REMOVAL
1. Disconnect the battery ground cable.

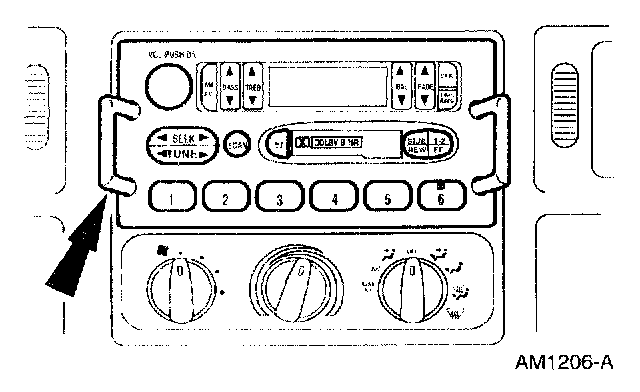

2. Use the special tool to remove the radio chassis.







3. Remove the cluster opening finish panel.







4. Disconnect the headlight and dimmer switch wire harness connectors.







5. Remove the screws and remove the A/C register.

INSTALLATION







1. Follow the removal procedure in reverse order.
