Blower Motor Switch: Service and Repair
REMOVAL 1.
Remove the control assembly.
2.
Remove the knobs.
3.

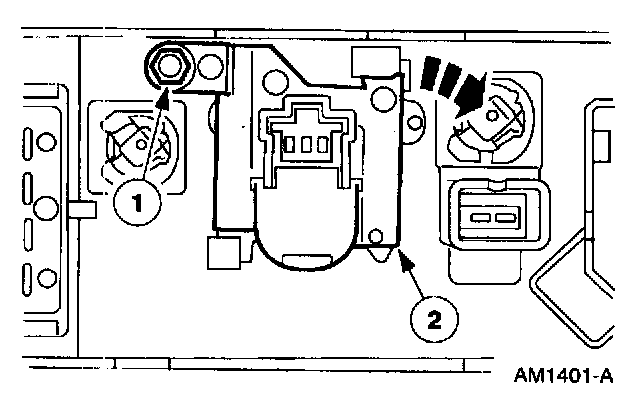

Remove the
blend door potentiometer.
1
Remove the screw.
2
Rotate and remove the
blend door potentiometer.
4.
Depress the tabs and remove the blower motor control switch.
5.
Depress the tabs and remove the damper
door switch.
INSTALLATION 1.
Follow the removal procedure in reverse order.
