Engine Temperature Sensor: Service and Repair
REMOVAL 1.
Remove the upper intake manifold.
2.

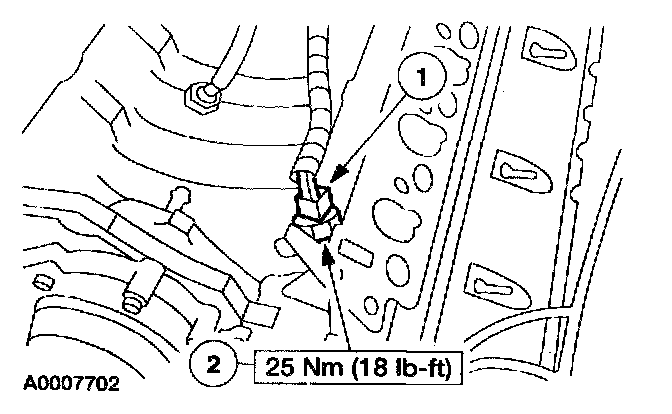

Remove the Cylinder Head Temperature
(CHT) sensor.
1
Disconnect the electrical connector.
2
Remove the CHT sensor.
INSTALLATION 1.
To install, reverse the removal procedure.
