Test H: All Door Locks Are Inoperative-Driver and Passenger Door Lock Control Switches Only

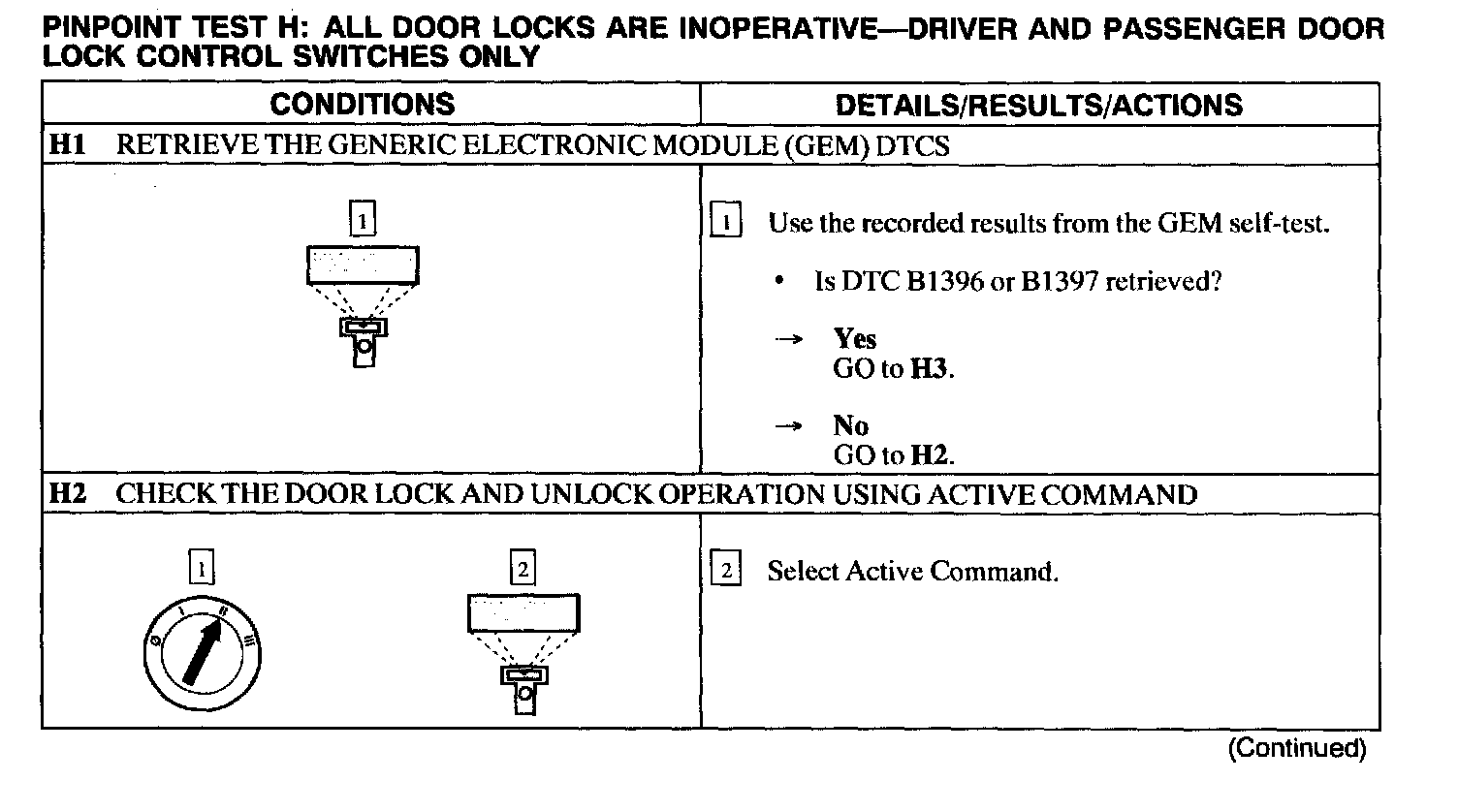

H1 - H2:

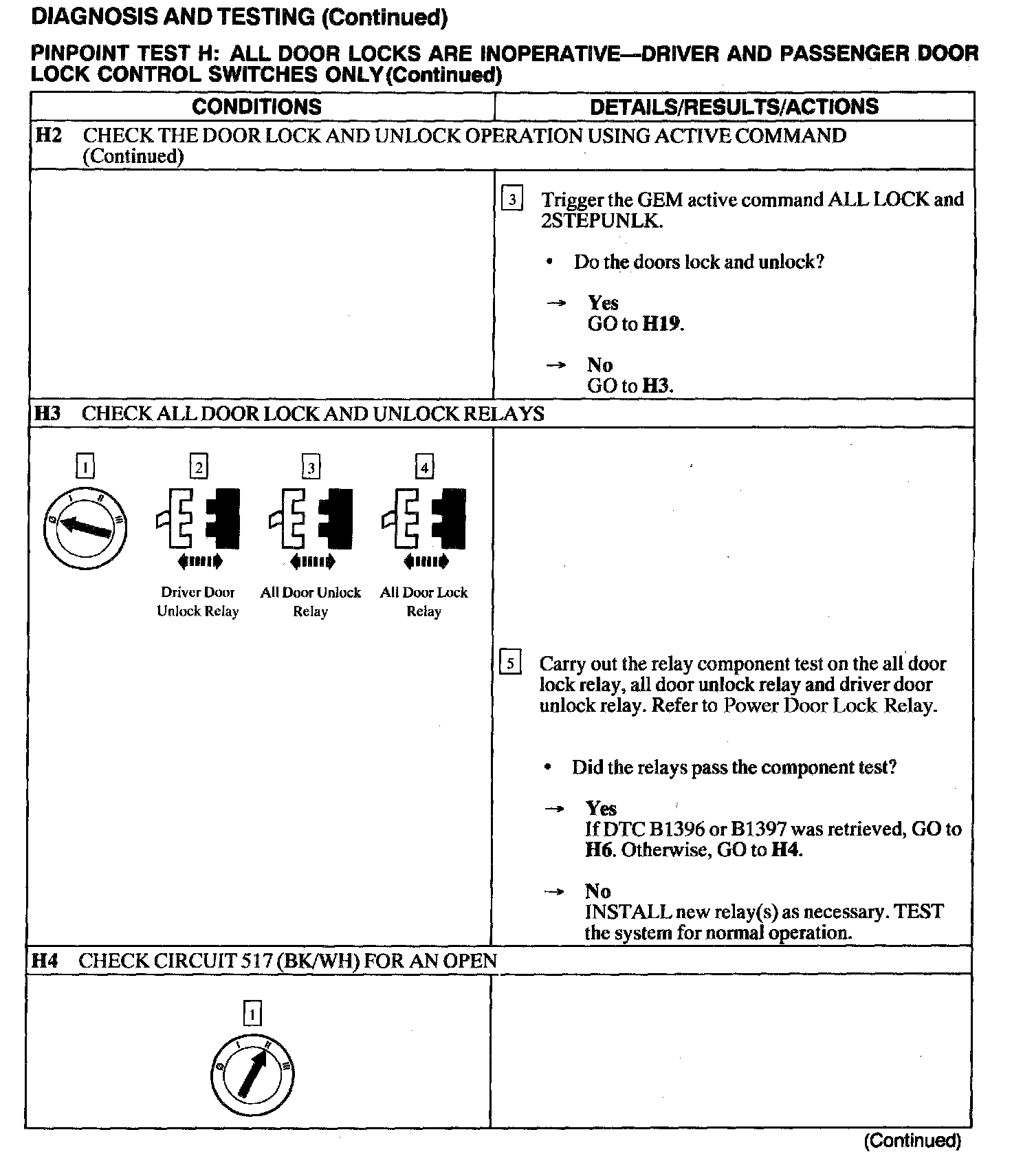

H2 - H4:

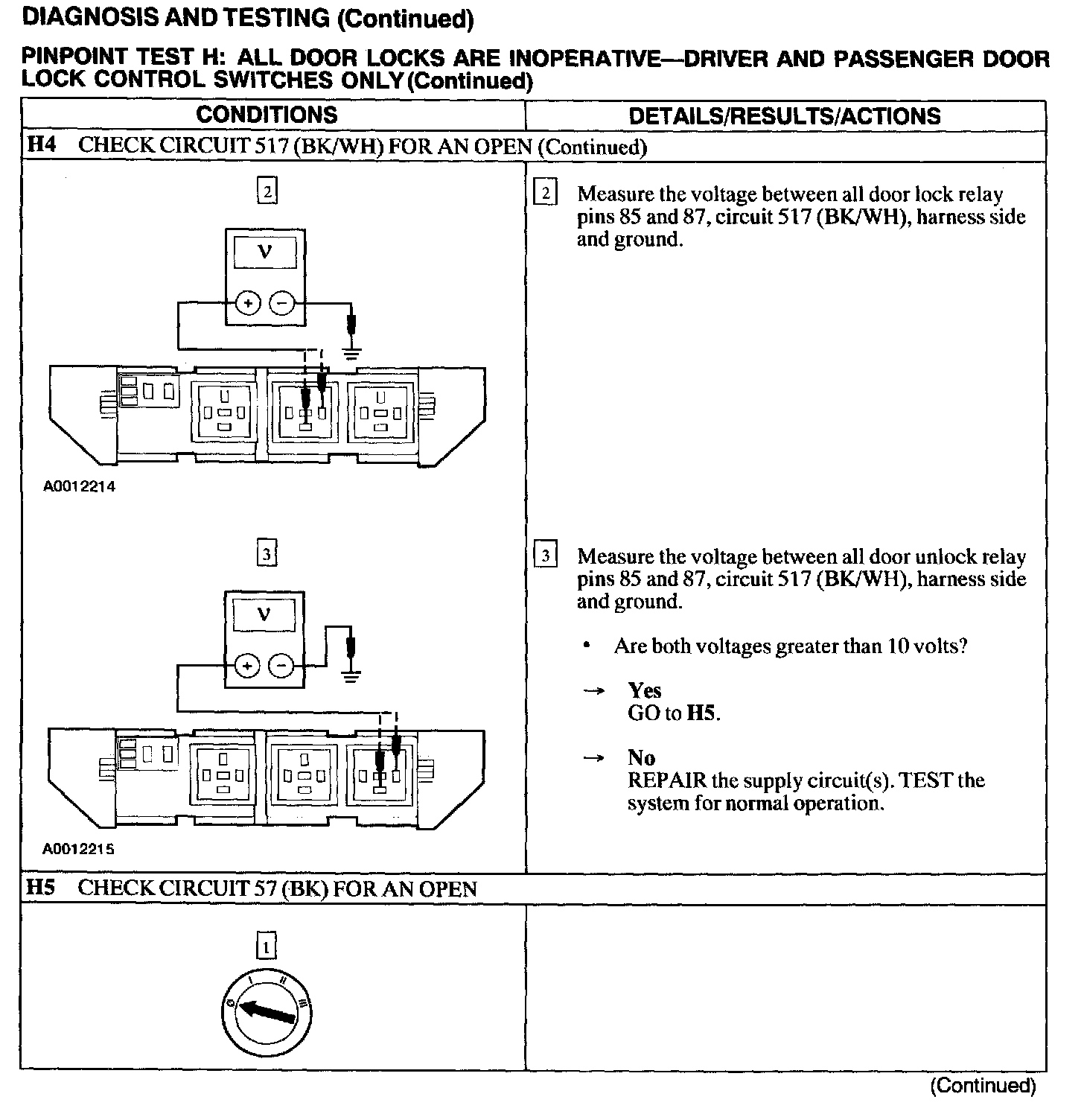

H4 - H5:

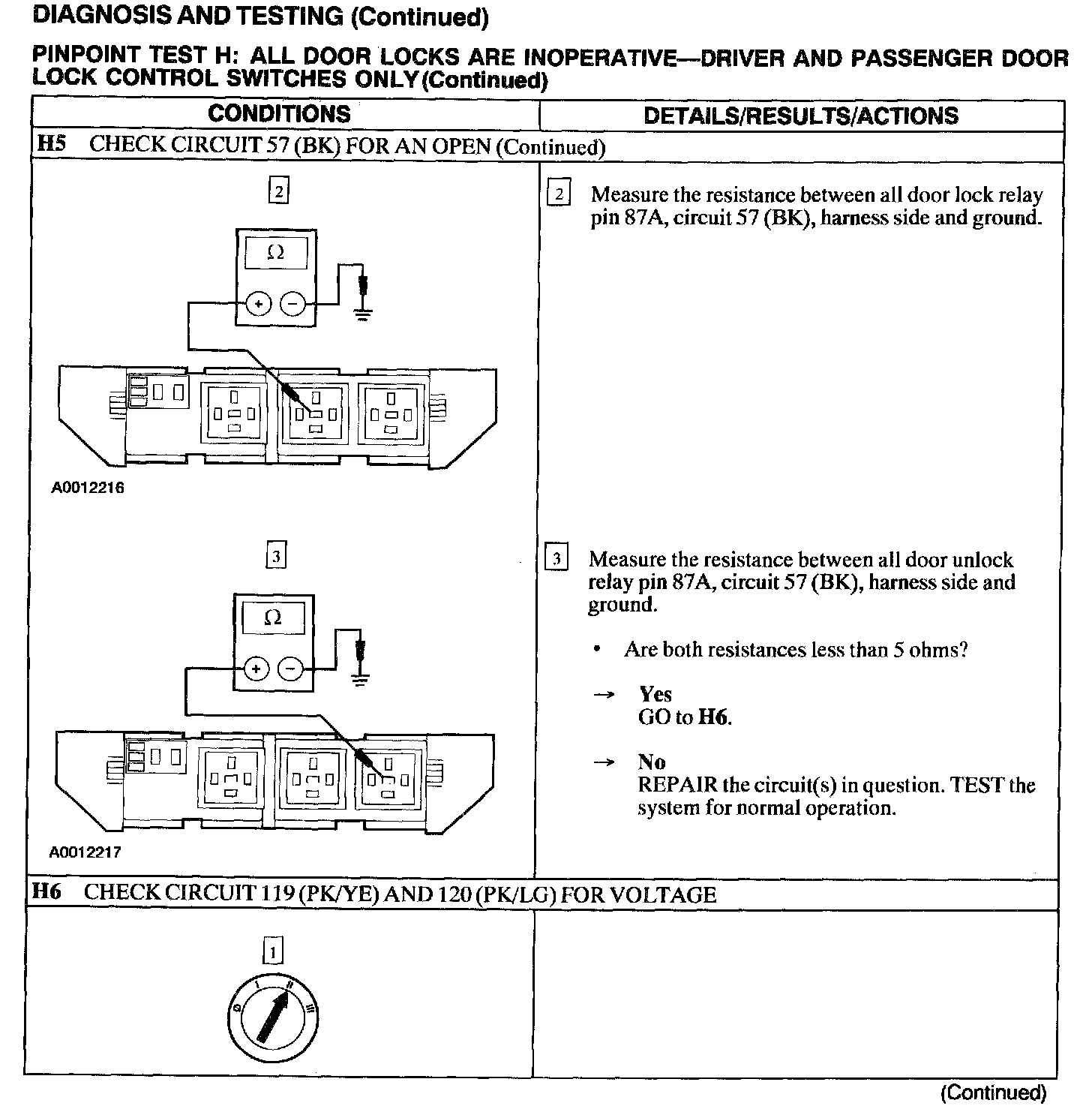

H5 - H6:

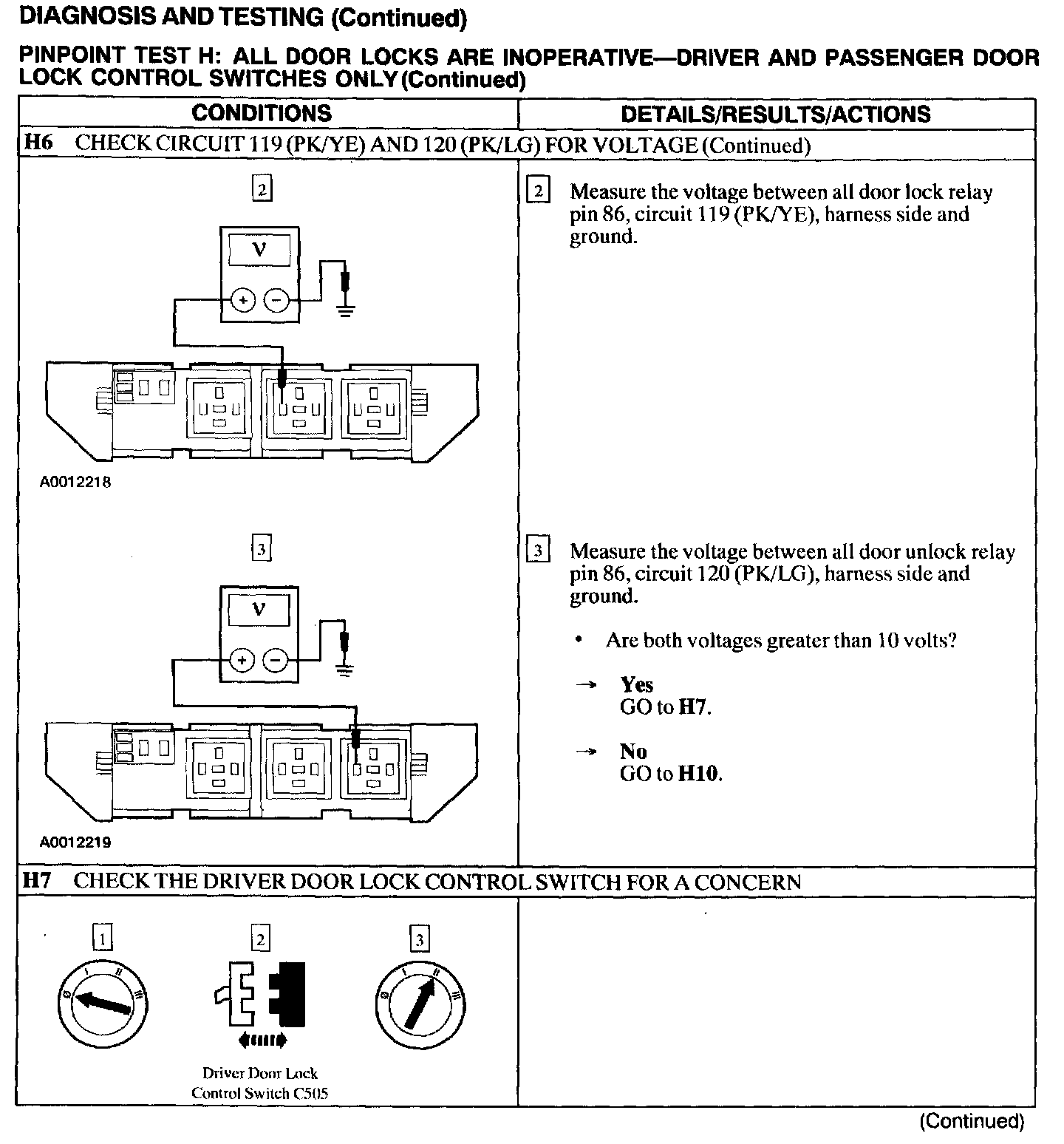

H6 - H7:

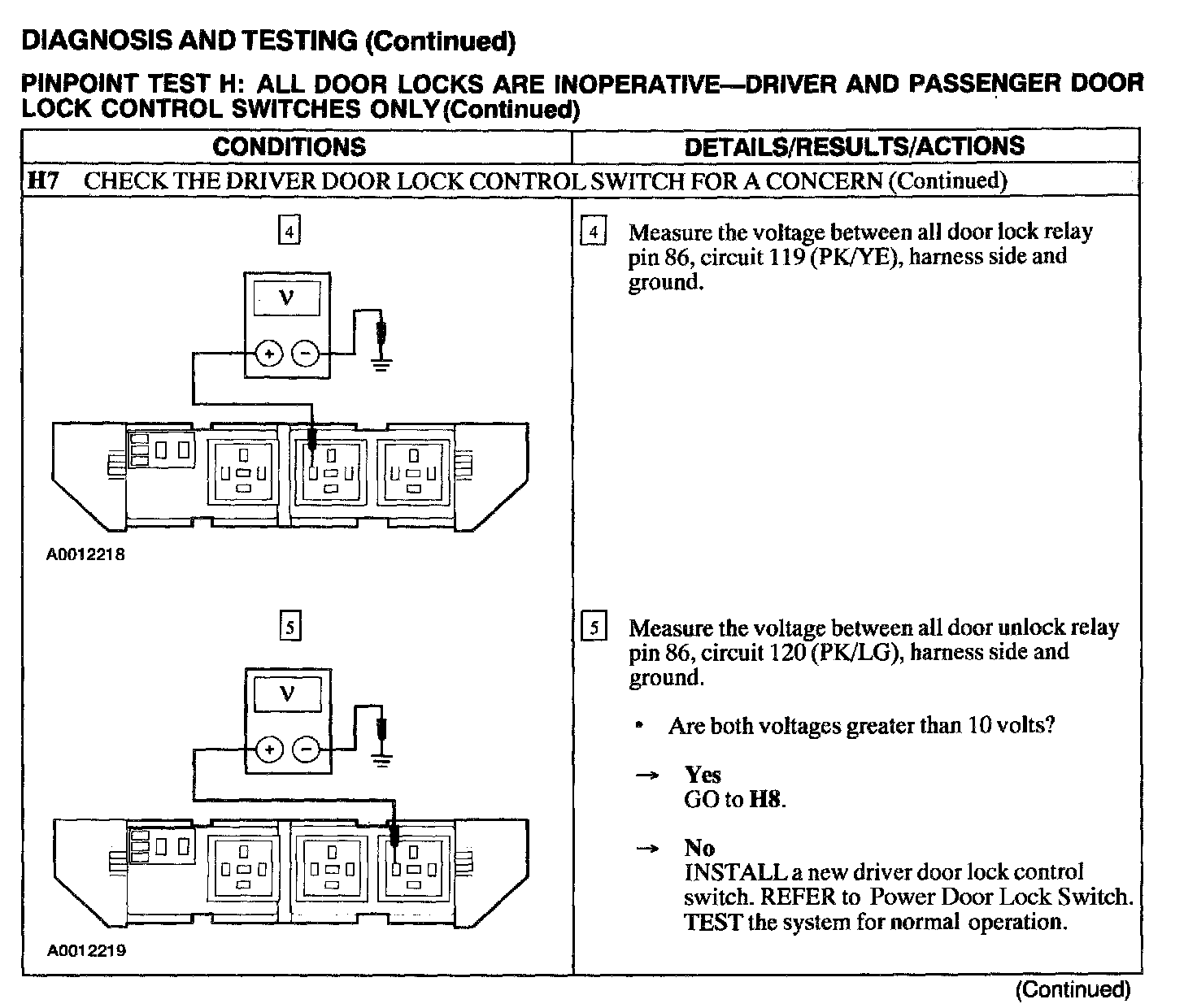

H7:

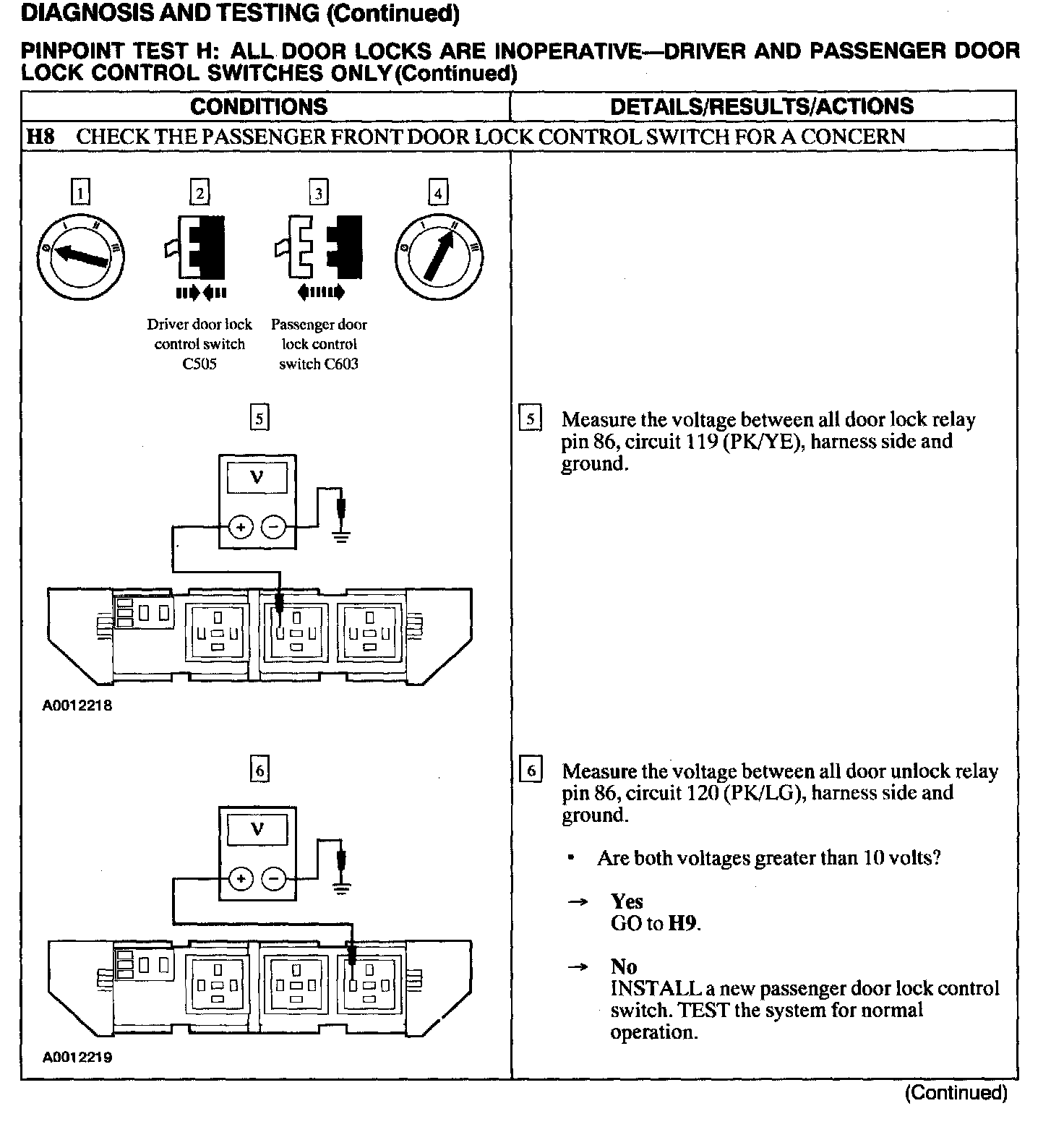

H8:

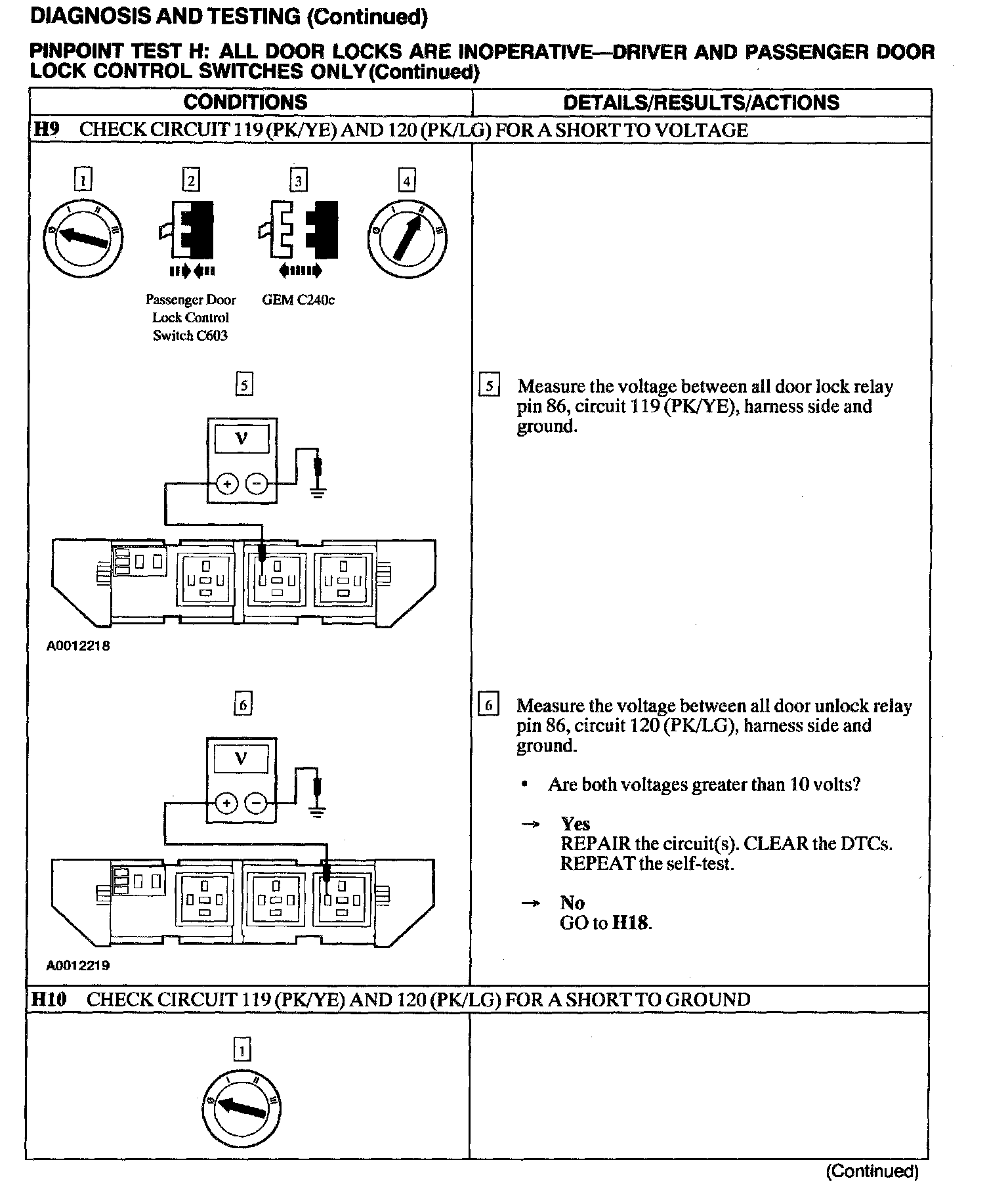

H9 - H10:

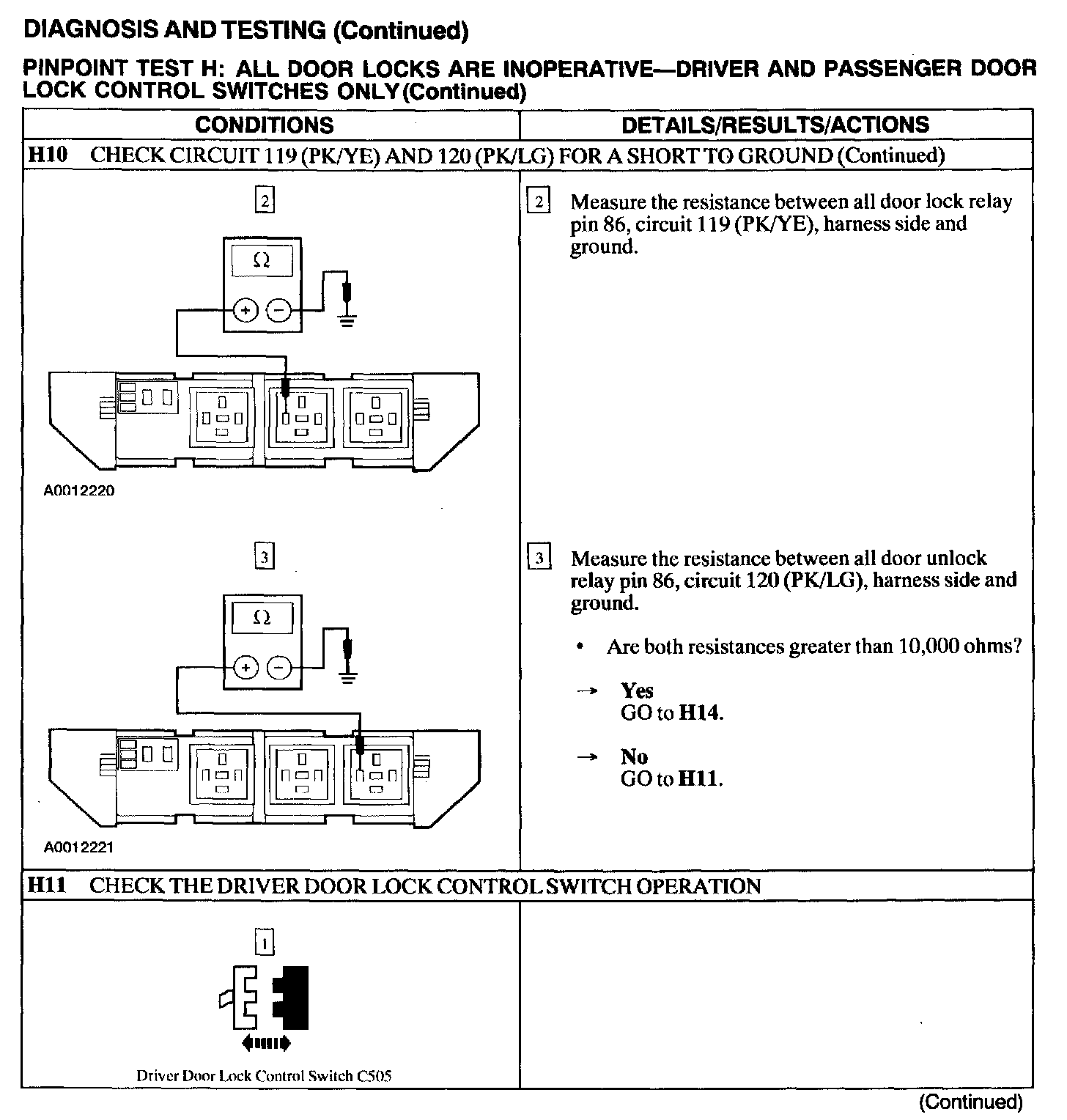

H10 - H11:

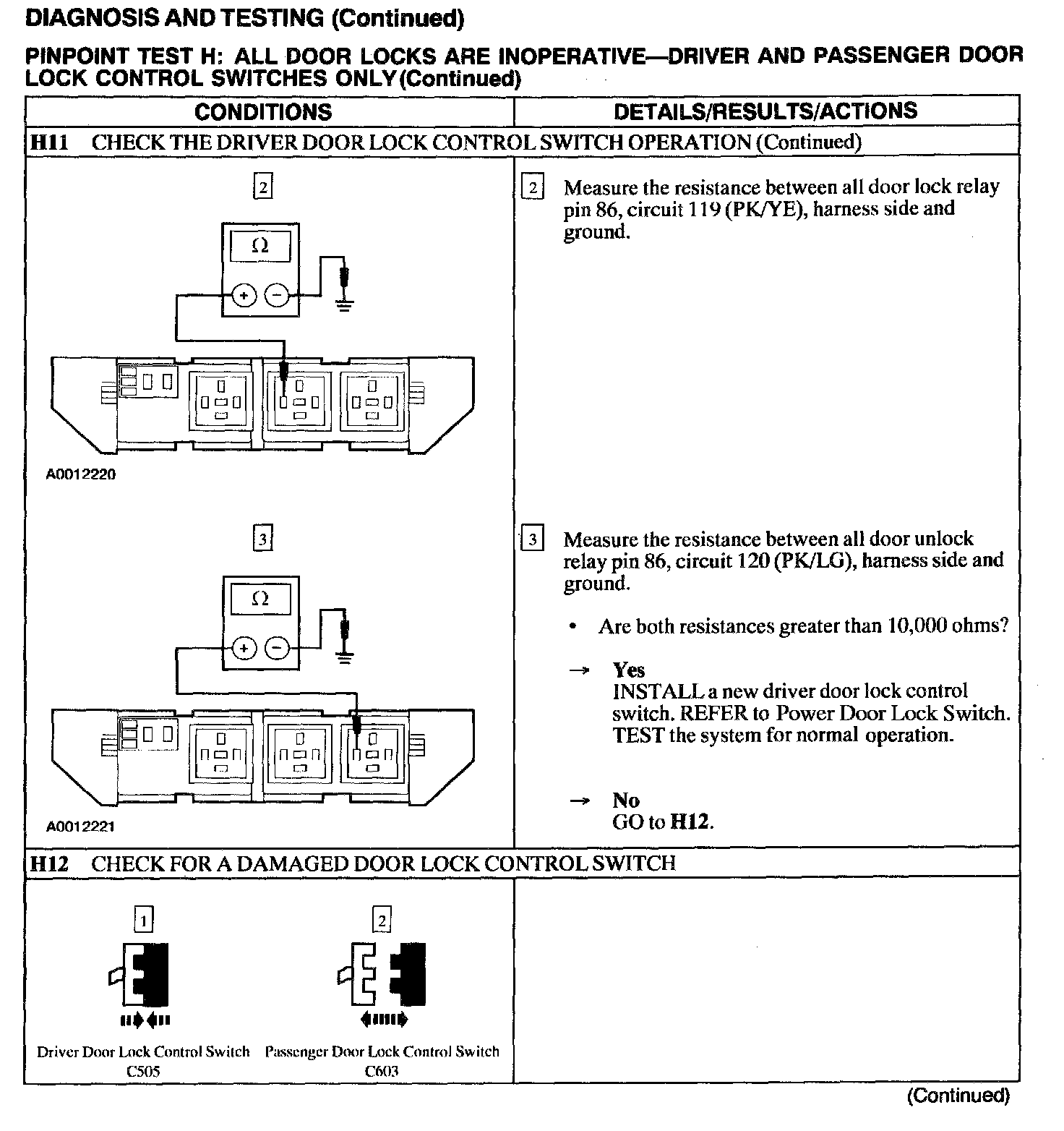

H11 - H12:

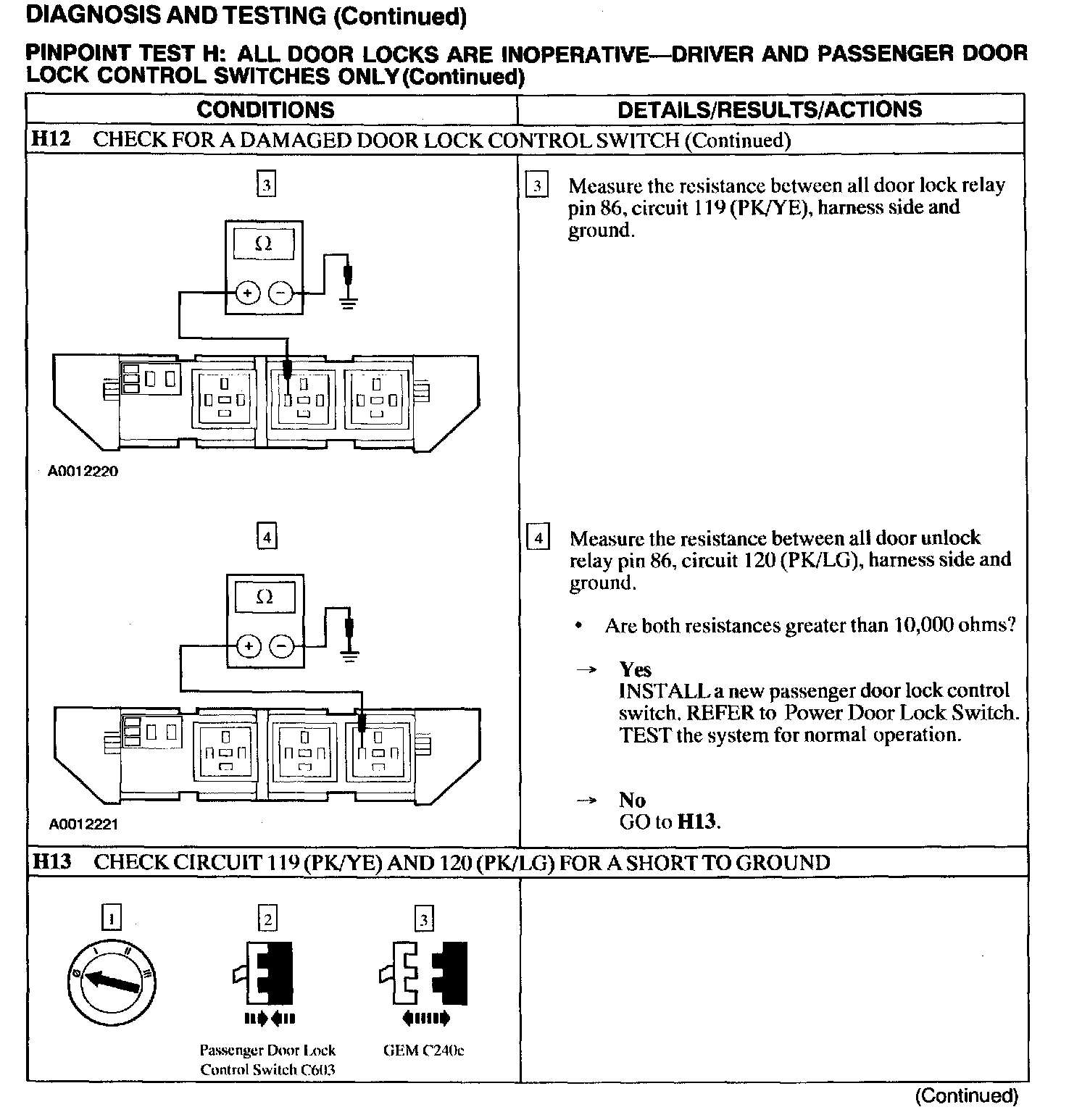

H12 - H13:

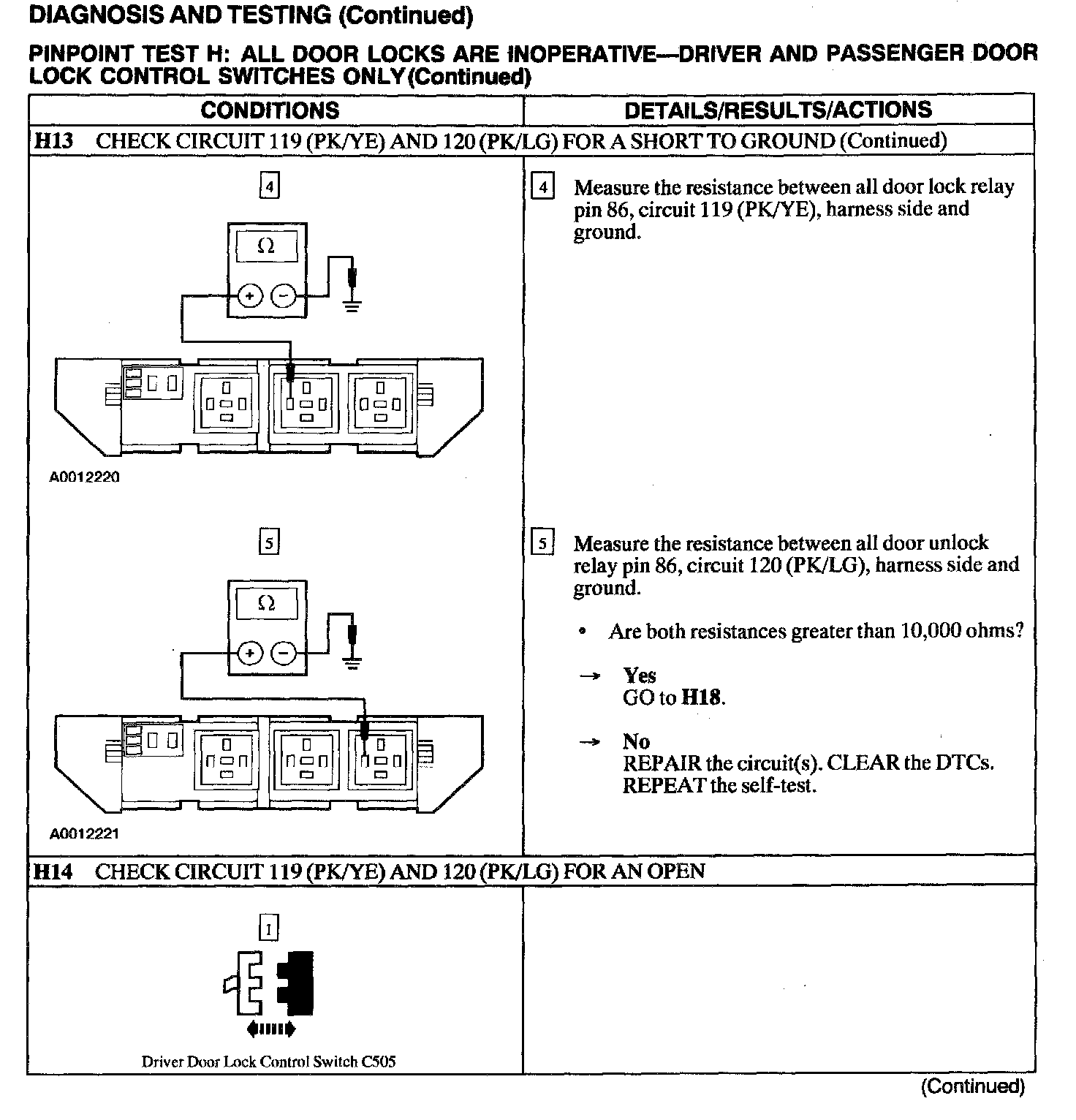

H13 - H14:

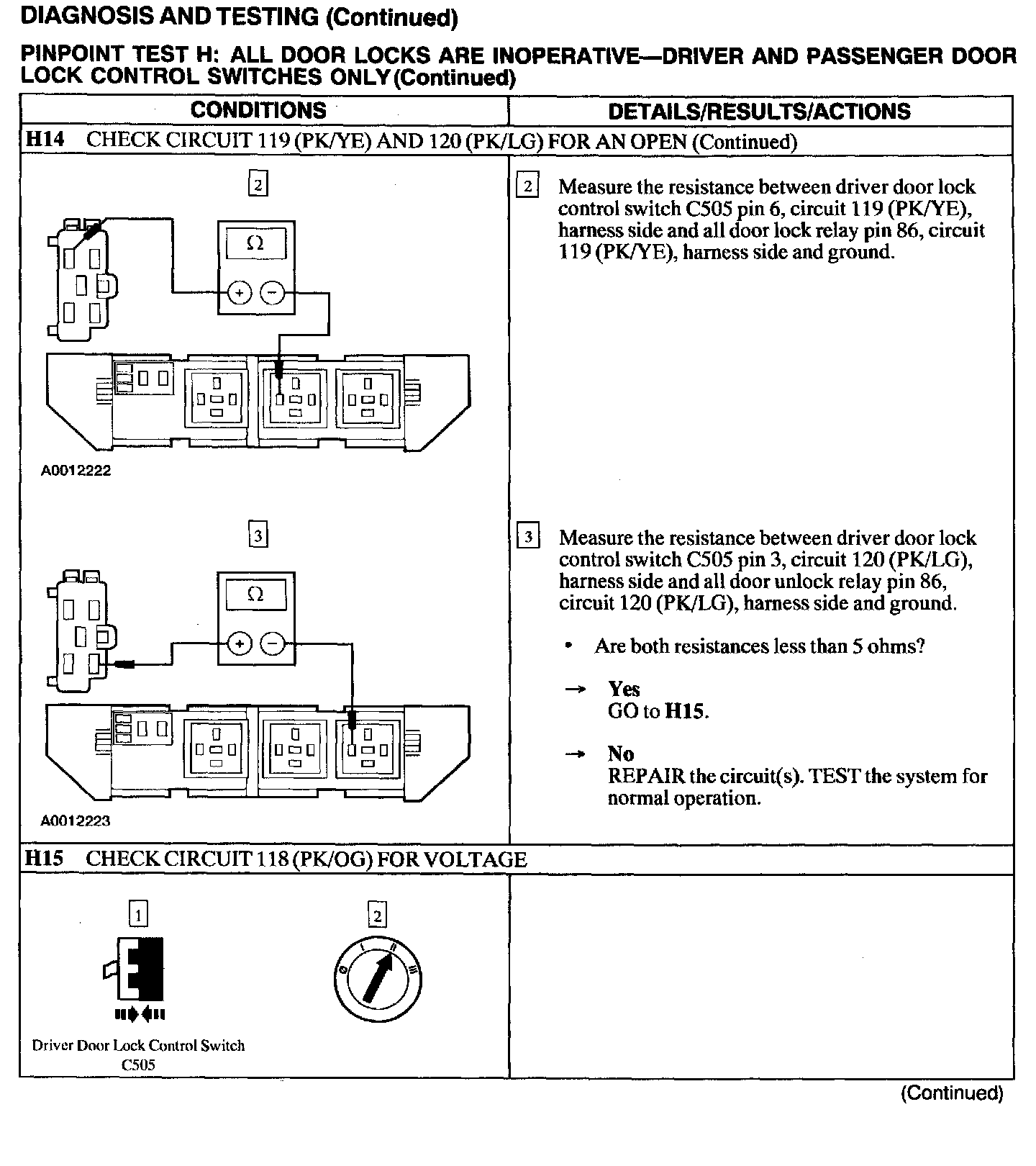

H14 - H15:

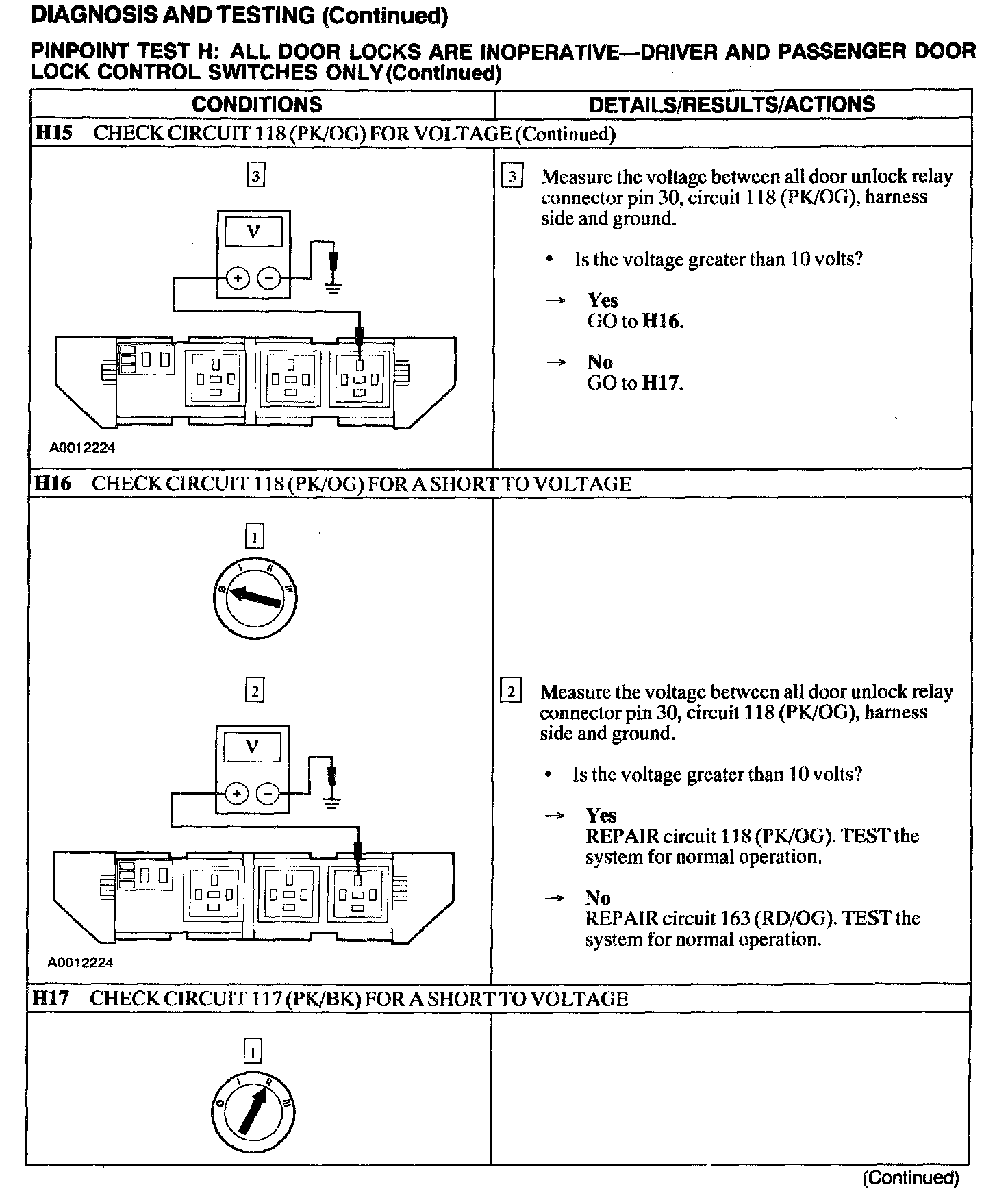

H15 - H17:

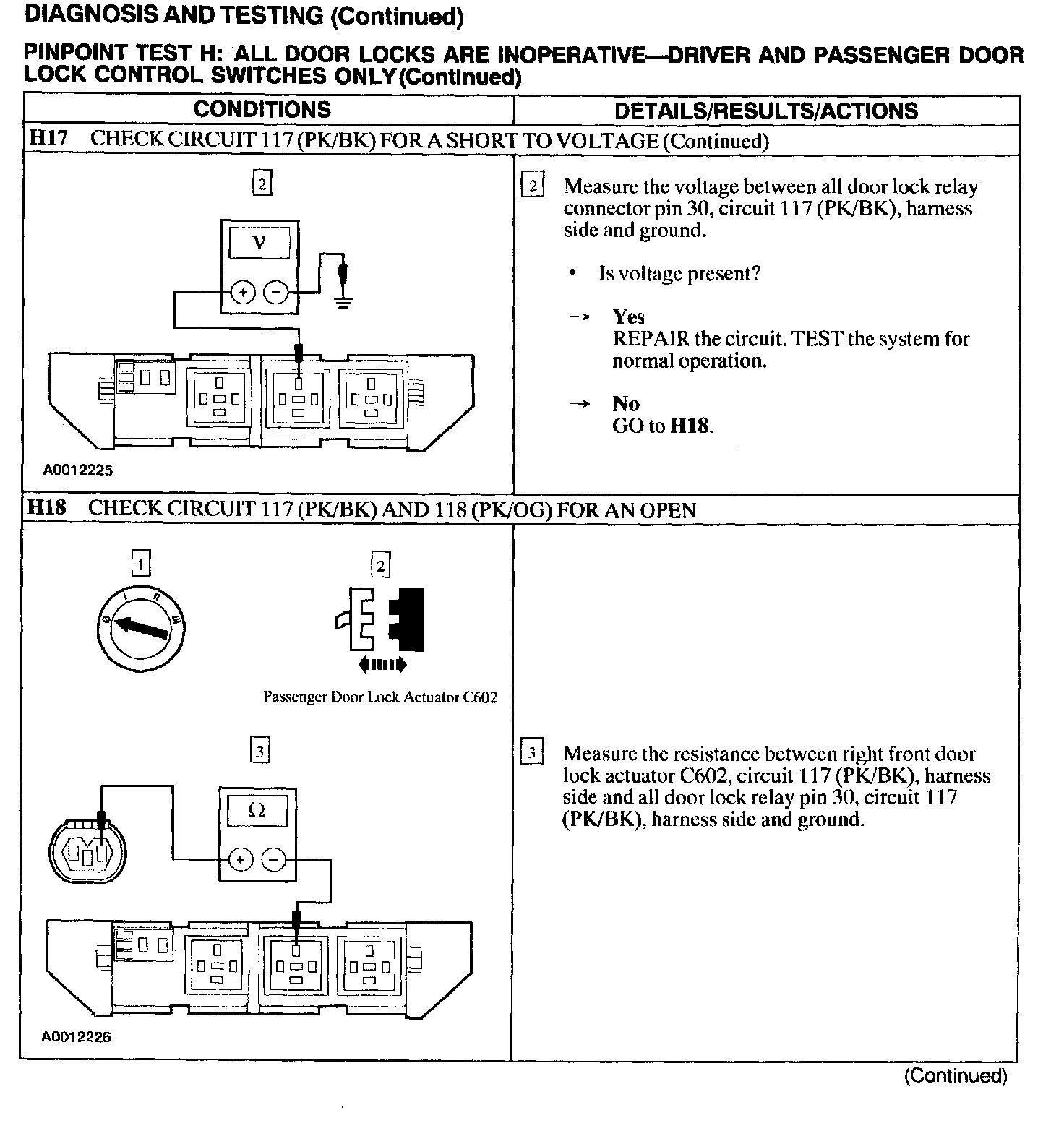

H17 - H18:

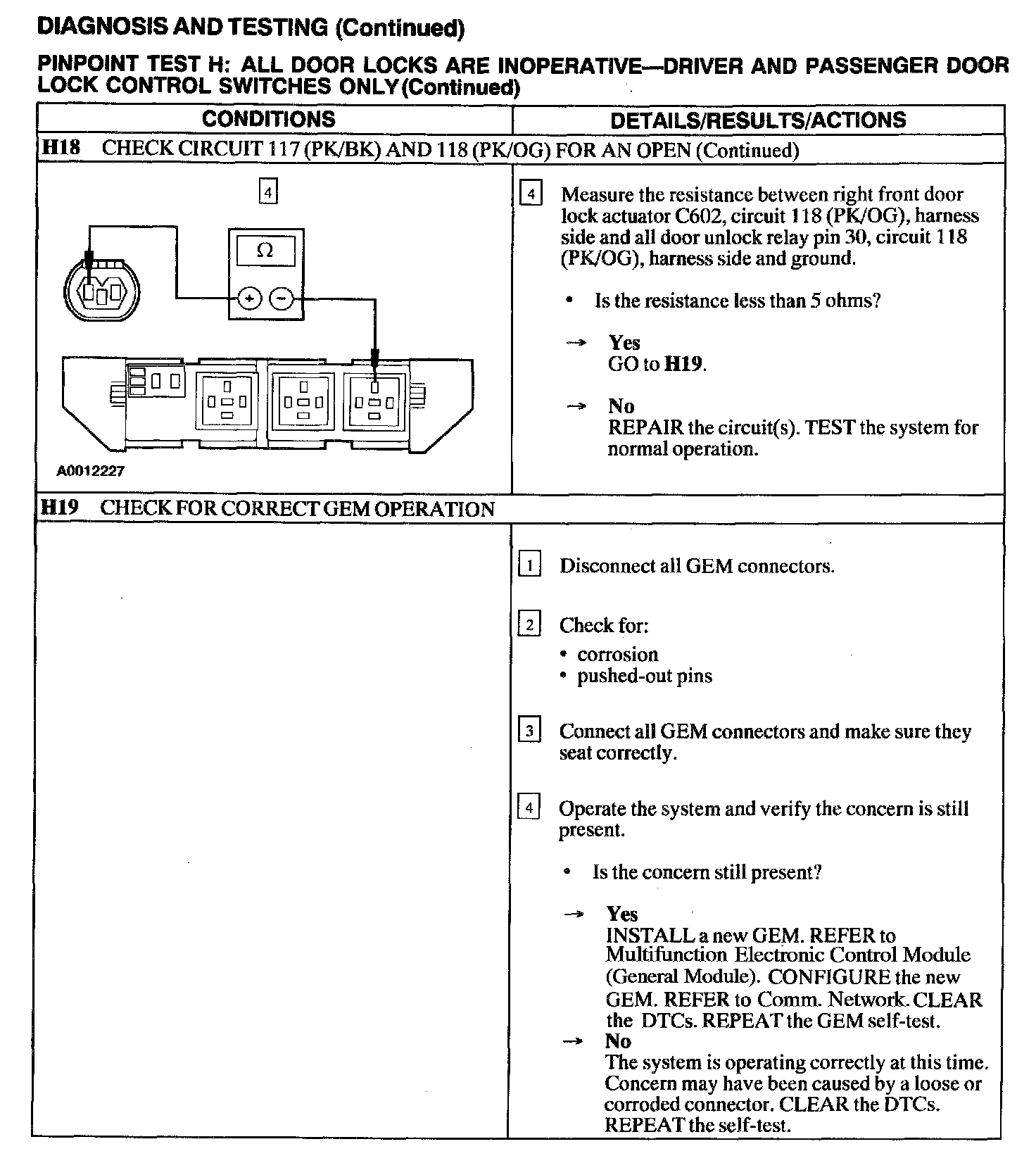

H18 - H19:
