Exhaust Pipes and Heat Shield
Exhaust Pipes and Heat Shield

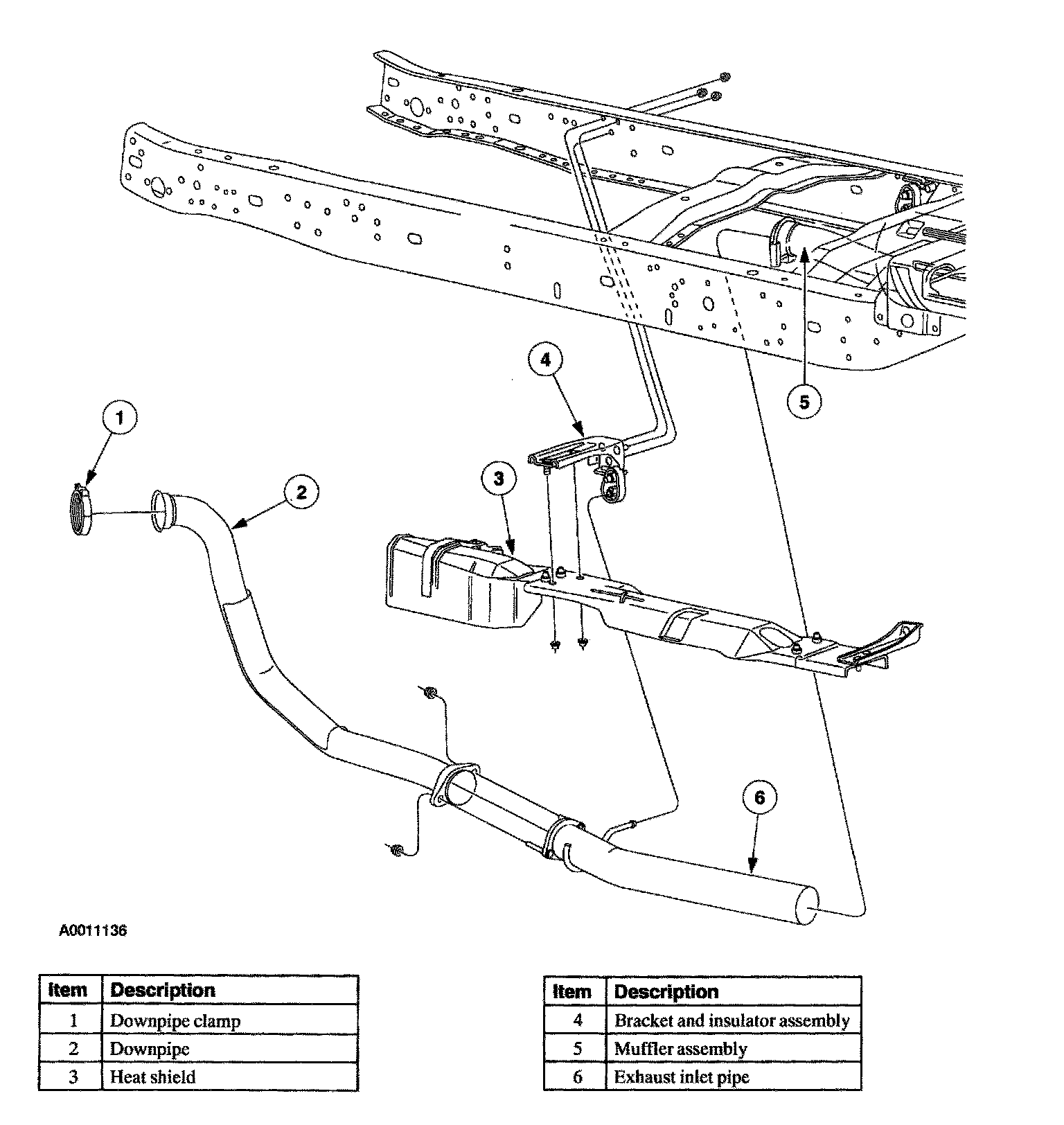

Exhaust Pipes and Heat Shield - 7.3L Engine:
