Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2001
>>
Excursion 2WD V8-7.3L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Cluster
>>
Test K: Brake Warning Indicator Is Never/always On - Yellow ABS Warning Indicator
Test K: Brake Warning Indicator Is Never/always On - Yellow ABS Warning Indicator

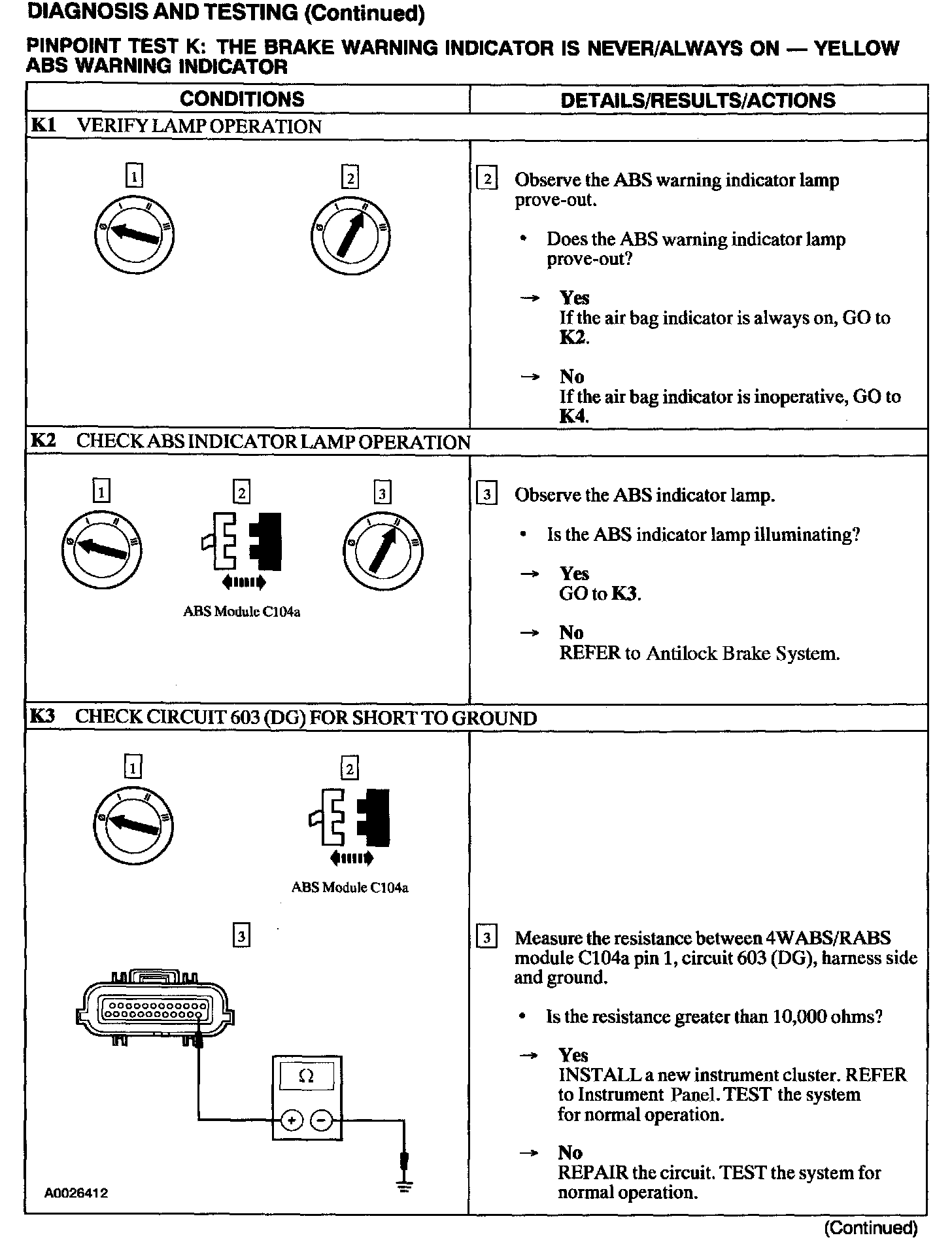

K1 - K3:

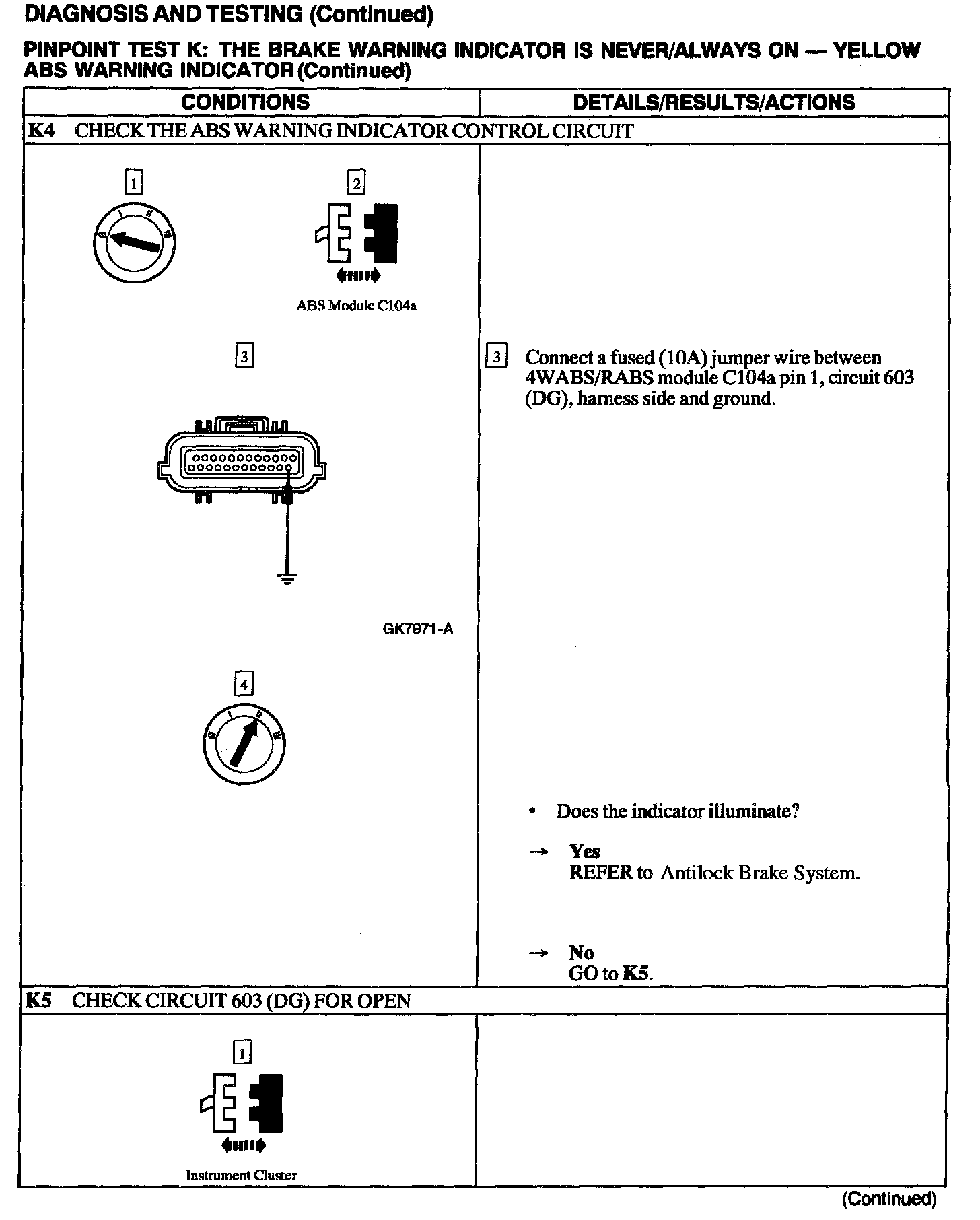

K4 - K5:

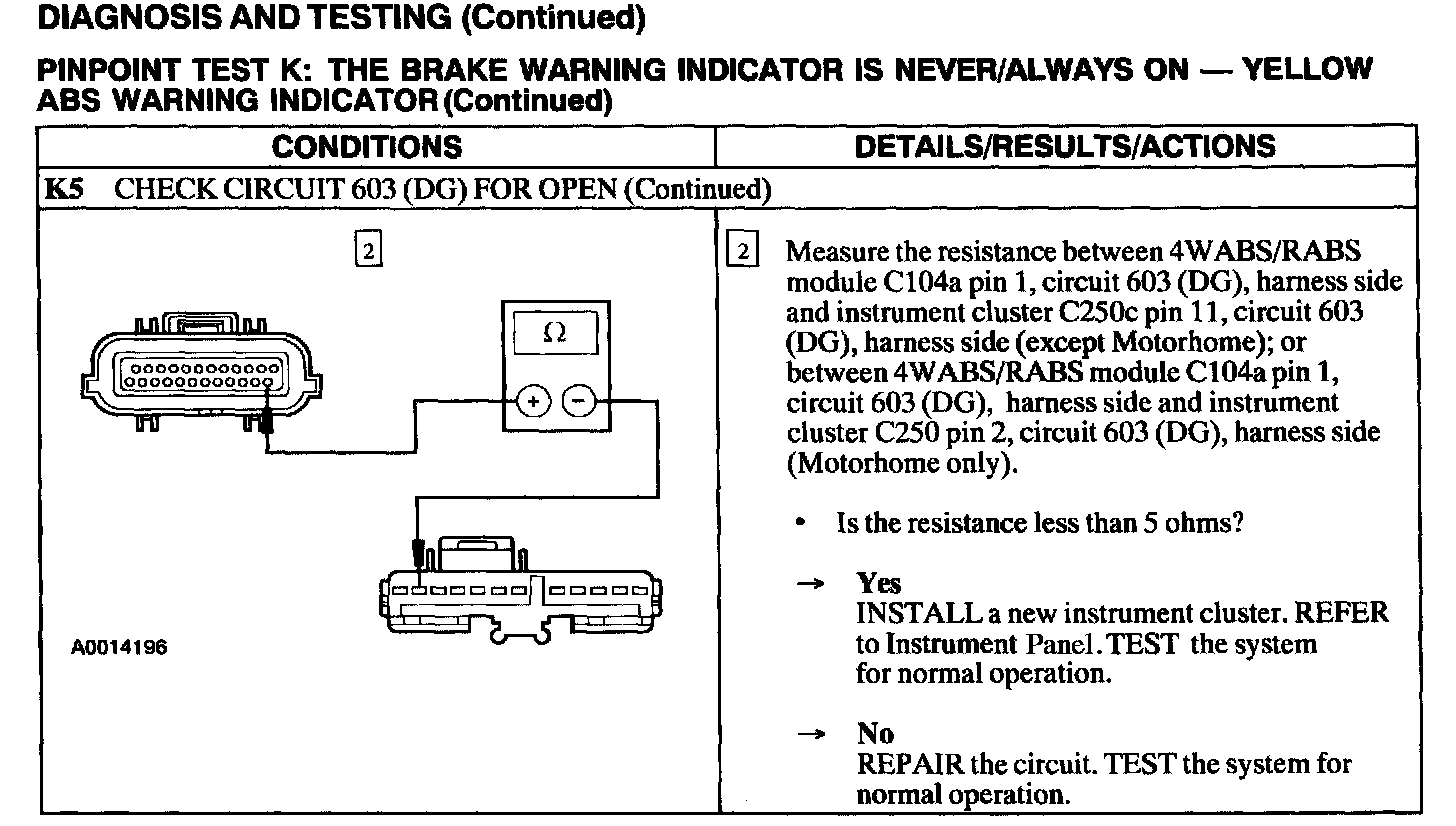

K5:
