Compuvalve Parameter Identification (PID) Index

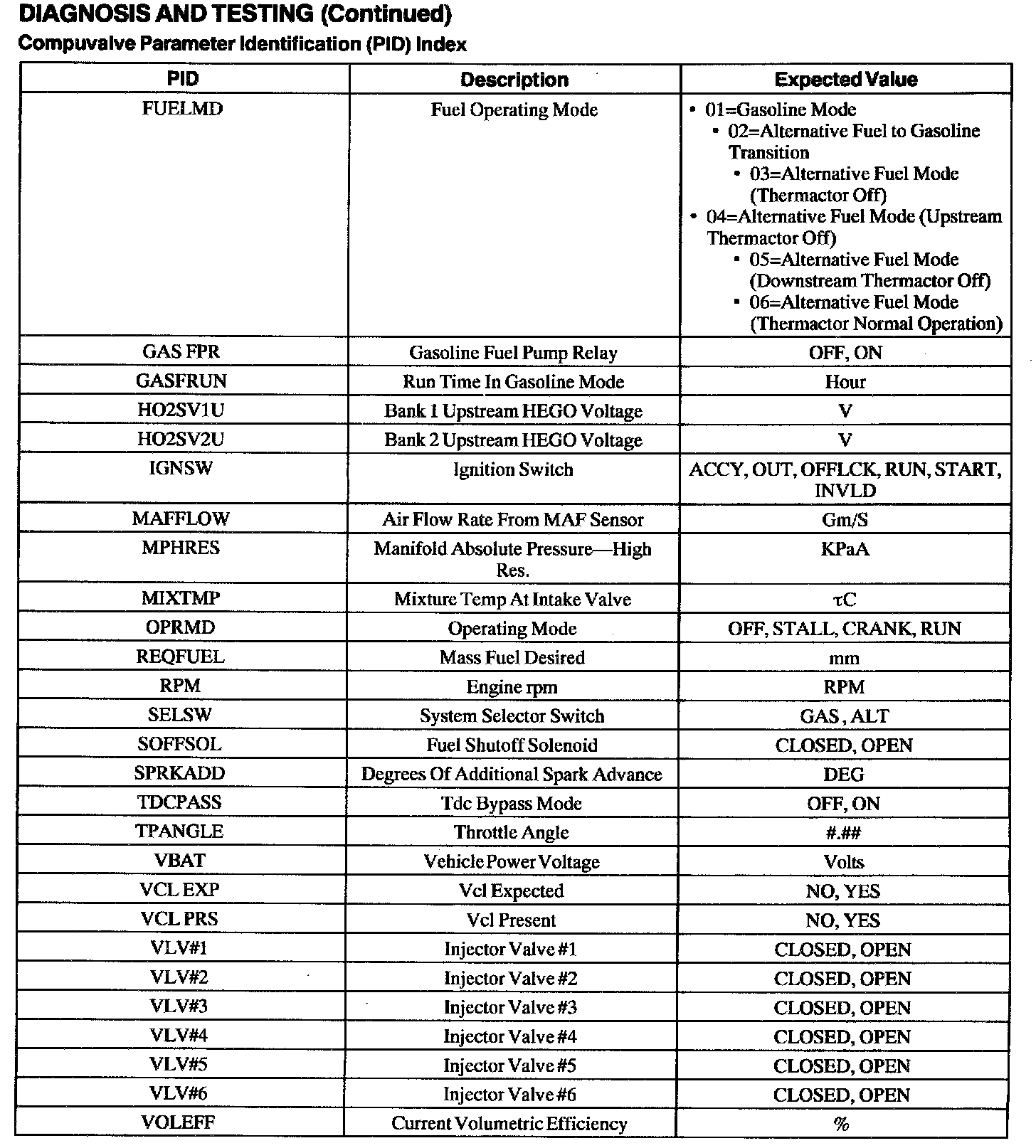

Compuvalve Parameter Identification (PID) Index, Part 1:

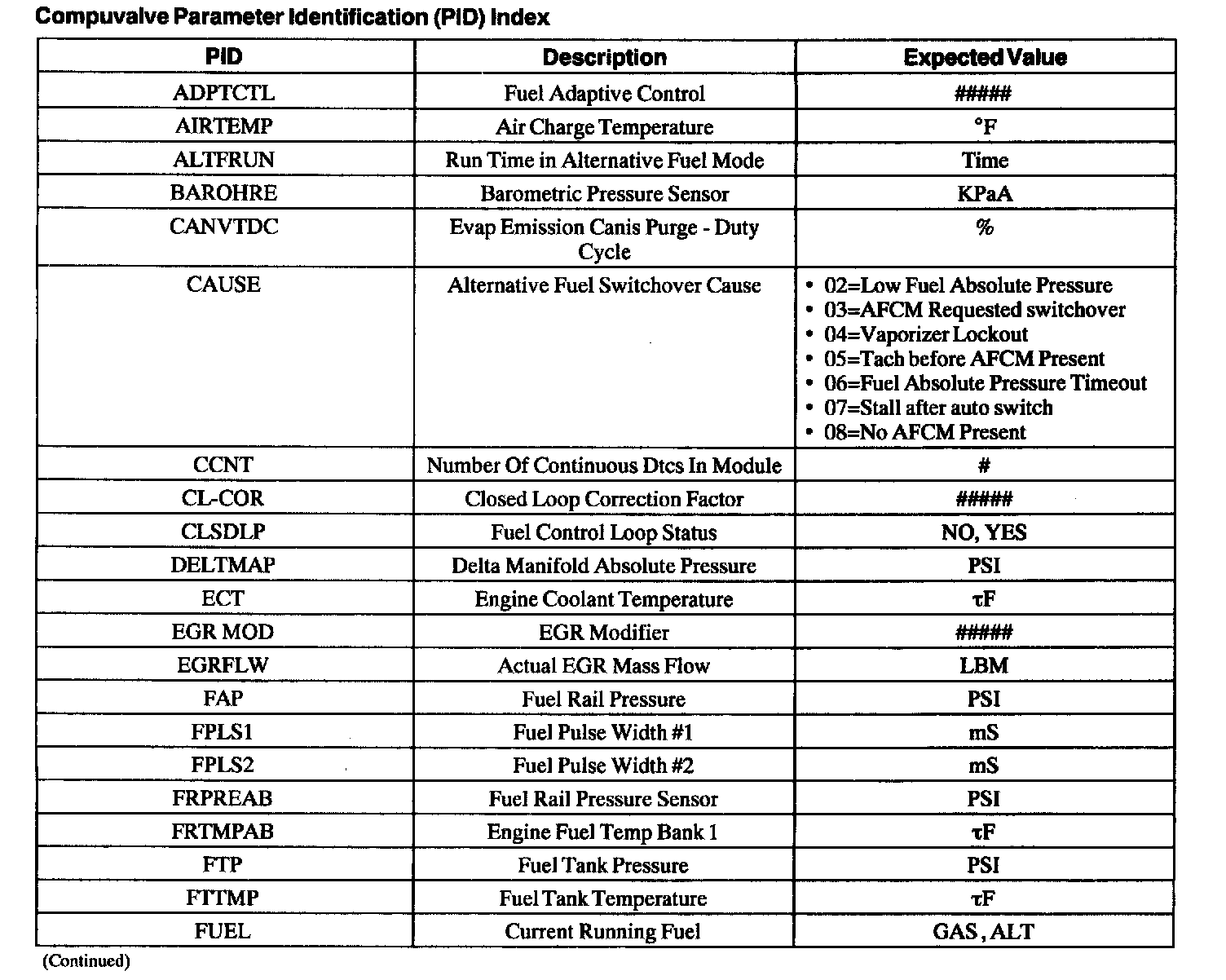

Compuvalve Parameter Identification (PID) Index, Part 2:
