GEM Parameter Identification (PID) Index

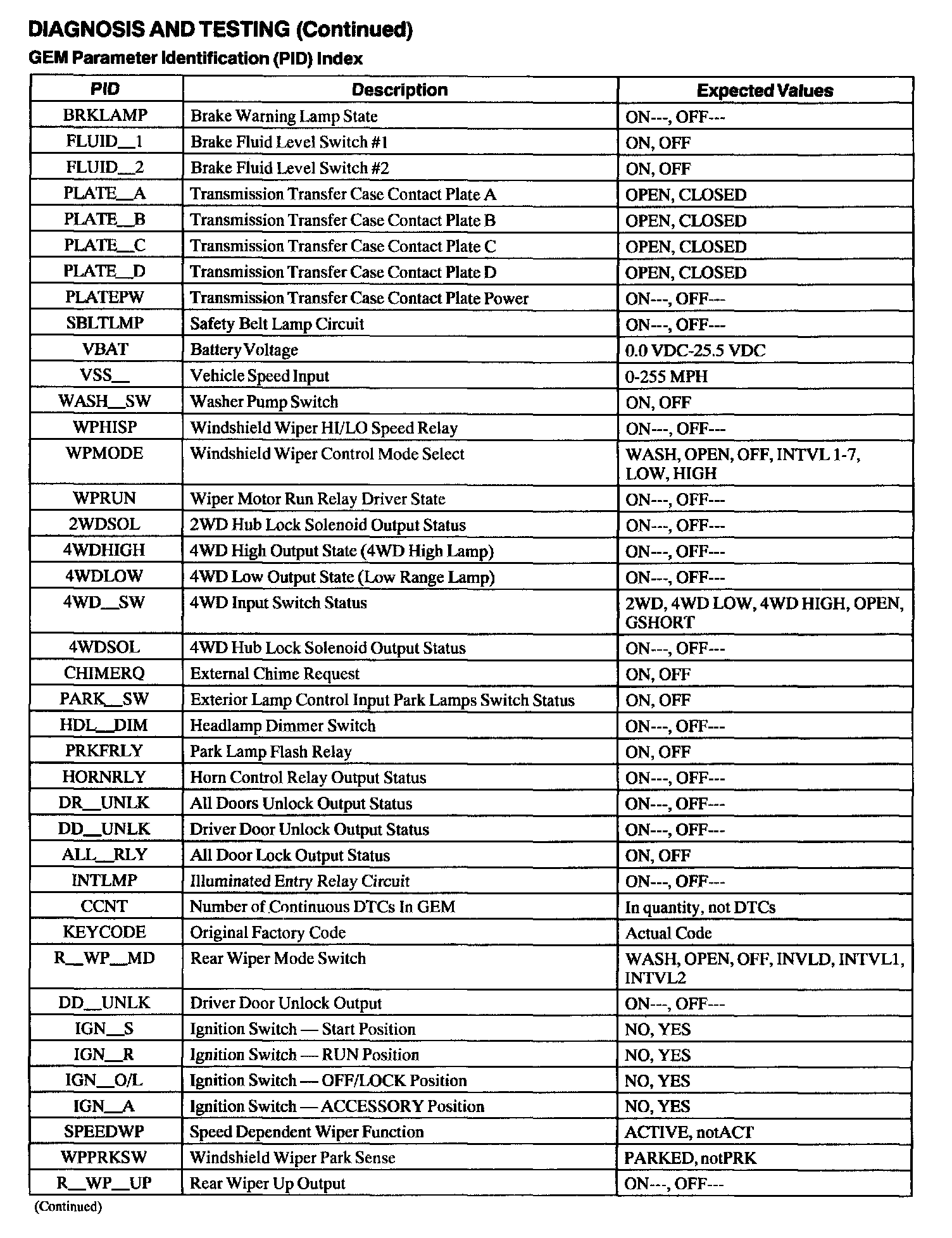

GEM Parameter Identification (PID) Index, Part 1:

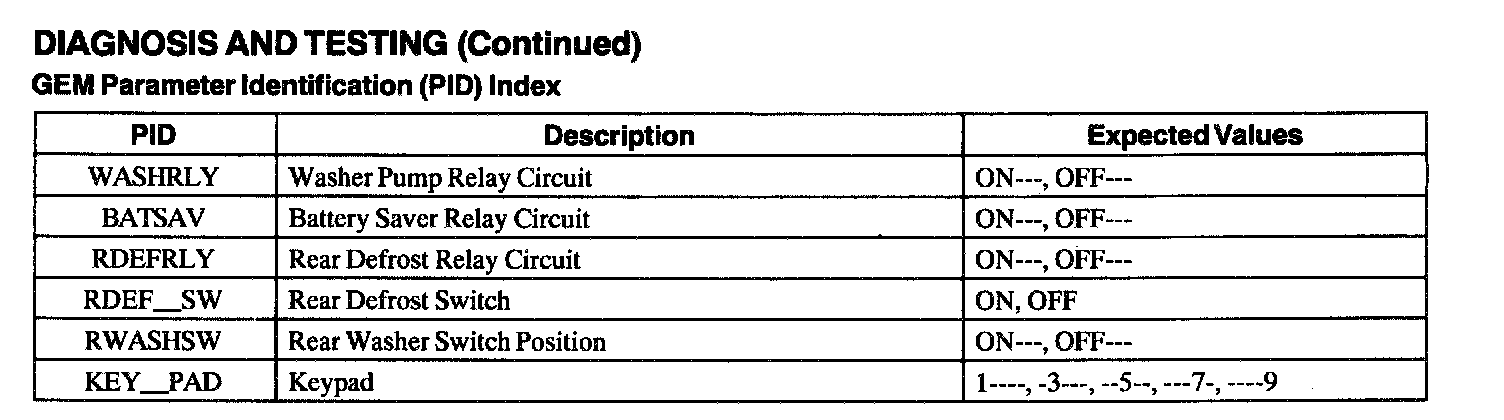

GEM Parameter Identification (PID) Index, Part 2:

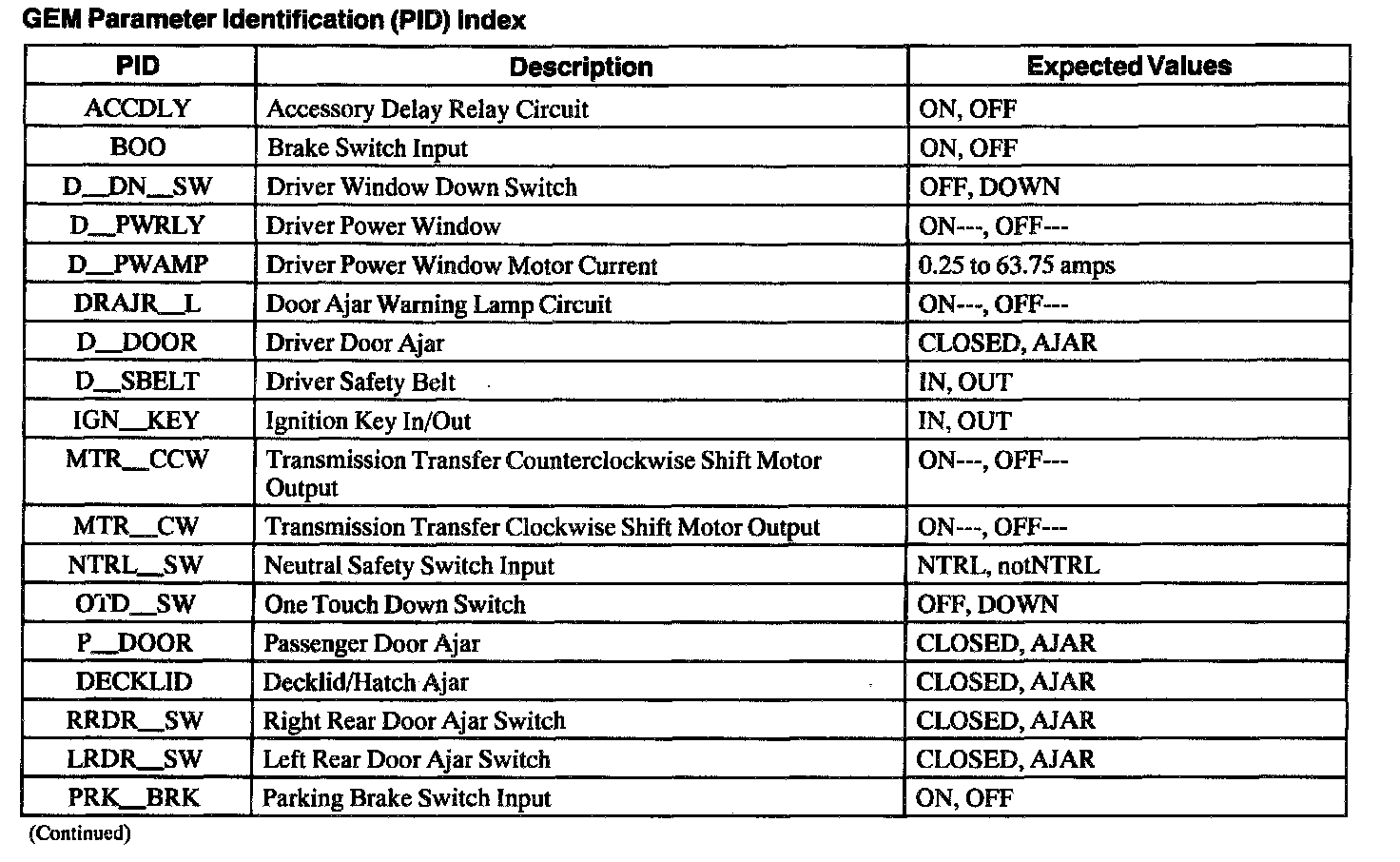

GEM Parameter Identification (PID) Index, Part 3:
