Home >> Ford >> 2001 >> Excursion 2WD V8-7.3L DSL Turbo VIN F >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Diagrams

Turn Signals: Diagrams

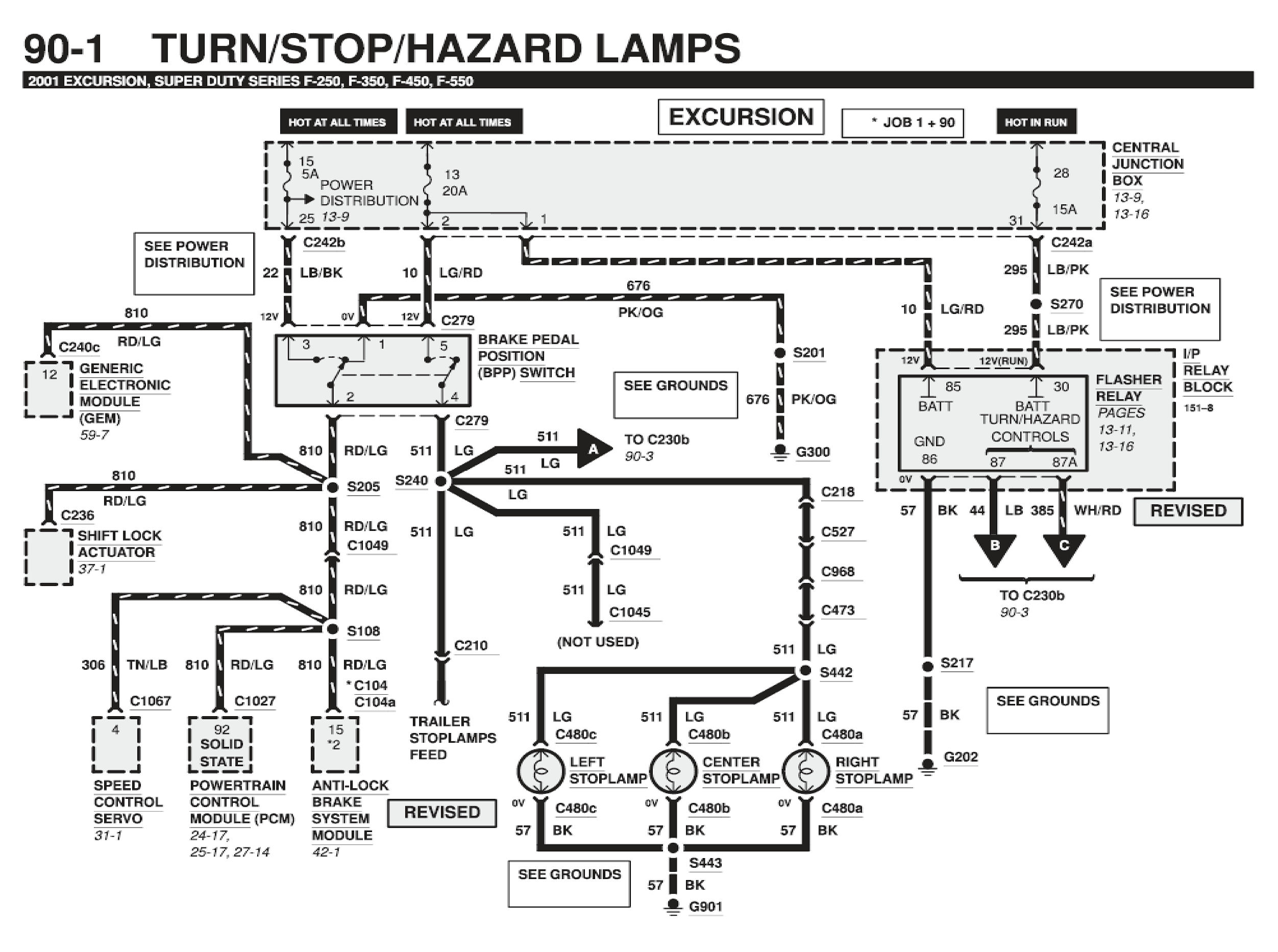

Diagram 90-1:

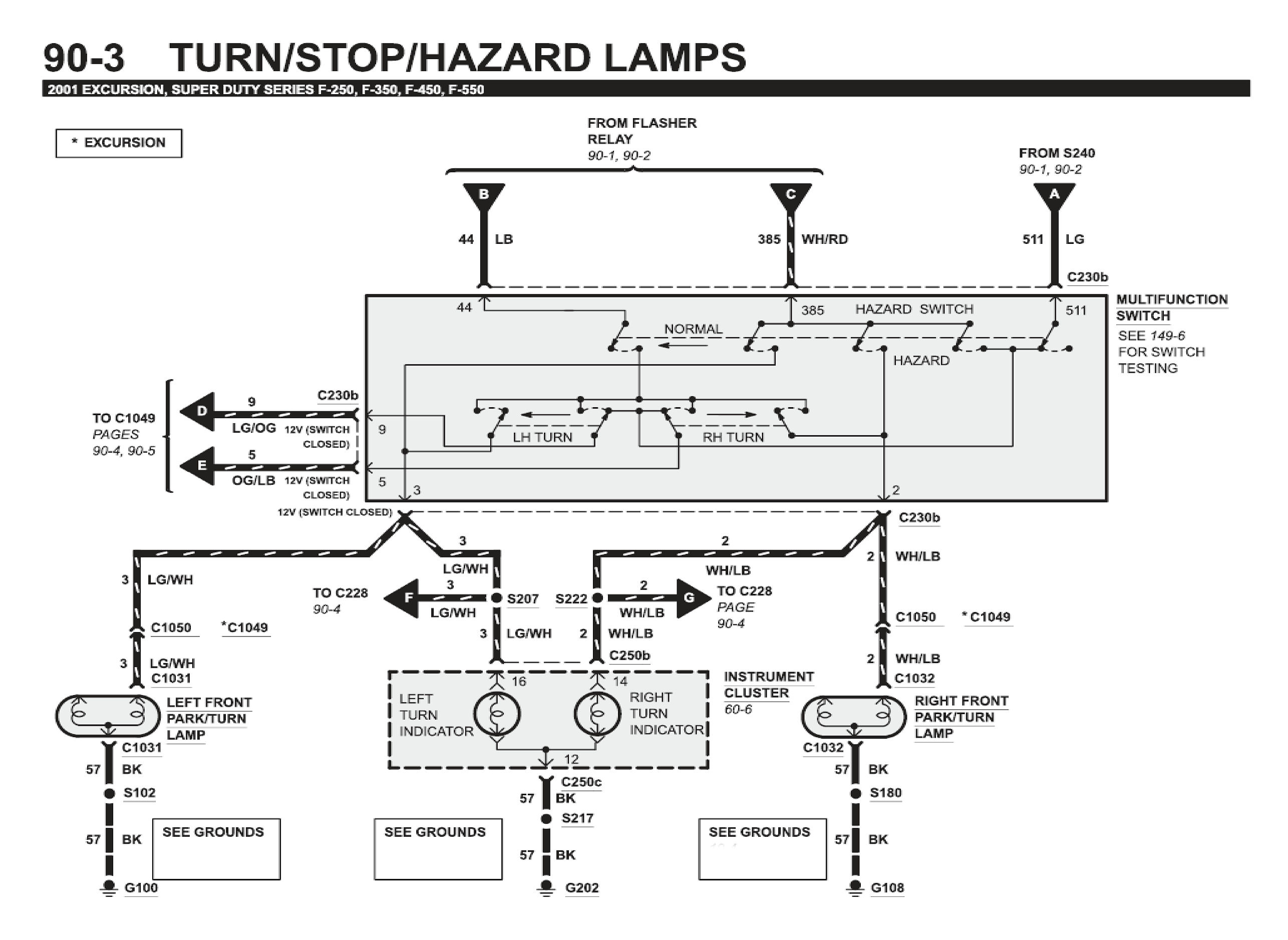

Diagram 90-3:

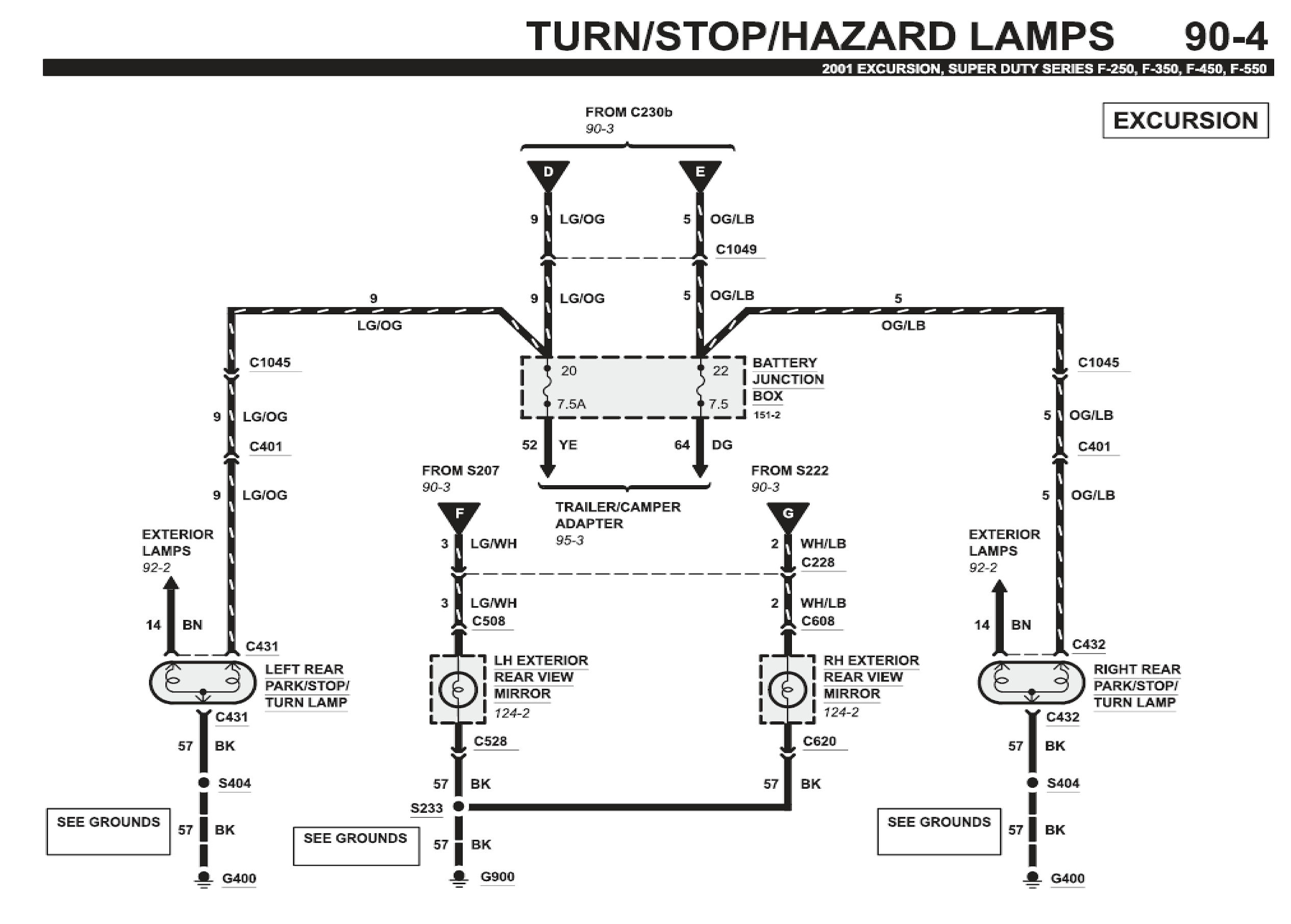

Diagram 90-4:
