Tests DA: Intake Air Temperature (IAT) Sensor

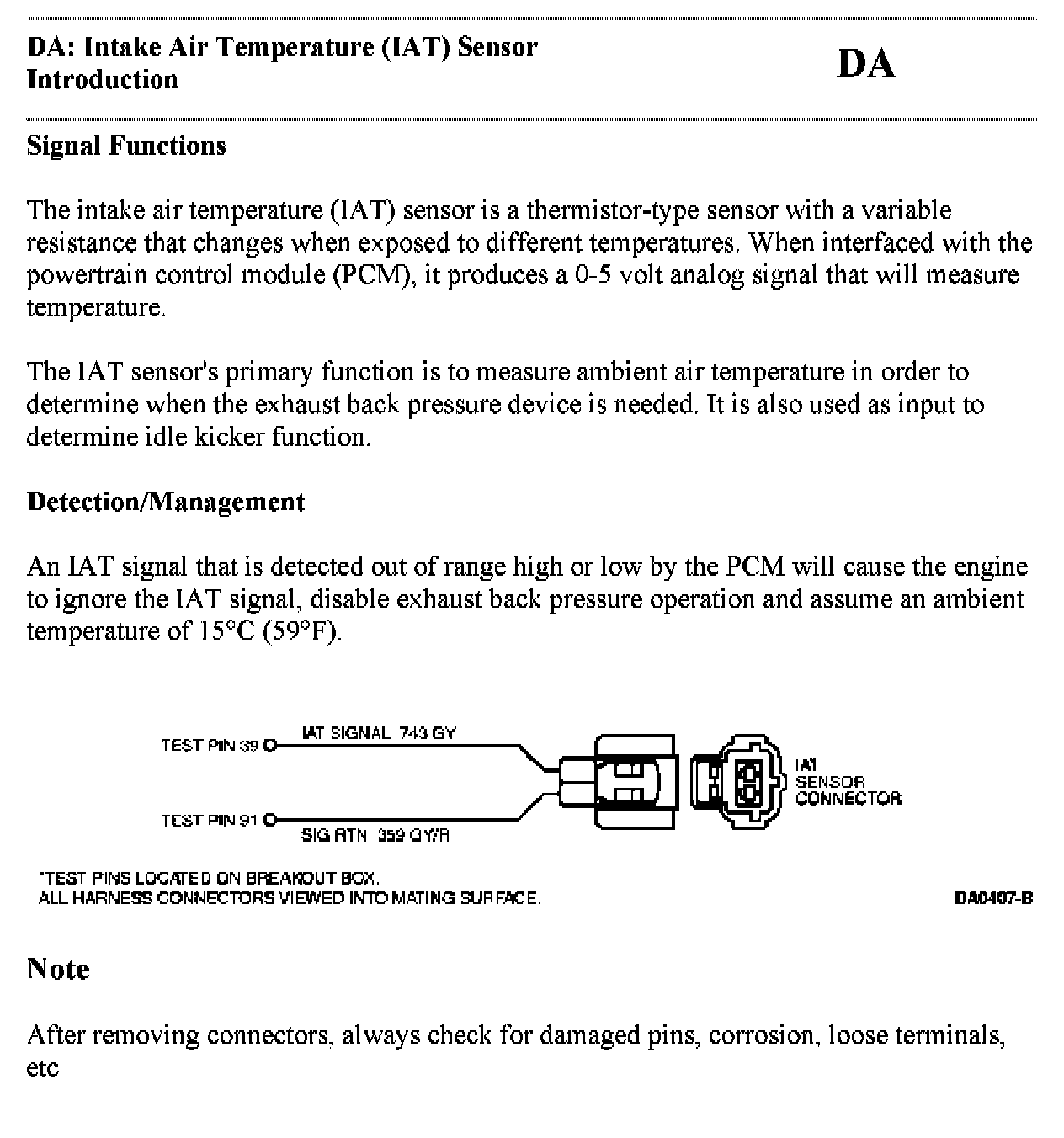

DA Introduction 1 Of 2:

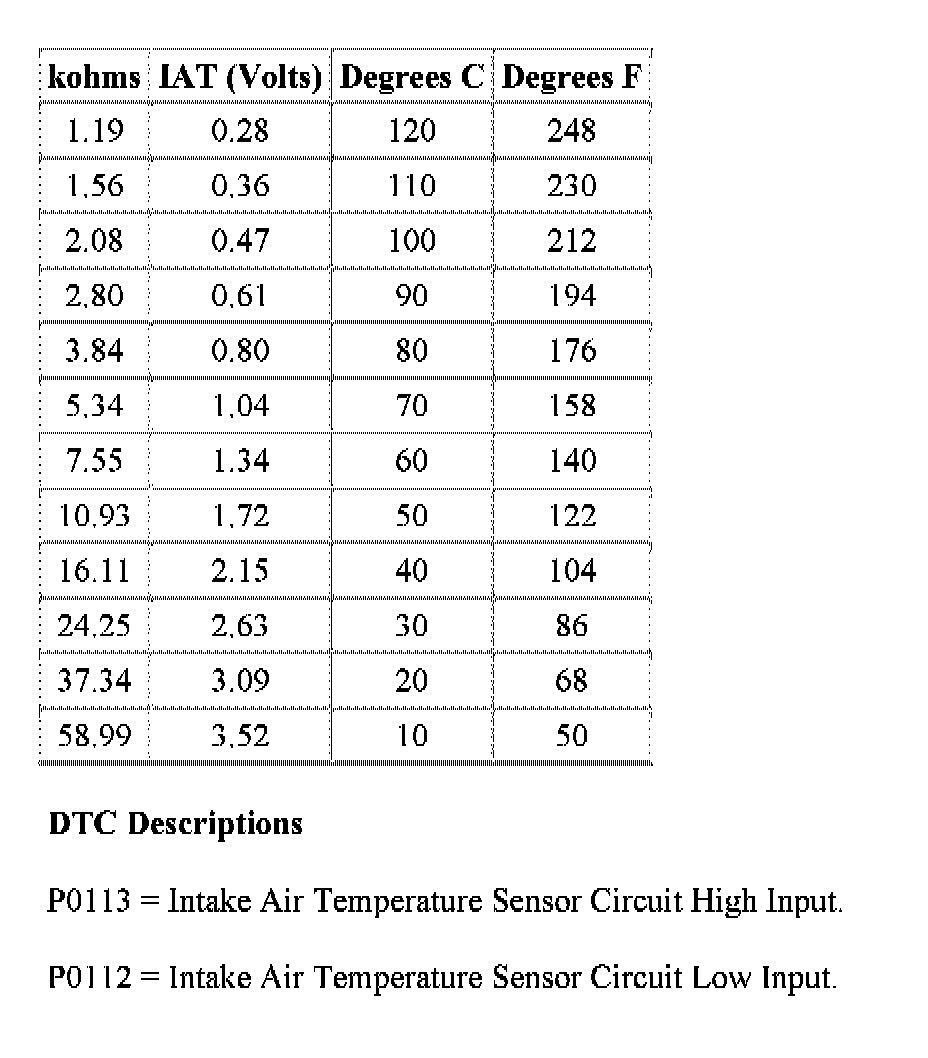

DA Introduction 2 Of 2:

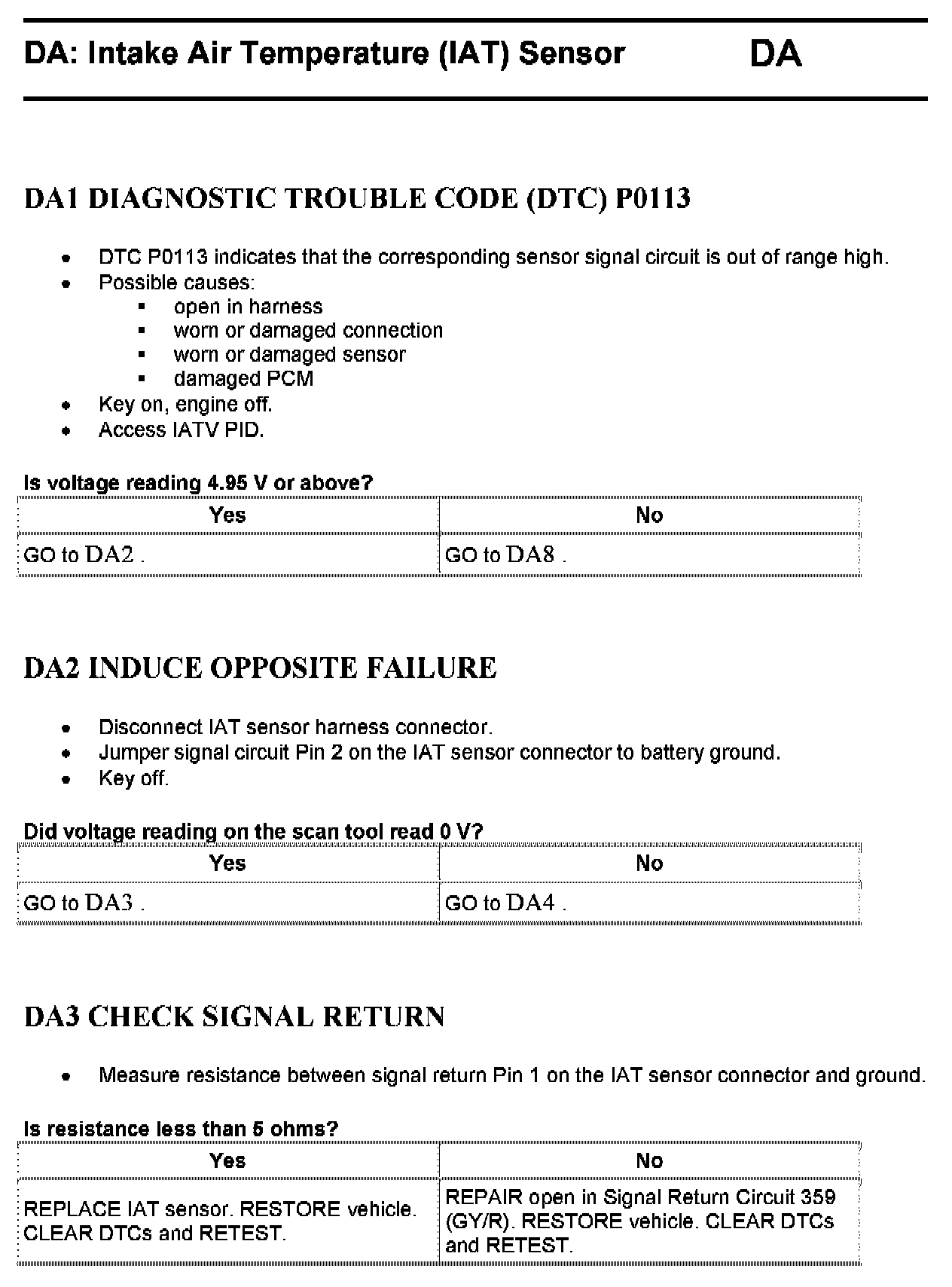

DA1 - DA3:

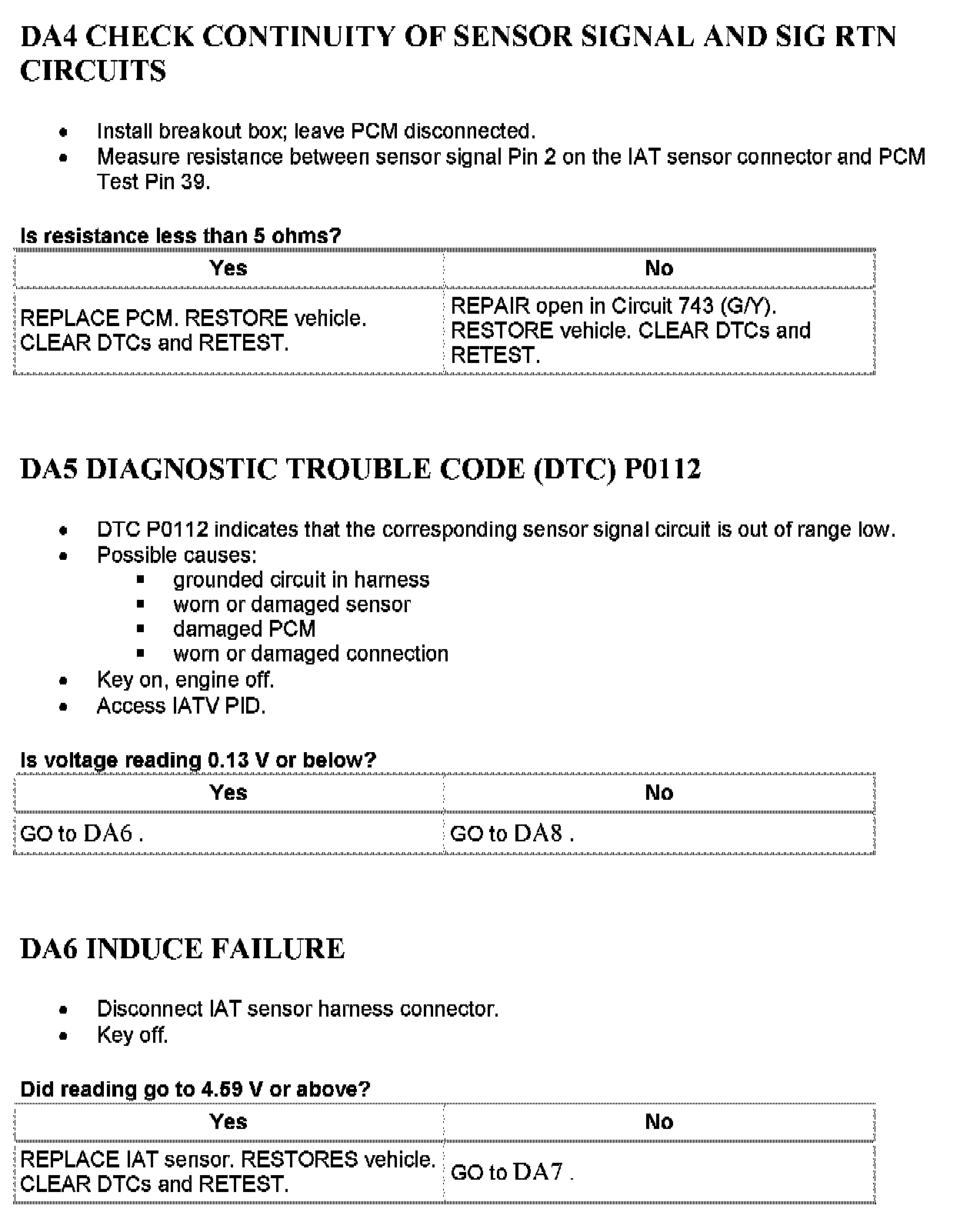

DA4 - DA6:

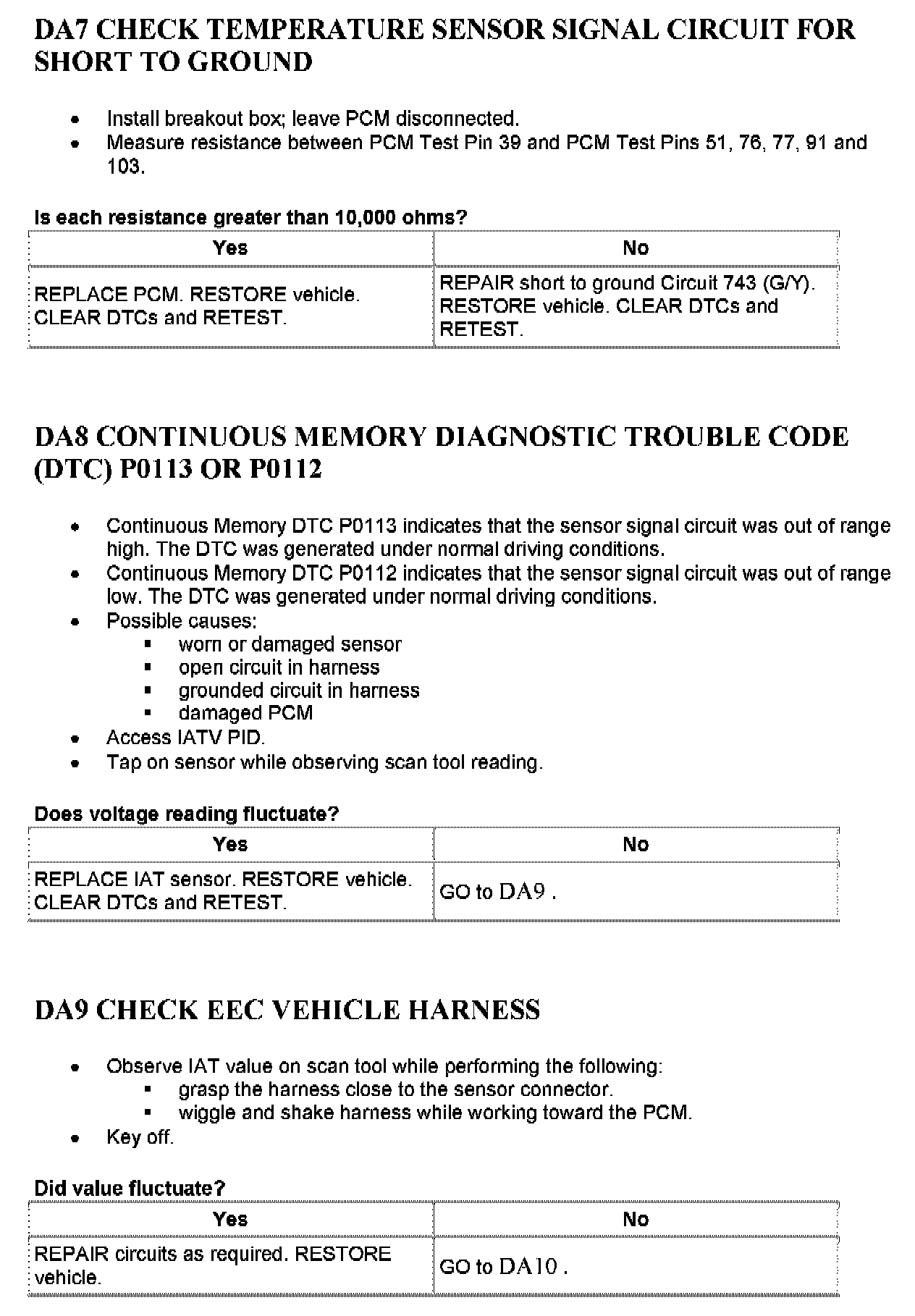

DA7 - DA9:

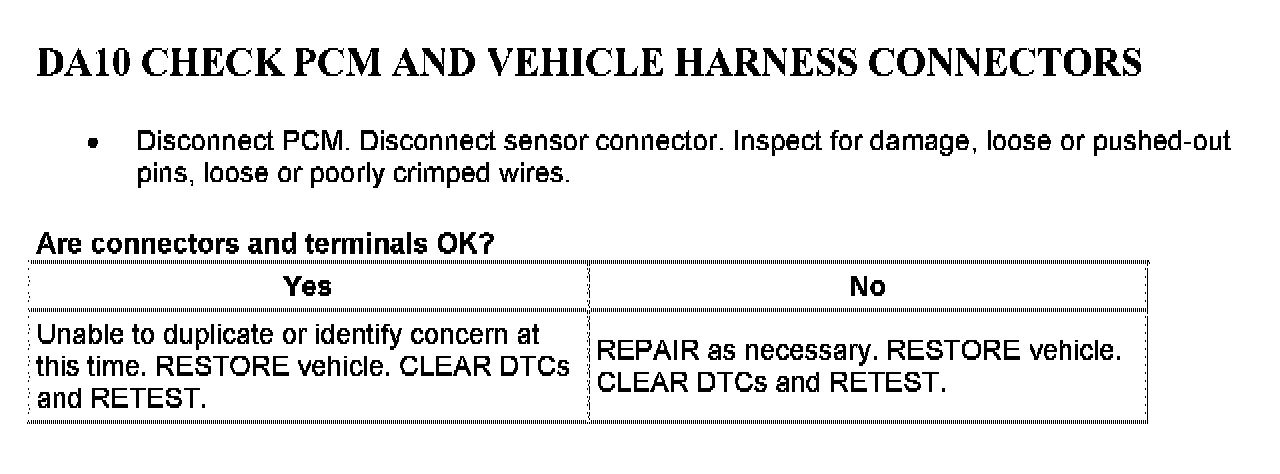

DA10:
