Tests DE: Exhaust Back Pressure (EBP) Sensor

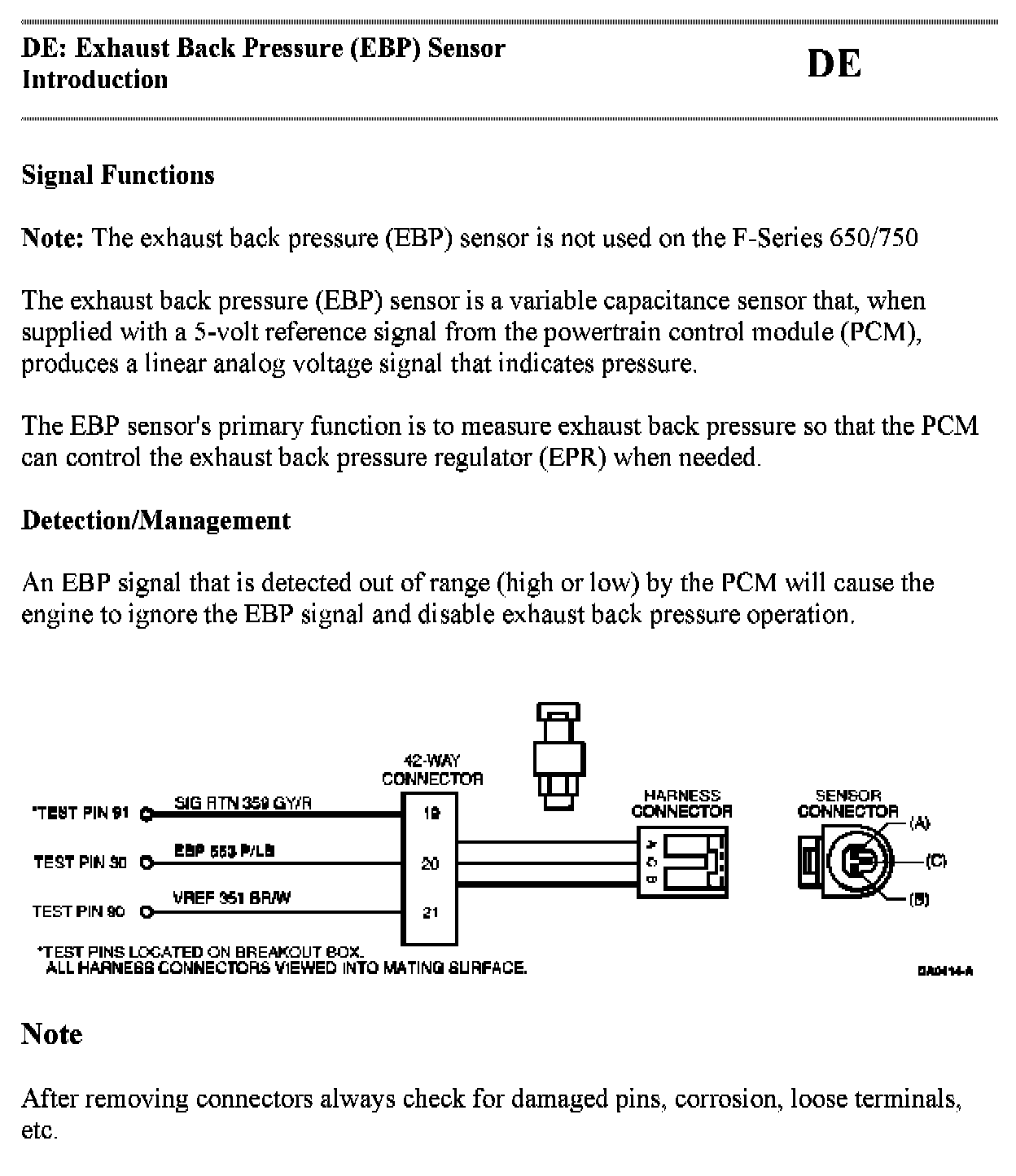

DE Introduction 1 Of 3:





DE Introduction 2 Of 3:





DE Introduction 3 Of 3:





DE1 - DE2:





DE3 - DE4:





DE5 - DE7:





DE8 - DE9:





DE10 - DE12:





DE13 - DE15:





DE16 - DE18:





DE19 - DE20:
