Tests DH: Manifold Absolute Pressure (MAP) Sensor, Analog

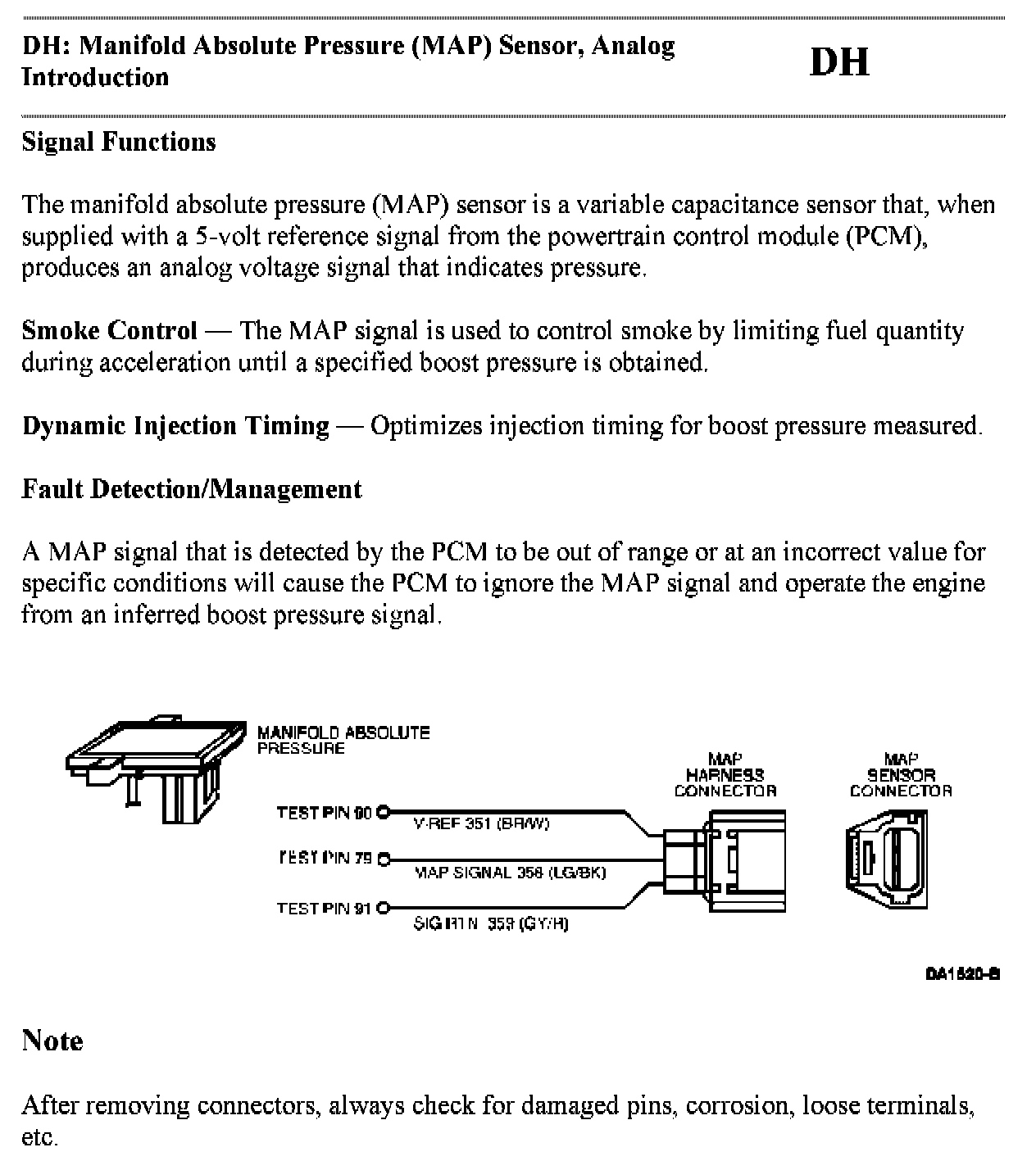

DH Introduction 1 Of 2:

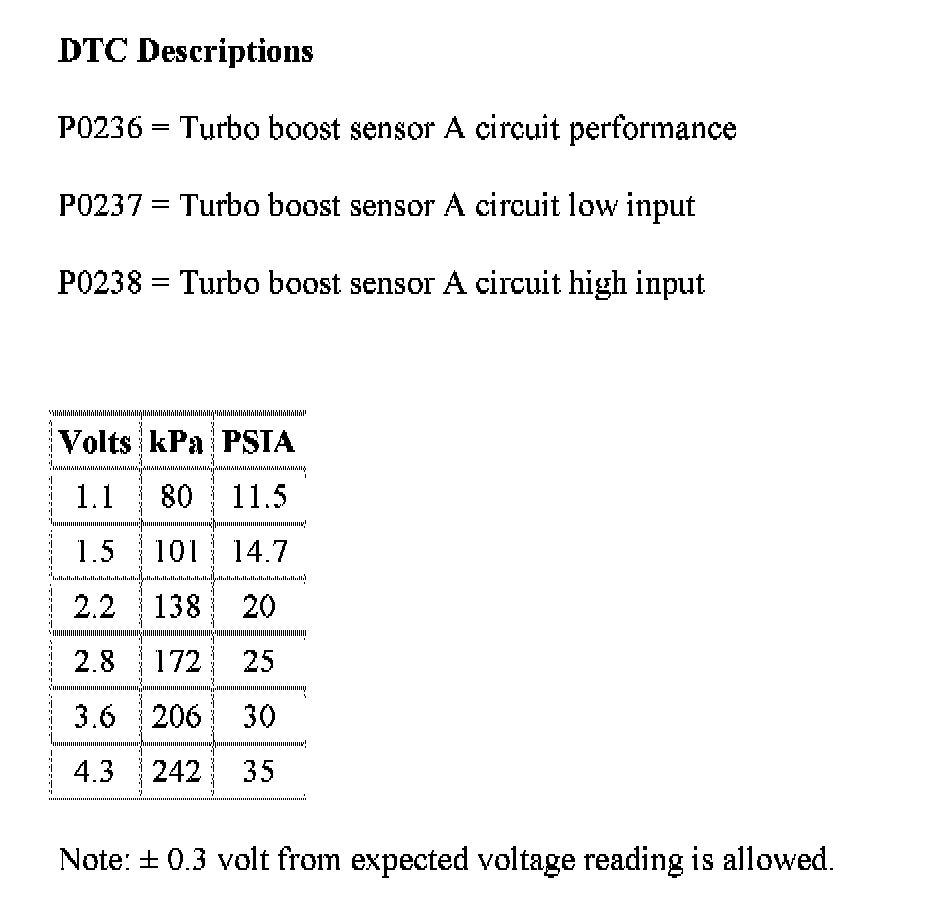

DH Introduction 2 Of 2:

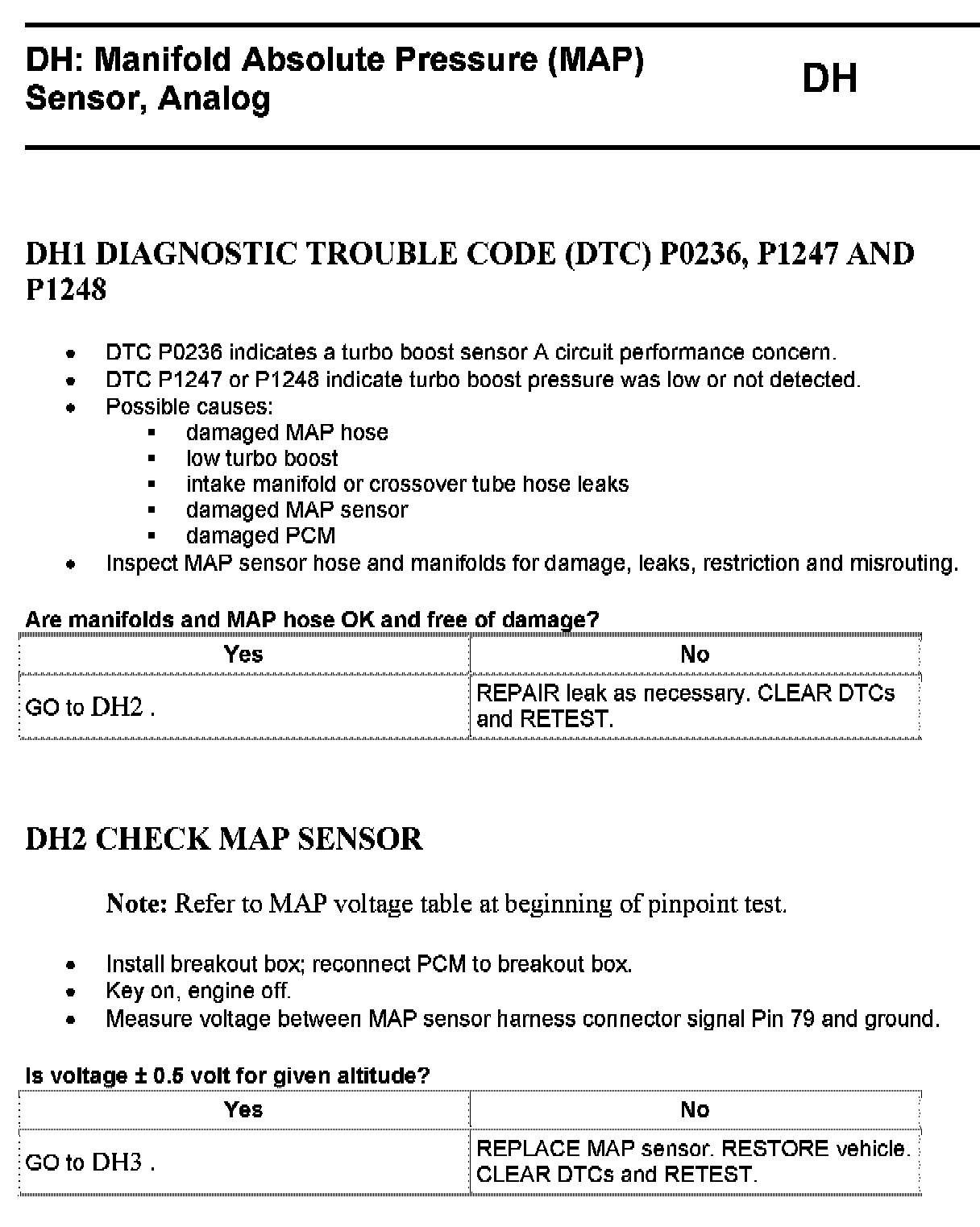

DH1 - DH2:

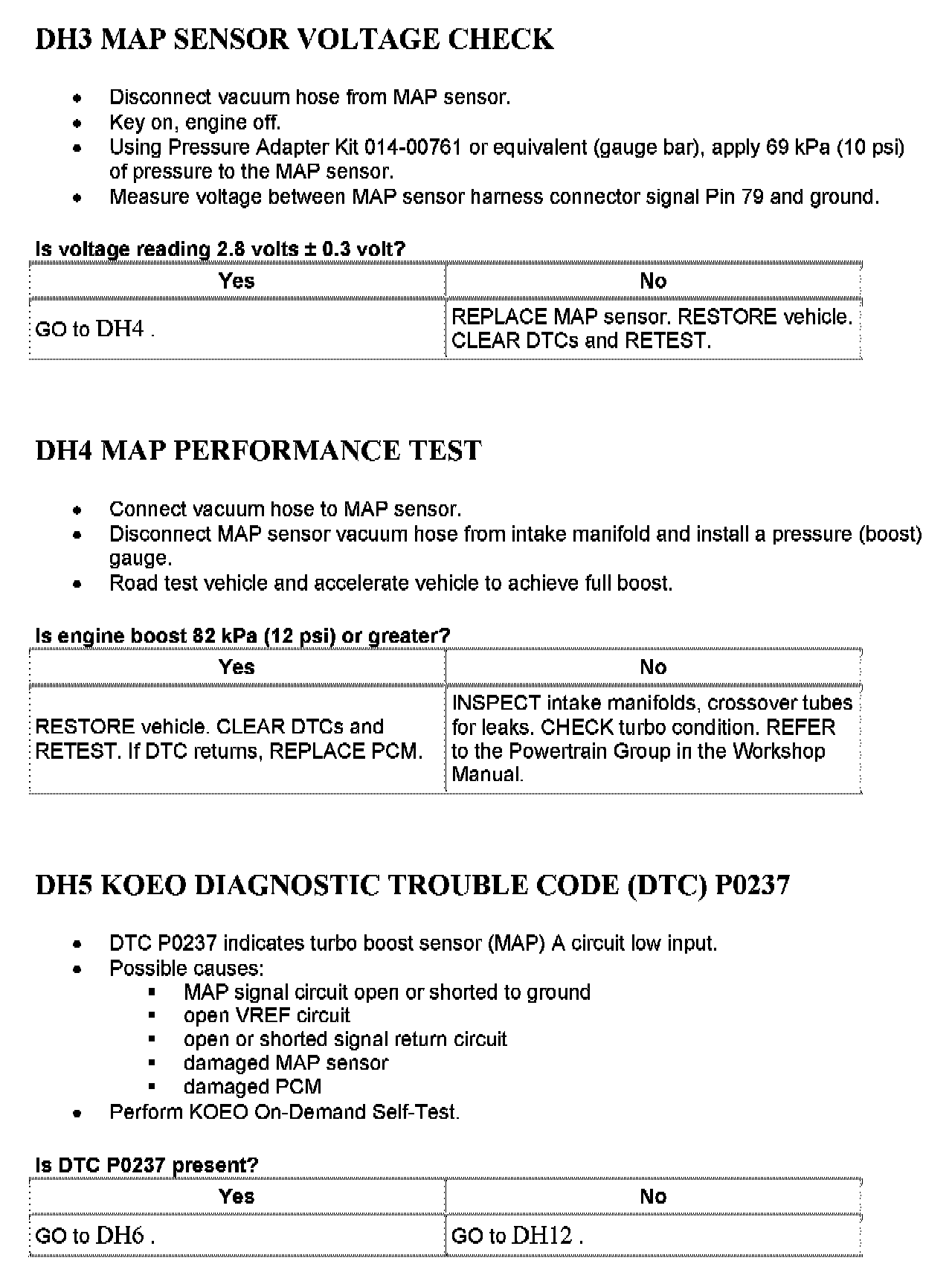

DH3 - DH5:

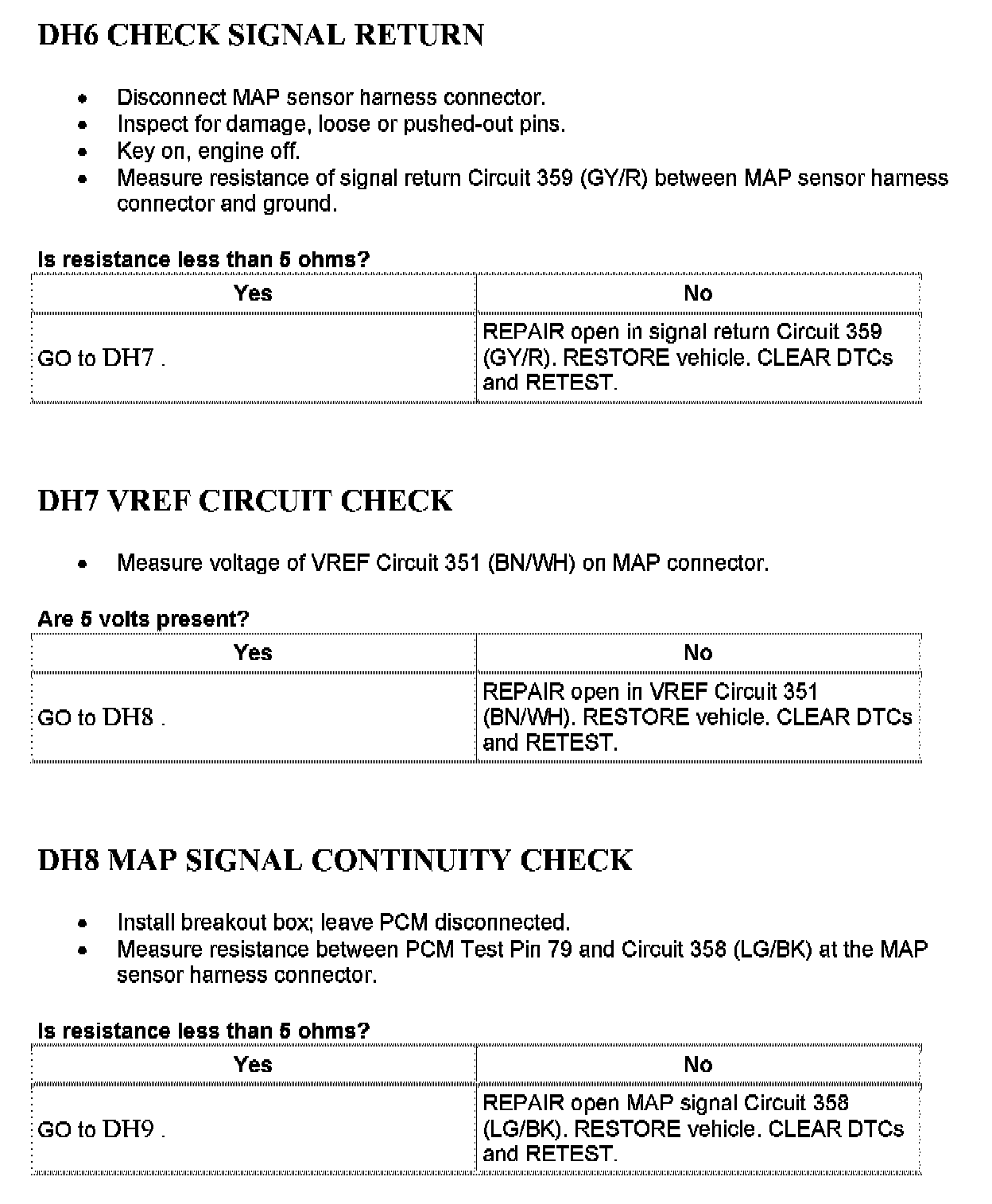

DH6 - DH8:

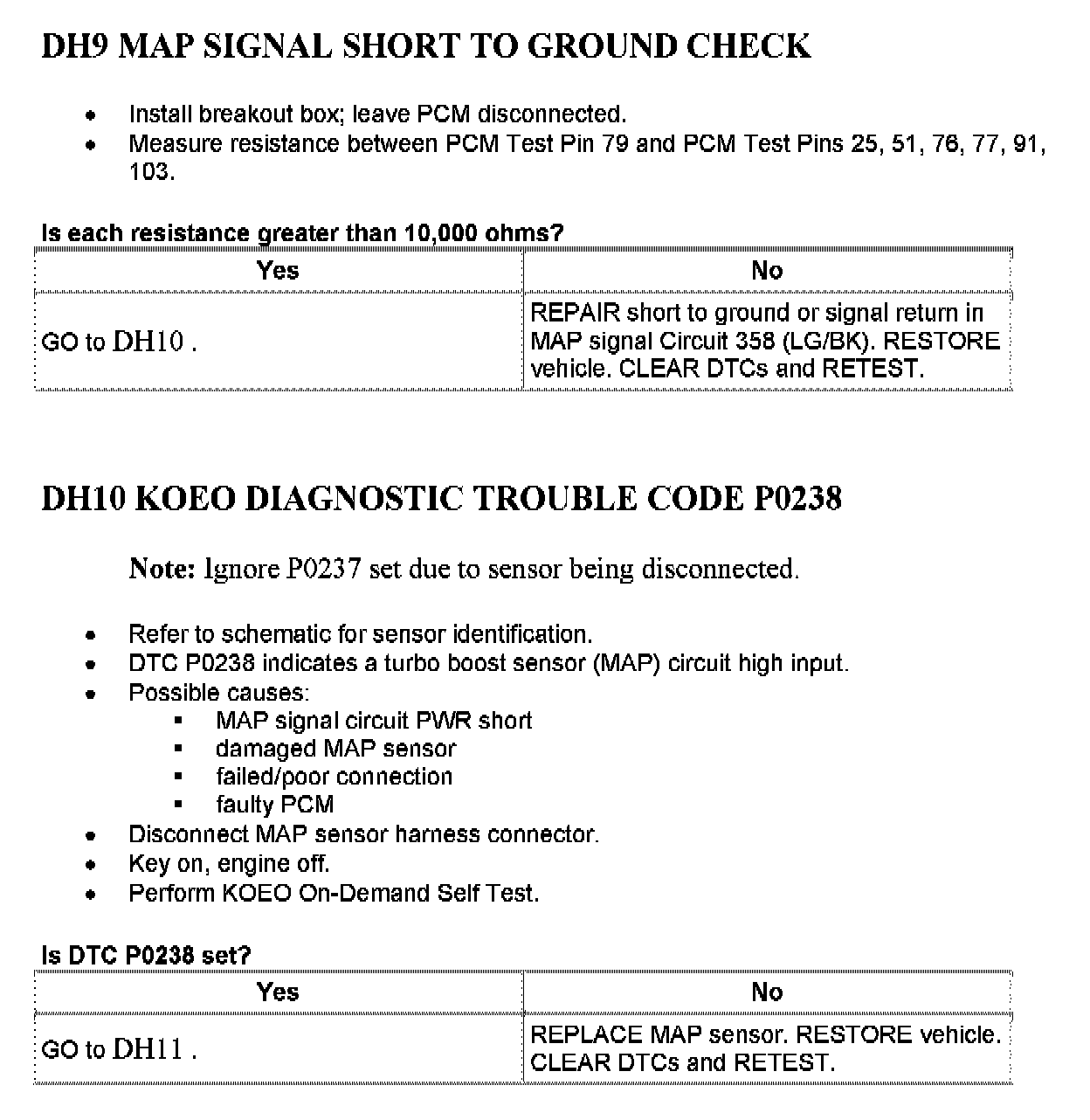

DH9 - DH10:

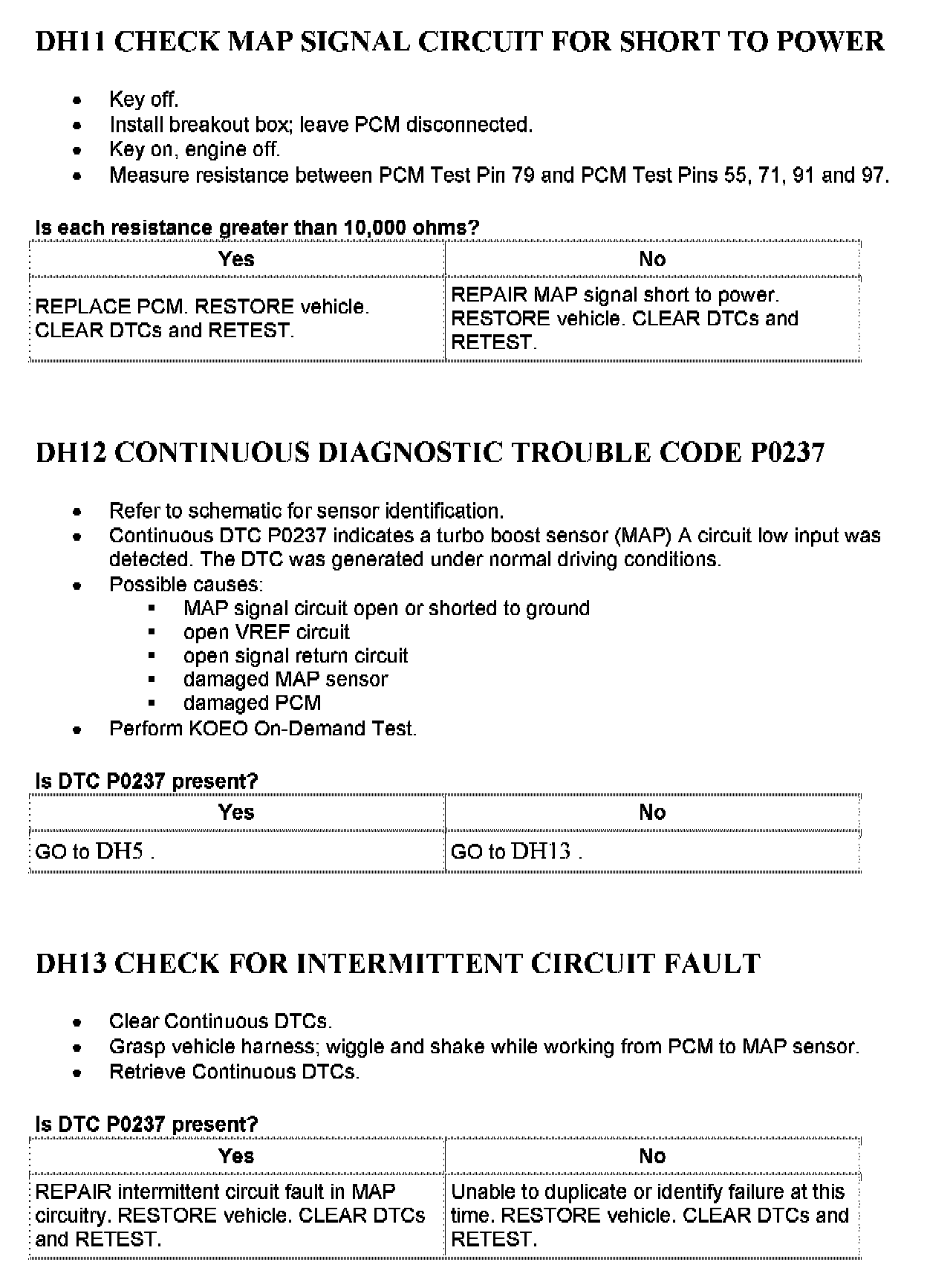

DH11 - DH13:

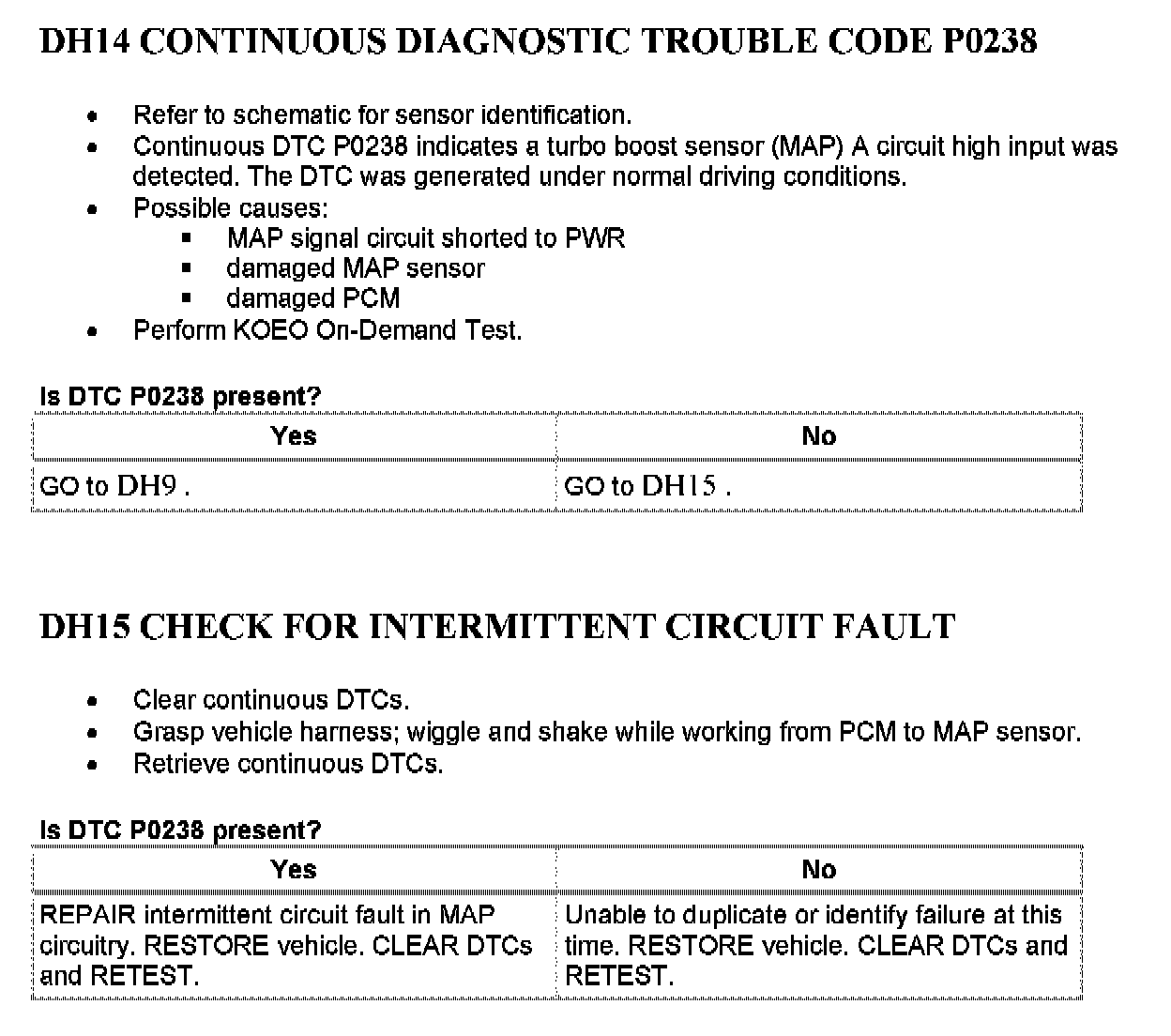

DH14 - DH15:
