Tests FD: Brake Lamp Switch

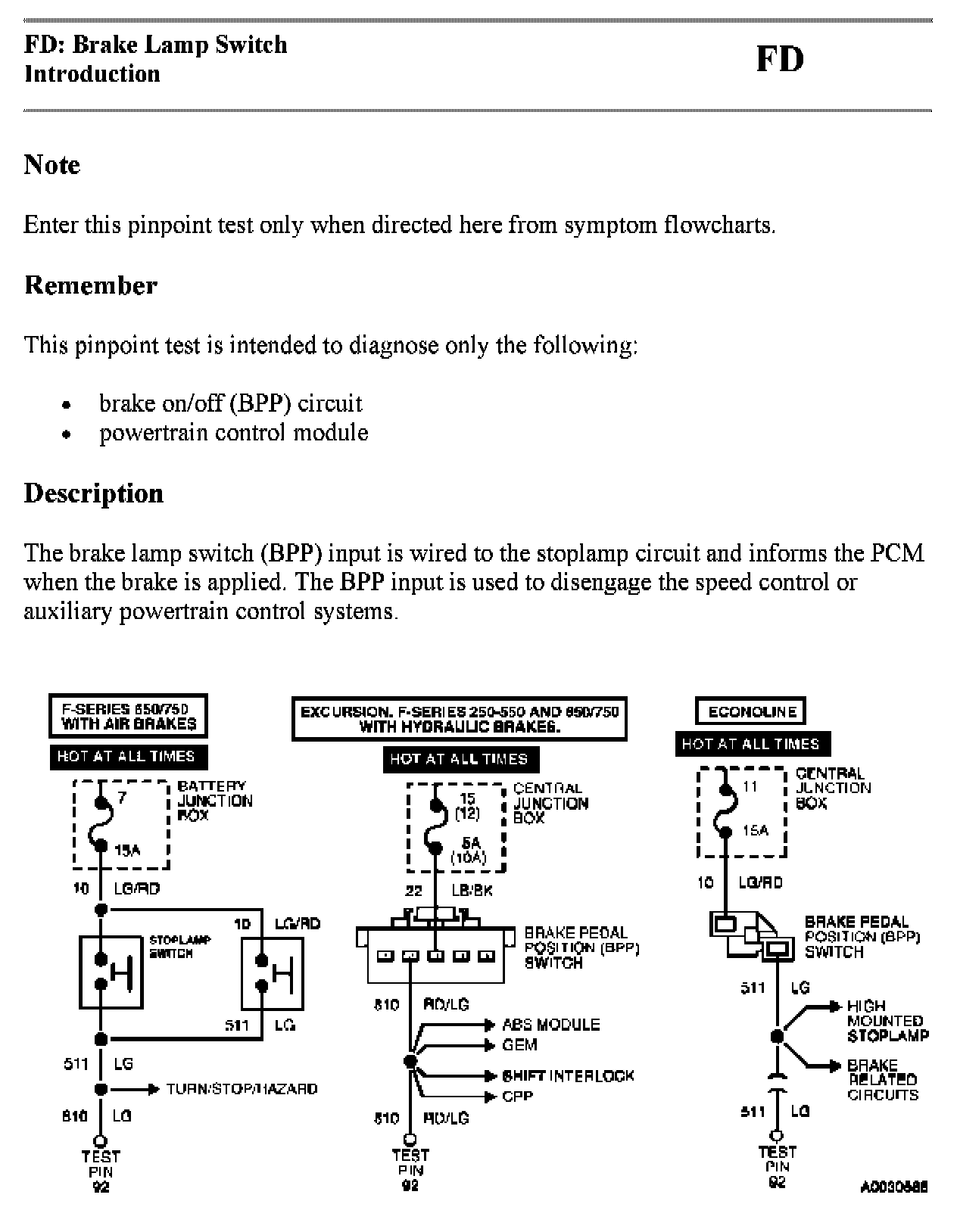

FD Introduction 1 Of 2:

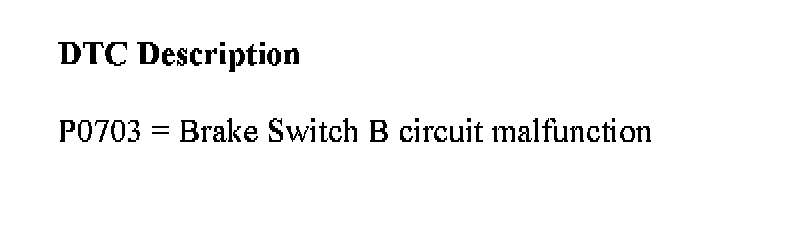

FD Introduction 2 Of 2:

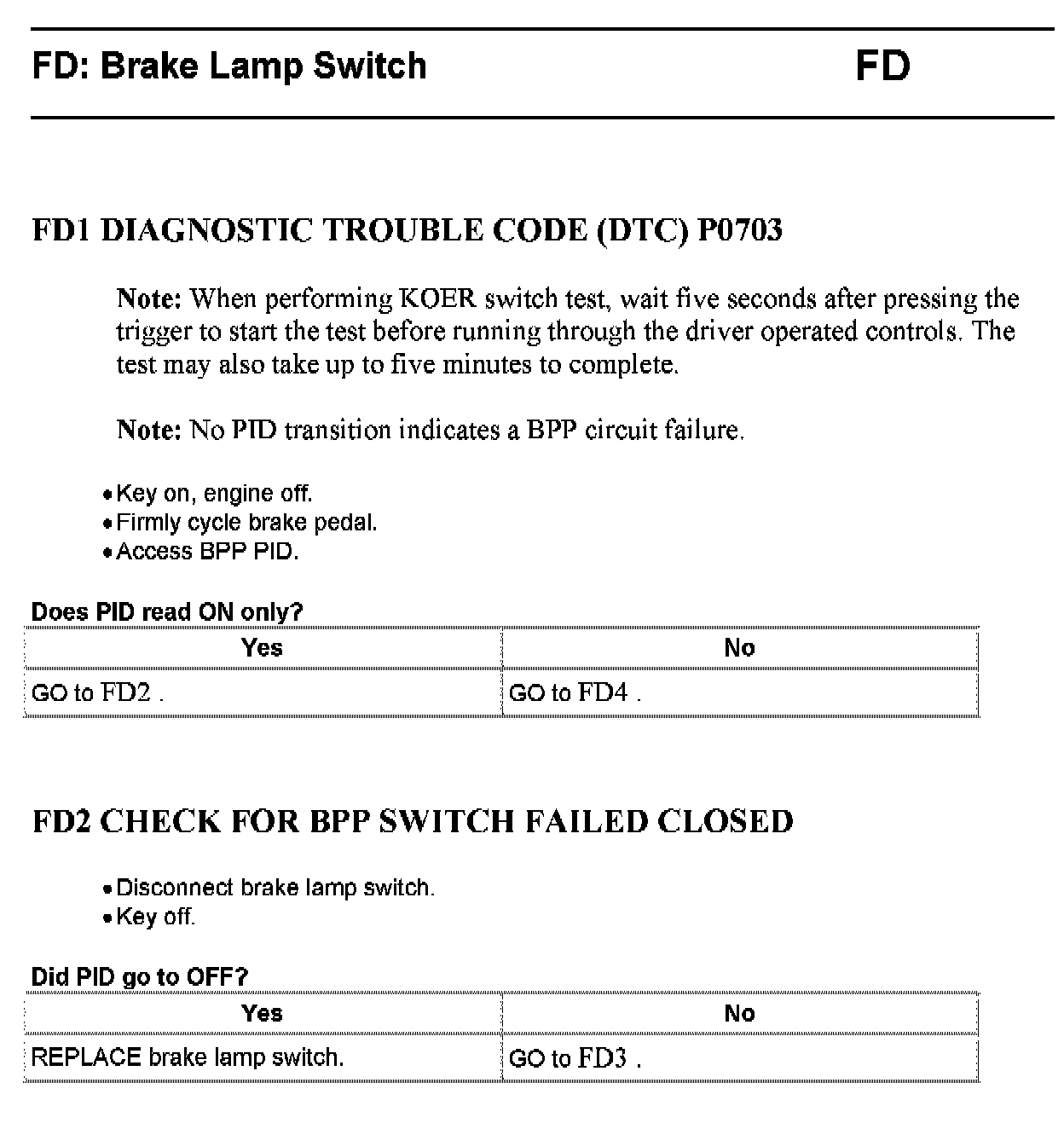

FD1 - FD2:

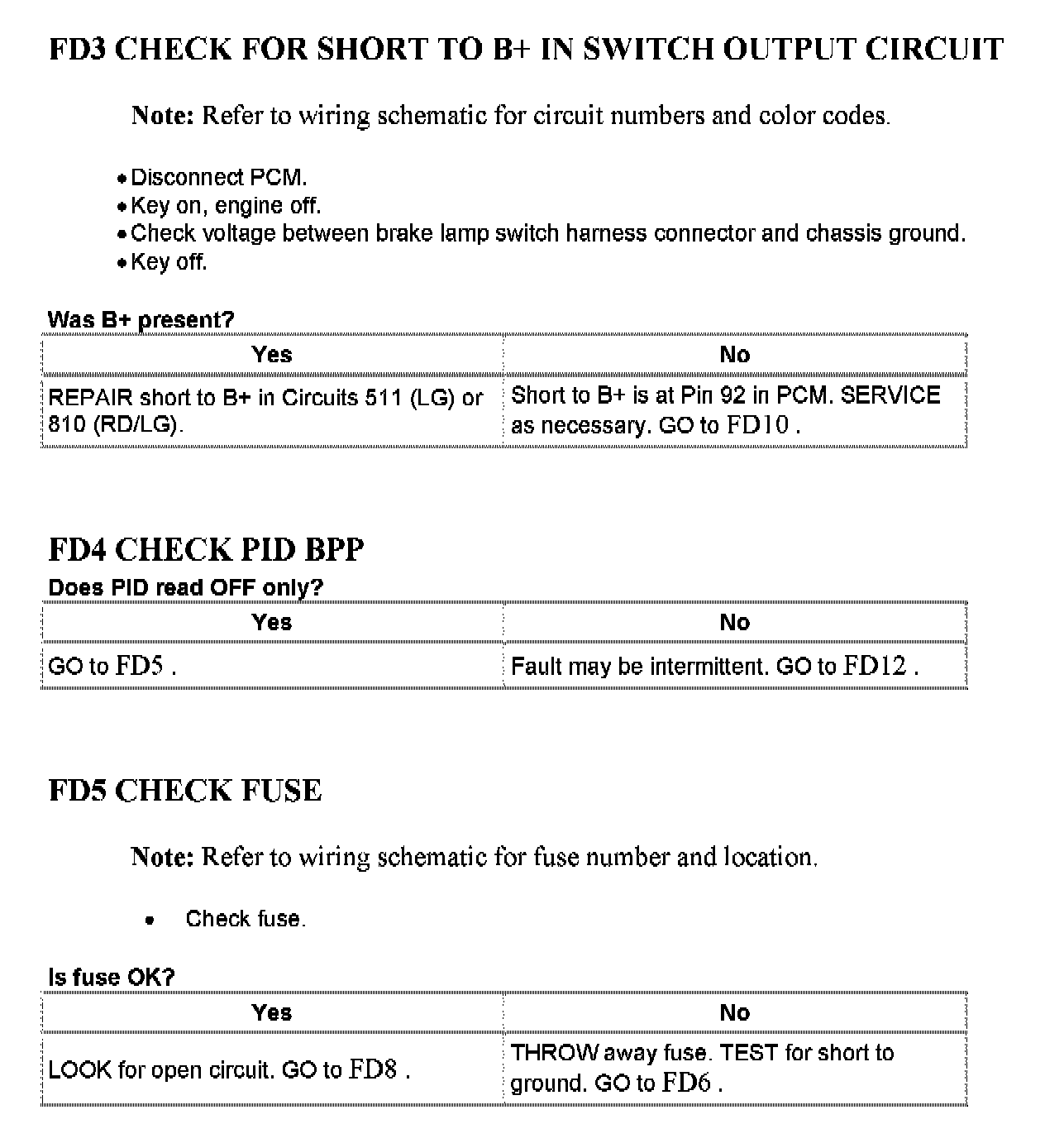

FD3 - FD5:

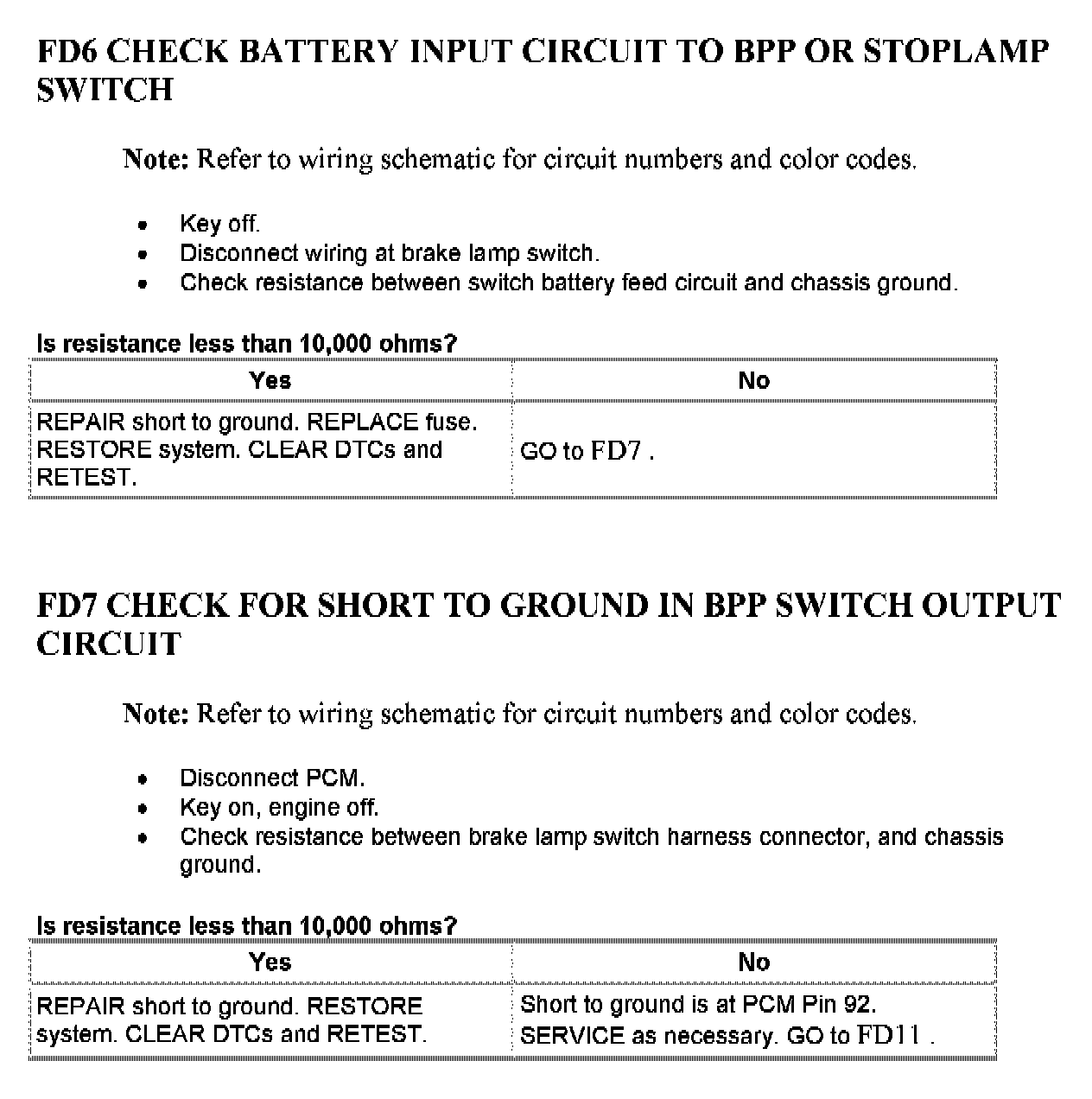

FD6 - FD7:

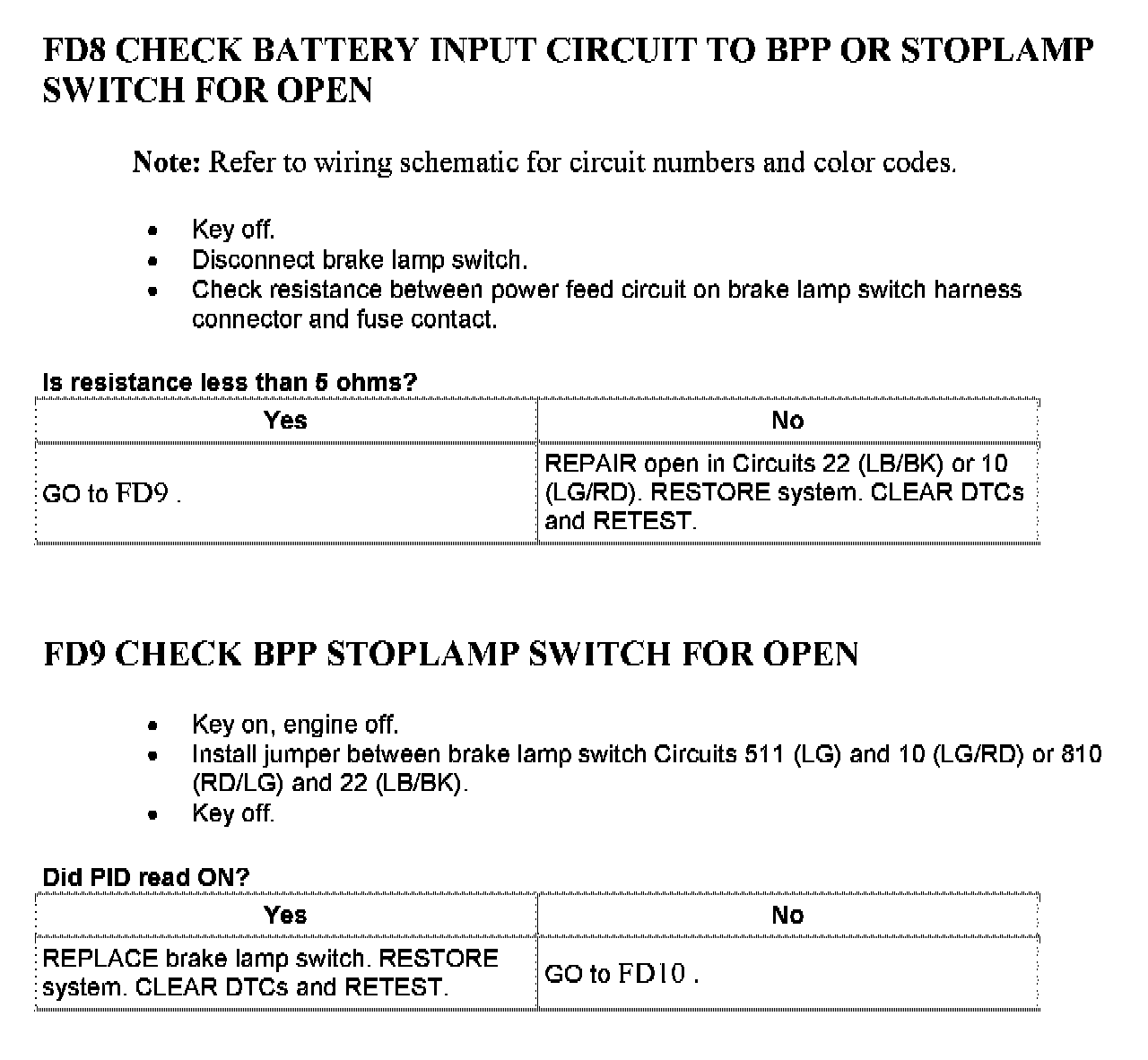

FD8 - FD9:

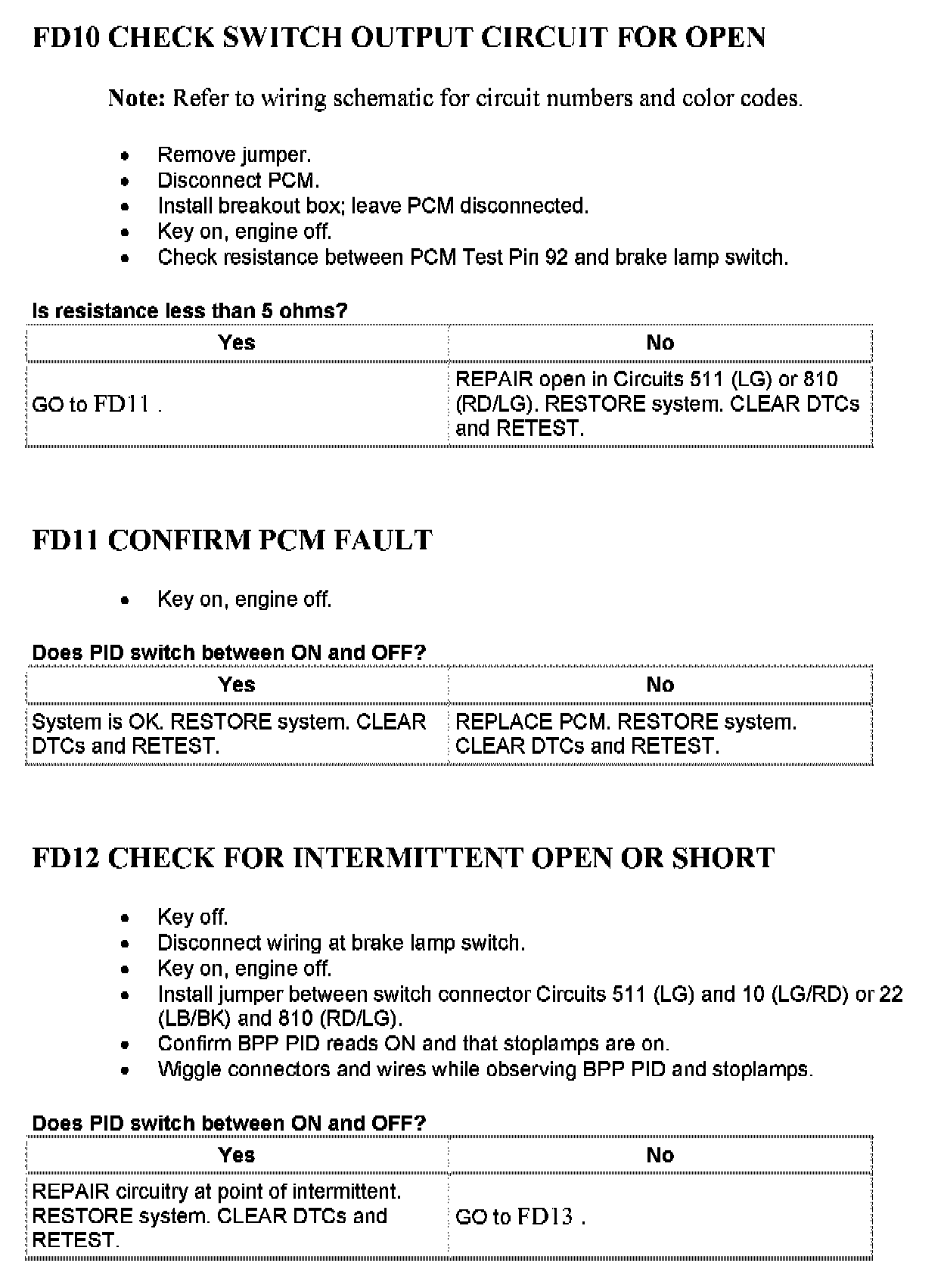

FD10 - FD12:

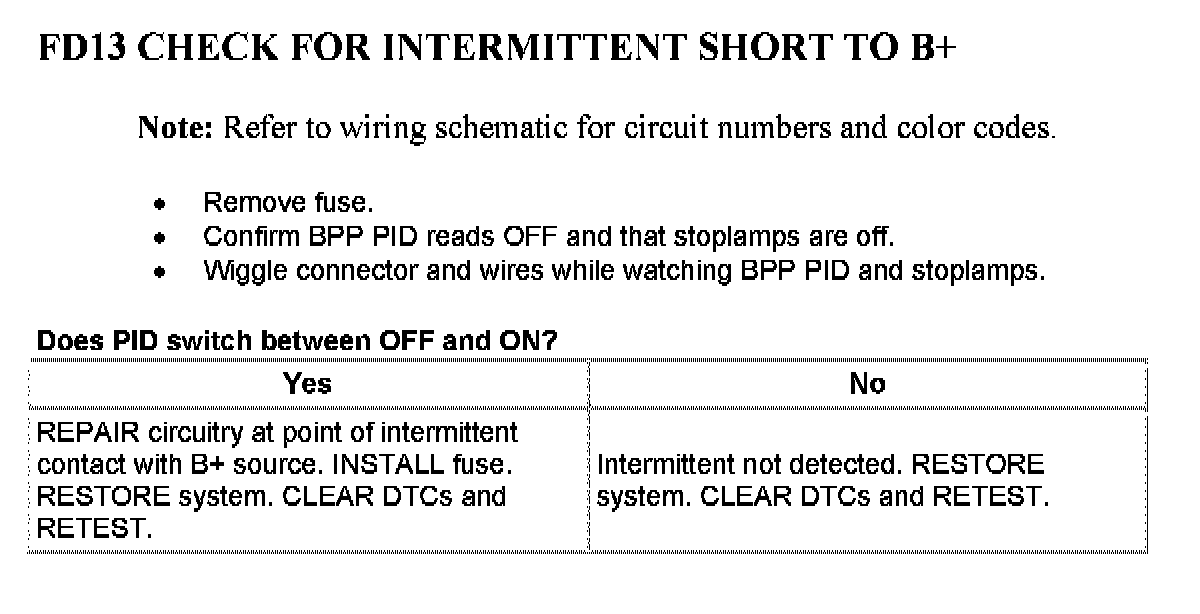

FD13:
