Tests KC: Glow Plug System - Without Glow Plug Control Module (GPCM)

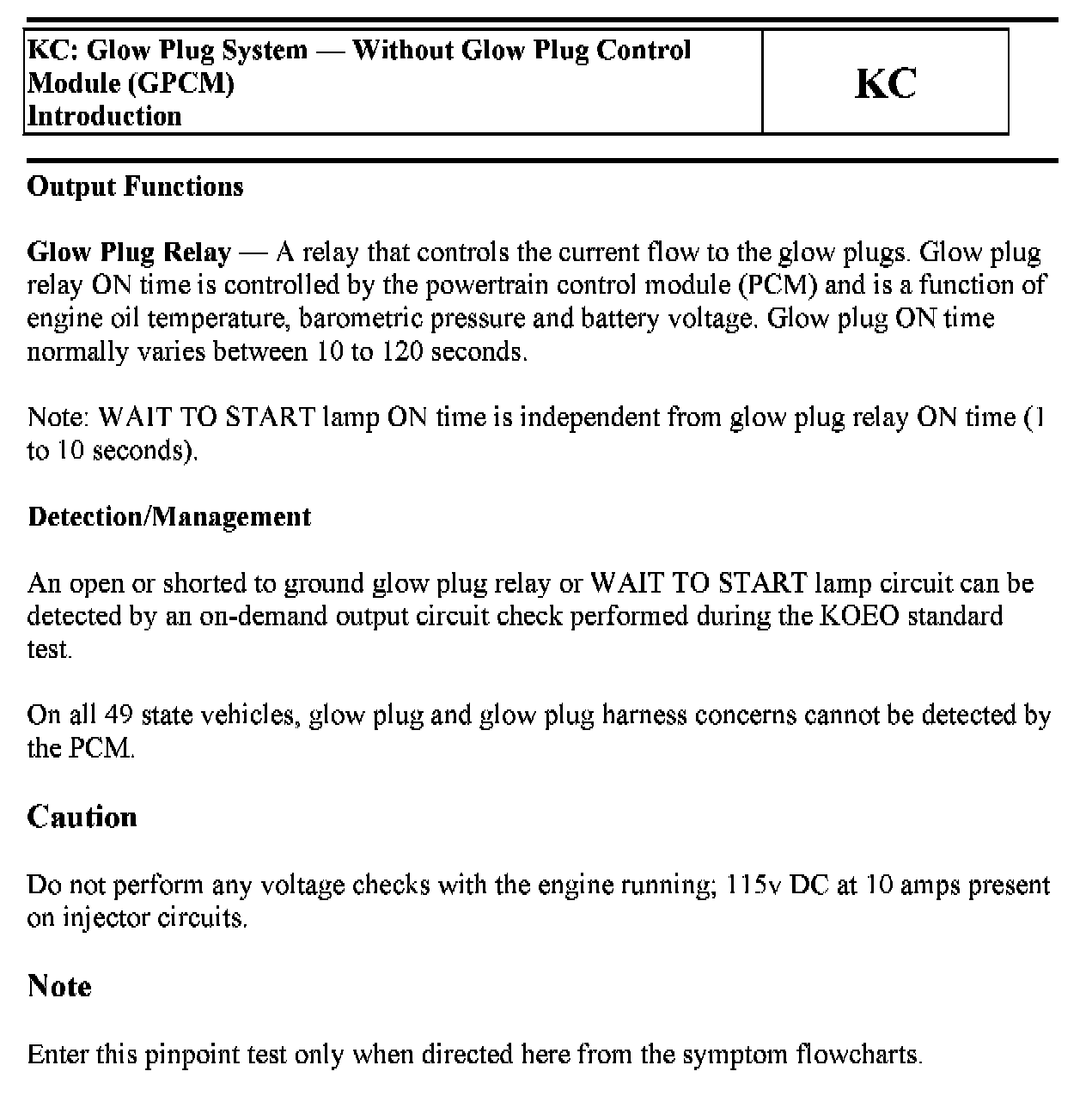

KC Introduction 1 Of 3:





KC Introduction 2 Of 3:

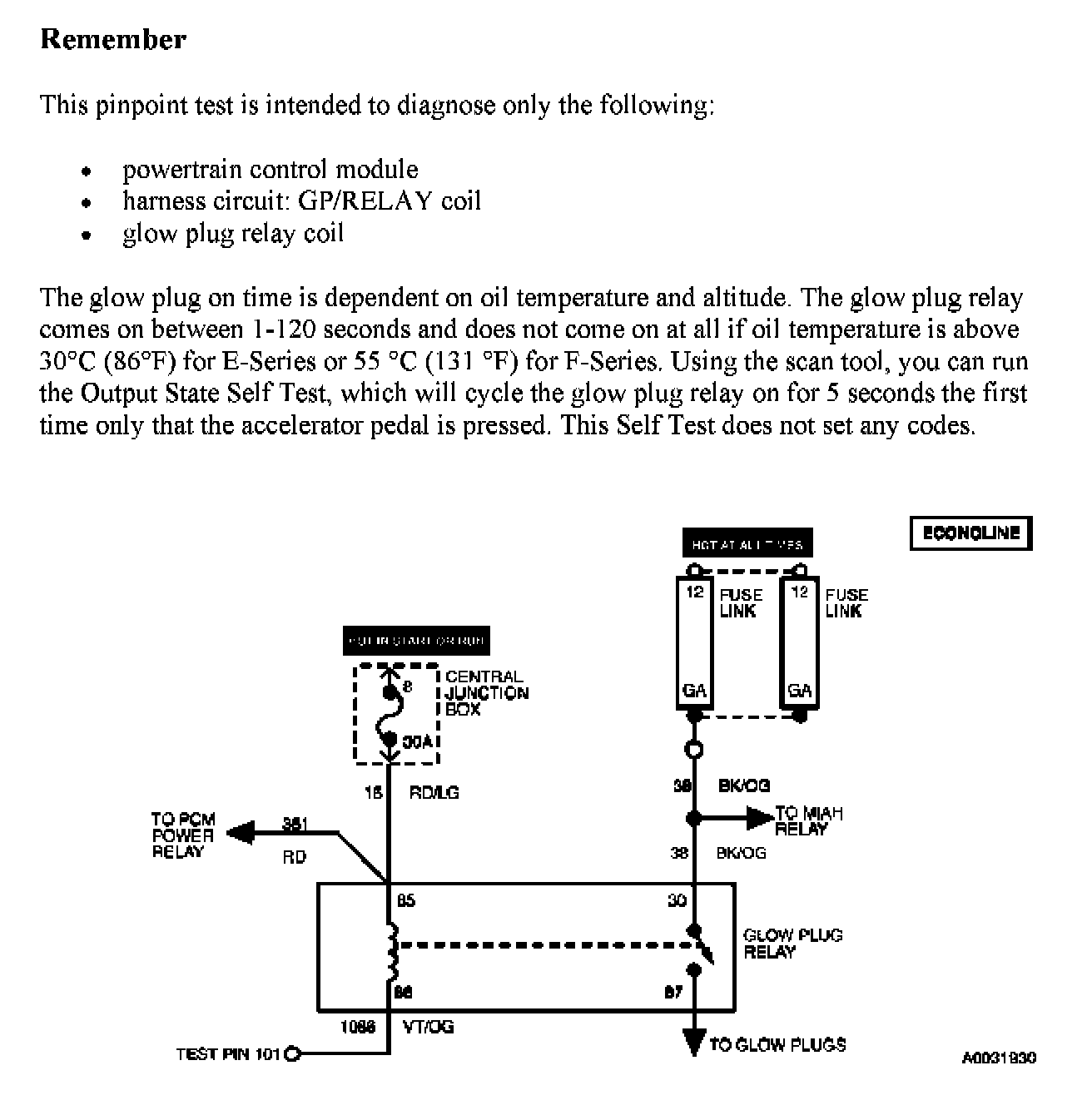

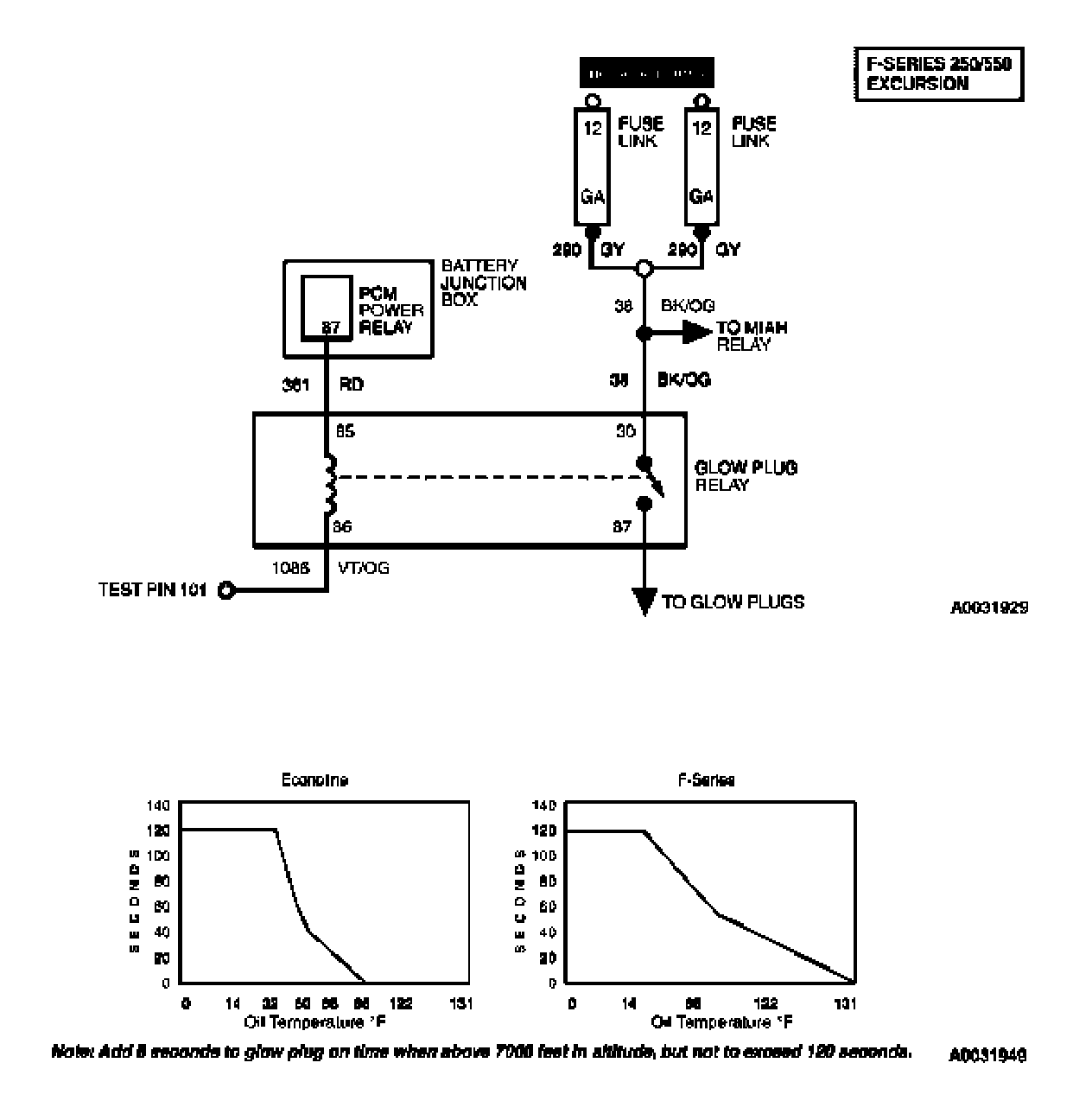

KC Introduction 3 Of 3:

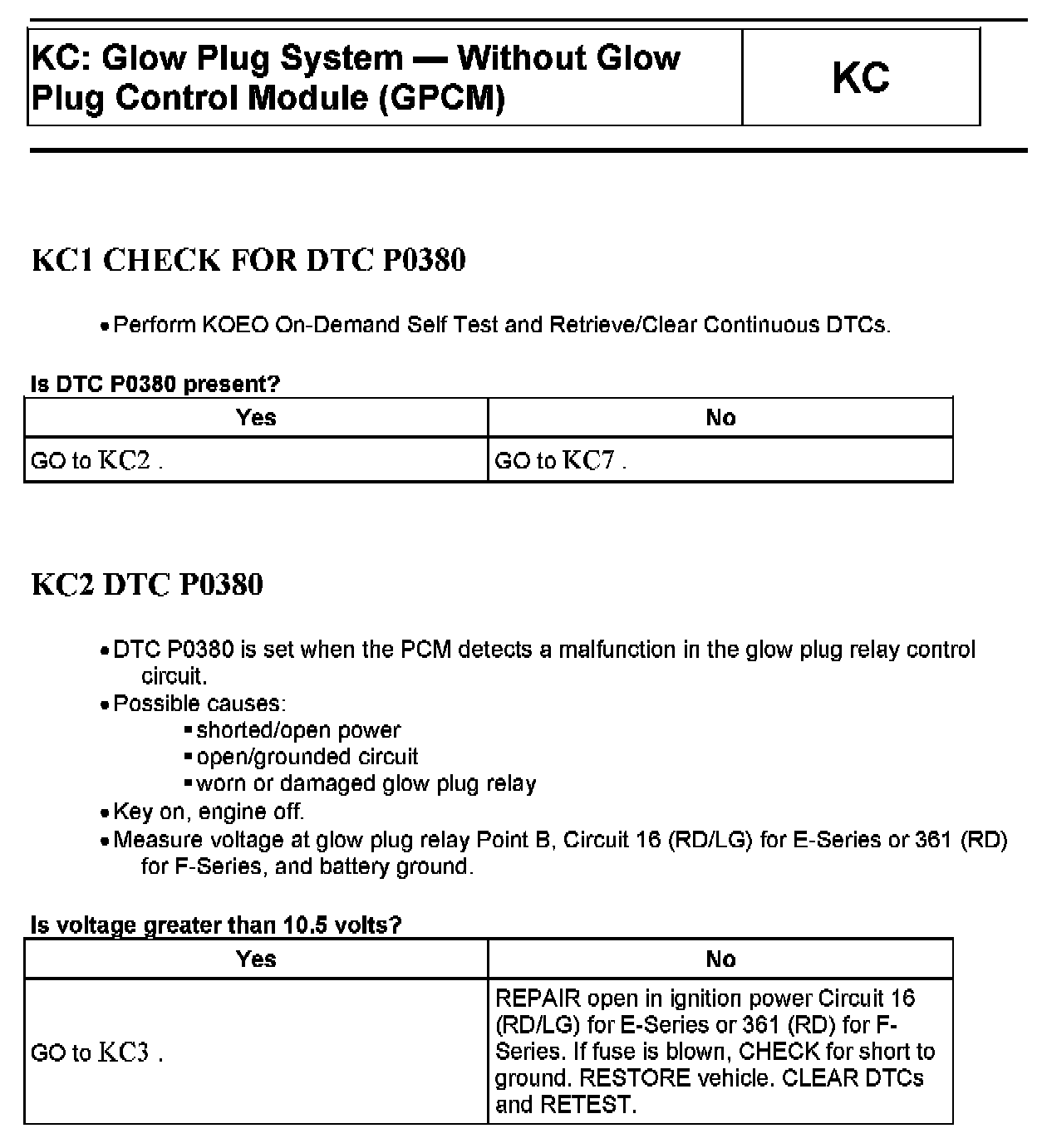

KC1 - KC2:

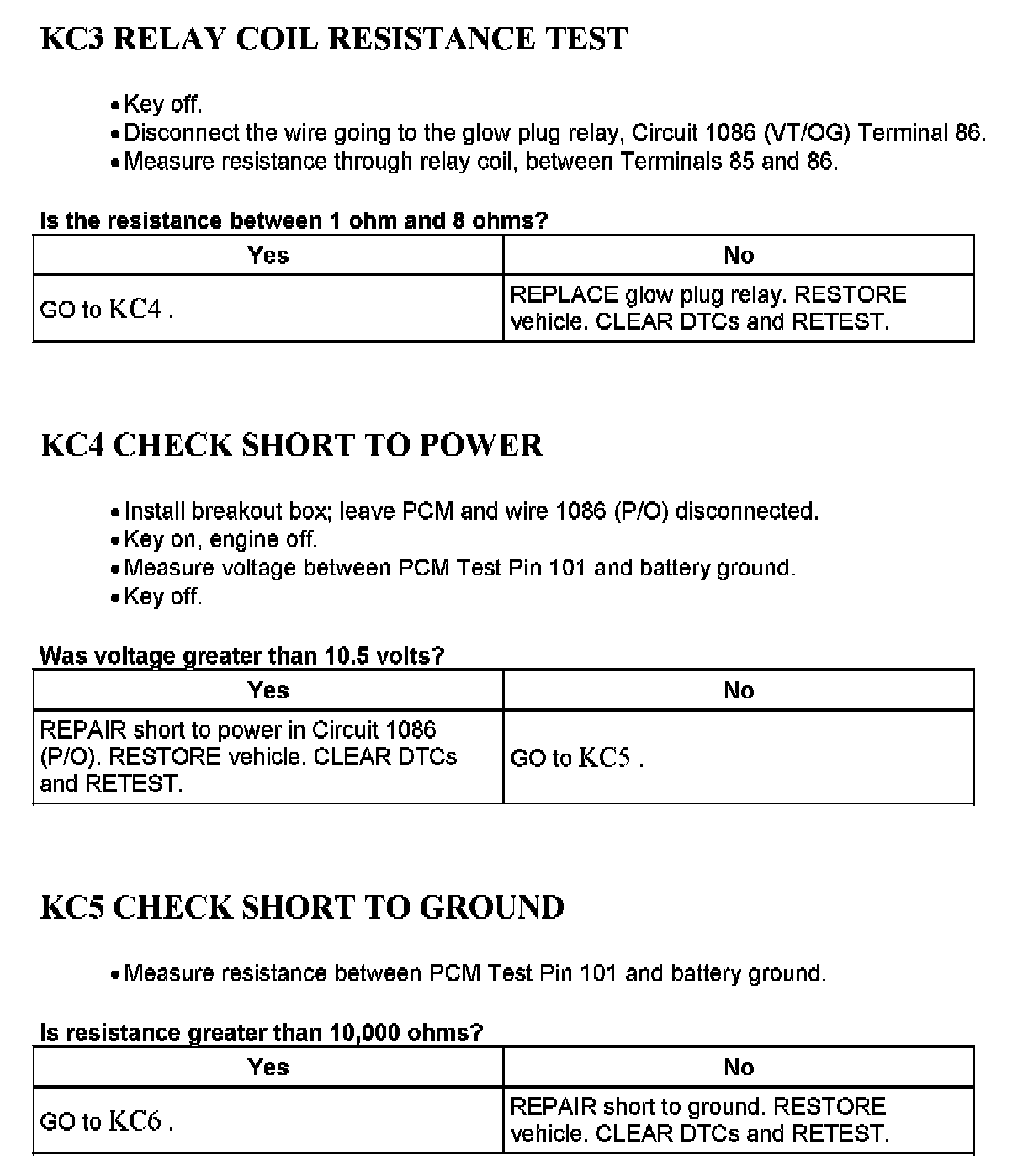

KC3 - KC5:





KC6 - KC8:

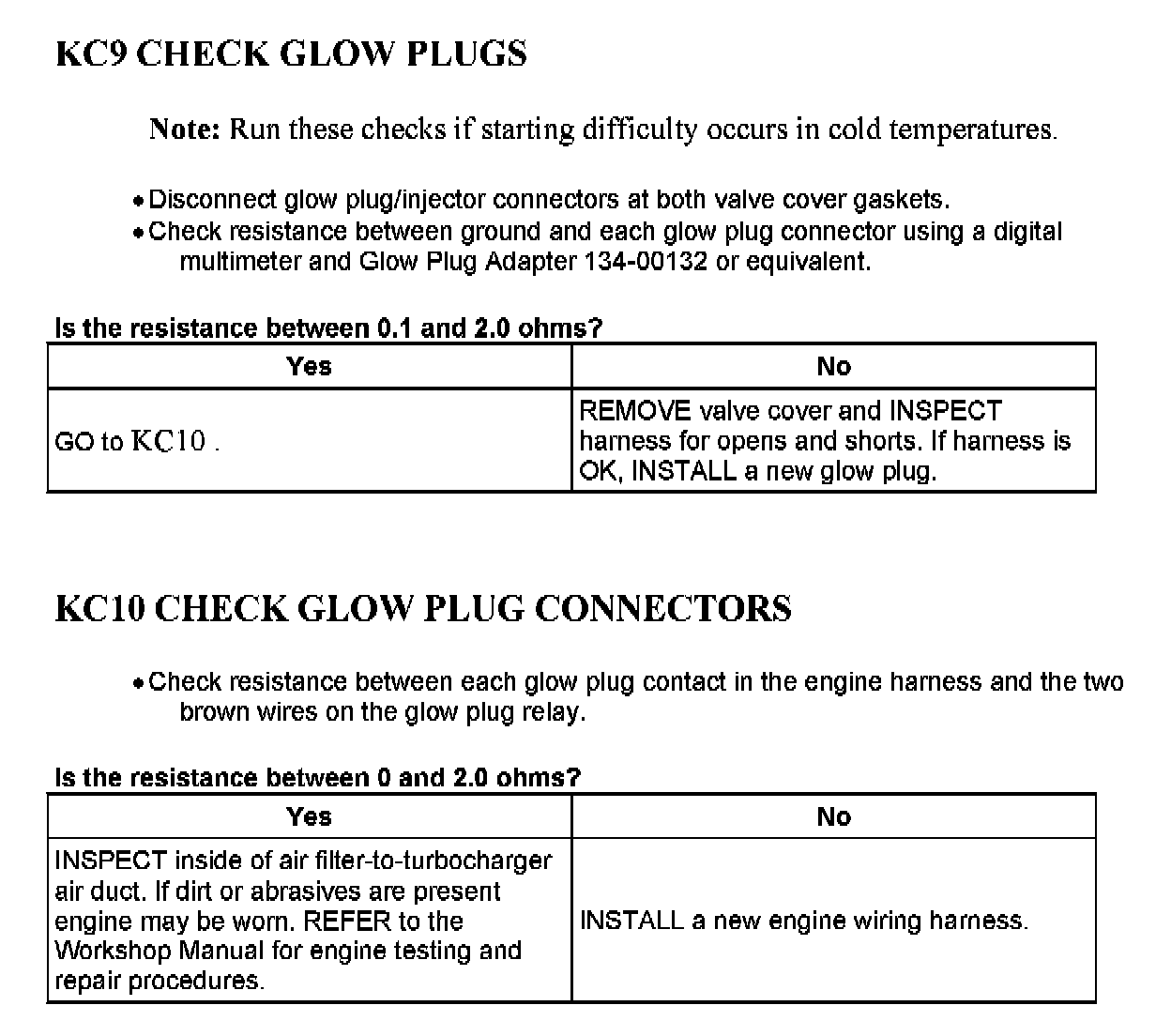

KC9 - KC10:
