Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 2001 >> Excursion 2WD V8-7.3L DSL Turbo VIN F >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Tests KG: Tachometer

Tests KG: Tachometer




KG Introduction:

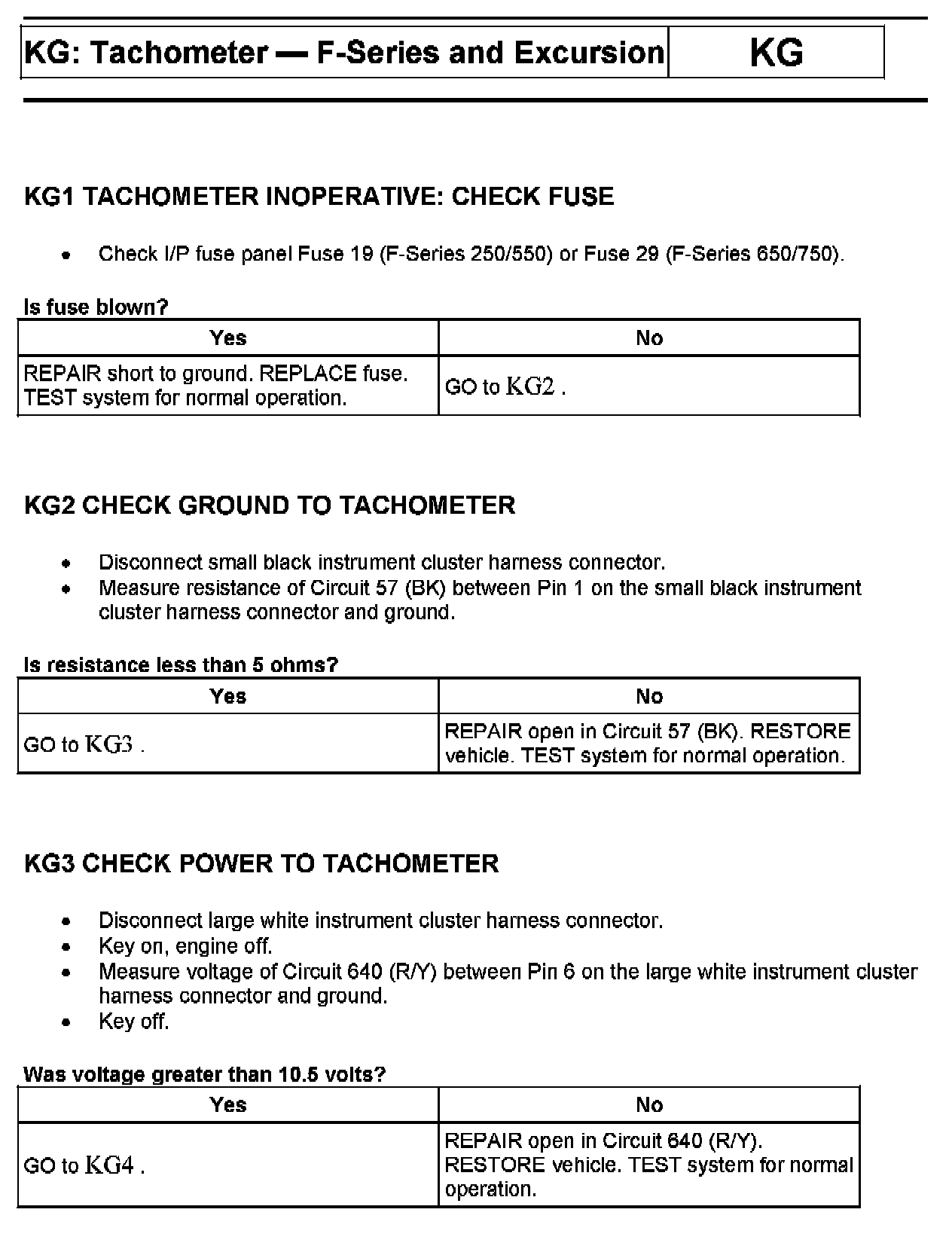

KG1 - KG3:

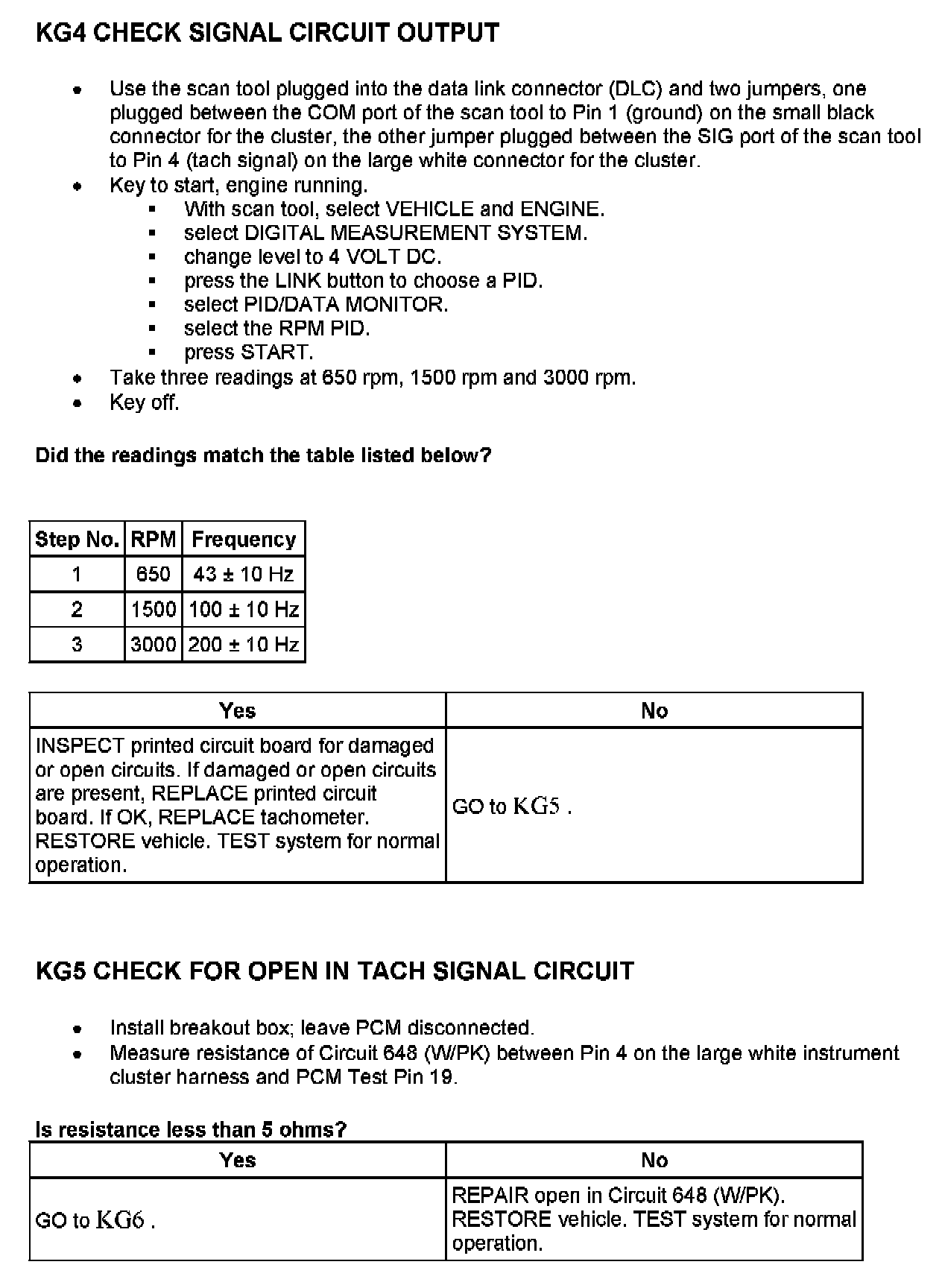

KG4 - KG5:

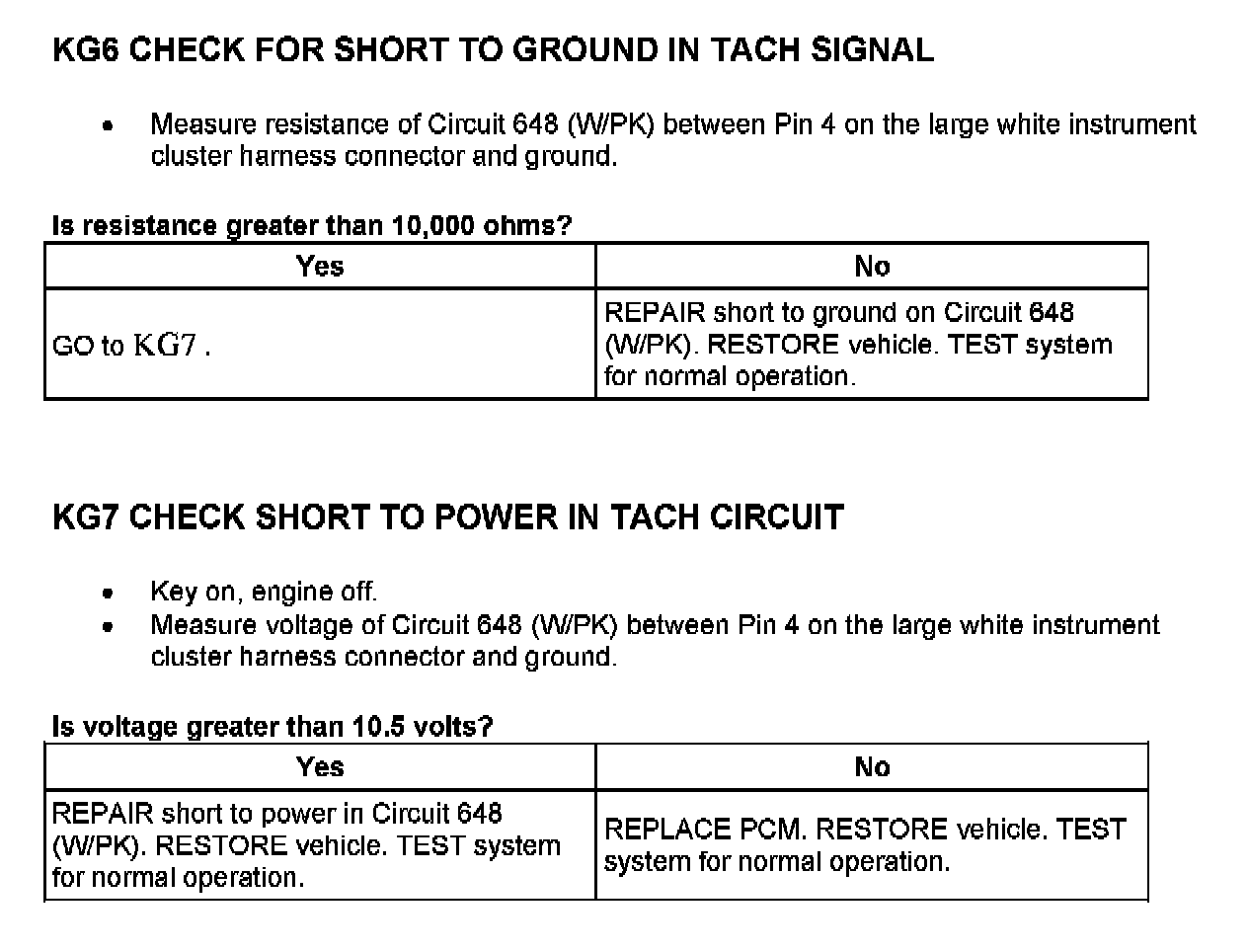

KG6 - KG7:
