Symptom Chart 6 - AF

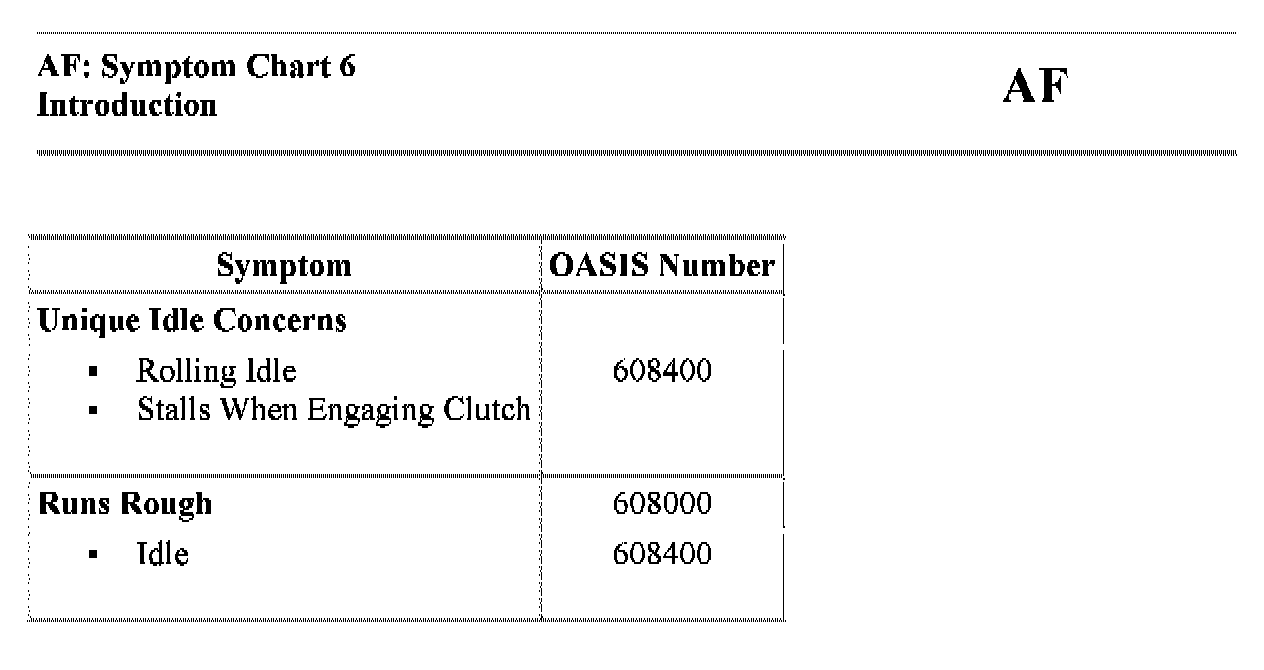

AF INTRODUCTION:

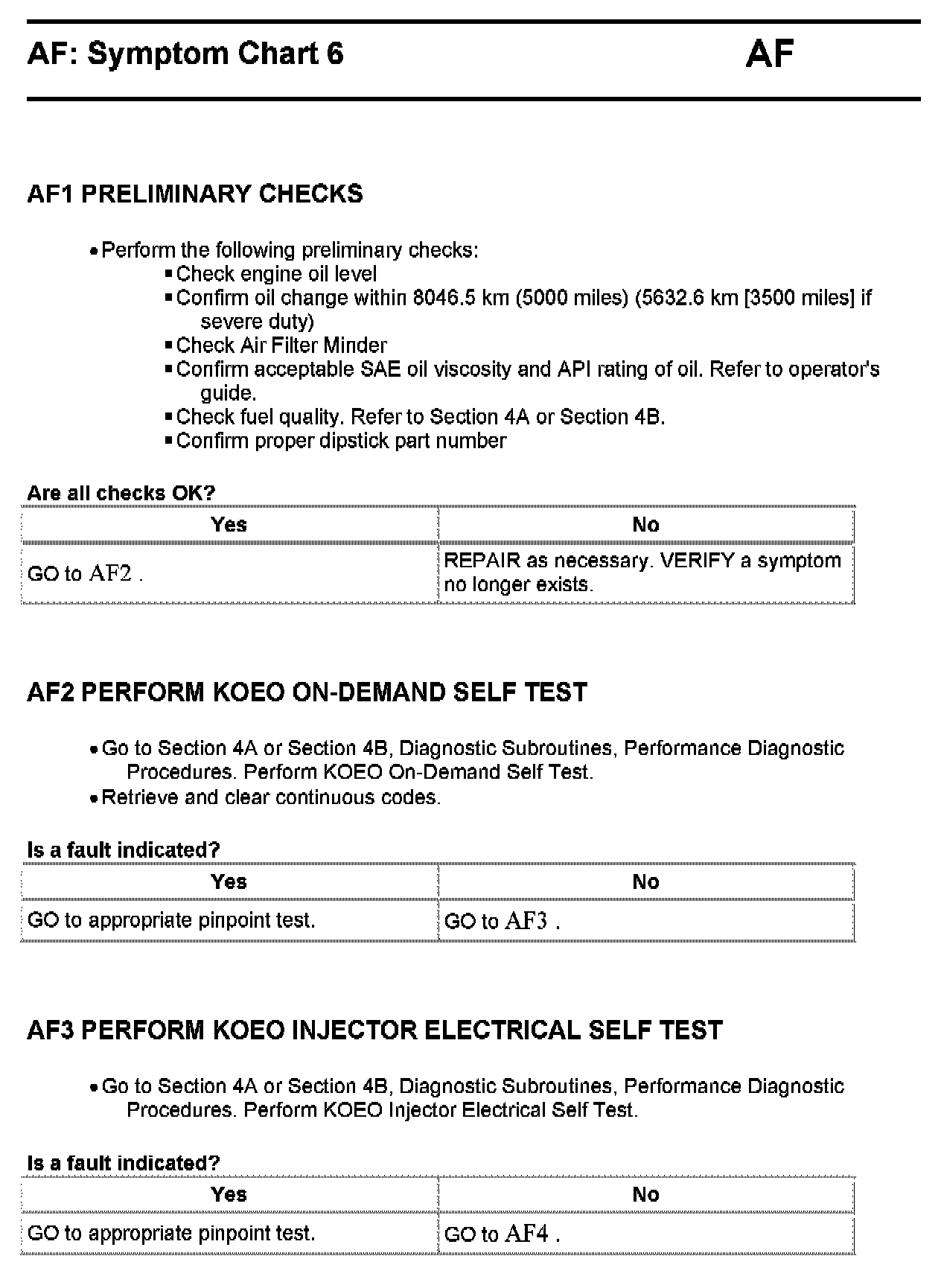

AF1 - AF3:

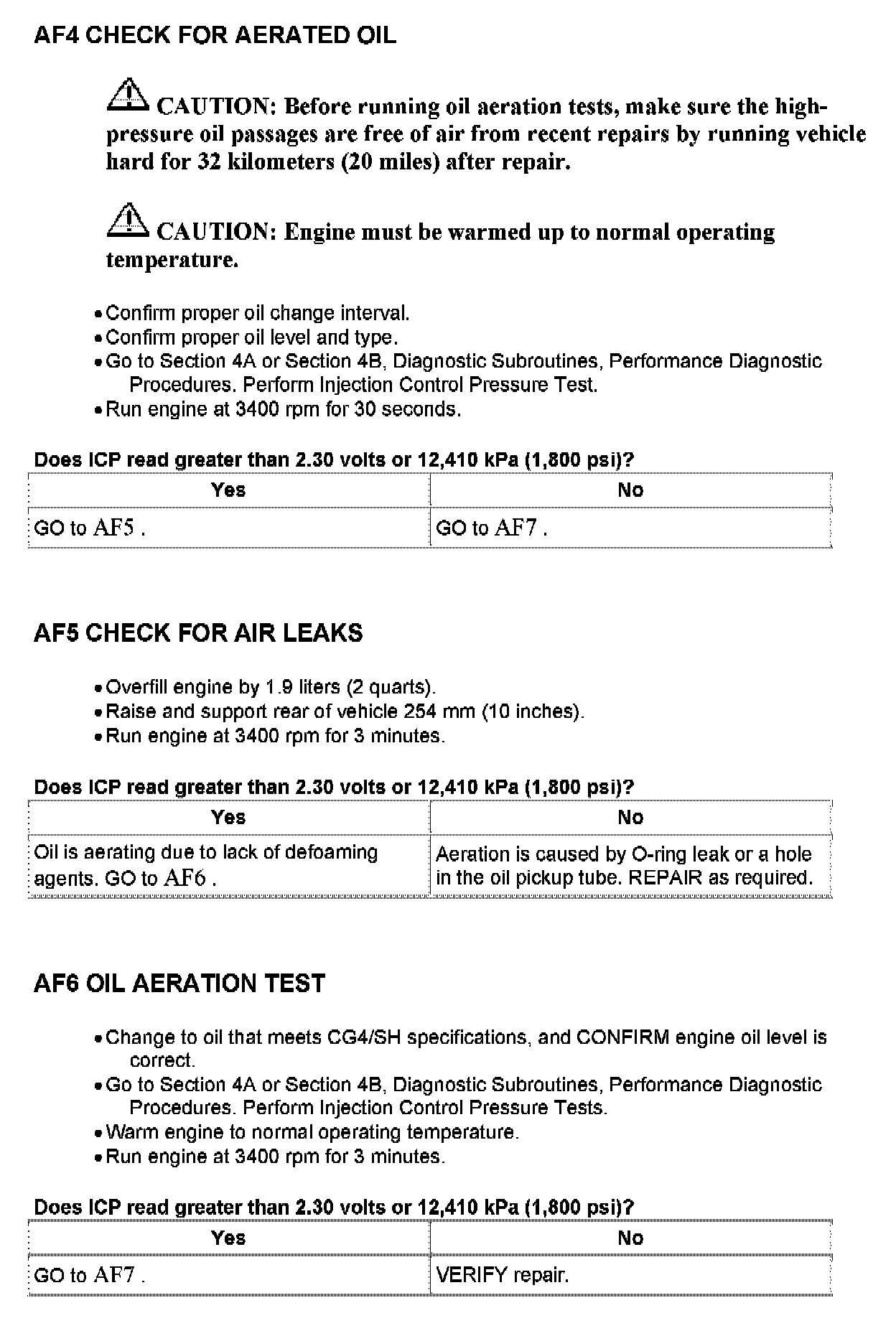

AF4 - AF6:

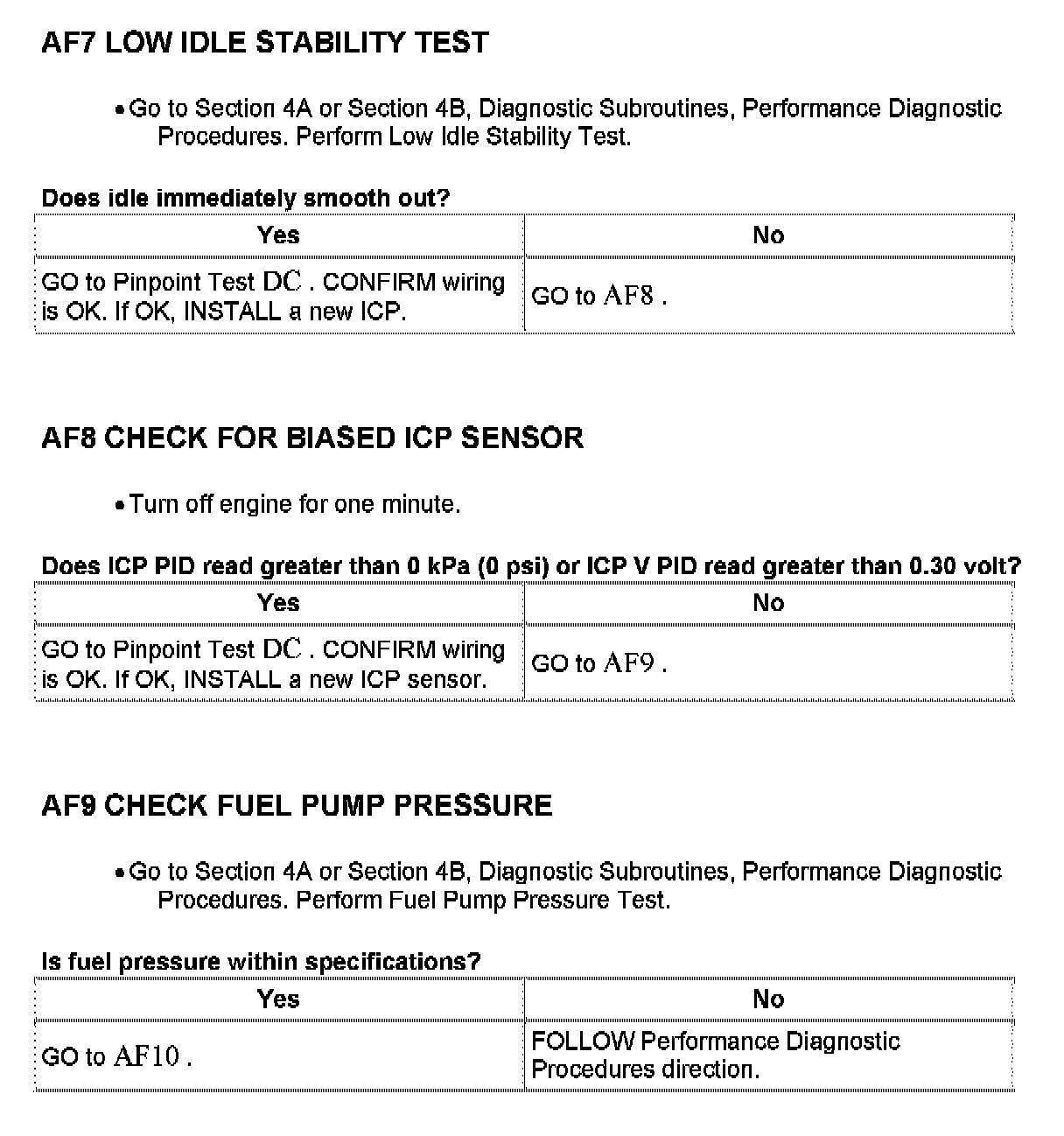

AF7 - AF9:

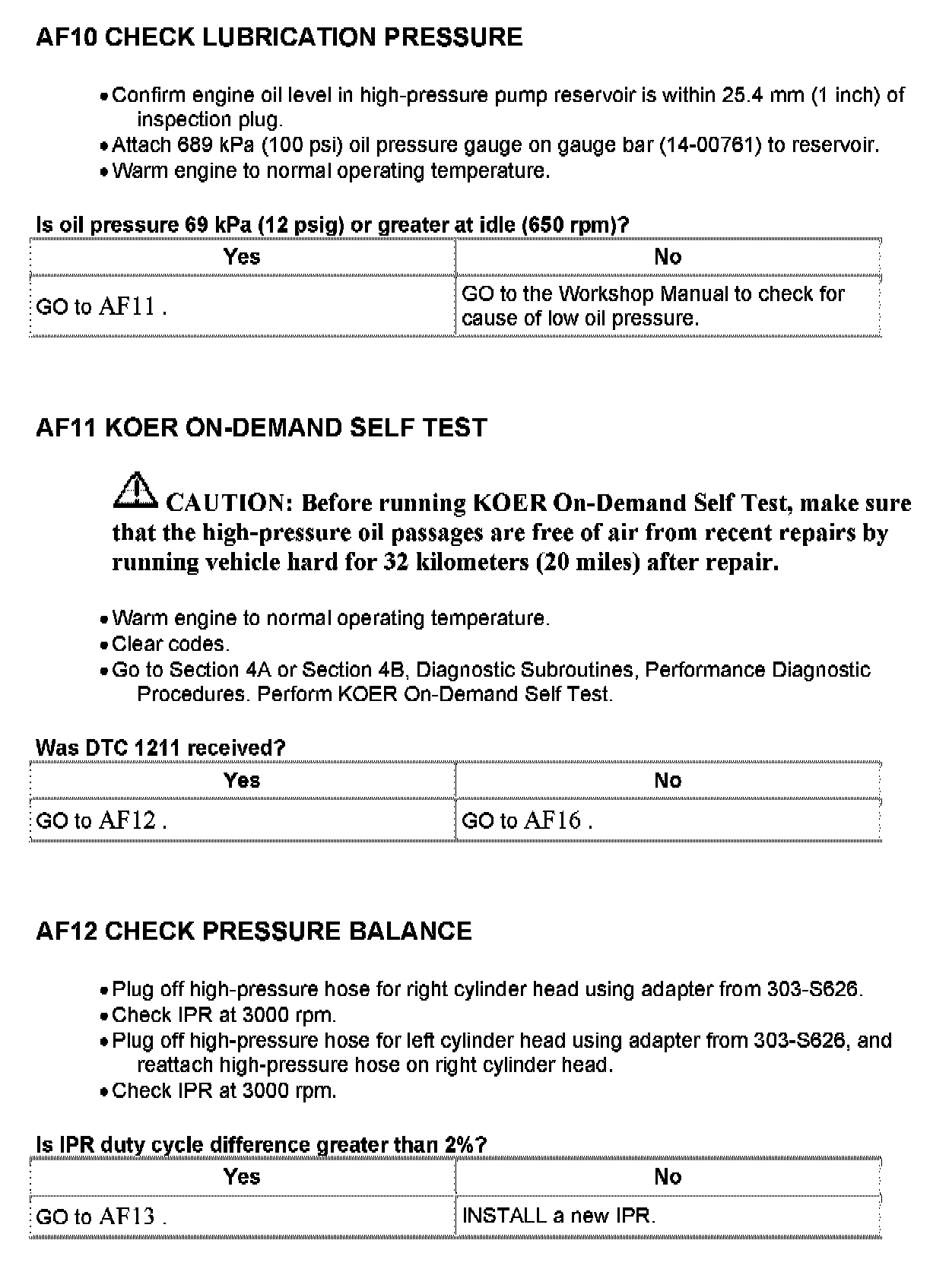

AF10 - AF12:

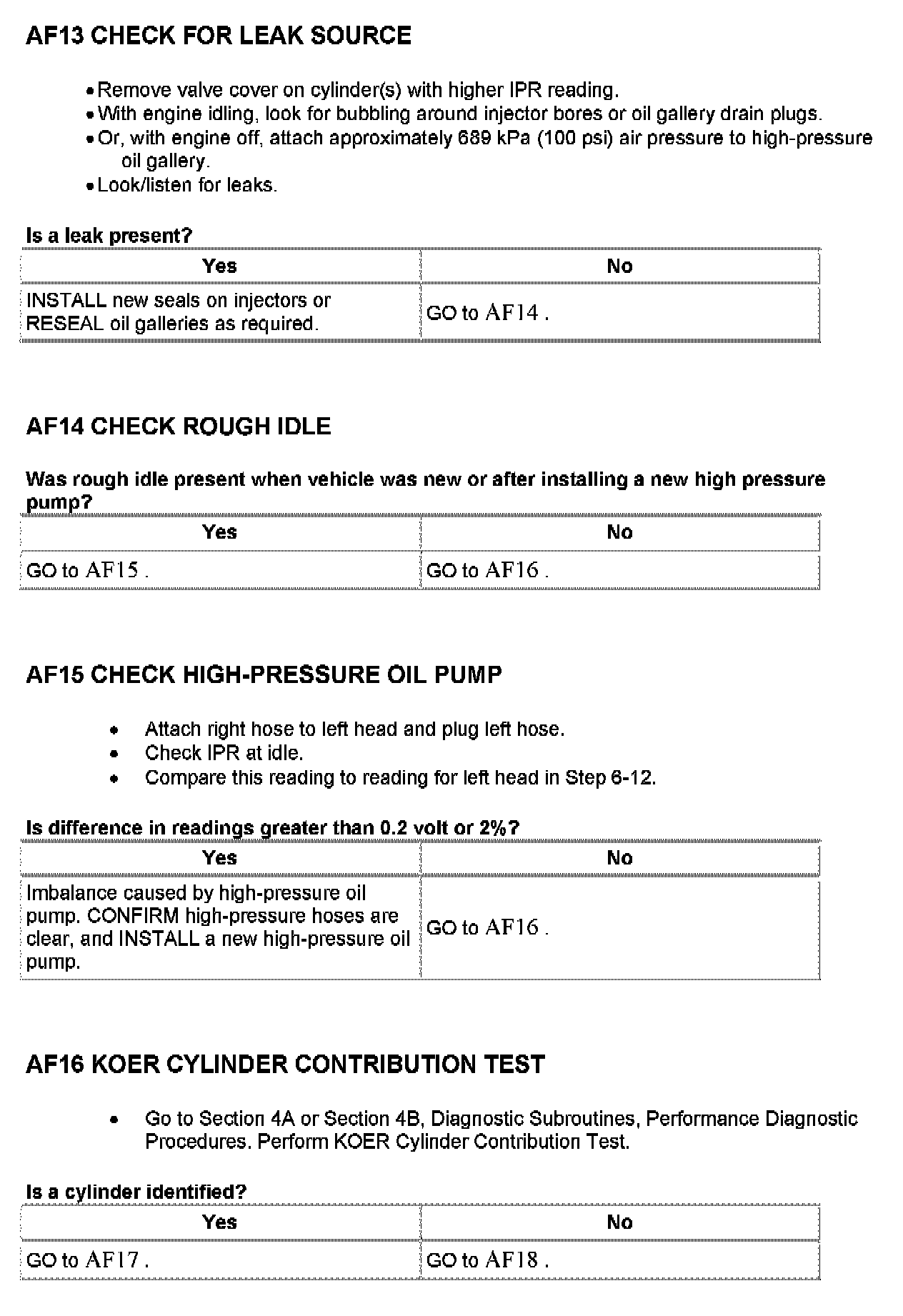

AF13 - AF16:

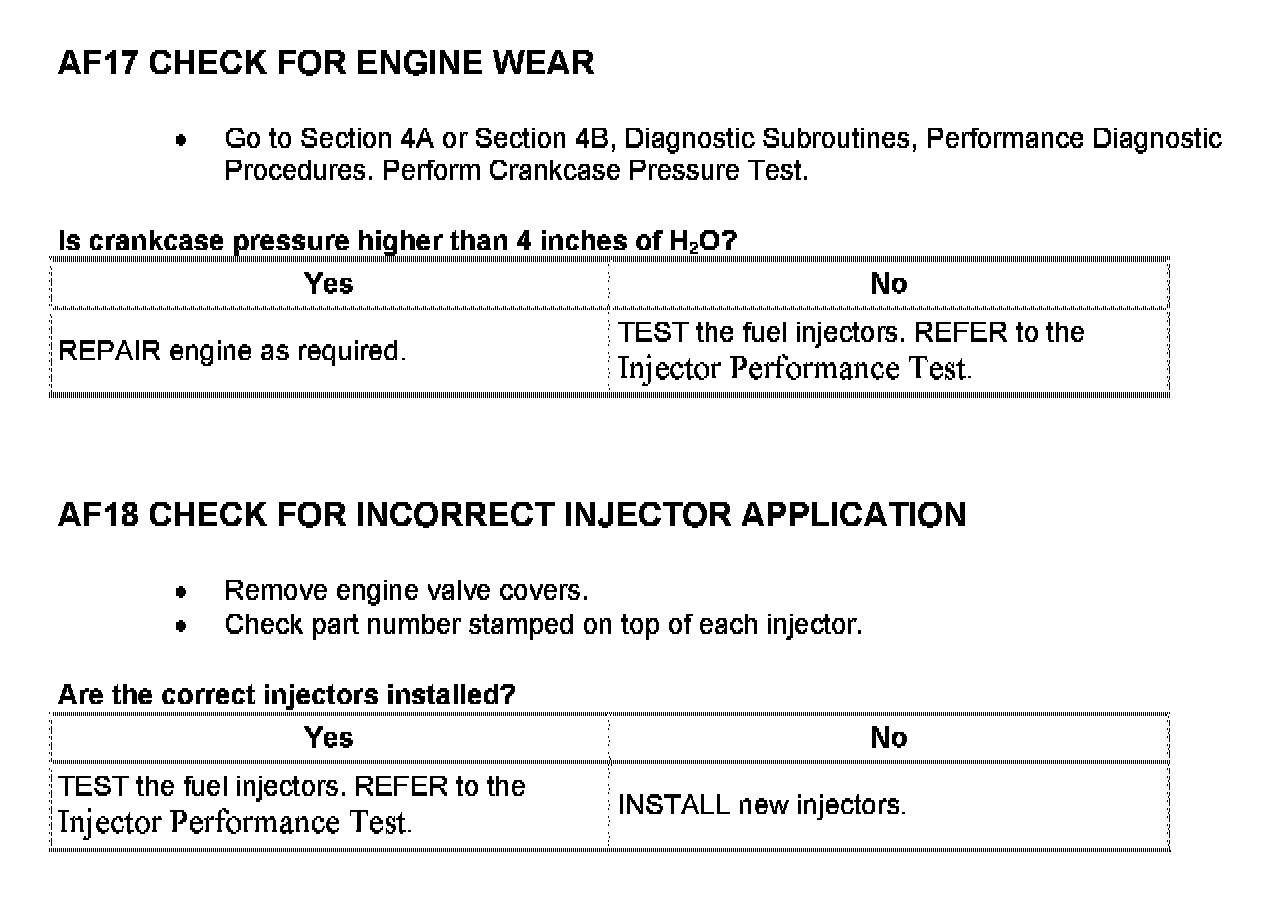

AF17 - AF18:
