Fuel Pressure Sensor/Switch: Description and Operation

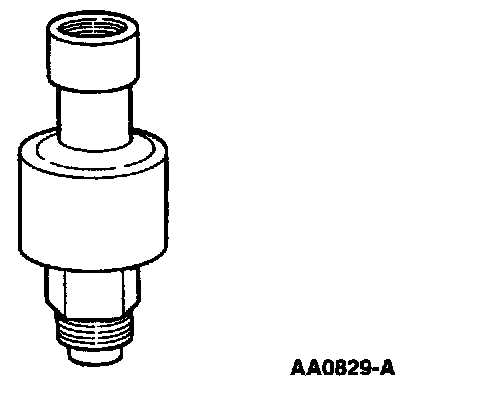

Injection Control Pressure Sensor
The Injection Control Pressure sensor is a variable capacitor sensor that is supplied a 5-volt reference signal by the PCM and returns a linear analog voltage signal that indicates pressure. The sensor measures the oil pressure in the LH injection rail. PCM uses this information to determine injection control pressure. The Injection Control Pressure sensor along with the Injection Control Pressure Regulator form a closed loop fuel pressure control system.

If the PCM detects an inoperative Injection Control Pressure sensor, the PCM will control injection control pressure from a PCM-estimated injection control pressure.
