Test J: Indicator On W/Engine Running (Volts Do Not Increase)
Test J: Indicator On W/Engine Running (Volts Do Not Increase)

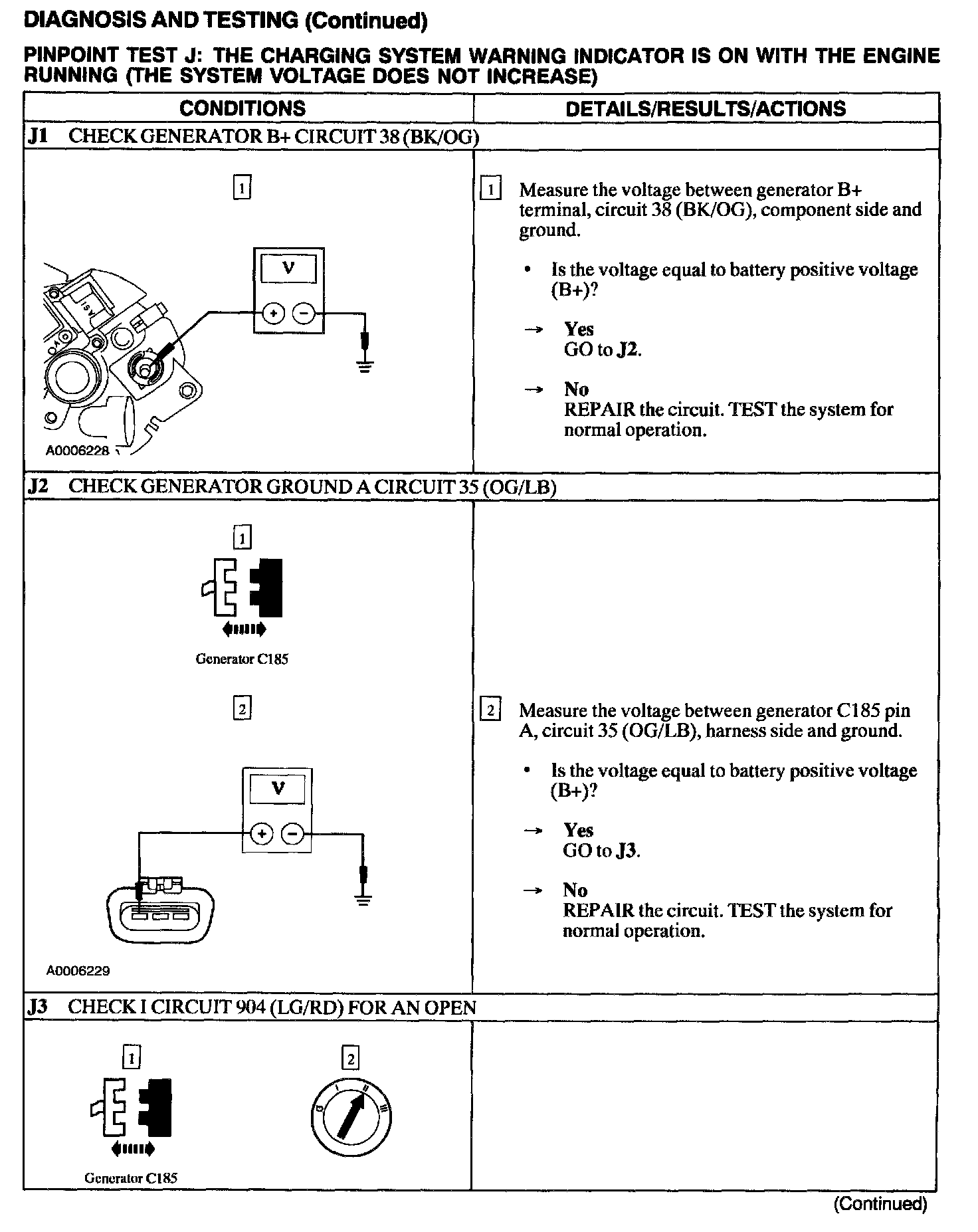

J1 - J3:
J3 - J4:
