Test A: Shift Interlock System Does Not Release/Lock Correctly

PINPOINT TEST A: PINPOINT TEST A: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY

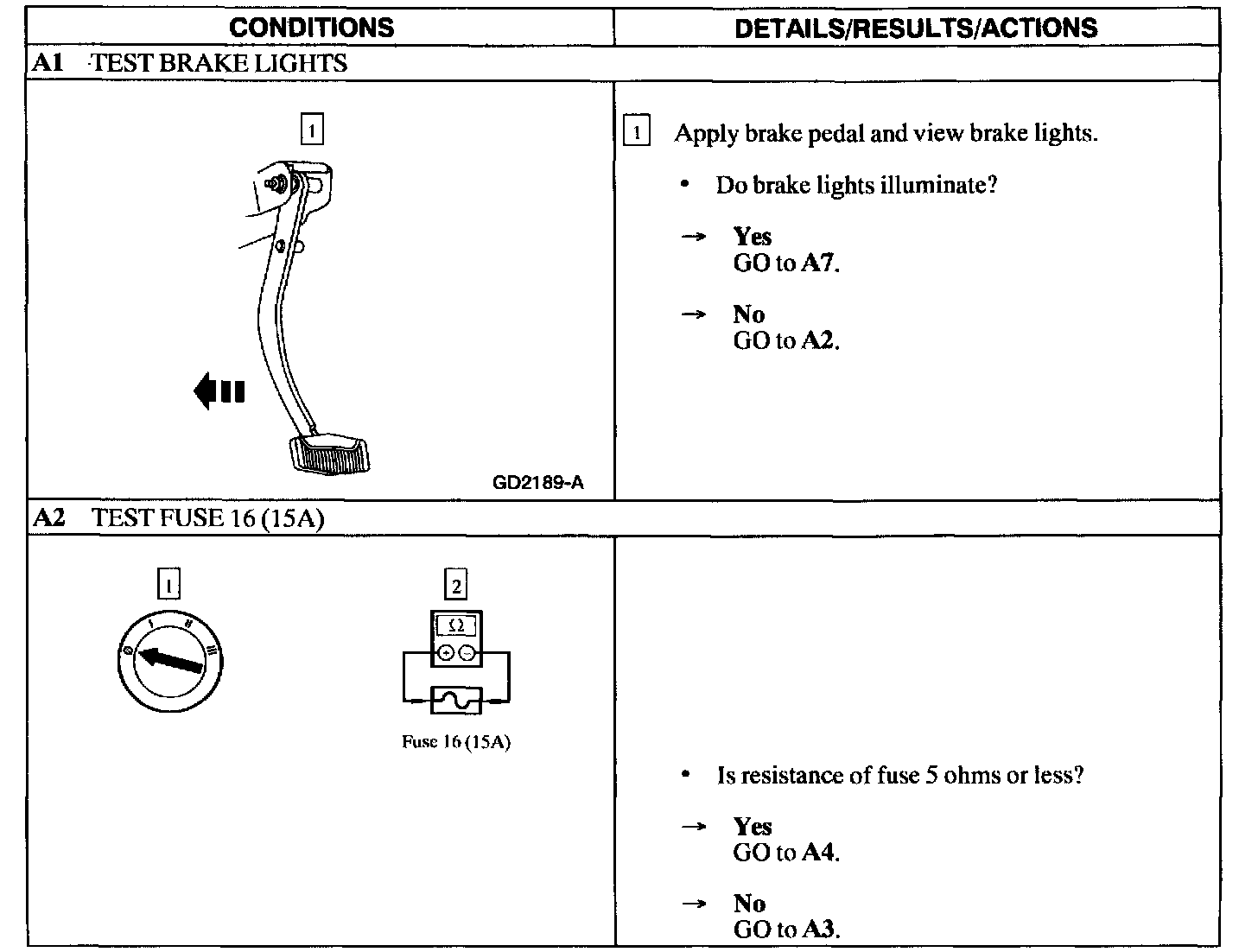

Test A1-A2

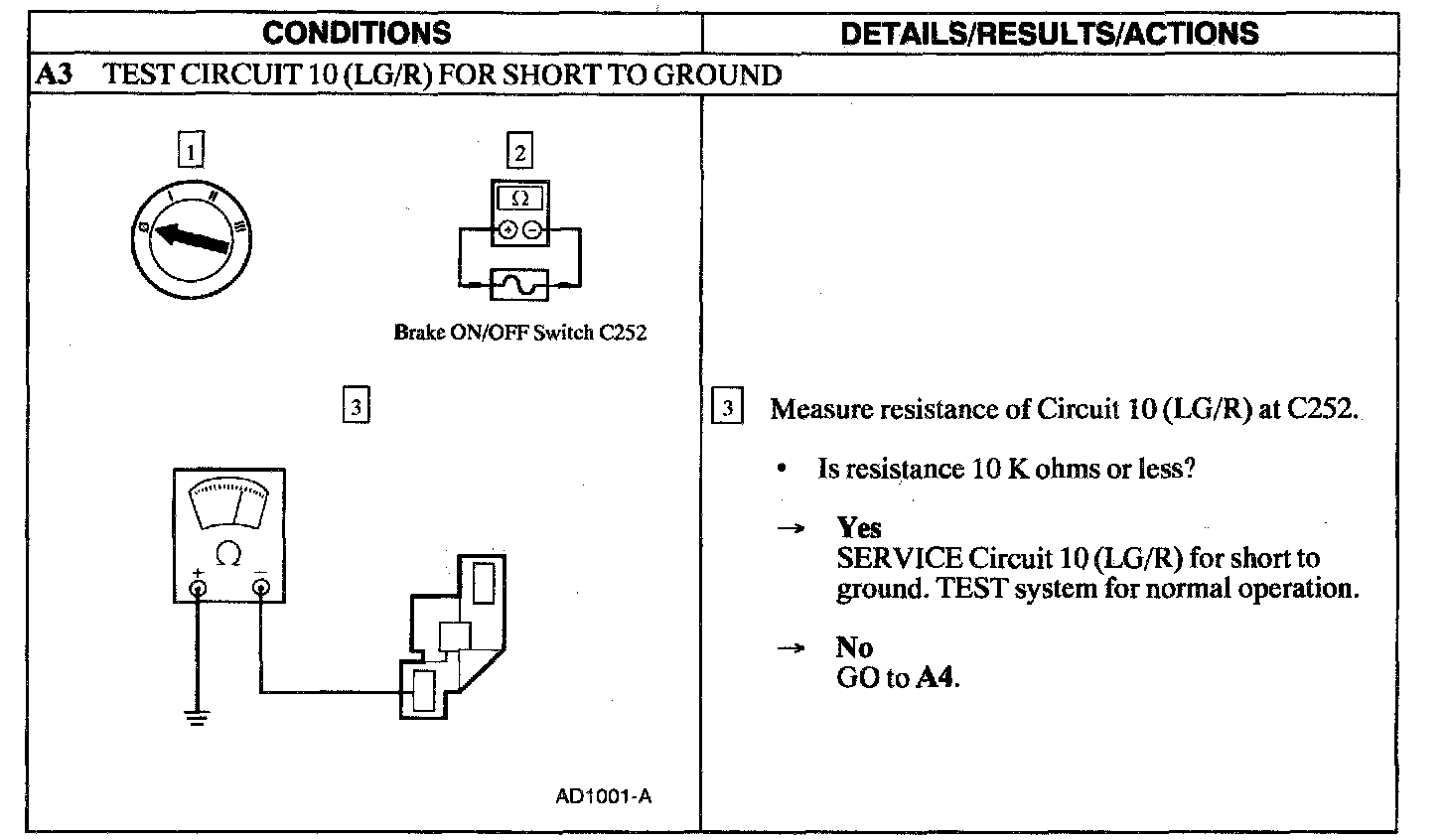

Test A3

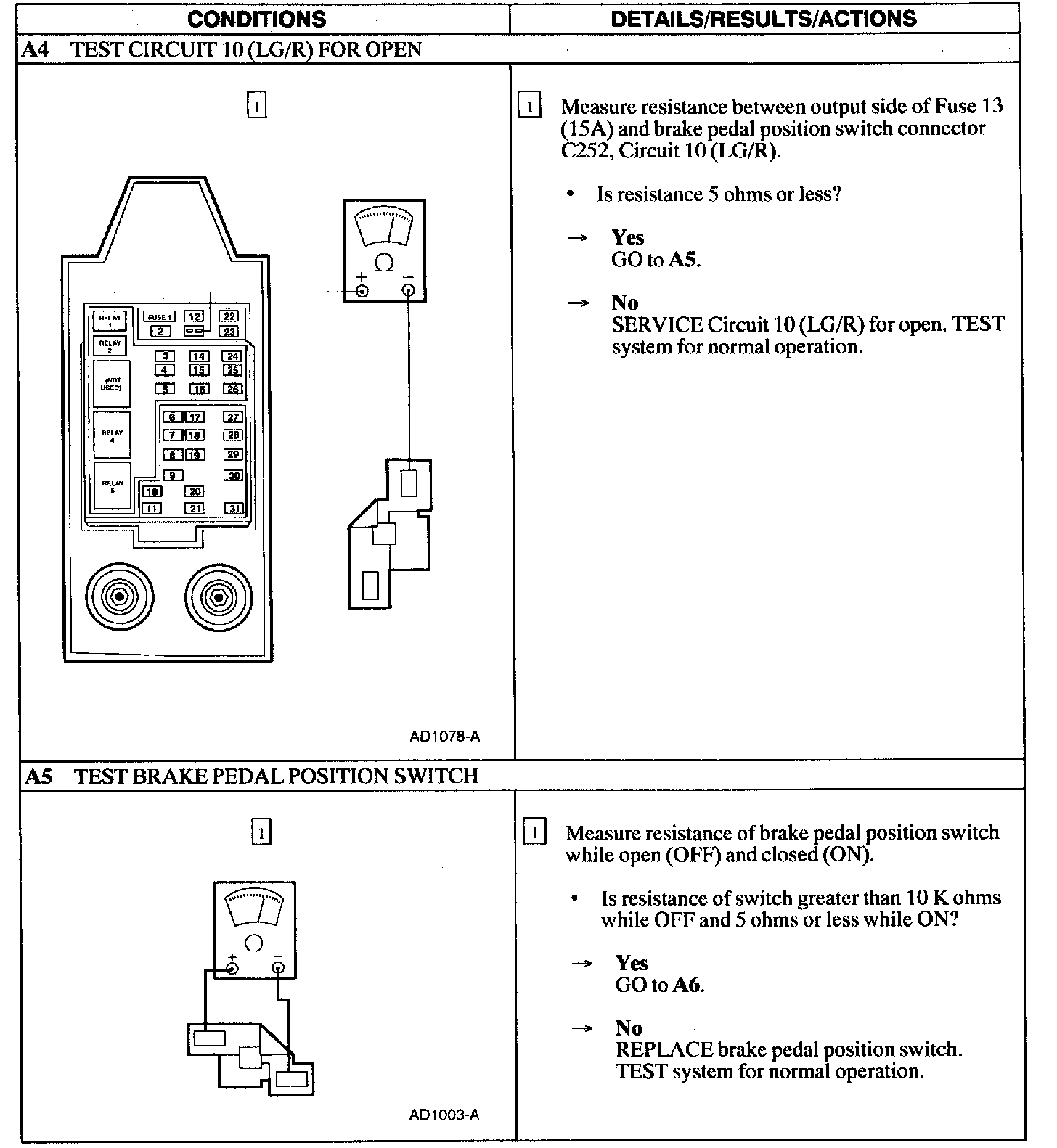

Test A4-A5

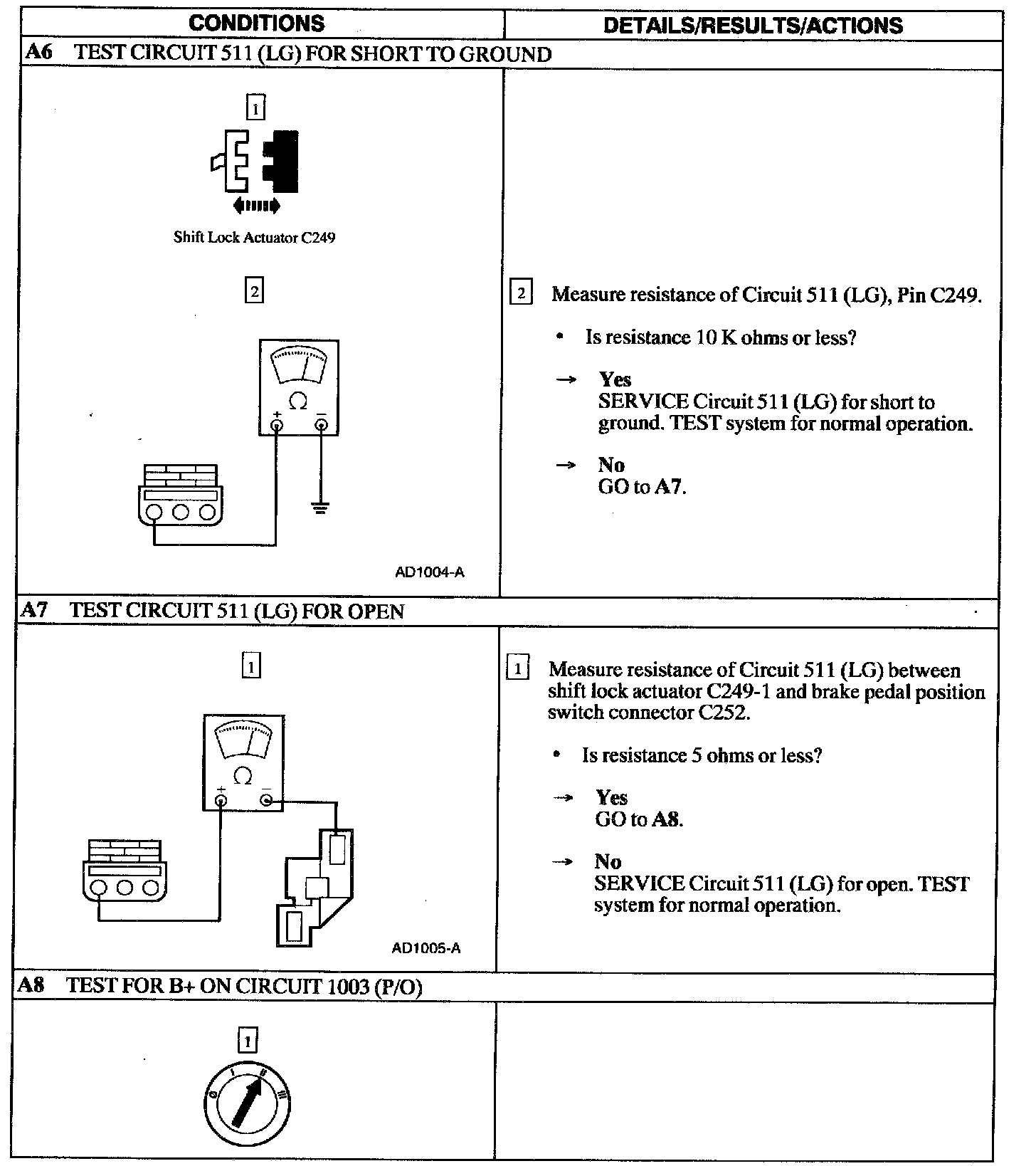

Test A6-A8

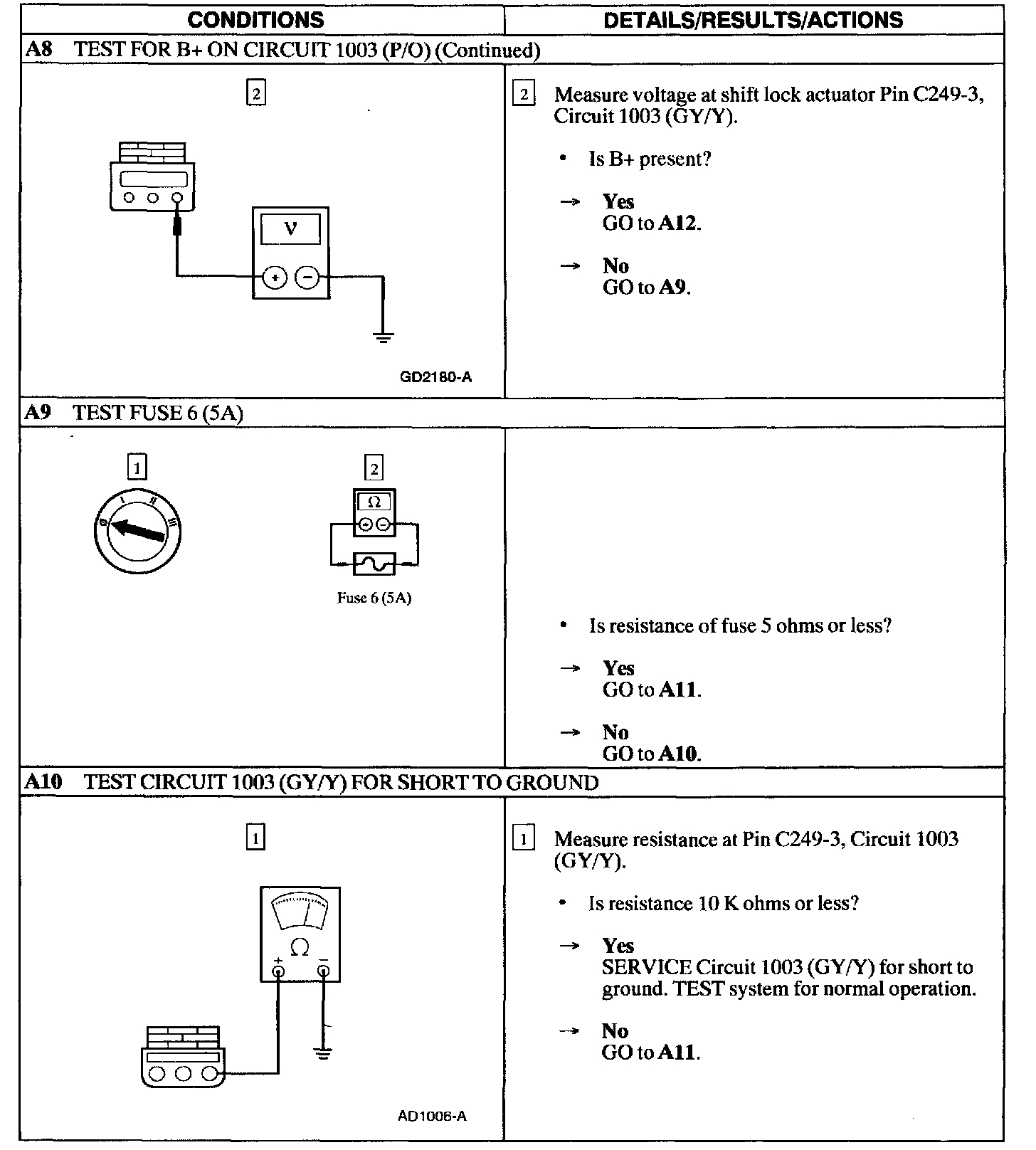

Test A8-A10

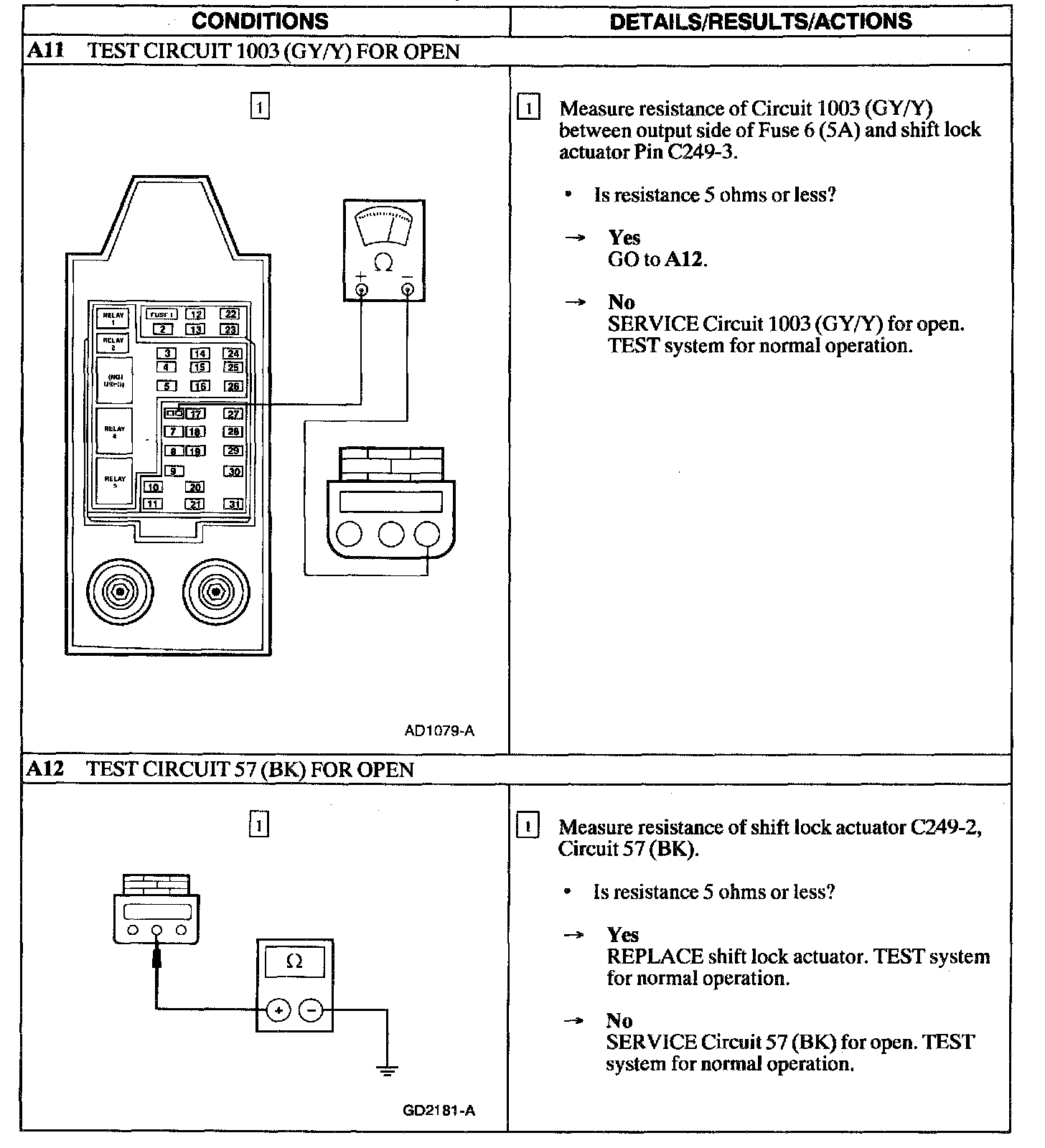

Test A11-A12
