Driveshaft

Driveshaft

Driveshaft - Front:

Driveshaft - Front

Driveshaft - Rear, One-Piece 4x2 With 137- And 141- Inch Wheel Base, Except Excursion:

Driveshaft - Rear, One-Piece 4x2 With 137- And 141- Inch Wheel Base, Except Excursion

Driveshaft - Rear, One-Piece, Excursion (Part 1):

Driveshaft - Rear, One-Piece, Excursion (Part 2):

Driveshaft - Rear, One-Piece, Excursion

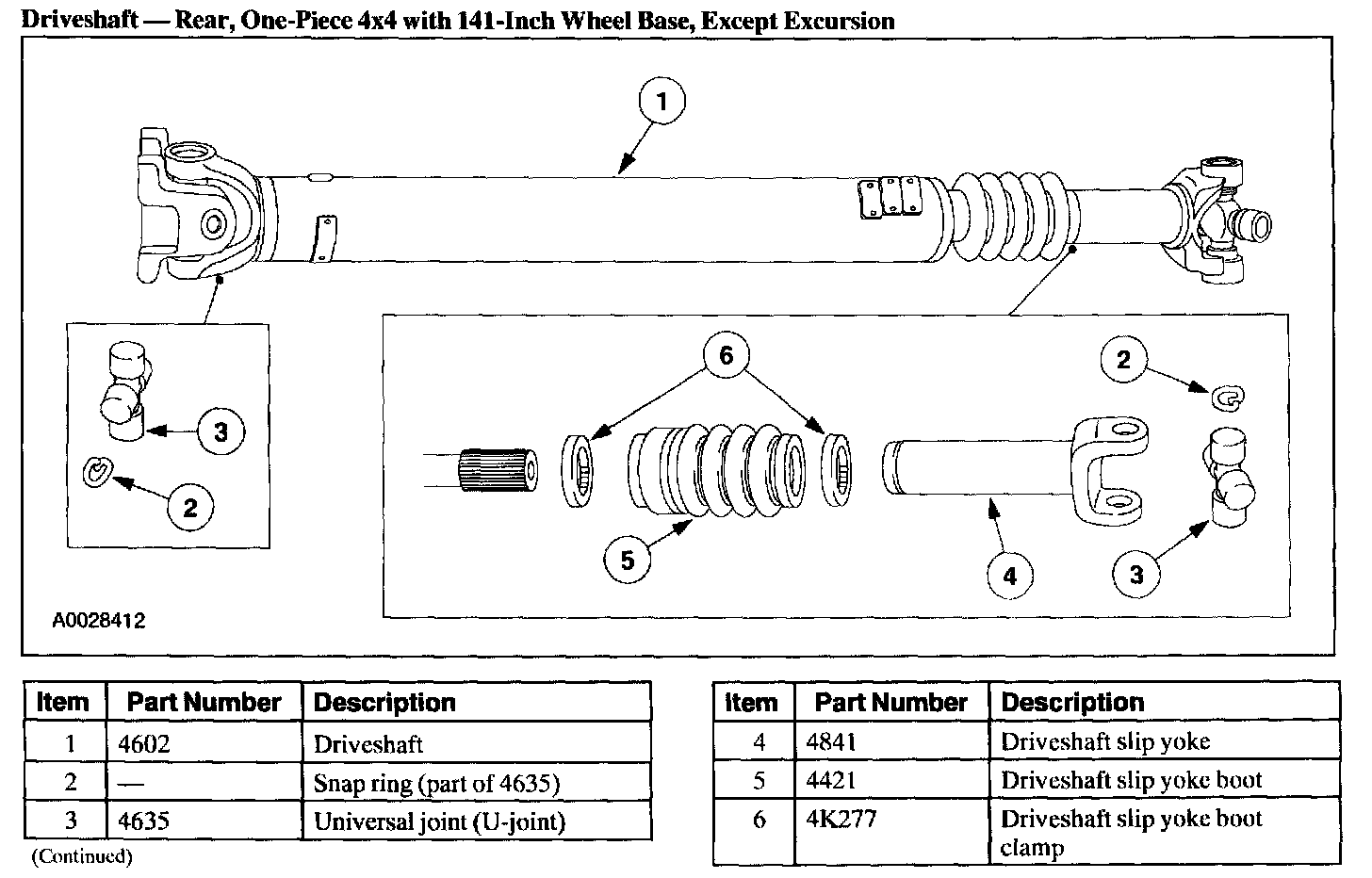

Driveshaft - Rear, One-Piece 4x4 With 141- Inch Wheel Base, Except Excursion:

Driveshaft - Rear, One-Piece 4x4 With 141- Inch Wheel Base, Except Excursion

Driveshaft - Rear, One-Piece 4x4 With 137- And 142- Inch Wheel Base, Except Excursion:

Driveshaft - Rear, One-Piece 4x4 With 137- And 142- Inch Wheel Base, Except Excursion

Driveshaft - Rear, One-Piece 4x4, Excursion:

Driveshaft - Rear, One-Piece 4x4, Excursion

Driveshaft - Rear, Two-Piece, All Models Except XLT And Lariat 4x2 With 142- Inch Wheel Base And 156- And 158- Inch Wheel Base (Part 1):

Driveshaft - Rear, Two-Piece, All Models Except XLT And Lariat 4x2 With 142- Inch Wheel Base And 156- And 158- Inch Wheel Base (Part 2):

Driveshaft - Rear, Two-Piece, All Models Except XLT And Lariat 4x2 With 142- Inch Wheel Base And 156- And 158- Inch Wheel Base

Driveshaft - Rear, Two-Piece, XLT And Lariat Models 4x2 With 142- Inch Wheel Base And 156- Inch Wheel Base (Part 1):

Driveshaft - Rear, Two-Piece, XLT And Lariat Models 4x2 With 142- Inch Wheel Base And 156- Inch Wheel Base (Part 2):

Driveshaft - Rear, Two-Piece, XLT And Lariat Models 4x2 With 142- Inch Wheel Base And 156- Inch Wheel Base

Driveshaft - Rear, Three-Piece (Part 1):

Driveshaft - Rear, Three-Piece (Part 2):

Driveshaft - Rear, Three-Piece

Universal Joints

Universal Joints:

Universal joints have the following:
- A lubed-for-life design.
- Equipped with nylon thrust washers, located at the base of each bearing cup, which control end play, positions the needle bearings and improves grease movement.
- Two types of universal joints are used: a Dana design and a Ford design.
