Test D: High/Low Wiper Speeds Do Not Operate Correctly
Test D: High/Low Wiper Speeds Do Not Operate Correctly

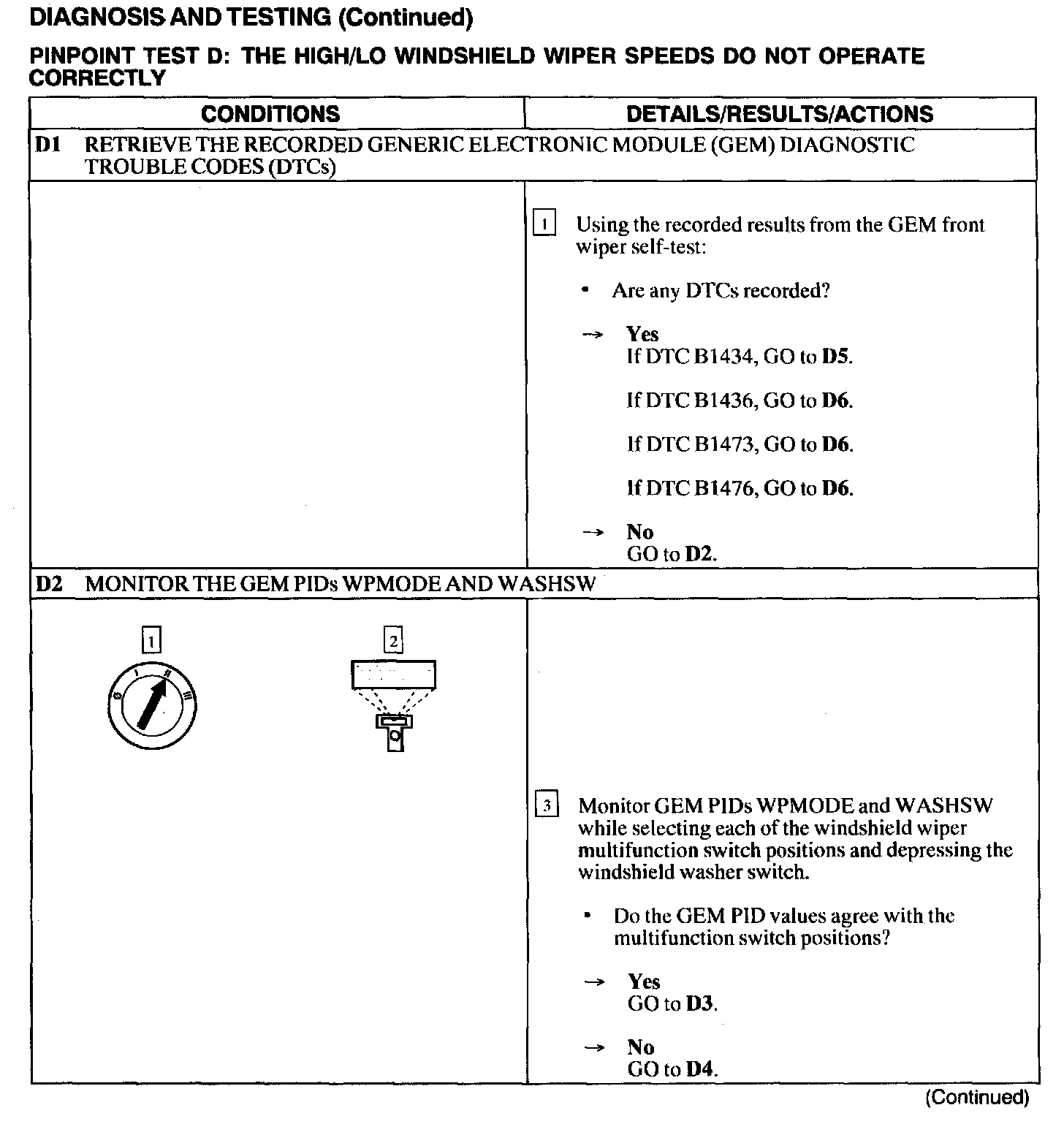

D1 - D2:

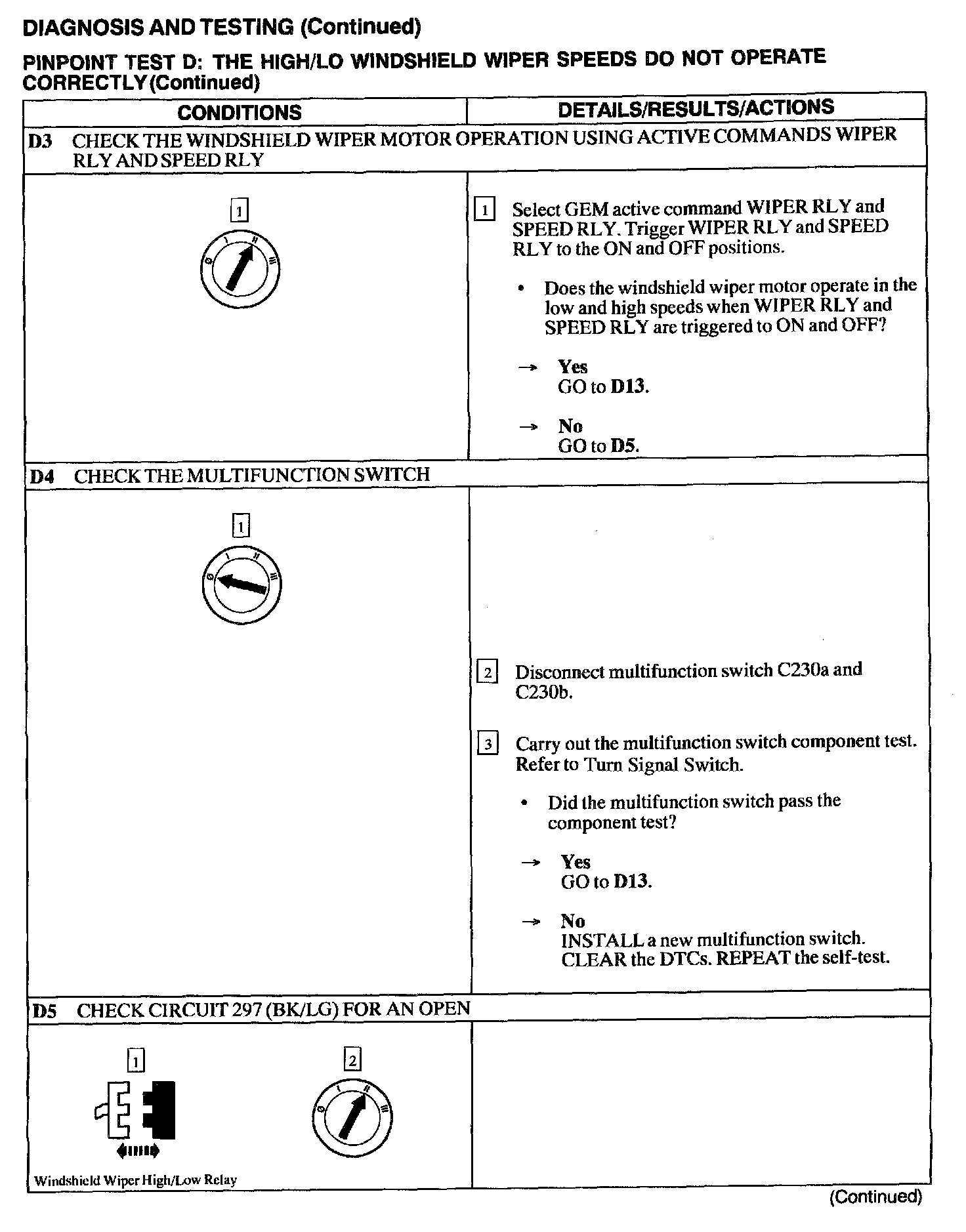

D3 - D5:

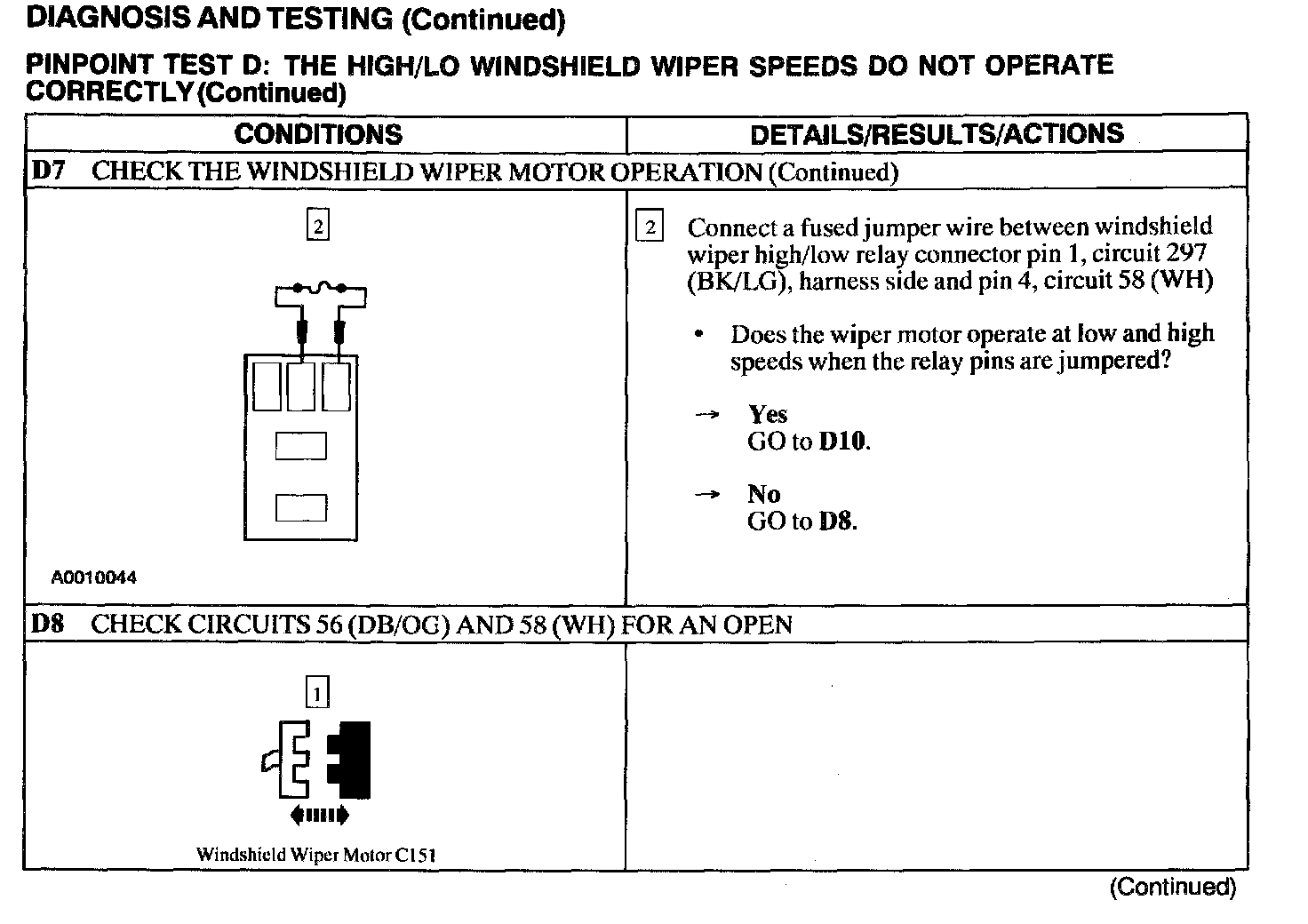

D5 - D7:

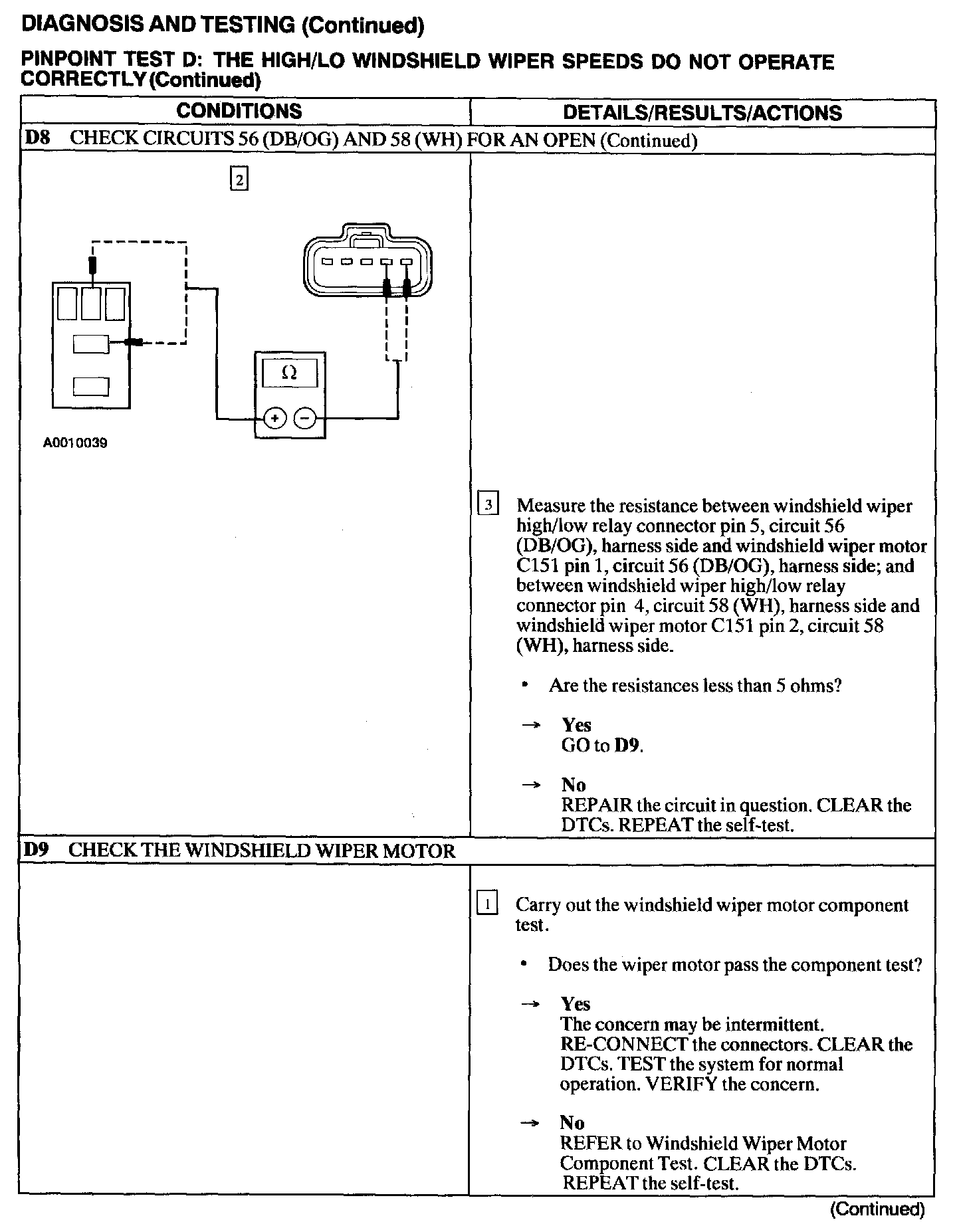

D7 - D8:
D8 - D9:

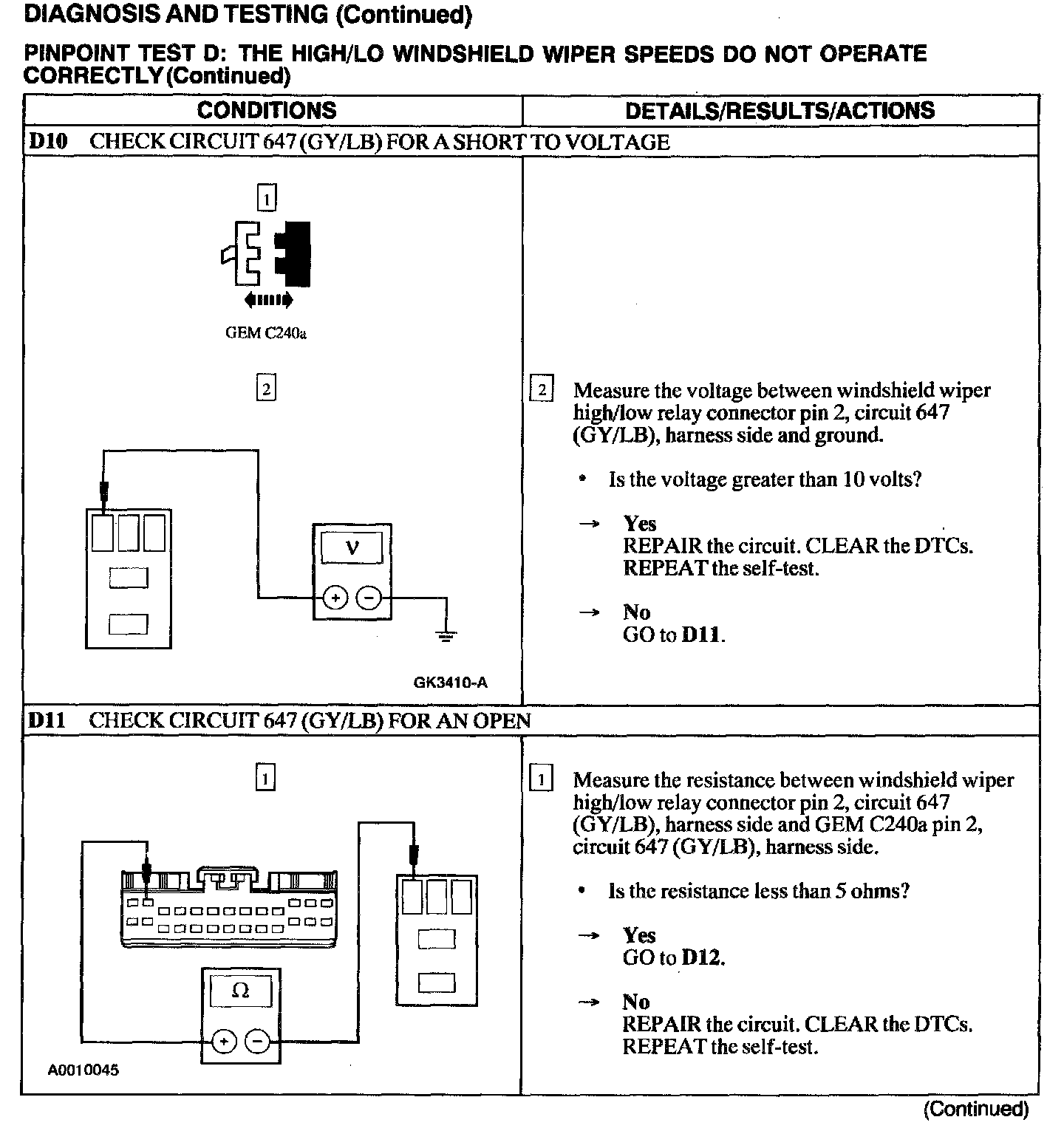

D10 - D11:

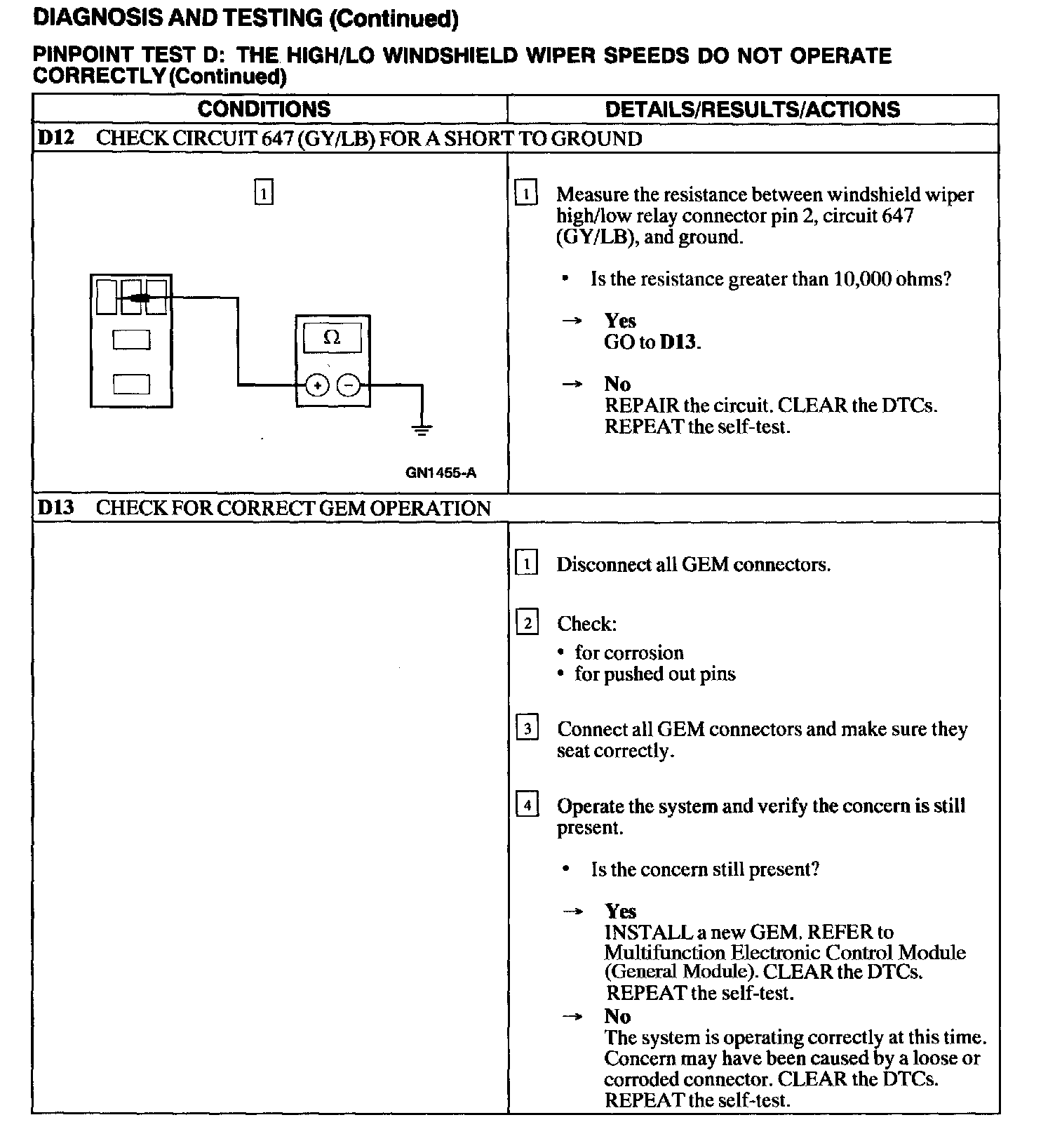

D12 - D13:
