Diagram Set 54

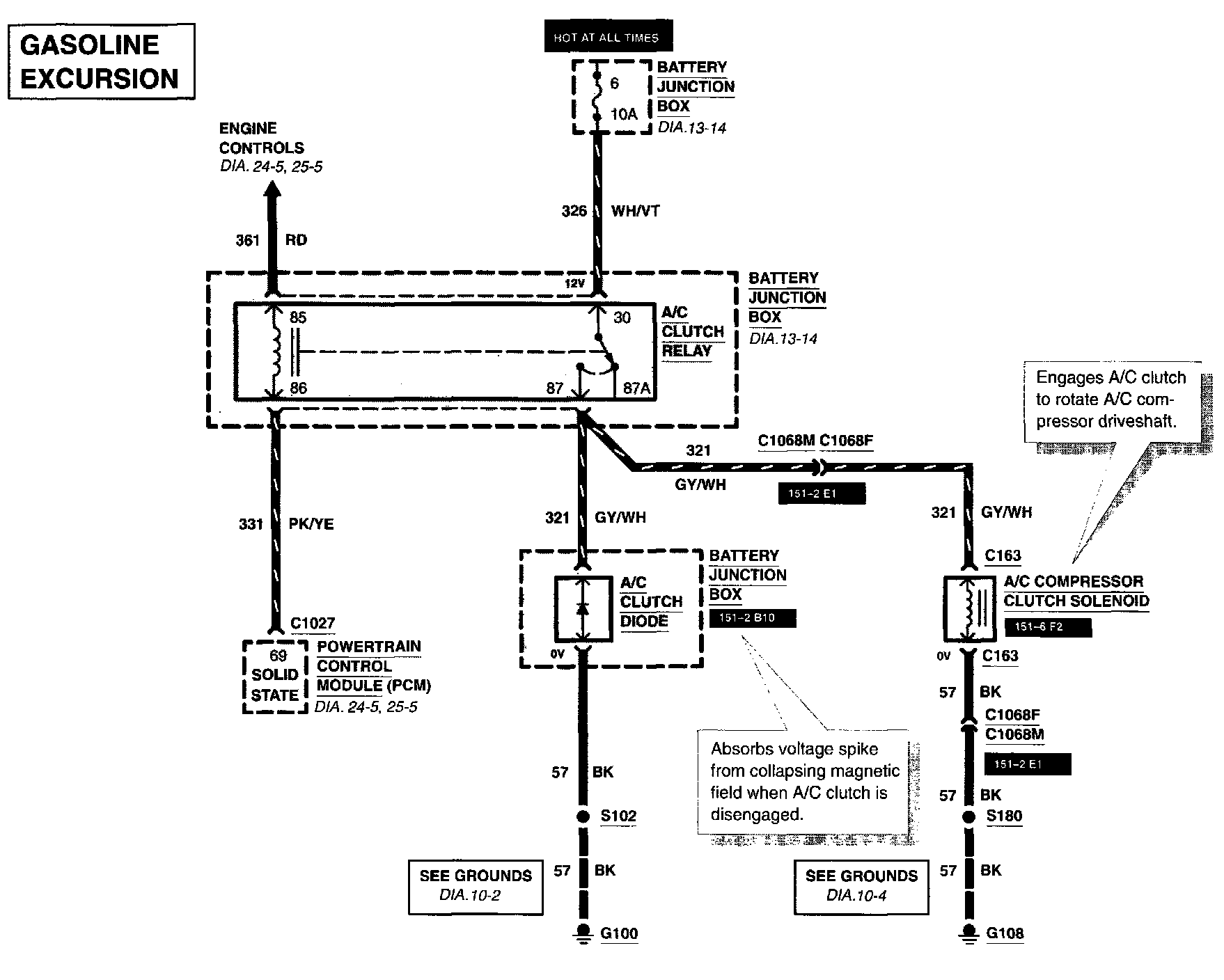

Diagram 54-1:

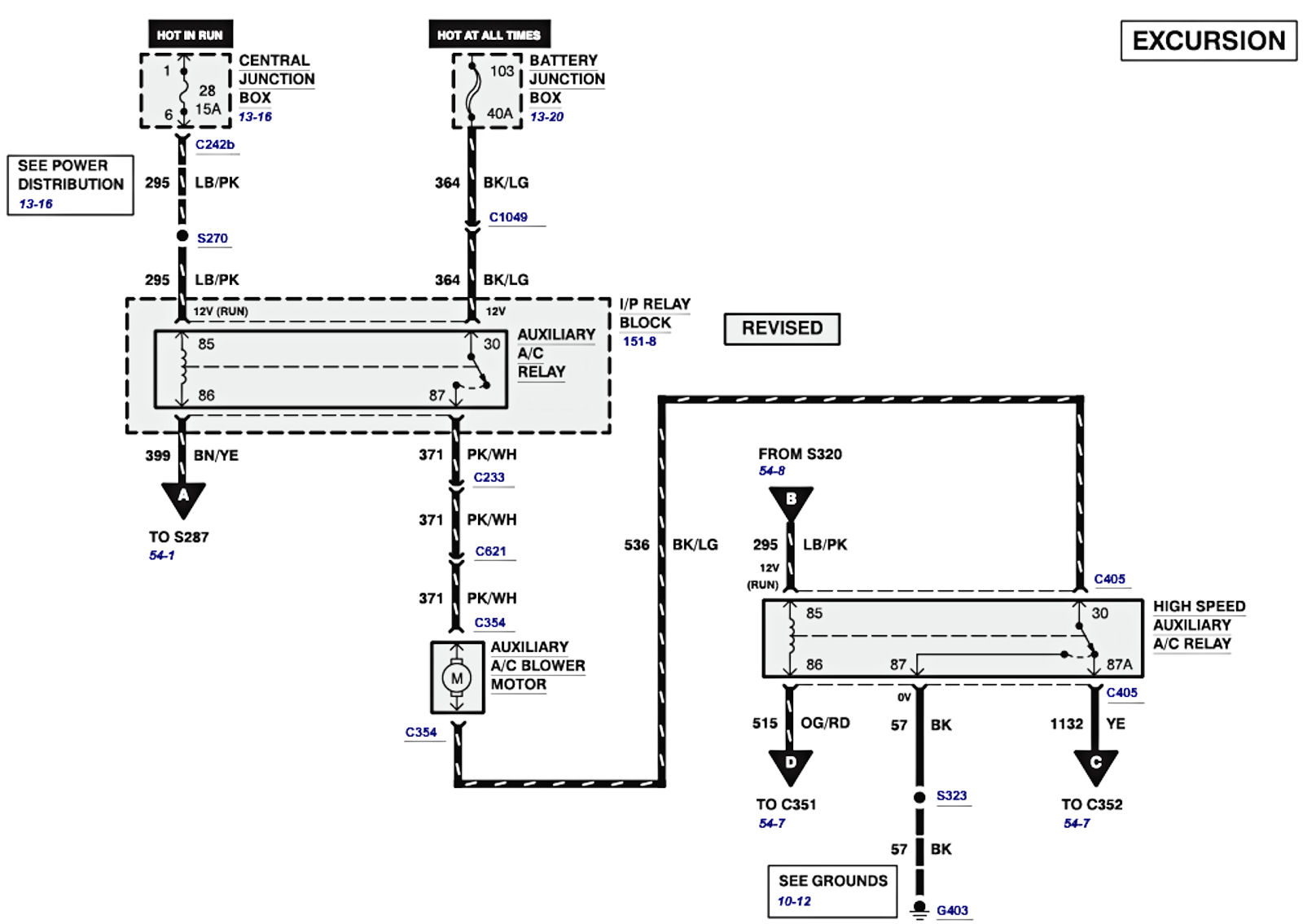

Diagram 54-2:



Diagram 54-3:



Diagram 54-6:



Diagram 54-7:



Diagram 54-8:



Diagram 54-9:
