Lower and Front End

Engine-Lower and Front End

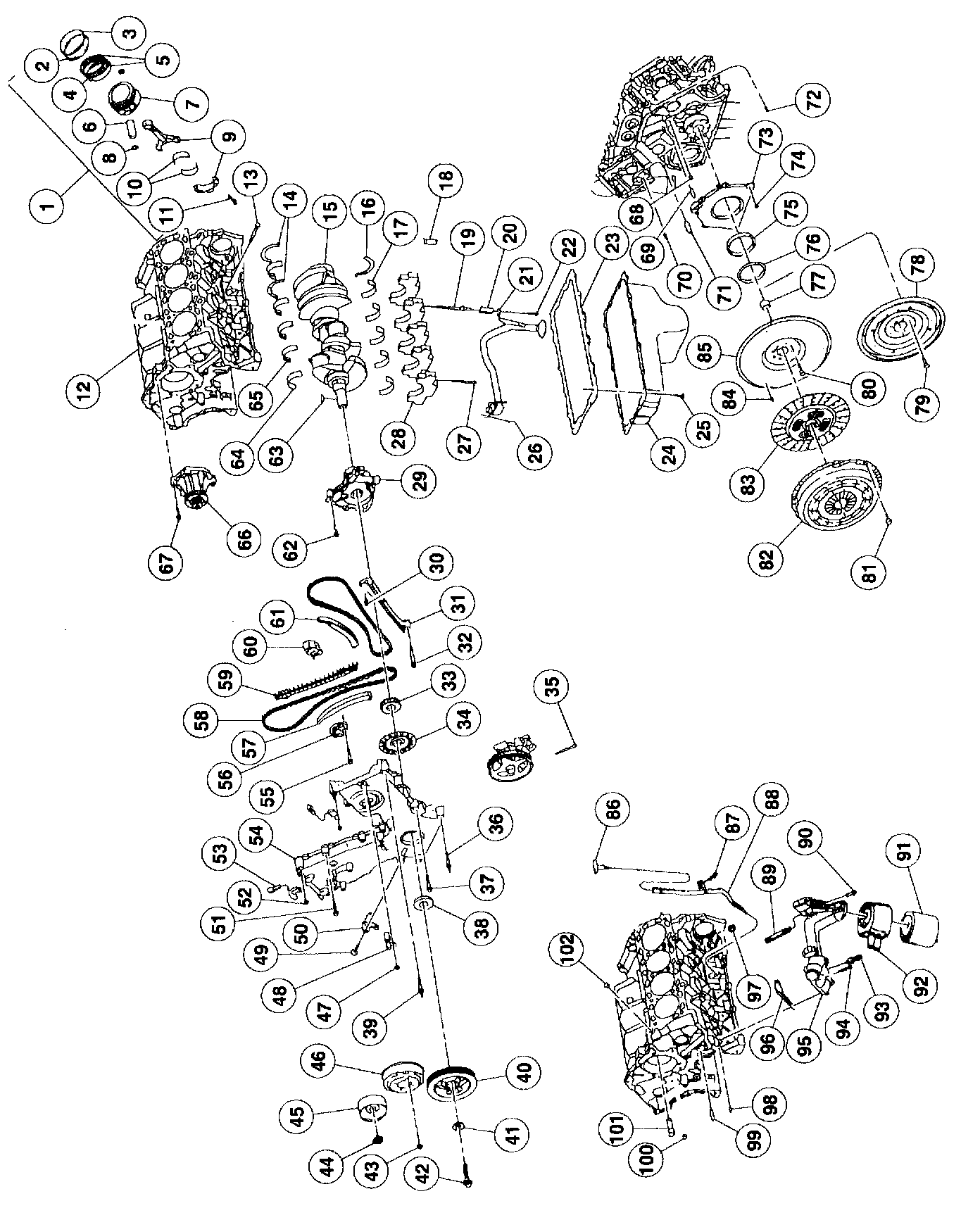

Part 1 of 5

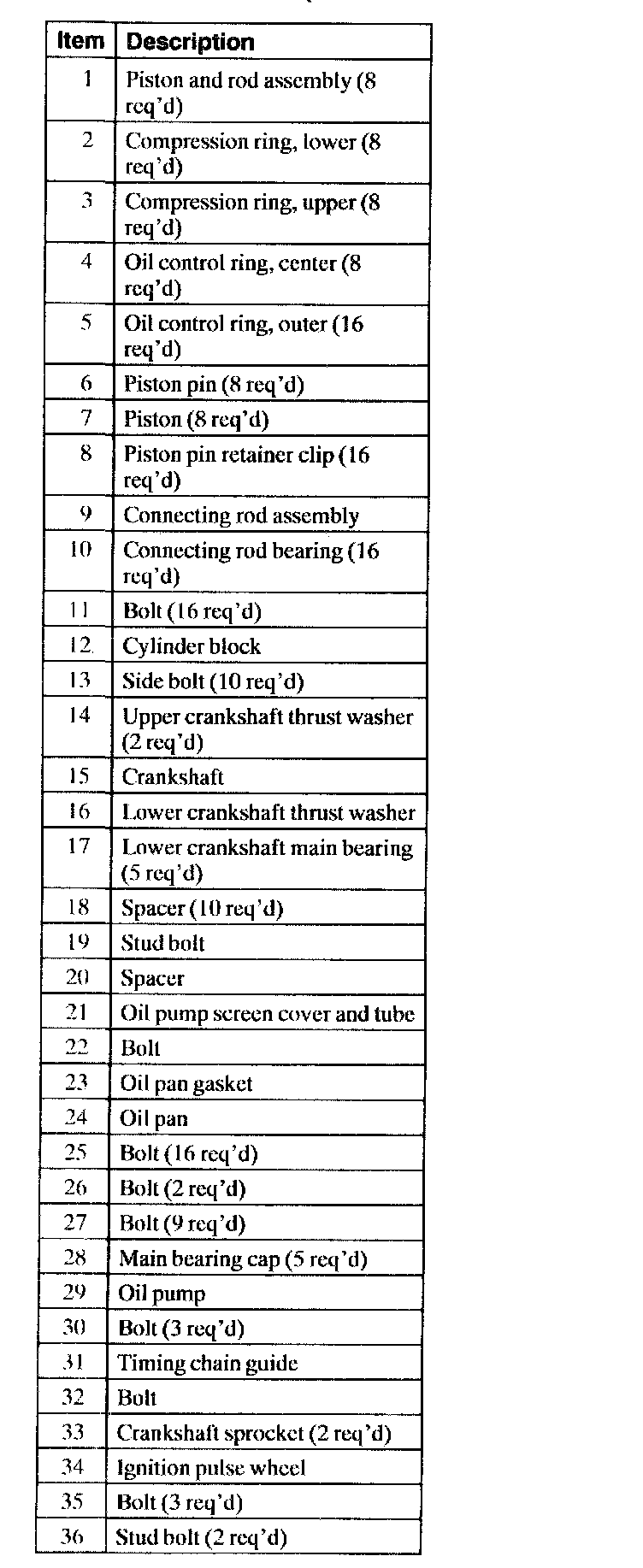

Part 2 of 5

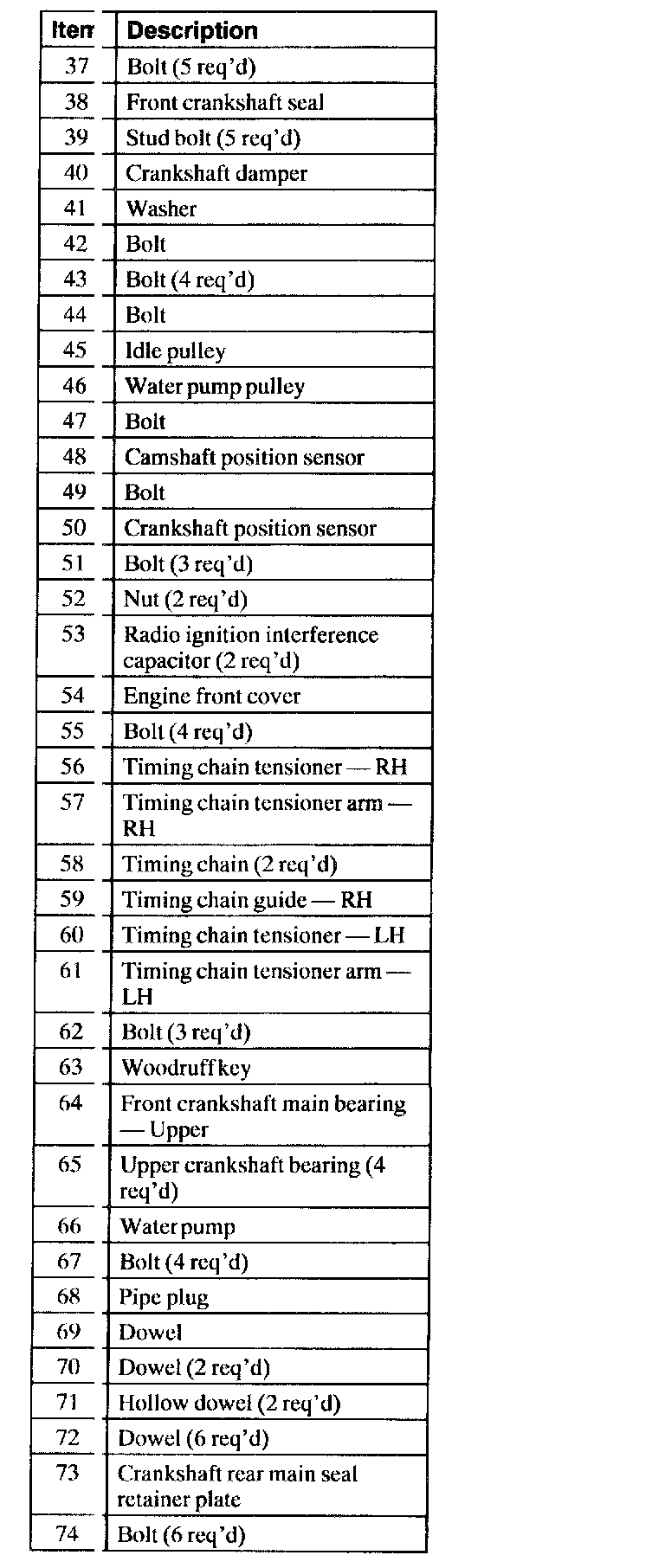

Part 3 of 5

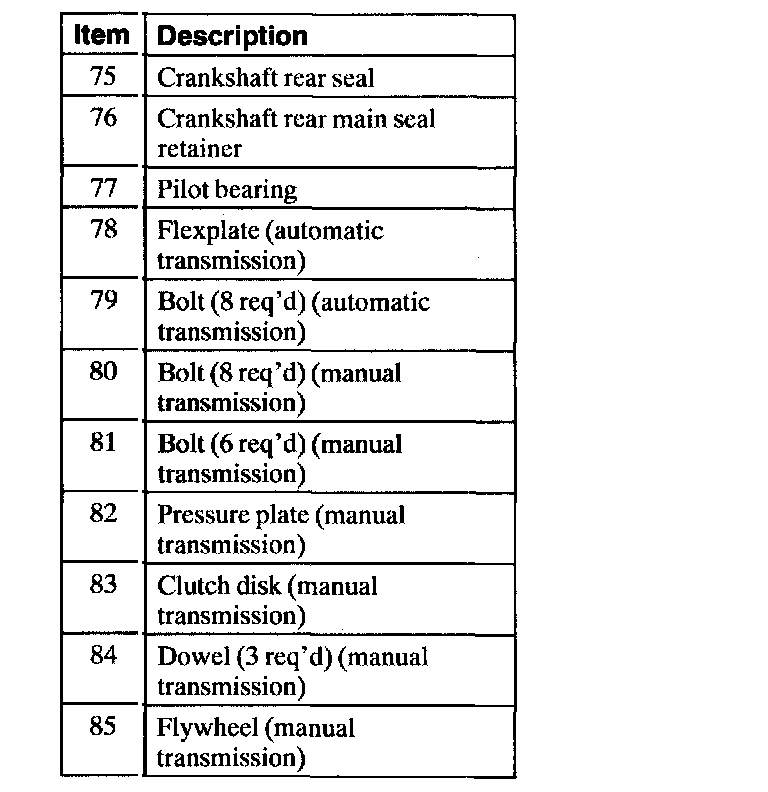

Part 4 of 5

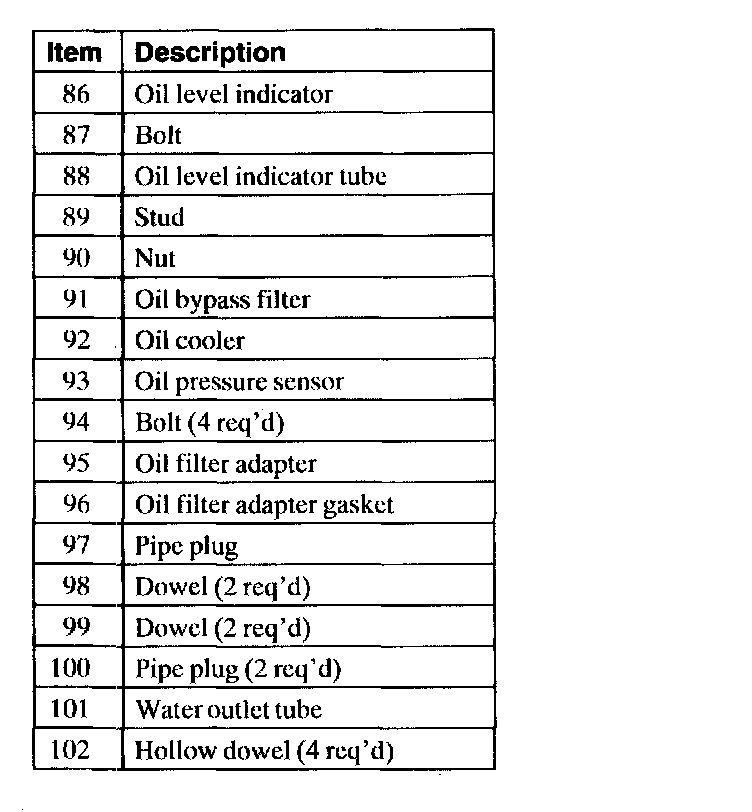

Part 5 of 5
