Two Door

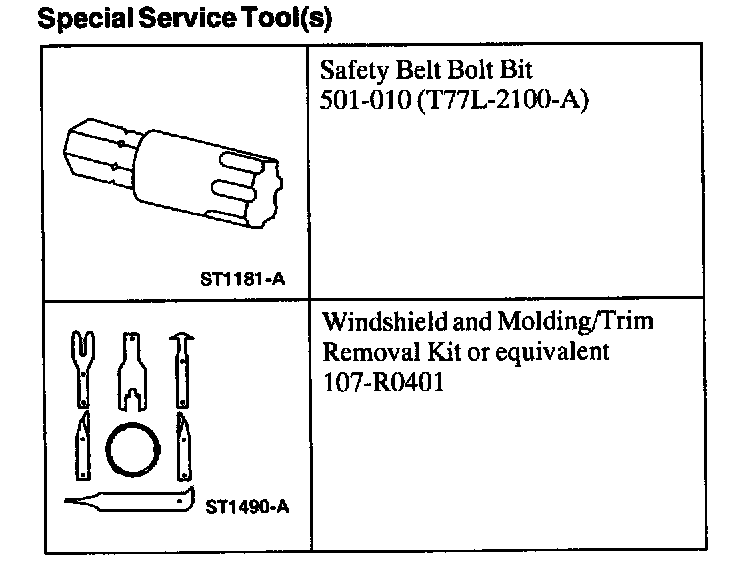

Special Service Tool(s):

SPECIAL SERVICE TOOL(S)

REMOVAL

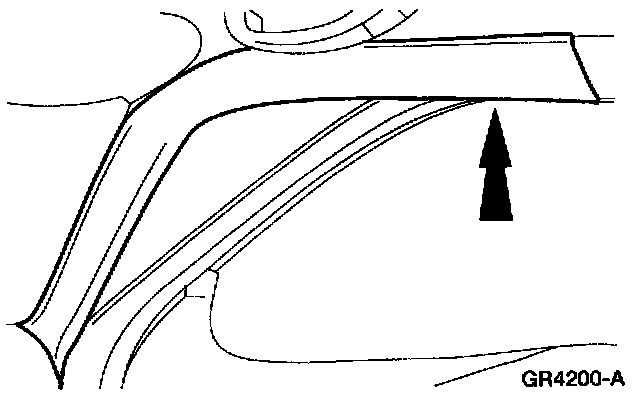

1. Remove the windshield side garnish moulding.

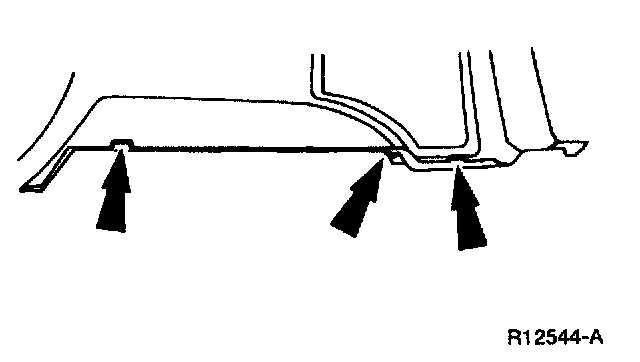

2. Remove the front door scuff plate.

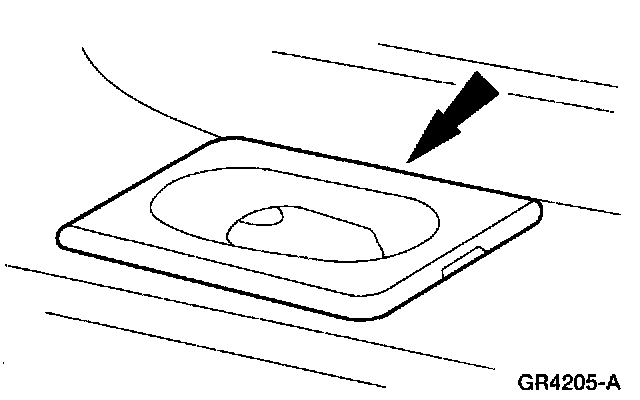

3. Remove the front safety belt guide bolt cover.

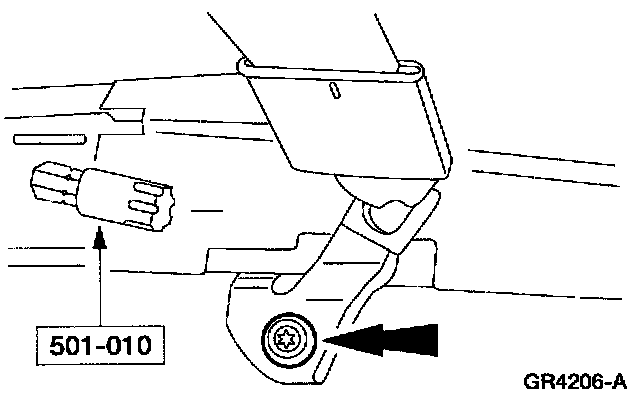

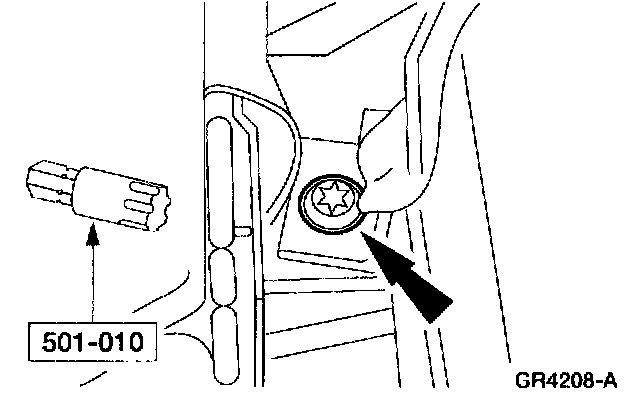

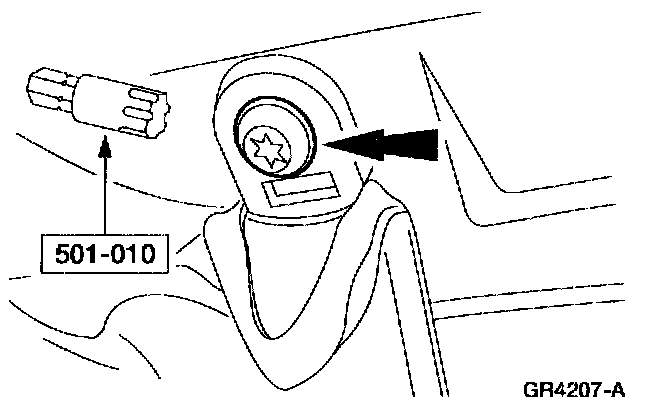

4. Using the special tool, remove the front safety belt guide bolt.

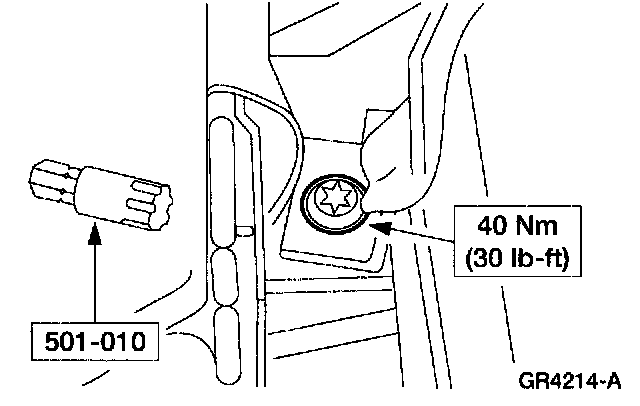

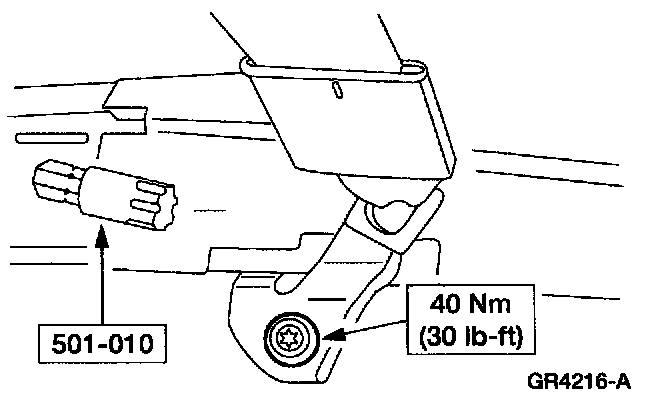

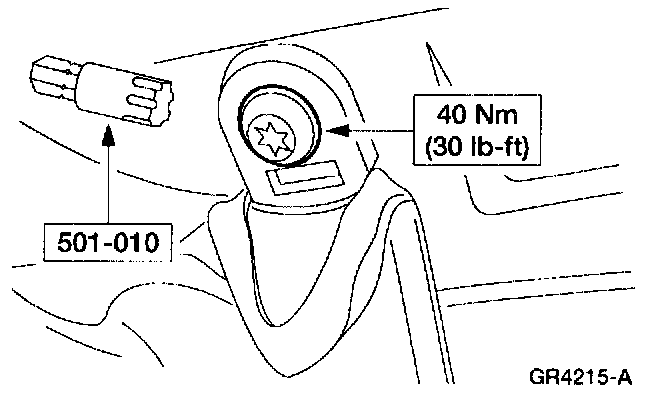

5. Using the special tool, remove the front safety belt anchor bolt.

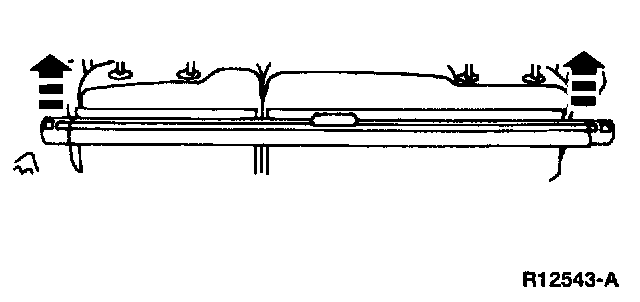

6. If equipped, remove the retractable cargo cover.

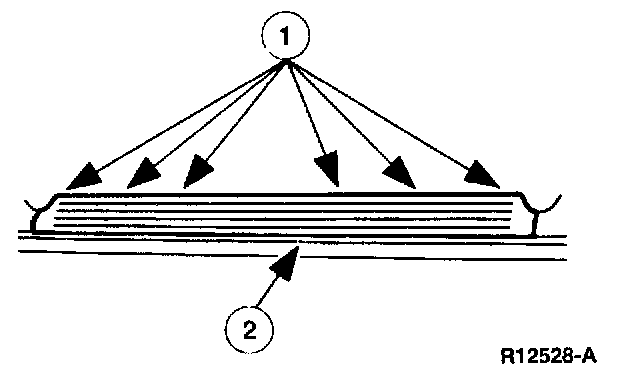

7. Remove the liftgate scuff plate.
1 Starting at either end and working along the liftgate scuff plate, use Windshield and Molding/Trim Removal Kit to remove the scuff plate.
2 Remove the liftgate scuff plate.
8. Fold the rear seat into the load floor position.

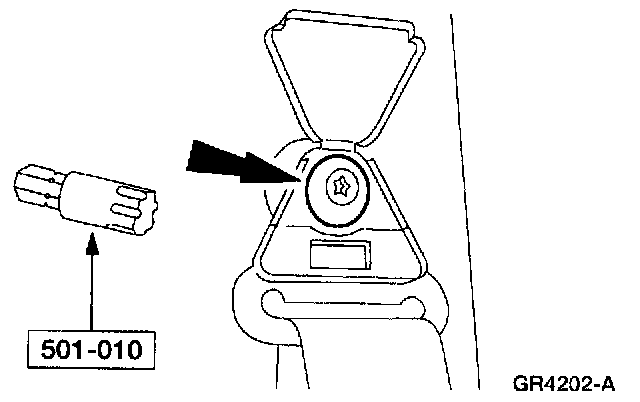

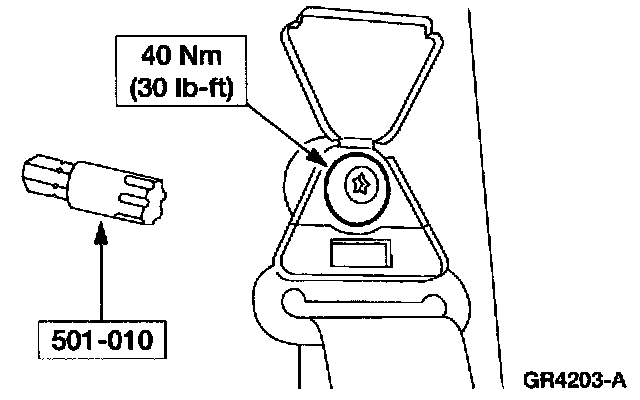

9. Using the special tool, remove the rear safety belt guide bolt.

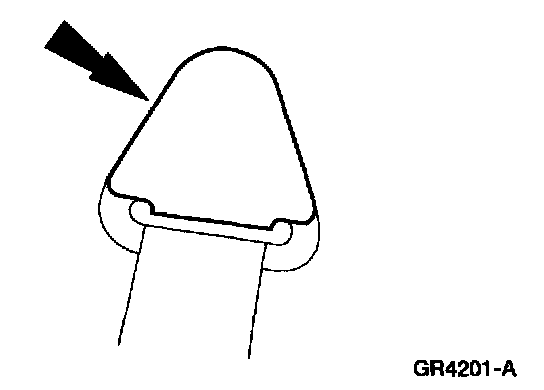

- Position the rear safety belt guide cover aside.







10. Using the special tool, remove the rear safety belt anchor bolt.

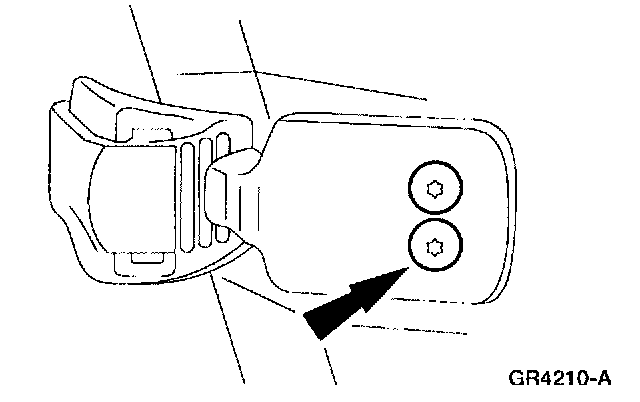

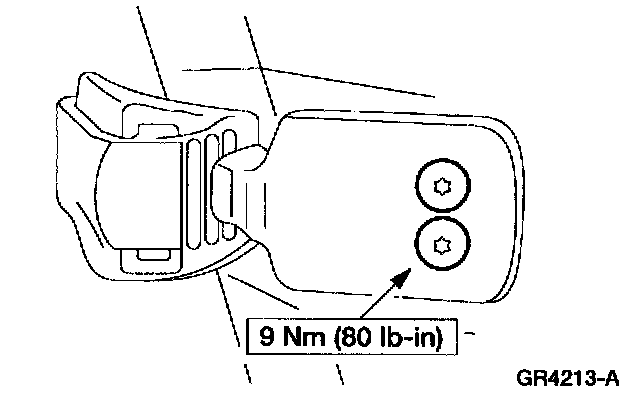

11. Remove the two rear quarter window latch screws.

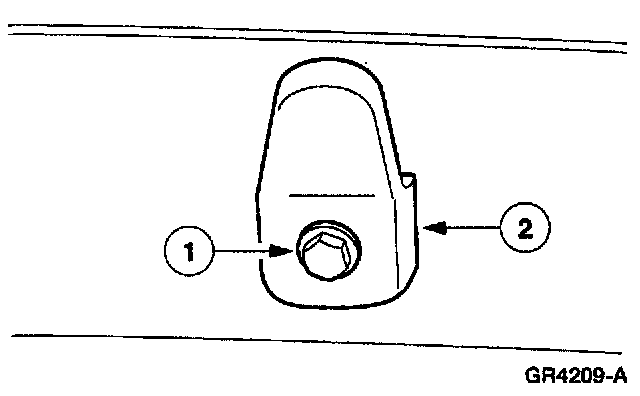

12. Remove the coat hook.
1 Remove the screw.
2 Remove the coat hook.







13. Remove the quarter trim panel front screw.
- Position the carpet aside to gain access to the screw.







14. Remove the three quarter trim panel rear screws.
- Position the carpet aside to gain access to the screws.







15. If equipped, remove the rear power lock switch assembly.
- Disconnect the electrical connector.

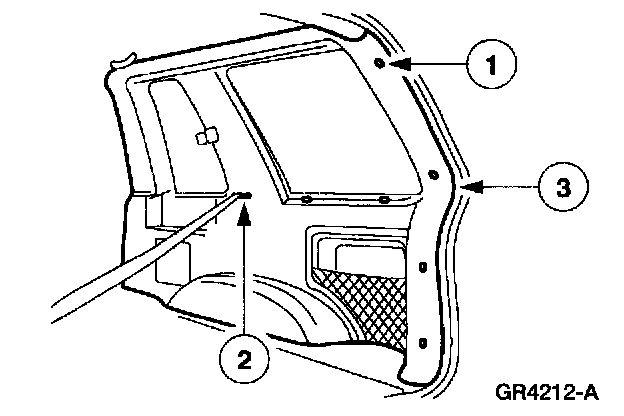

16. Remove the quarter trim panel.
1 Remove the eight pin-type retainers.
2 Feed the safety belt webbing through the opening in the quarter trim panel.
3 Remove the quarter trim panel.

INSTALLATION



























1. To install, reverse the removal procedure.
