6-Way Power, Except Limited

DISASSEMBLY

WARNING:
- ALWAYS WEAR SAFETY GLASSES WHEN REPAIRING AN AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) VEHICLE AND WHEN HANDLING AN AIR BAG MODULE. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT
- CARRY A LIVE SIDE AIR BAG MODULE WITH THE AIR BAG AND TEAR SEAM POINTED AWAY FROM YOUR BODY. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
- DO NOT SET A LIVE SIDE AIR BAG MODULE DOWN ON THE COVER TEAR SEAM. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
- AFTER DEPLOYMENT, THE AIR BAG SURFACE CAN CONTAIN DEPOSITS OF SODIUM HYDROXIDE, A PRODUCT OF THE GAS GENERANT COMBUSTION THAT IS IRRITATING TO THE SKIN. WASH YOUR HANDS WITH SOAP AND WATER AFTERWARD.
- NEVER PROBE THE CONNECTORS ON THE AIR BAG MODULE. DOING SO CAN RESULT IN AIR BAG DEPLOYMENT, WHICH CAN RESULT IN PERSONAL INJURY.
- BEFORE INSTALLING THE SIDE AIR BAG MODULE, CHECK IT FOR DAMAGE AND FOREIGN OBJECTS. IF THE AIR BAG MODULE IS DAMAGED, REPLACE IT. IF ANY FOREIGN OBJECTS ARE FOUND, REMOVE THEM. FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY IN THE EVENT OF AN AIR BAG DEPLOYMENT.
- VEHICLE SENSOR ORIENTATION IS CRITICAL FOR PROPER SYSTEM OPERATION. IF A VEHICLE EQUIPPED WITH AN AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) IS INVOLVED IN A COLLISION, INSPECT THE SENSOR MOUNTING BRACKET AND WIRING PIGTAIL FOR DEFORMATION. REPLACE AND PROPERLY POSITION THE SENSOR OR ANY OTHER DAMAGED SUPPLEMENTAL RESTRAINT SYSTEM (SRS) COMPONENTS WHETHER OR NOT THE AIR BAG IS DEPLOYED.
- TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL INJURY, THE BACKUP POWER SUPPLY MUST BE DEPLETED BEFORE REPAIRING OR REPLACING ANY FRONT OR SIDE AIR BAG SRS COMPONENTS AND BEFORE SERVICING, REPLACING, ADJUSTING OR STRIKING COMPONENTS NEAR THE FRONT OR SIDE AIR BAG SENSORS, SUCH AS DOORS, INSTRUMENT PANEL, CONSOLE, DOOR LATCHES, STRIKERS, SEATS AND HOOD LATCHES.

THE SIDE AIR BAG SENSORS ARE LOCATED AT OR NEAR THE BASE OF THE B-PILLAR.

TO DEPLETE THE BACKUP POWER SUPPLY ENERGY, DISCONNECT THE BATTERY GROUND CABLE AND WAIT AT LEAST ONE MINUTE. BE SURE TO DISCONNECT AUXILIARY BATTERIES AND POWER SUPPLIES (IF EQUIPPED).

- THE RESTRAINT SYSTEM DIAGNOSTIC TOOL IS FOR RESTRAINT SYSTEM SERVICE ONLY. REMOVE FROM VEHICLE PRIOR TO ROAD USE. FAILURE TO REMOVE COULD RESULT IN INJURY AND POSSIBLE VIOLATION OF VEHICLE SAFETY STANDARDS.

NOTE:
- If a seat equipped with a seat mounted side airbag system is being serviced the airbag system must be deactivated per the deactivation procedure contained in Air Bag Systems.
- Airbag simulators (restraint system diagnostic tools) MUST be installed under the seats in the side airbag to floor connector.
- Diagnostics or repairs are not to be performed on a side airbag system with the seat in the vehicle. Prior to attempting to diagnose/repair the side airbag system the seat must be removed from the vehicle and the restraint system diagnostic tool must be installed in side airbag connector at the floor connector. The restraint system diagnostic tool must be removed prior to operating the vehicle.
- Diagnostics may be performed on seat systems other than the side airbag system (lumbar, climate controlled, heated, power scat track) with the seat installed in the vehicle as long as the restraint system diagnostic tool is installed under the seat in the side airbag to floor connector.
- After diagnosing/repairing a seat system the restraint system diagnostic tool must be removed before operating the vehicle.
- A side air bag repair is made by replacement only. If a part is replaced and the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.
- Before disconnecting the battery, raise the seat to the highest position, then move and tilt the seat to its most forward position.

1. Deactivate the supplemental restraint system. For additional information, refer to Air Bag Systems.
2. Remove the front seat track. For additional information, refer to Seat-Track, Limited and 6-Way Power.

NOTE: Be sure to read and follow all air bag warnings contained in Seat-Track, Limited and 6-Way Power, Removal and Installation.

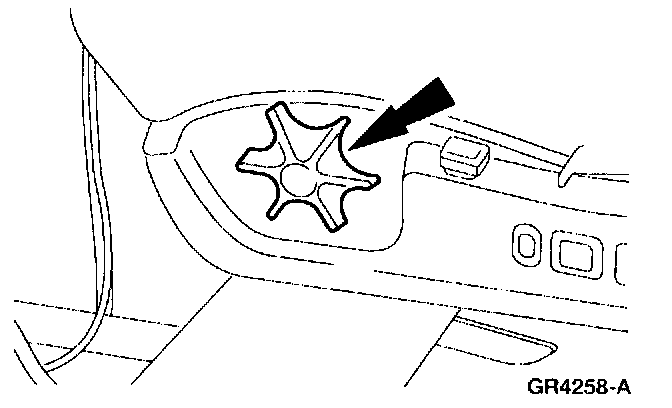

3. Remove the lumbar support adjuster knob.

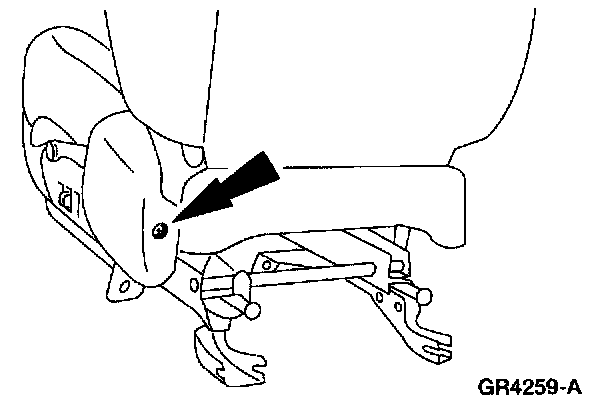

4. Remove the front seat cushion side shield rear screw.

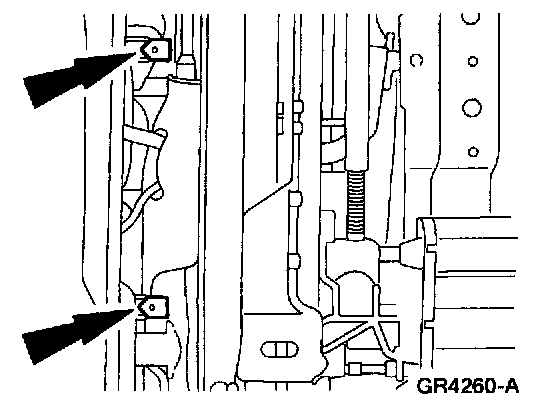

5. Unclip the front seat cushion side shield.

CAUTION: To prevent damage to the side shield, the clips must be depressed in order to release the side shield from the cushion pan.







6. Unhook the front seat cushion side shield from the seat latch.







7. If equipped, disconnect the heated seat switch electrical connector.

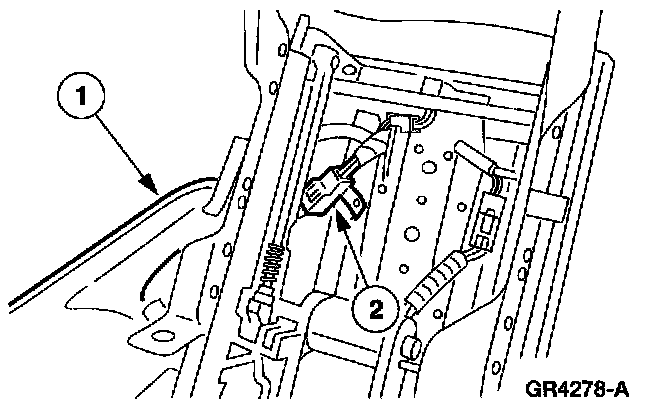

8. Remove the front seat cushion side shield.

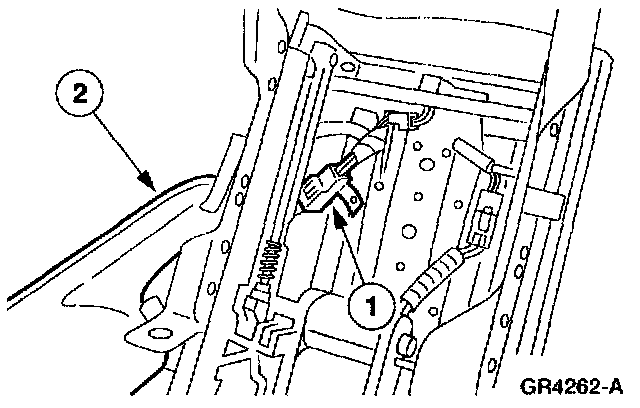

1. Disconnect the power seat switch electrical connector.
2. Remove the front seat cushion side shield.

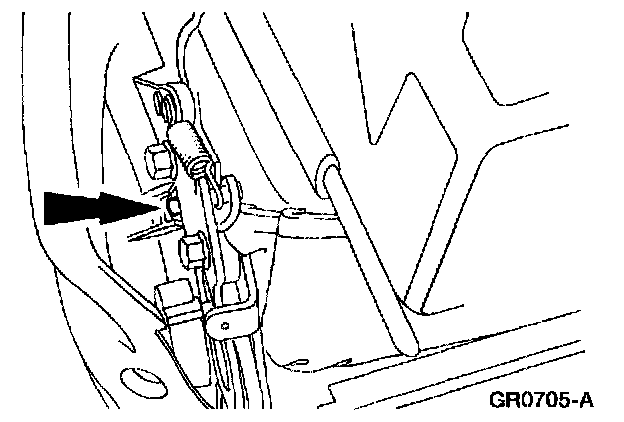

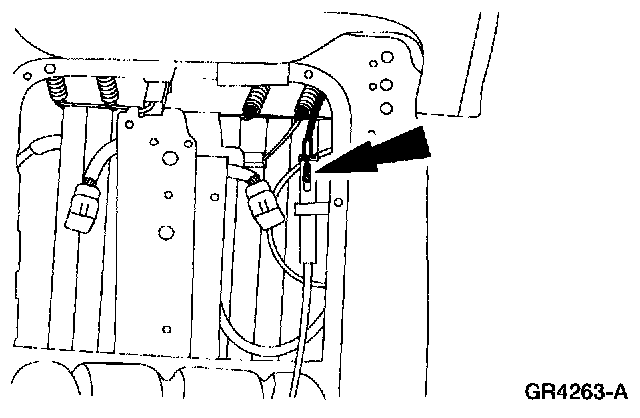

9. Disconnect the lumbar support adjuster cable.

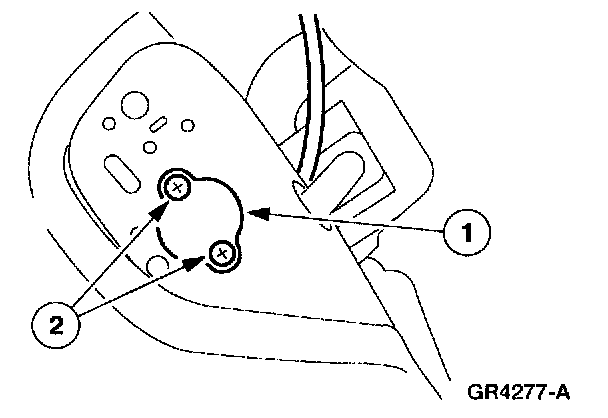

10. Remove the lumbar support adjuster.
1. Remove the screws.
2. Remove the lumbar support adjuster.

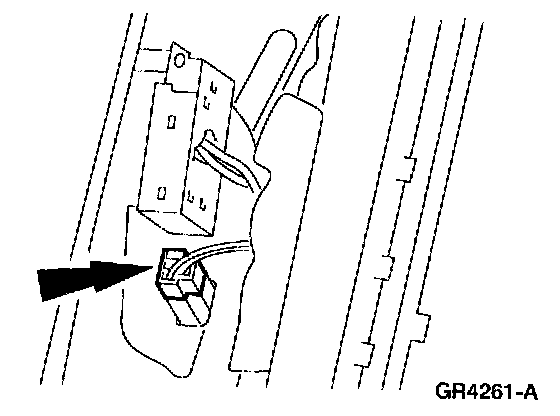

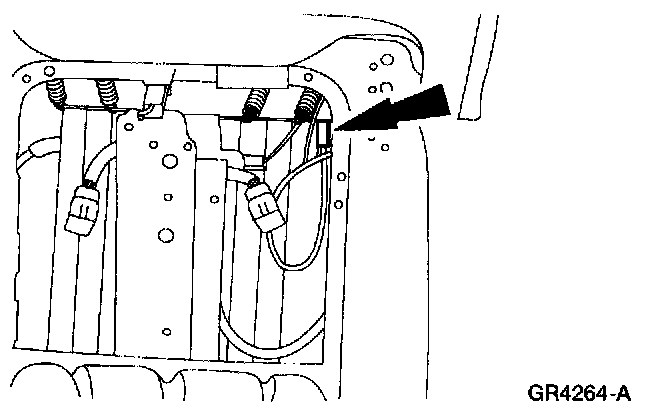

11. If equipped, disconnect the seat backrest heating element.

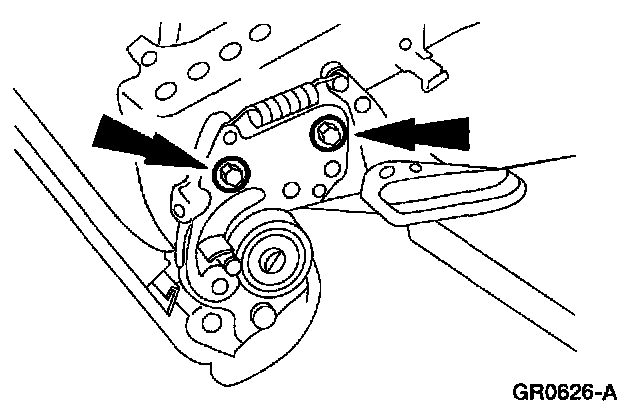

12. Remove the front seat backrest latch to seat cushion bolts.

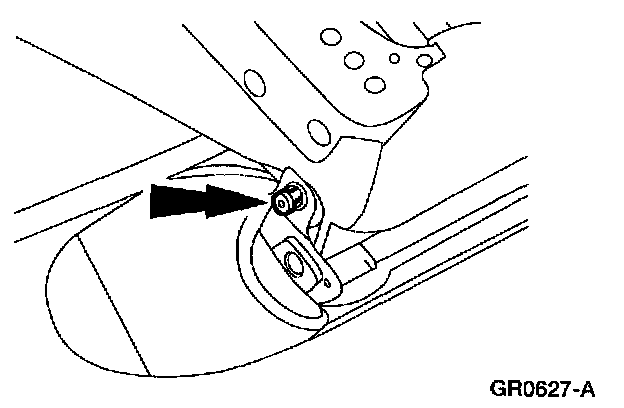

13. Setting the seat on its other side, remove the retaining bolt for the seat pivot, being careful not to damage the seat pivot, cable or any of the wires.

CAUTION: When positioning the seat or separating the seat bottom from the back, be careful not to damage the seat back pivot and any of the wires or cables from the seat back to the seat bottom. This can cause damage to one of the seat components.

14. Remove the lumbar support adjusting cable, seat backrest heating electrical connector, and side air bag wiring harness from the seat cushion.

ASSEMBLY
1. Install the lumbar support adjusting cable, seat backrest heating electrical connector, and side air bag wiring harness into the seat cushion.

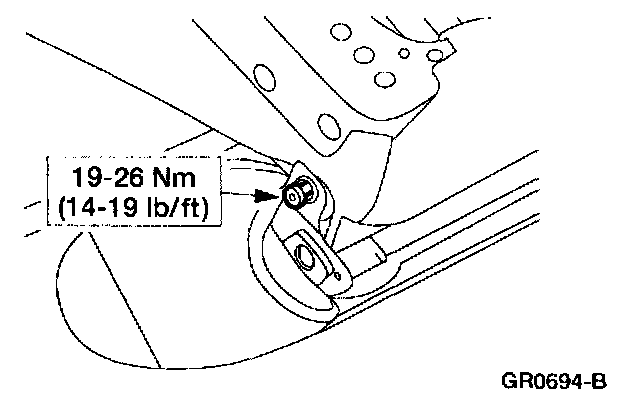

2. Install the front seat inboard pivot bolt.

NOTE: Be sure to install the seat pivot washer between the seat cushion and the seat backrest to allow for smooth operation of the seat backrest.

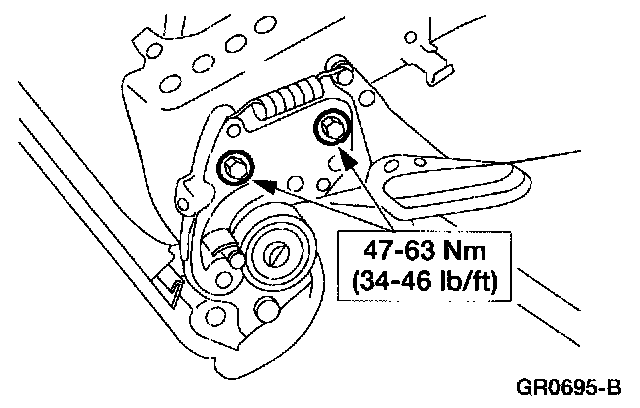

3. Install the front seat backrest latch to seat cushion bolts.

CAUTION: When positioning the seat or installing the bottom of the seat back, be careful not to damage the seat back pivot and any of the wires of cables from the seat back to the seat bottom. This can cause damage to one of the seat components.







4. If equipped, connect the seat backrest heating element electrical connector.







5. Install the lumbar support adjuster.
1. Position the lumbar support adjuster.
2. Install the screws.







6. Connect the lumbar support adjusting cable.







7. Install the front seat cushion side cover.
1. Position the front seat cushion side cover.
2. Connect the power seat switch electrical connector.







8. If equipped, connect the heated seat switch electrical connector.







9. Hook the front seat cushion side shield onto the seat latch clip.







10. Hook the front seat cushion side shield onto the clips.







11. Install the front seat cushion side shield rear screw.







12. Install the lumbar support adjuster knob.
13. Install the front seat track. For additional information, refer to Seat-Track, Limited and 6-Way Power.

NOTE: Be sure to read and follow all air bag warnings contained in Seat-Track, Limited and 6-Way Power, Removal and Installation.

14. Reactivate the supplemental restraint system. For additional information, refer to Air Bag Systems.

WARNING: THE RESTRAINT SYSTEM DIAGNOSTIC TOOL IS FOR RESTRAINT SYSTEM SERVICE ONLY. REMOVE FROM THE VEHICLE PRIOR TO ROAD USE. FAILURE TO REMOVE COULD RESULT IN INJURY AND POSSIBLE VIOLATION OF VEHICLE SAFETY STANDARDS.

15. Prove out the air bag system. For additional information, refer to Air Bag Systems.
16. Check the restraint system for proper operation.
