60% Portion of 60/40 Split Bench

DISASSEMBLY
1. Remove the rear seat. For additional information, refer to Seat-Rear, 60% Portion of 60/40 Split Bench.
2. Place the seat on a clean workbench.
3. Lock the rear seat into the upright position.

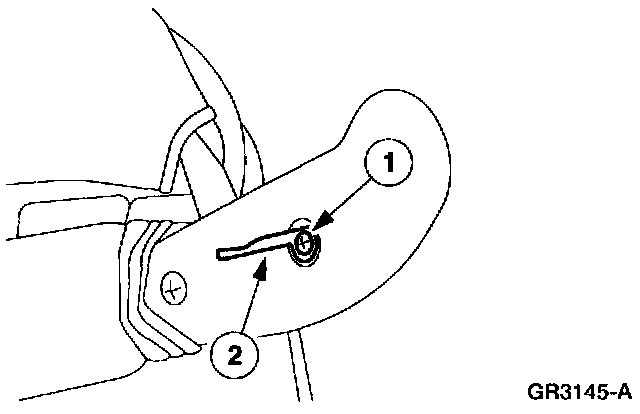

4. Remove the seat backrest latch handle.
1. Remove the screw.
2. Remove the seat backrest latch handle.

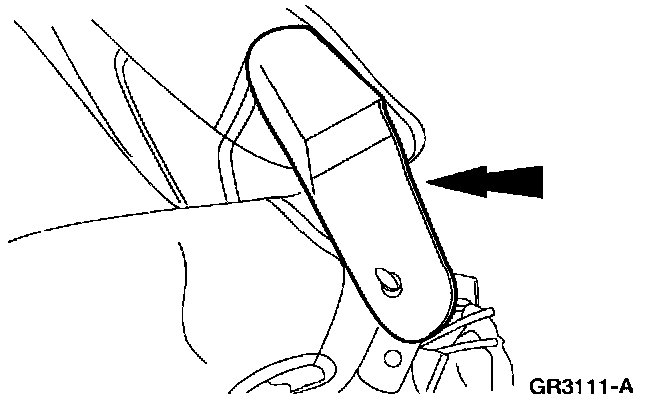

5. Remove the inboard pivot cover.

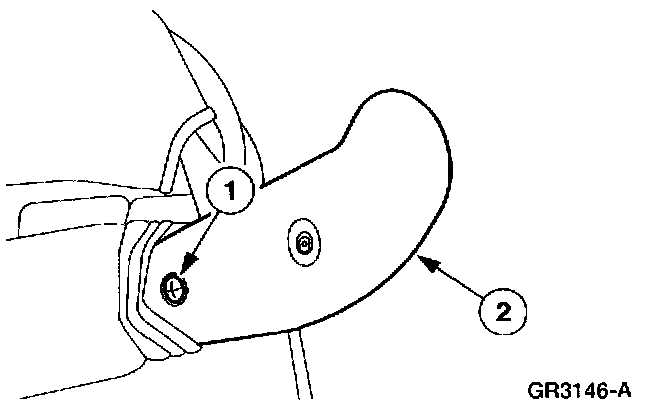

6. Remove the outboard pivot cover.
1. Remove the screw.
2. Remove the outboard pivot cover.

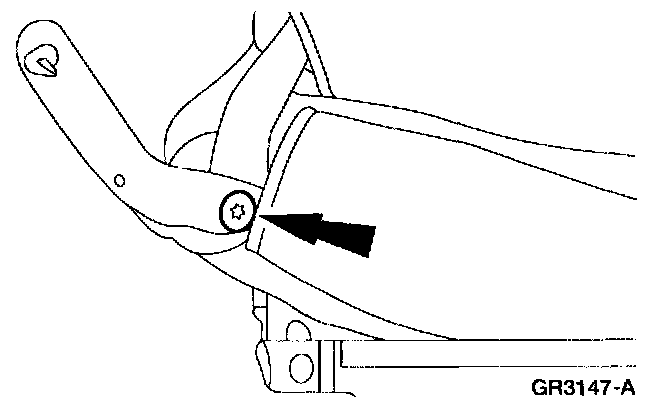

7. Remove the inboard seat cushion pivot bolt.

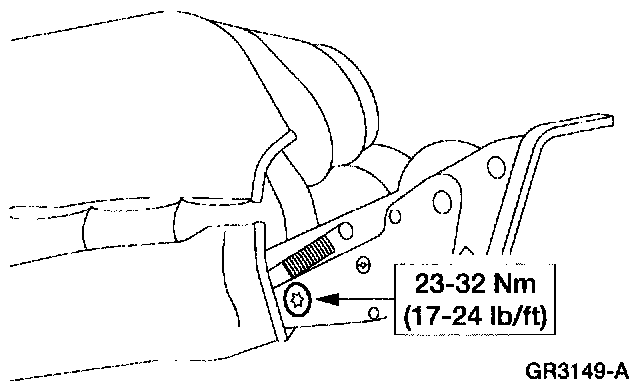

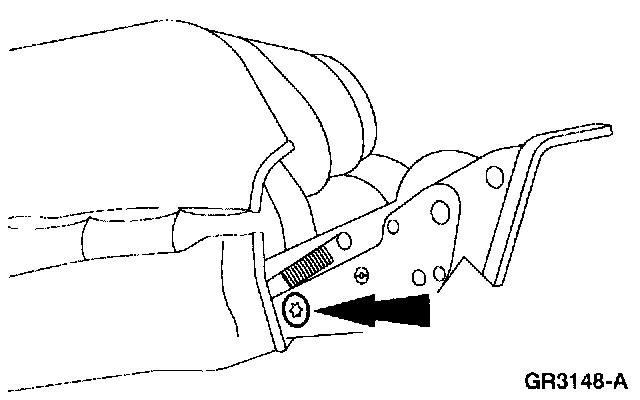

8. Remove the outboard seat cushion pivot bolt.
9. Remove the seat cushion.

ASSEMBLY

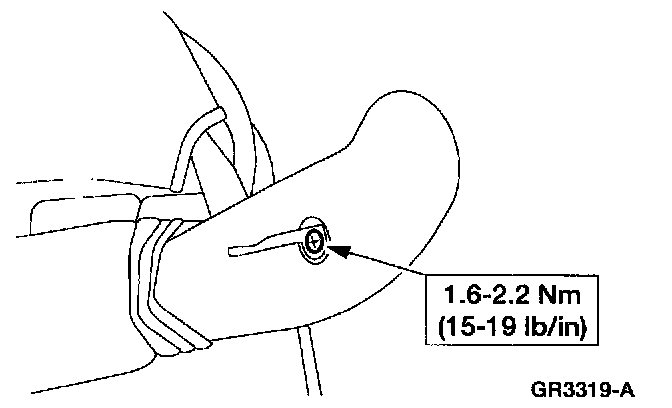

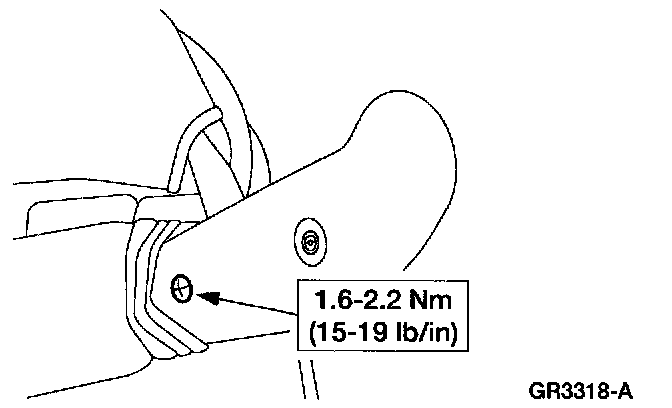

1. To assemble, reverse the disassembly procedure.
