Piston Pin Diameter

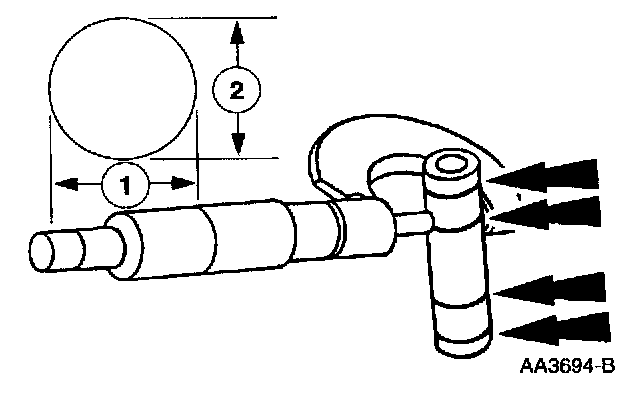

1. Measure the piston pin diameter in two directions at the points shown. Verify the diameter is within specification.
- If out of specification, install new components as necessary.
