Test U: The Console Blower Motor Does Not Operate



Pinpoint Test U: The Console Blower Motor Does Not Operate

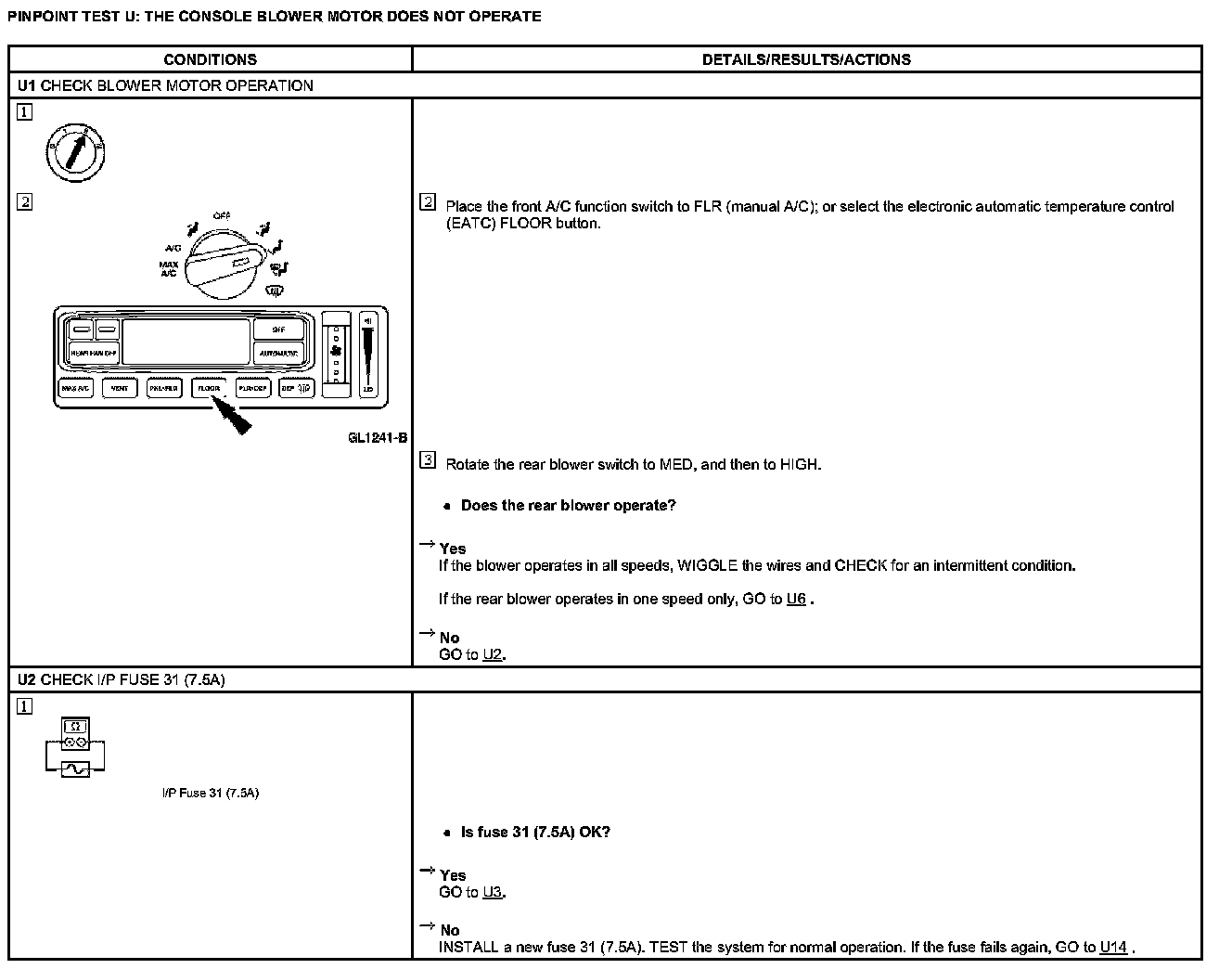

U1 - U2:

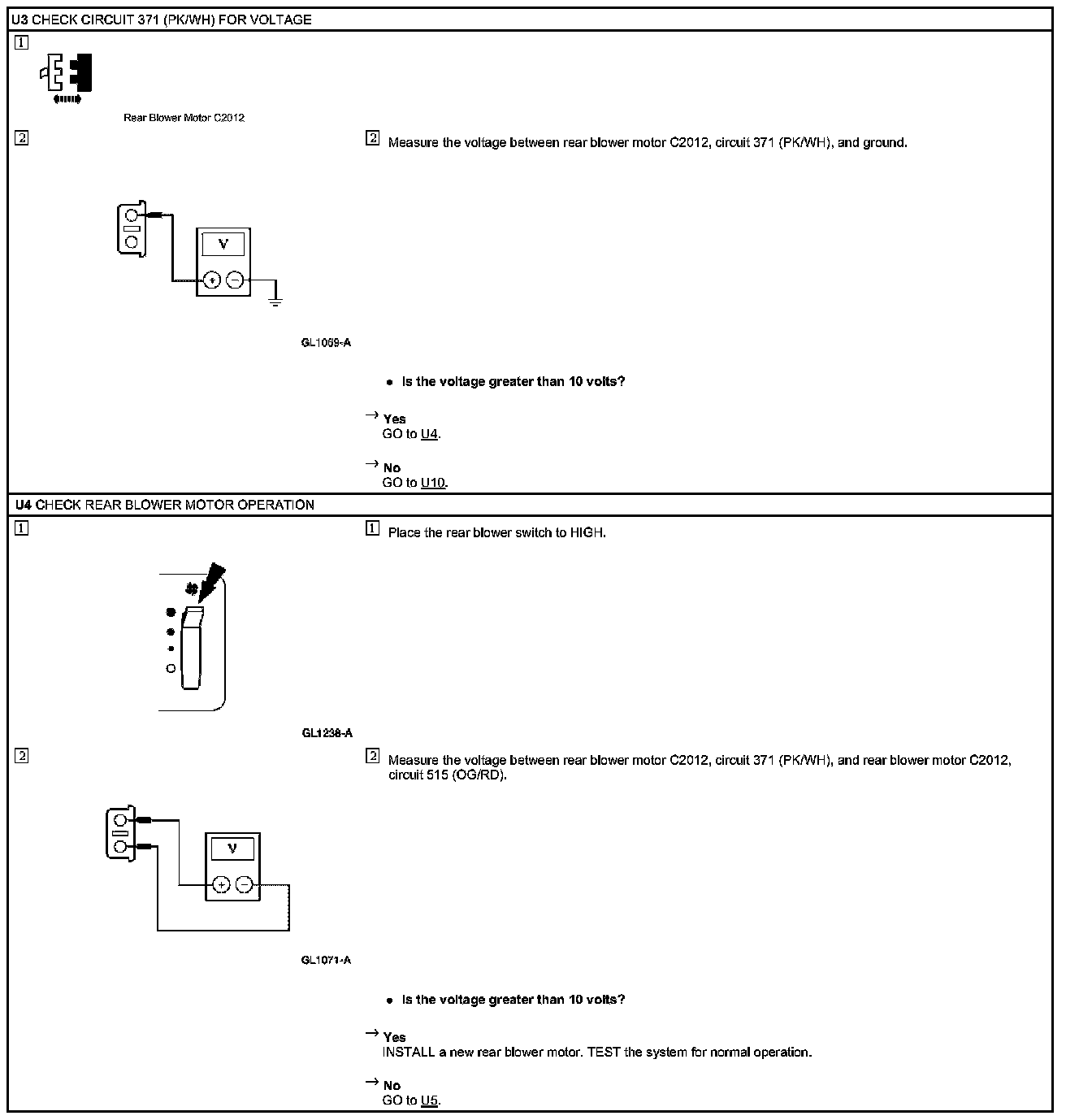

U3 - U4:

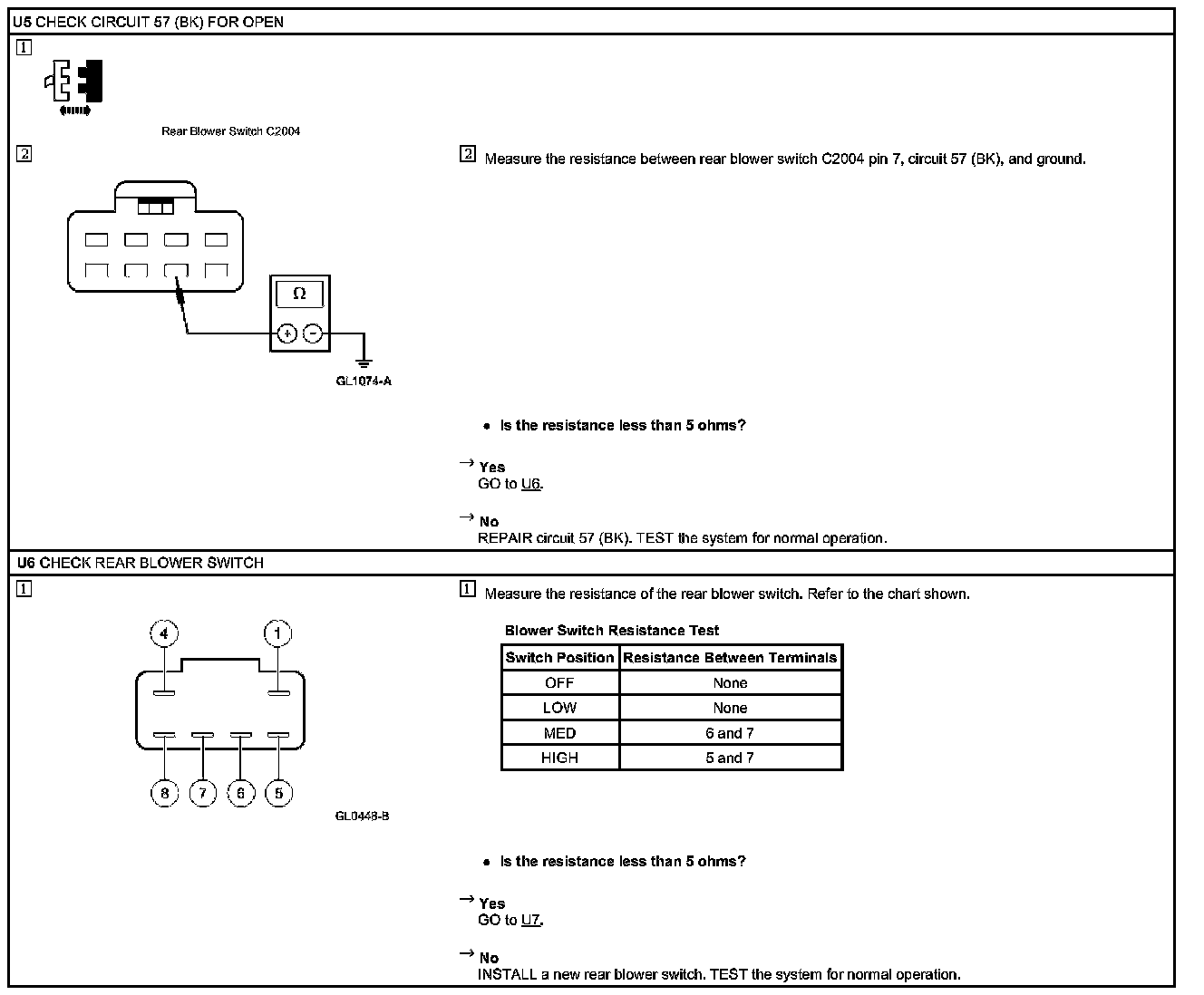

U5 - U6:

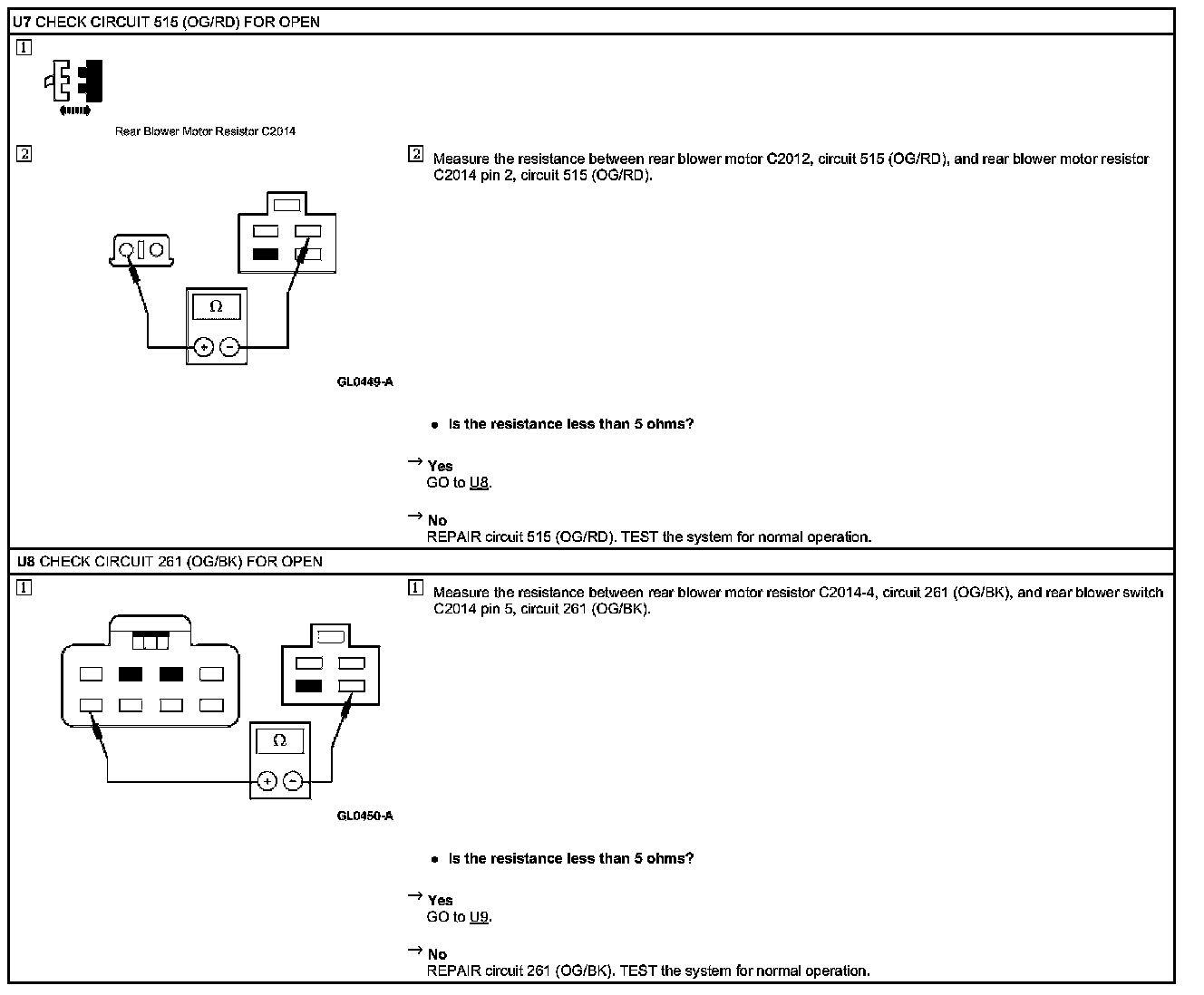

U7 - U8:

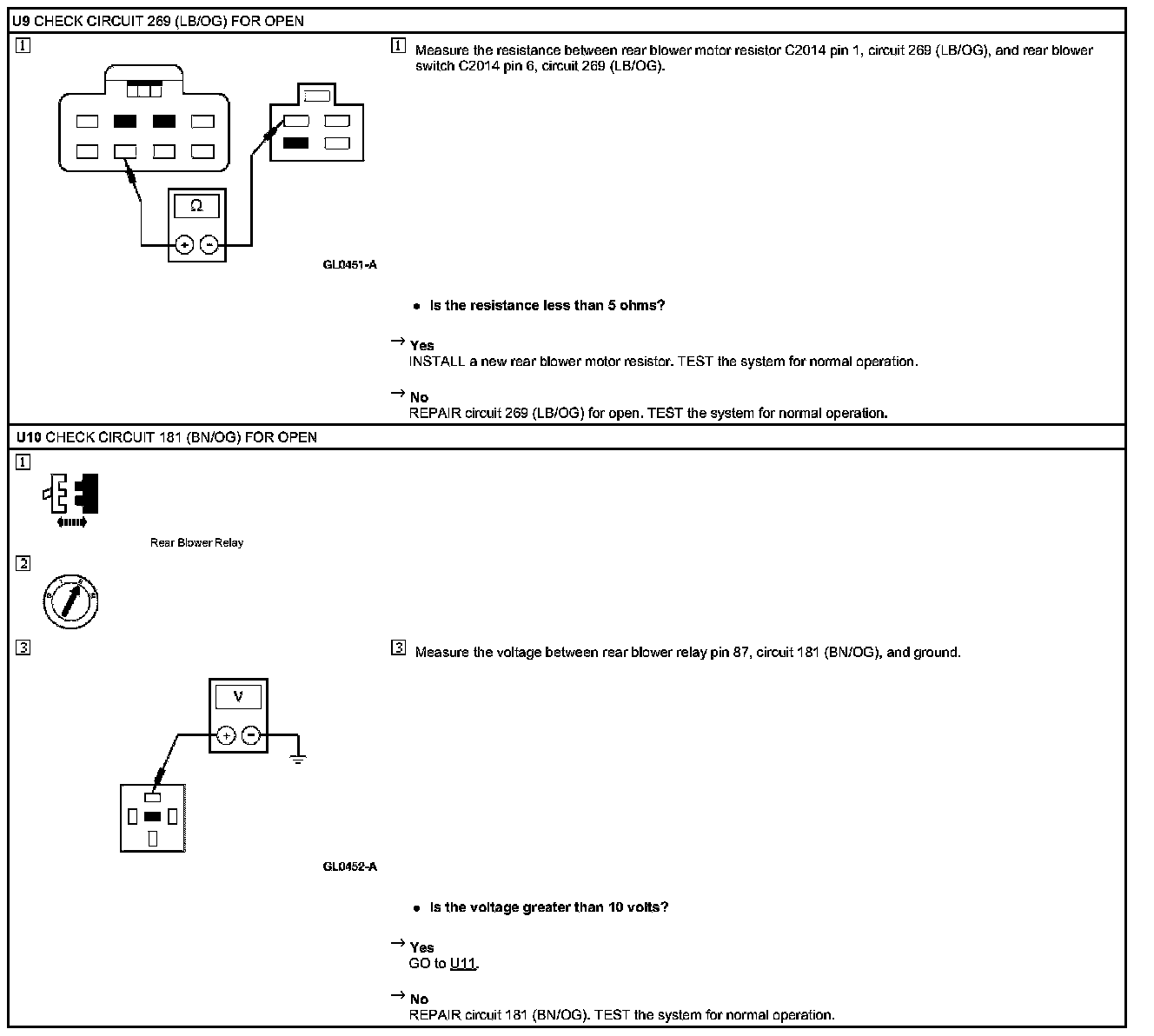

U9 - U10:

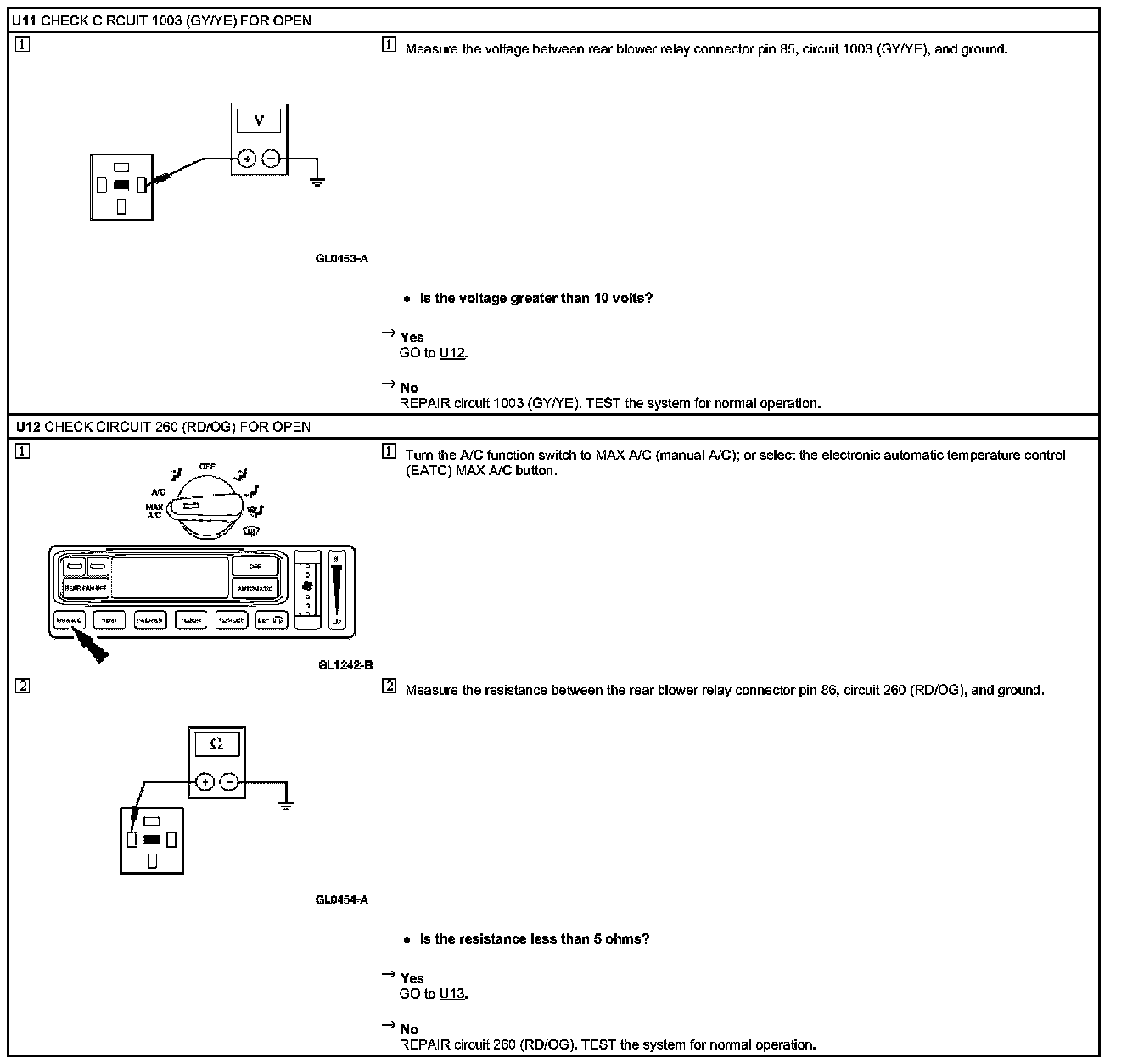

U11 - U12:

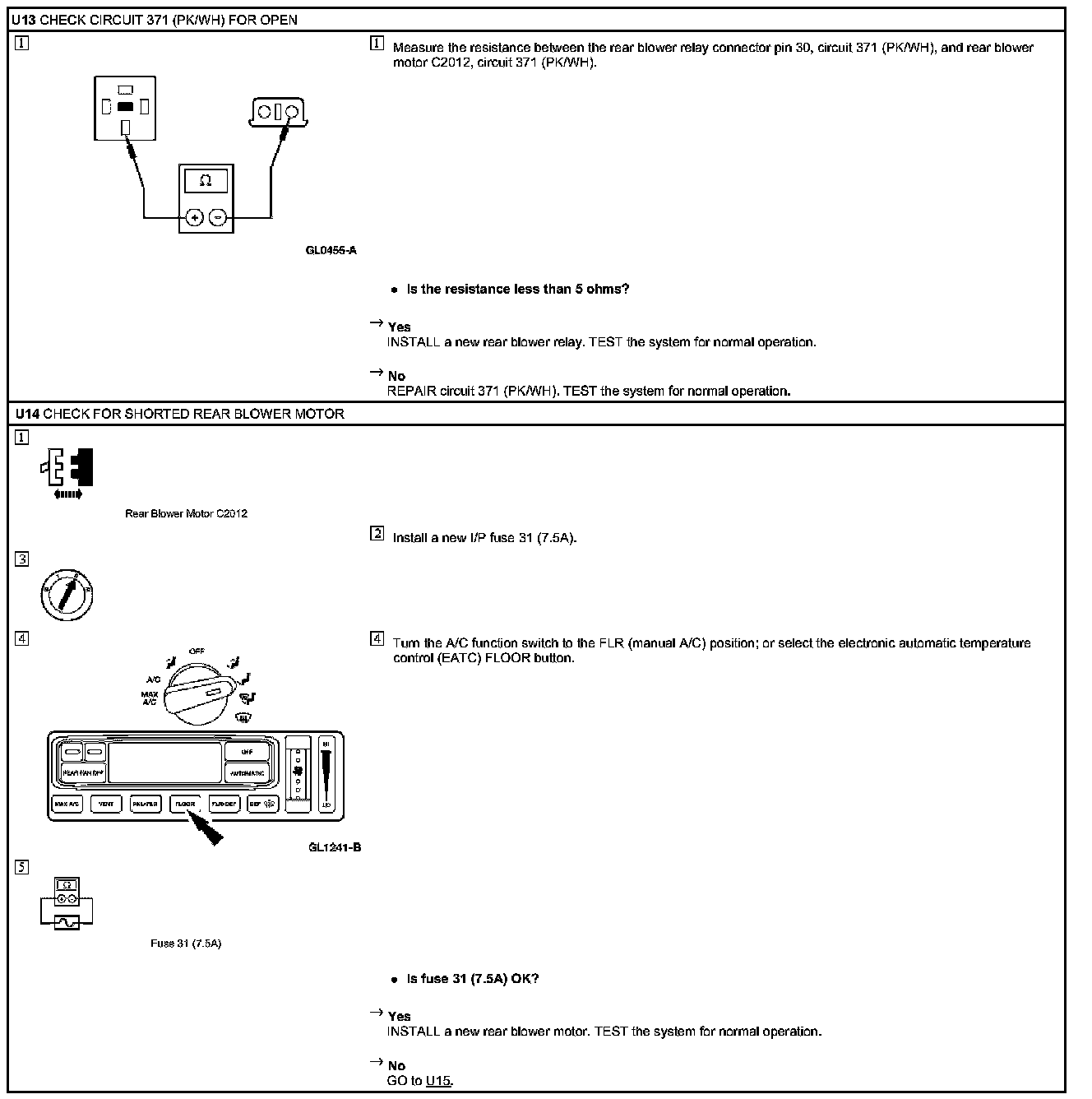

U13 - U14:

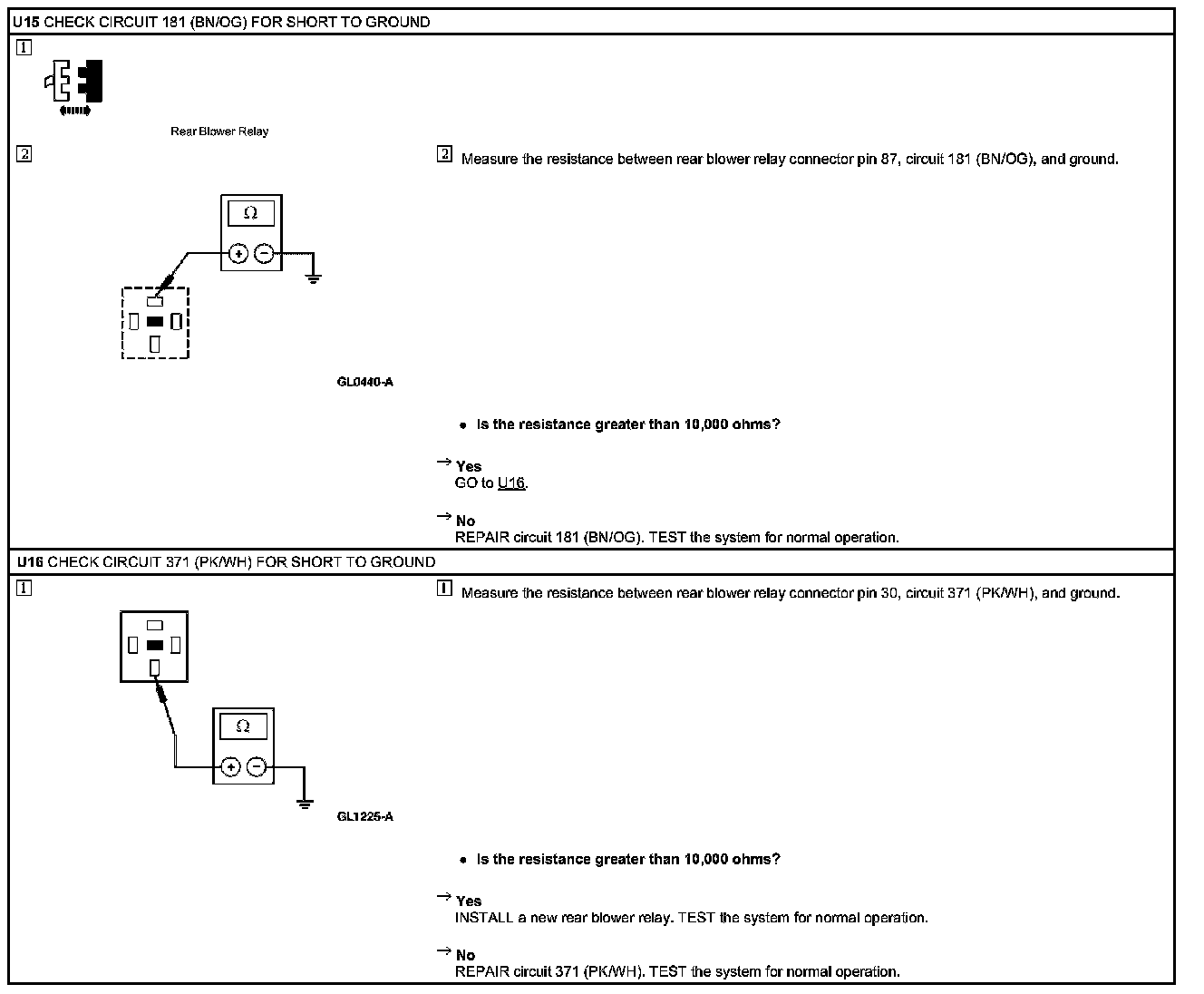

U15 - U16:
