Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2001
>>
Explorer 2WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Panel Illumination
>>
Test E: A Single Illumination Source Is Inoperative
Test E: A Single Illumination Source Is Inoperative

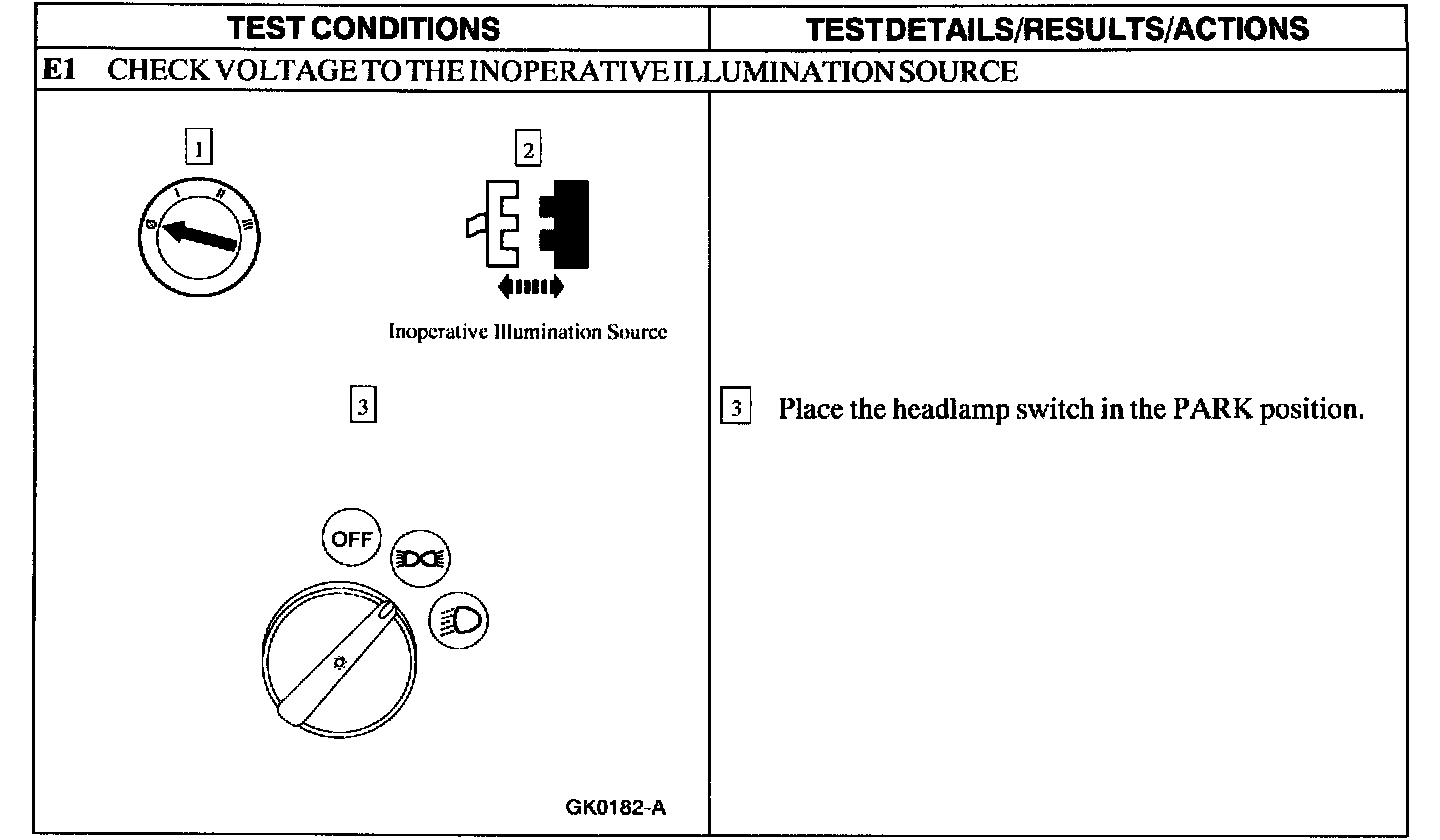

E1 (Part 1 Of 2):

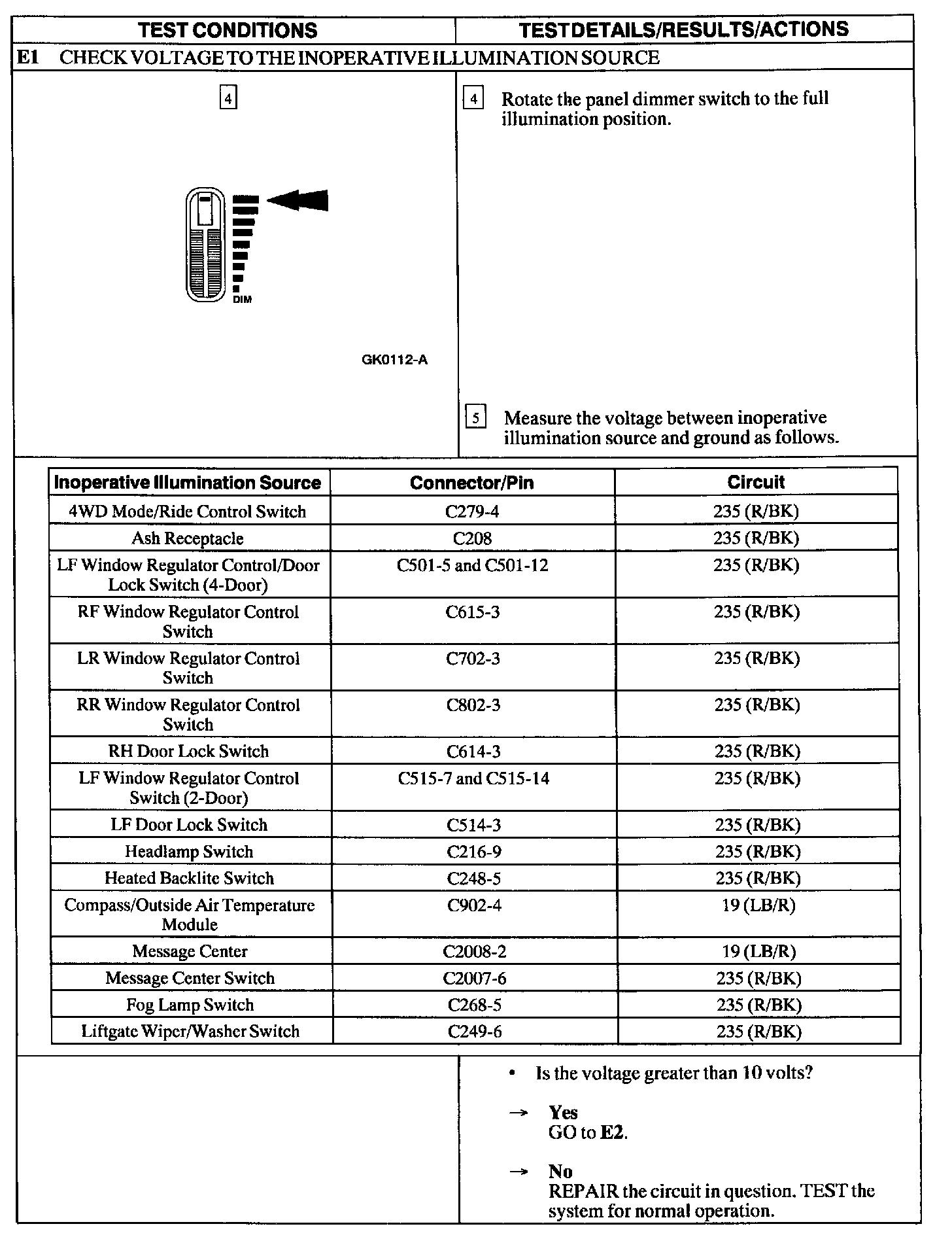

E1 (Part 2 Of 2):

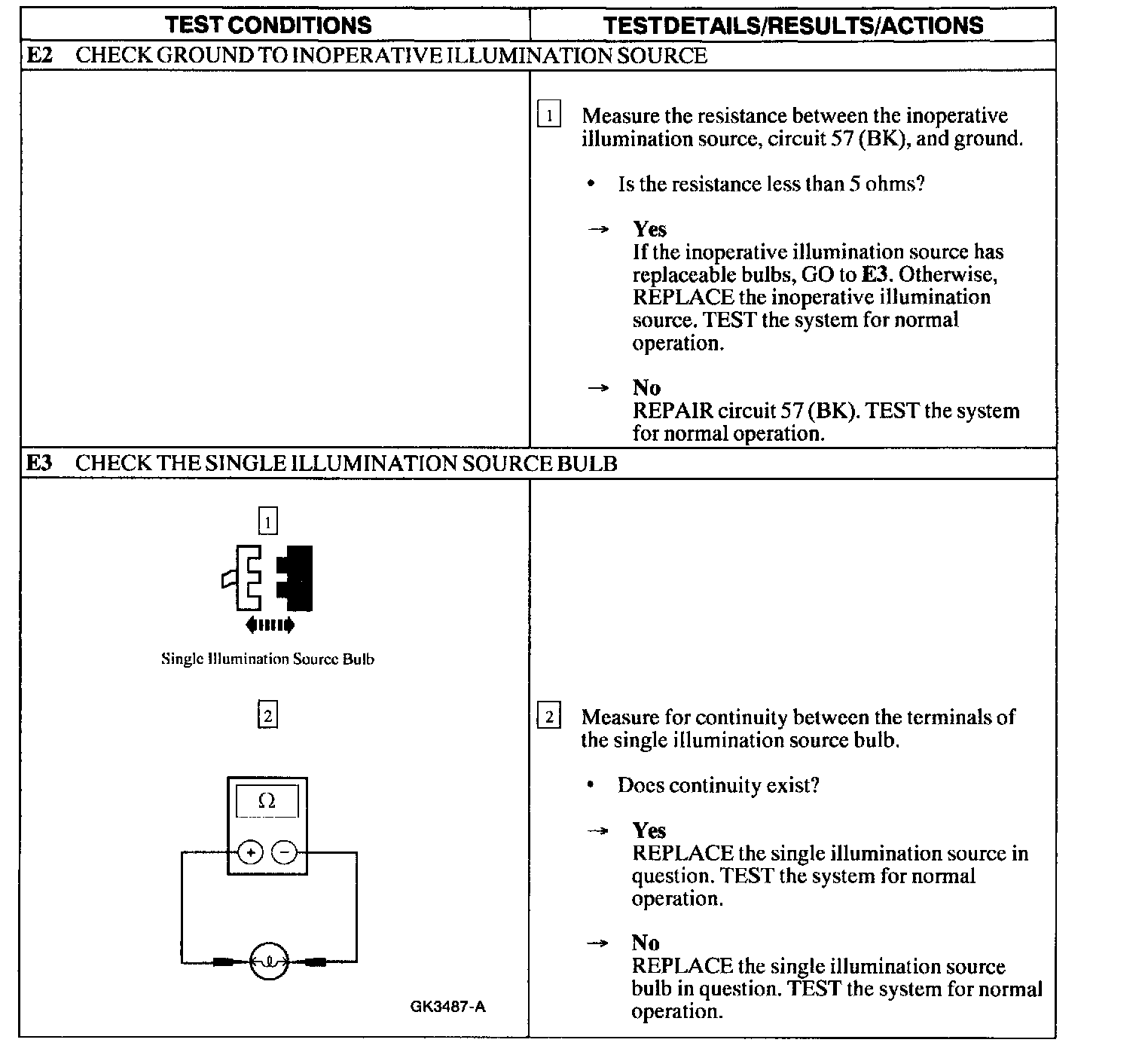

E2 - E3:
