Cable

REMOVAL

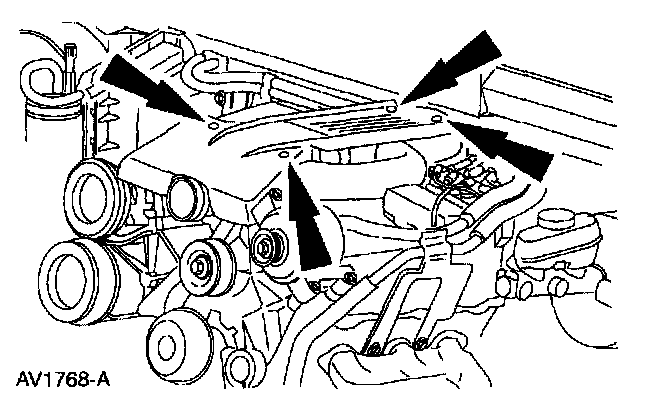

1. Remove the screws and the accelerator control splash shield.

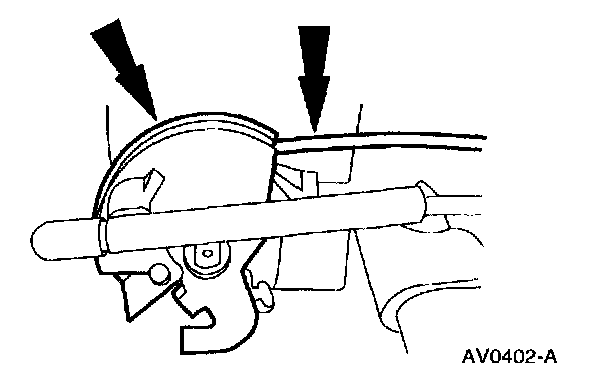

2. Disconnect the accelerator cable from the throttle body.

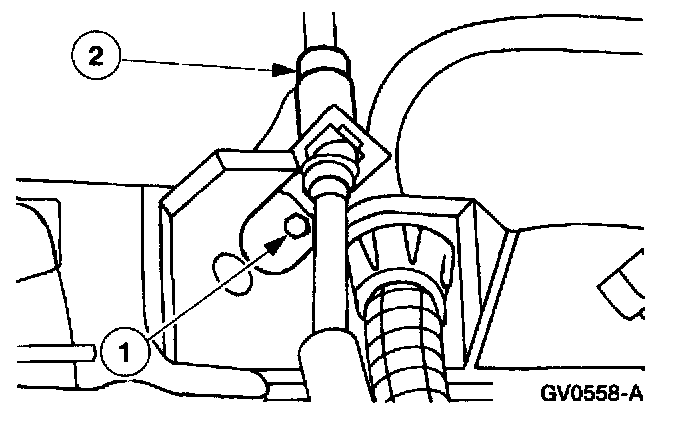

3. Disconnect the accelerator cable from the intake manifold.
1 Remove the screw.
2 Disconnect the accelerator cable from the intake manifold.

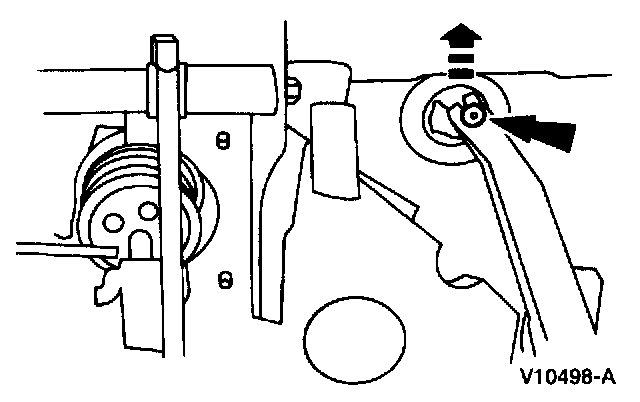

4. From inside the vehicle, disconnect the accelerator cable from the accelerator pedal and shaft.

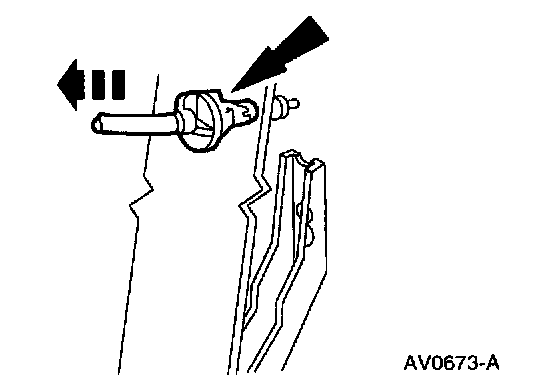

5. Collapse the clips at the dash panel and push the accelerator cable through the dash panel into the engine compartment and remove the accelerator cable.

INSTALLATION
1. To install, reverse the removal procedure.
