Test M: DTC B1565, Door Ajar Input Short to Power
Test M: DTC B1565, Door Ajar Input Short to Power
DTC B1565, Door Ajar Input Short to Power

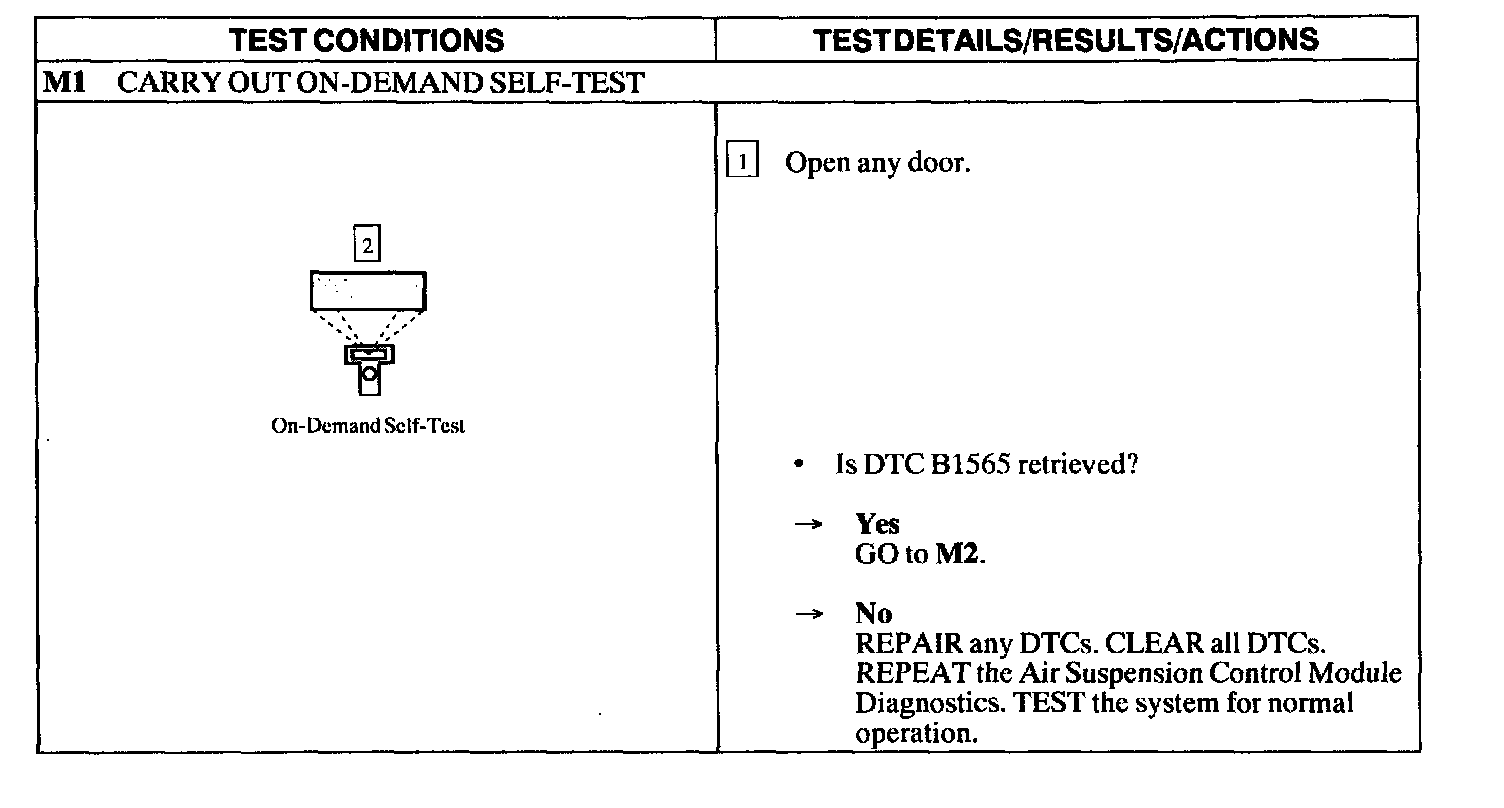

Test M1

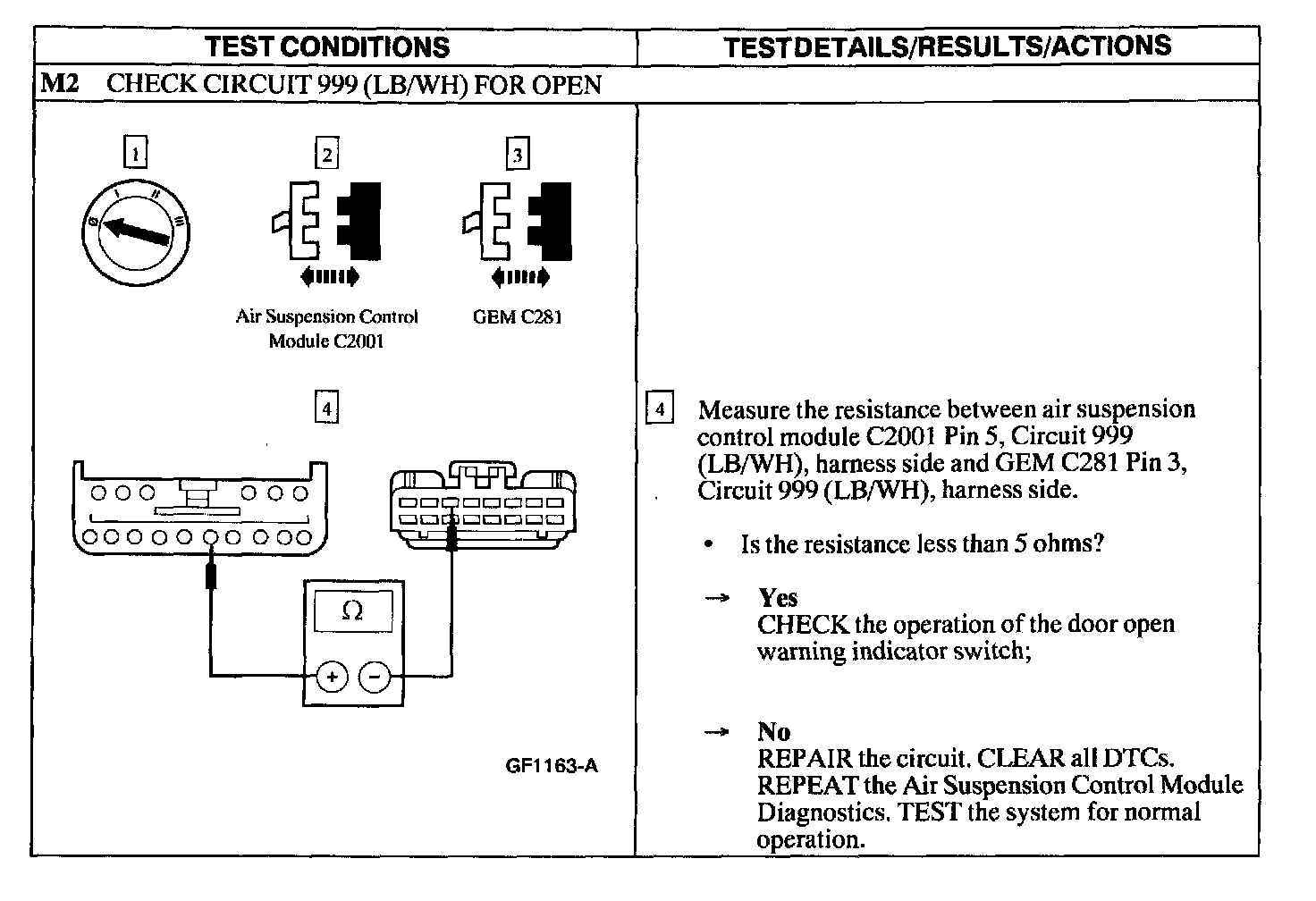

Test M2
