5R55E
>>
Fluid Leak Diagnosis
>>

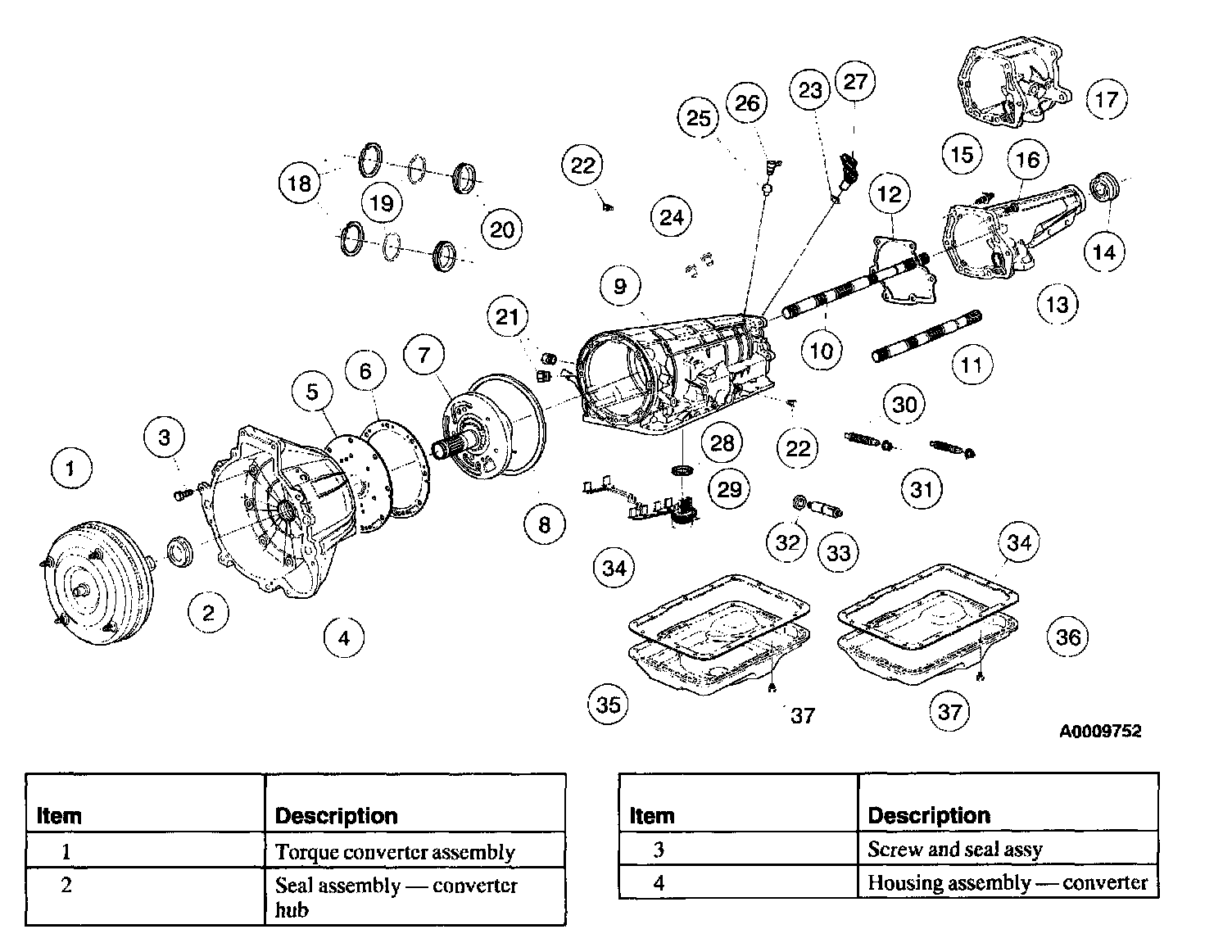

External Sealing
External Sealing
The transmission has the following parts to prevent external fluid leakage:
-
Gaskets.
-
Lip-type seals.
-
O-ring seals.
-
Seal rings.
-
Seal grommets.
-
Thread sealant.
