Test B: Transmission Fluid Temperature (TFT) Sensor

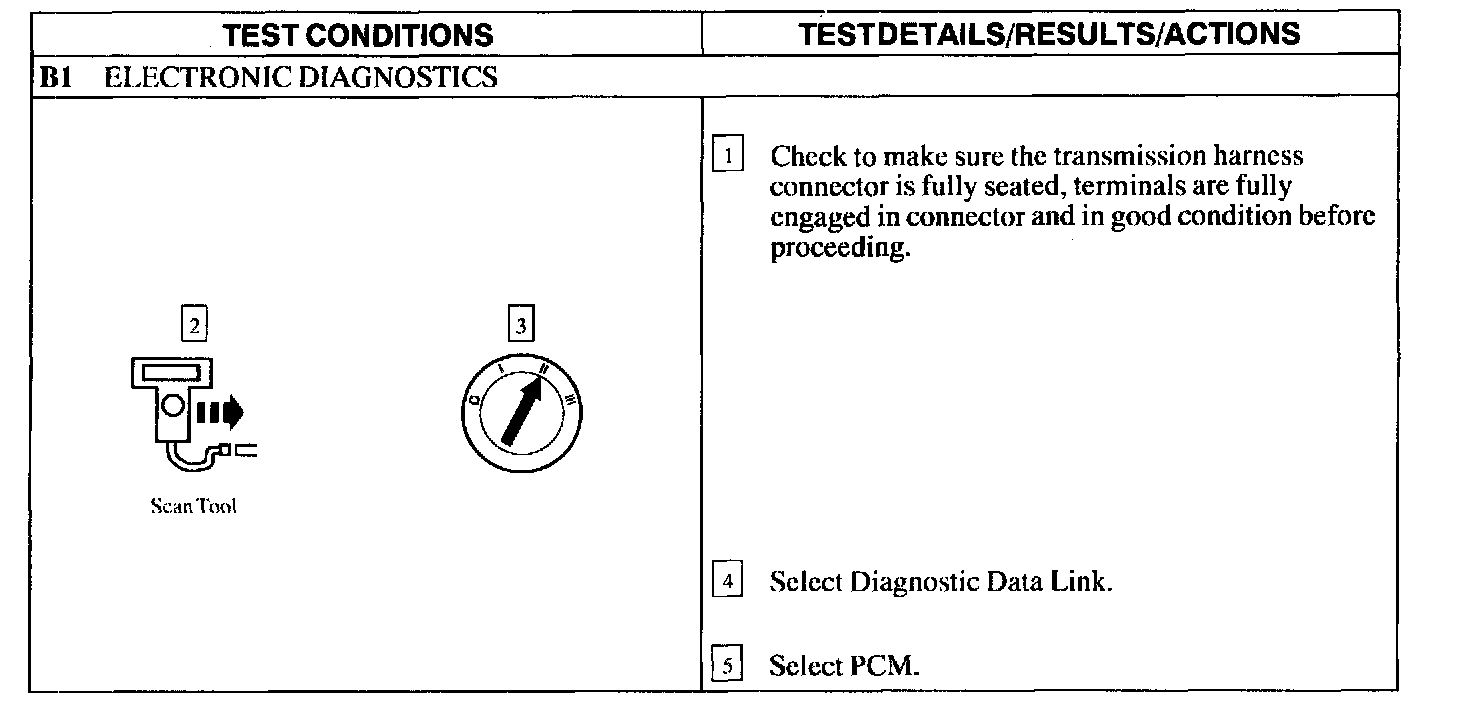

B1

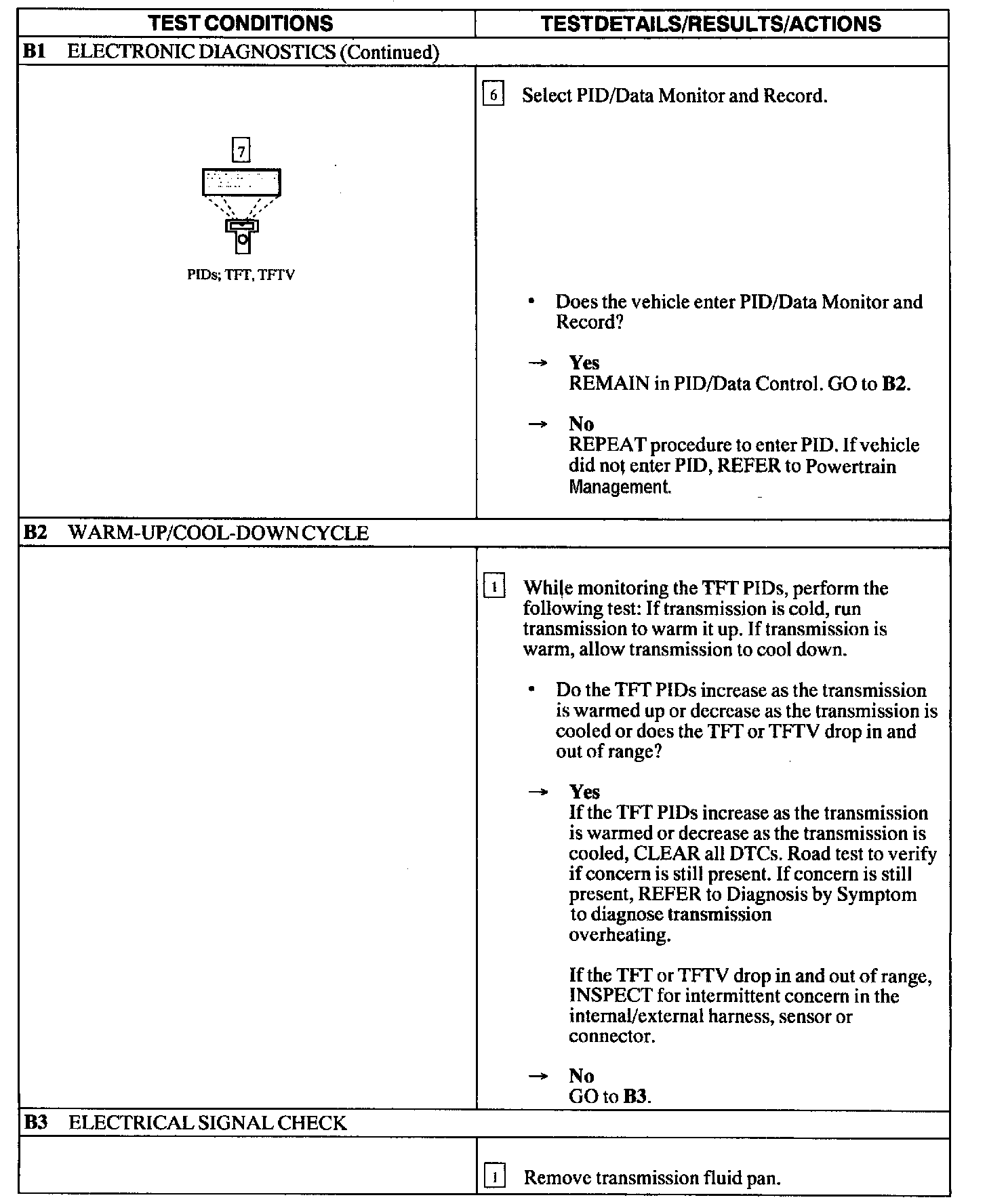

B1 - B3

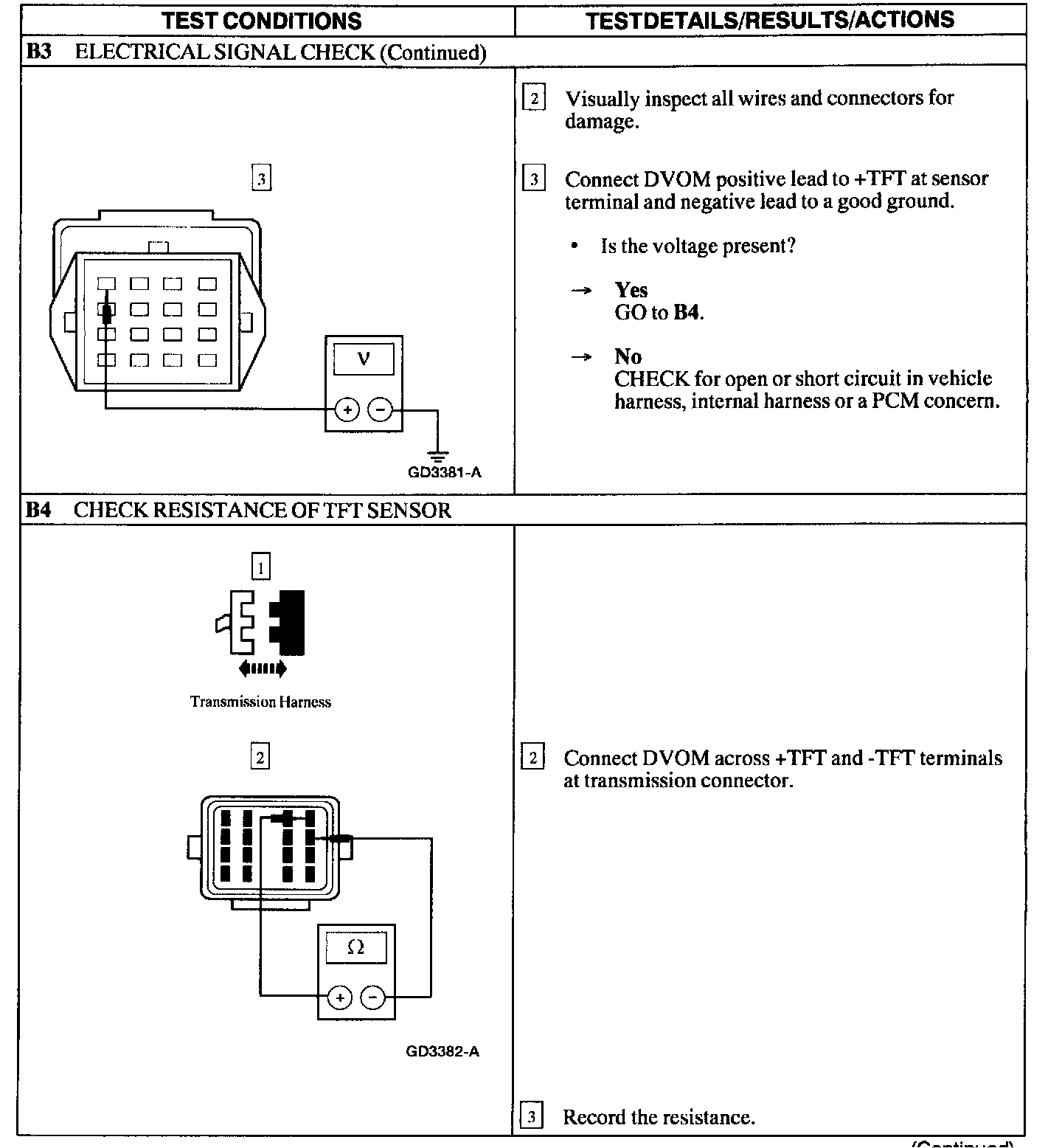

B3 - B4

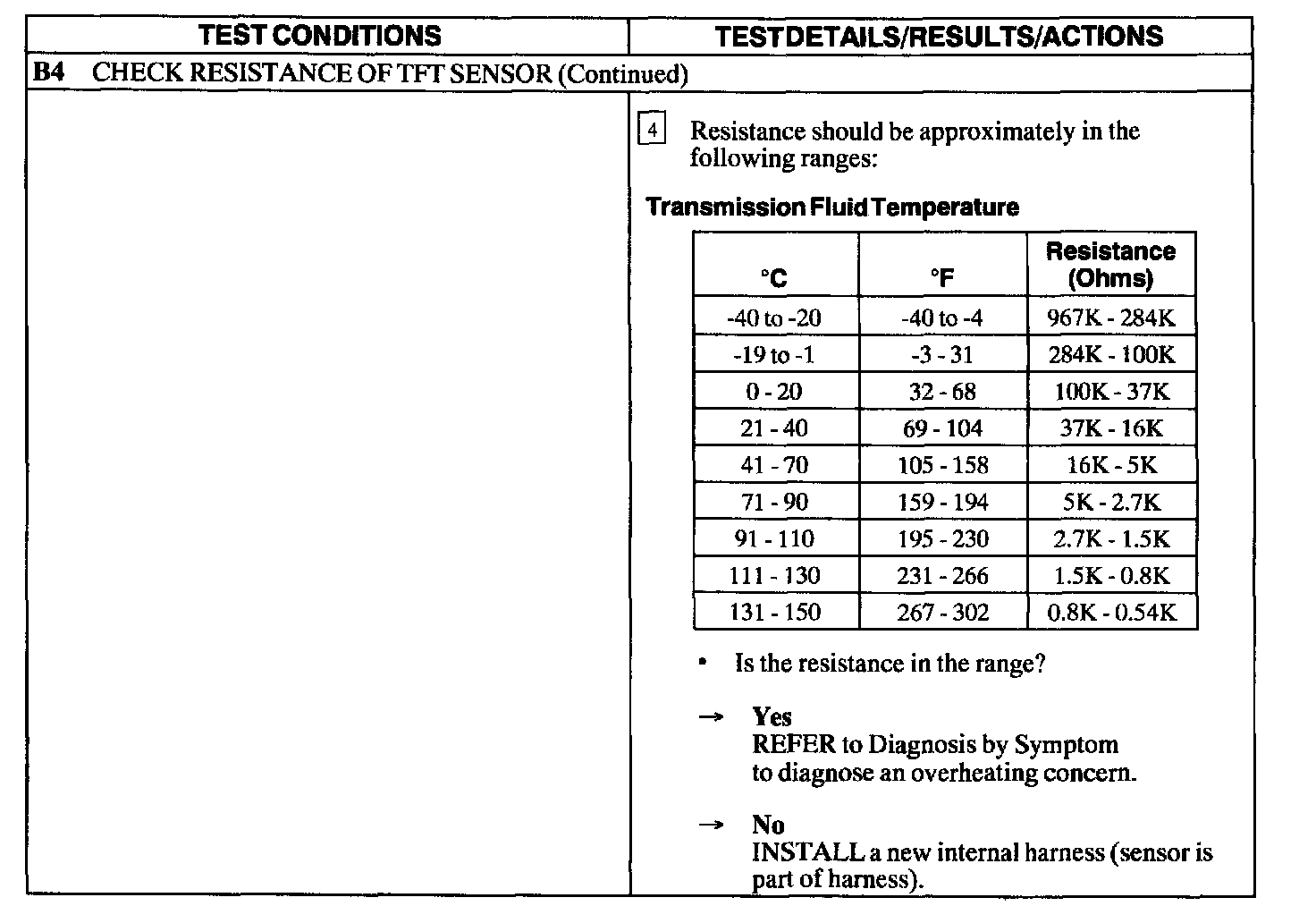

B4

Note: Refer to the Transmission Vehicle Harness Connector illustration.

Note: Refer to the Internal Harness Diagram illustration.
