Test F: A Single Power Window Is Inoperative - Left Rear

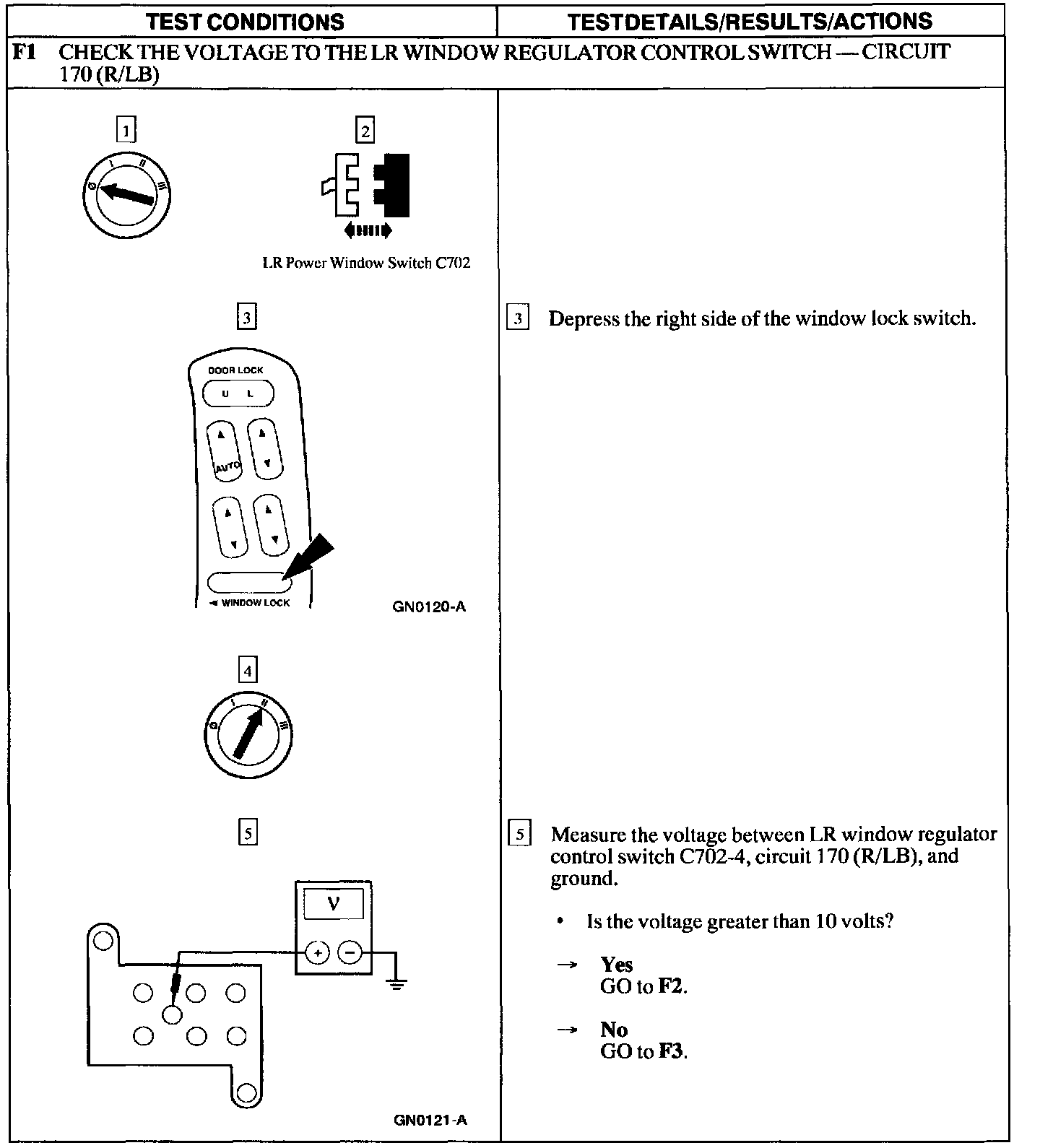

F1:






F2 - F3:

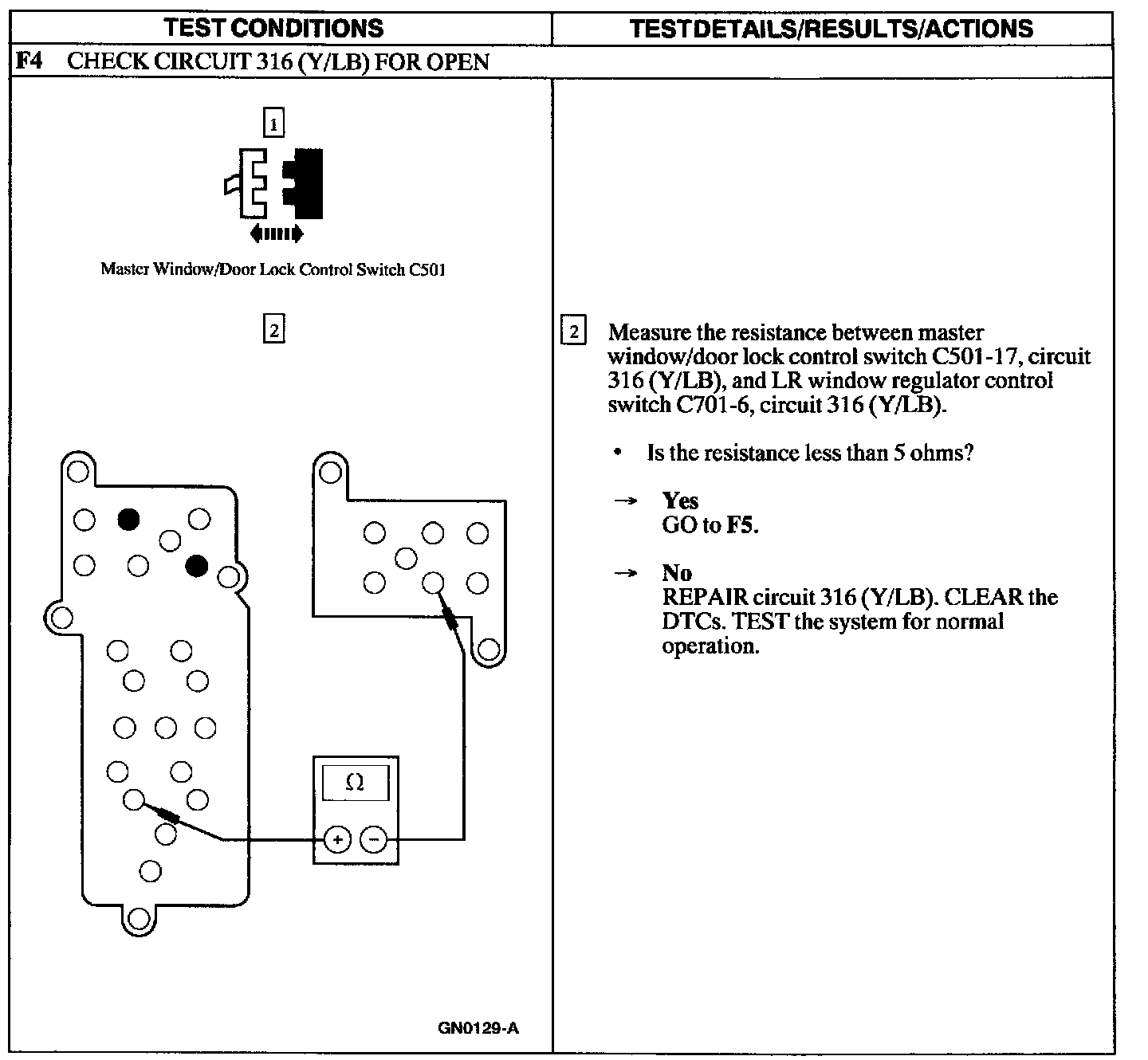

F4:

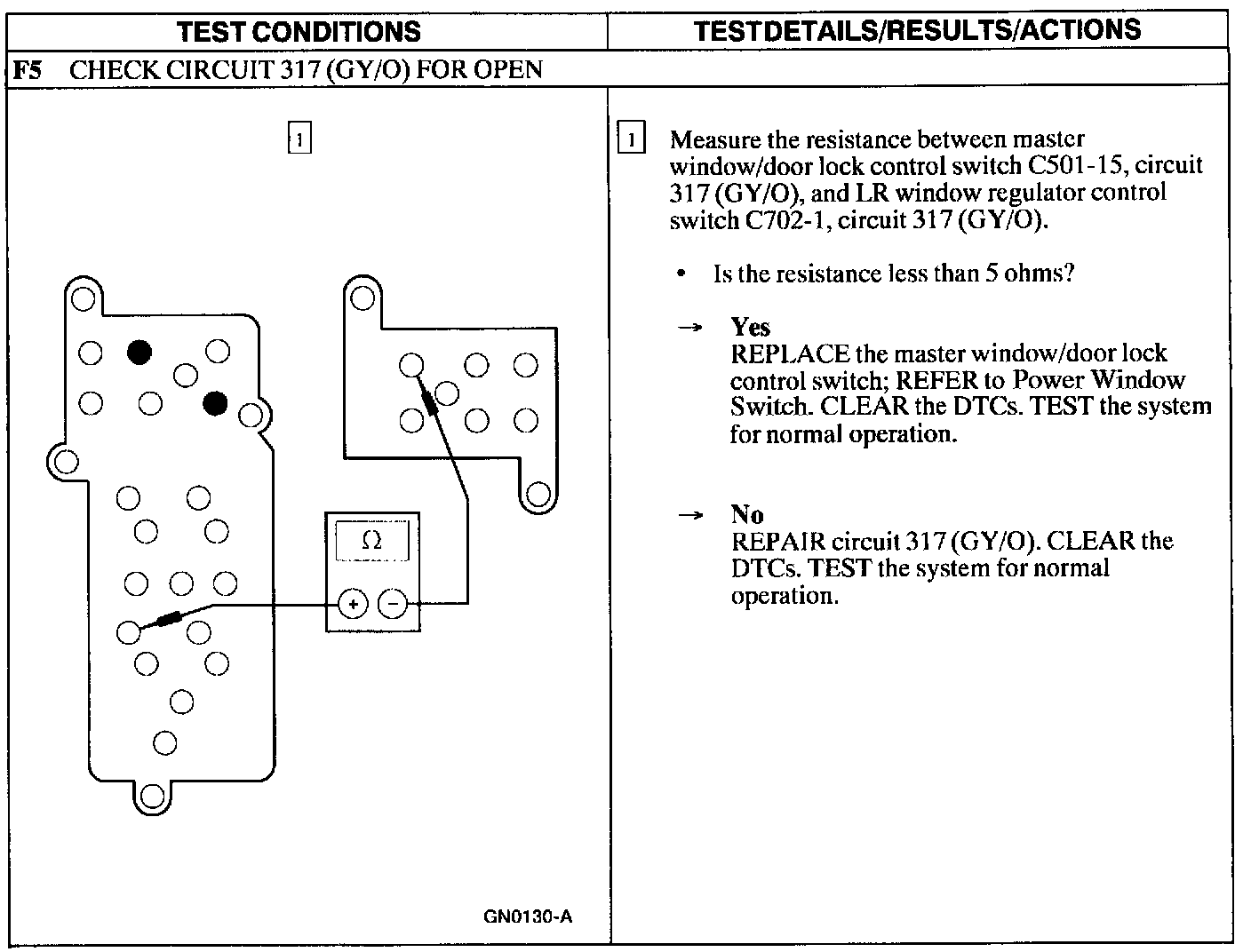

F5:

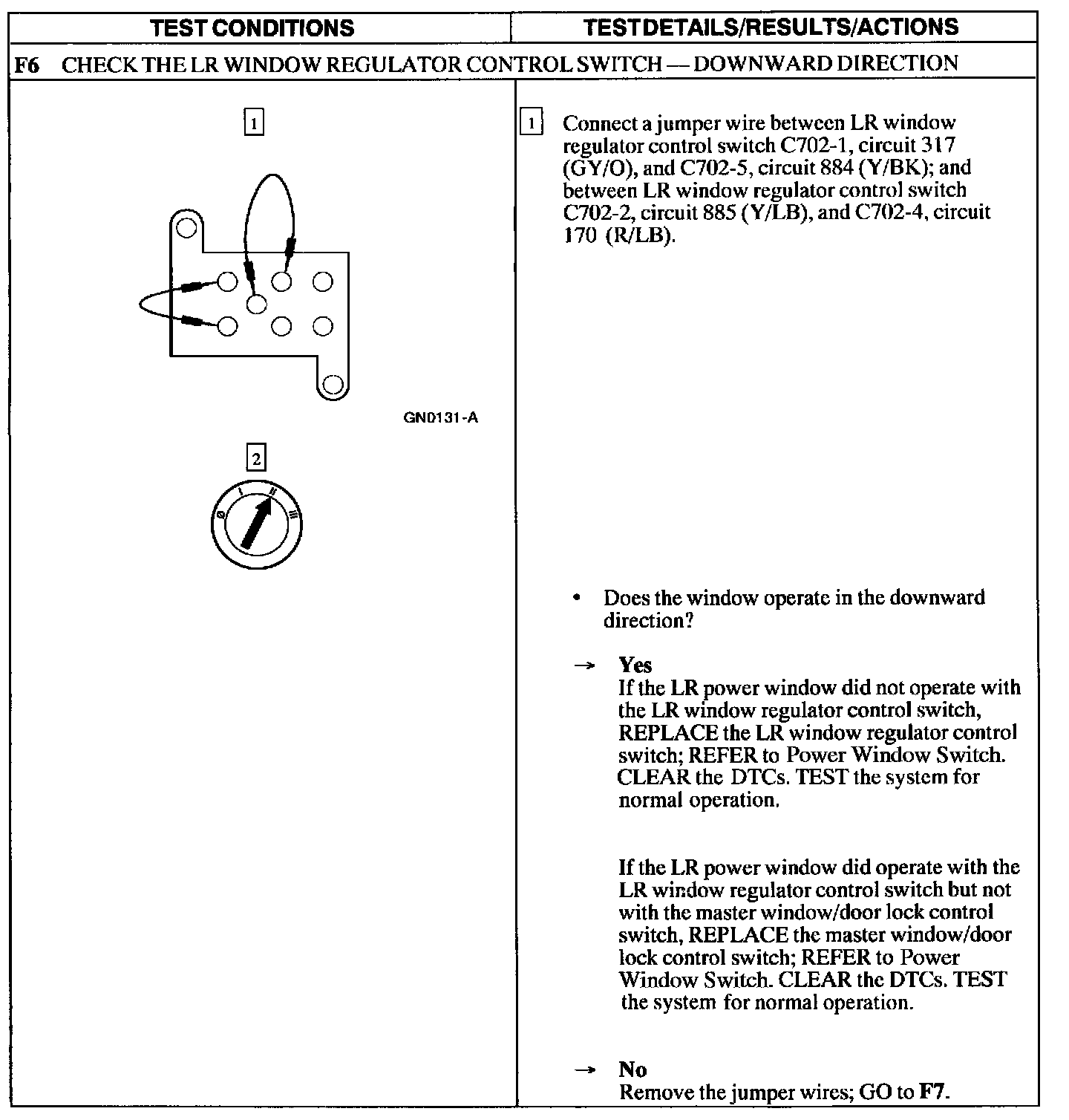

F6:

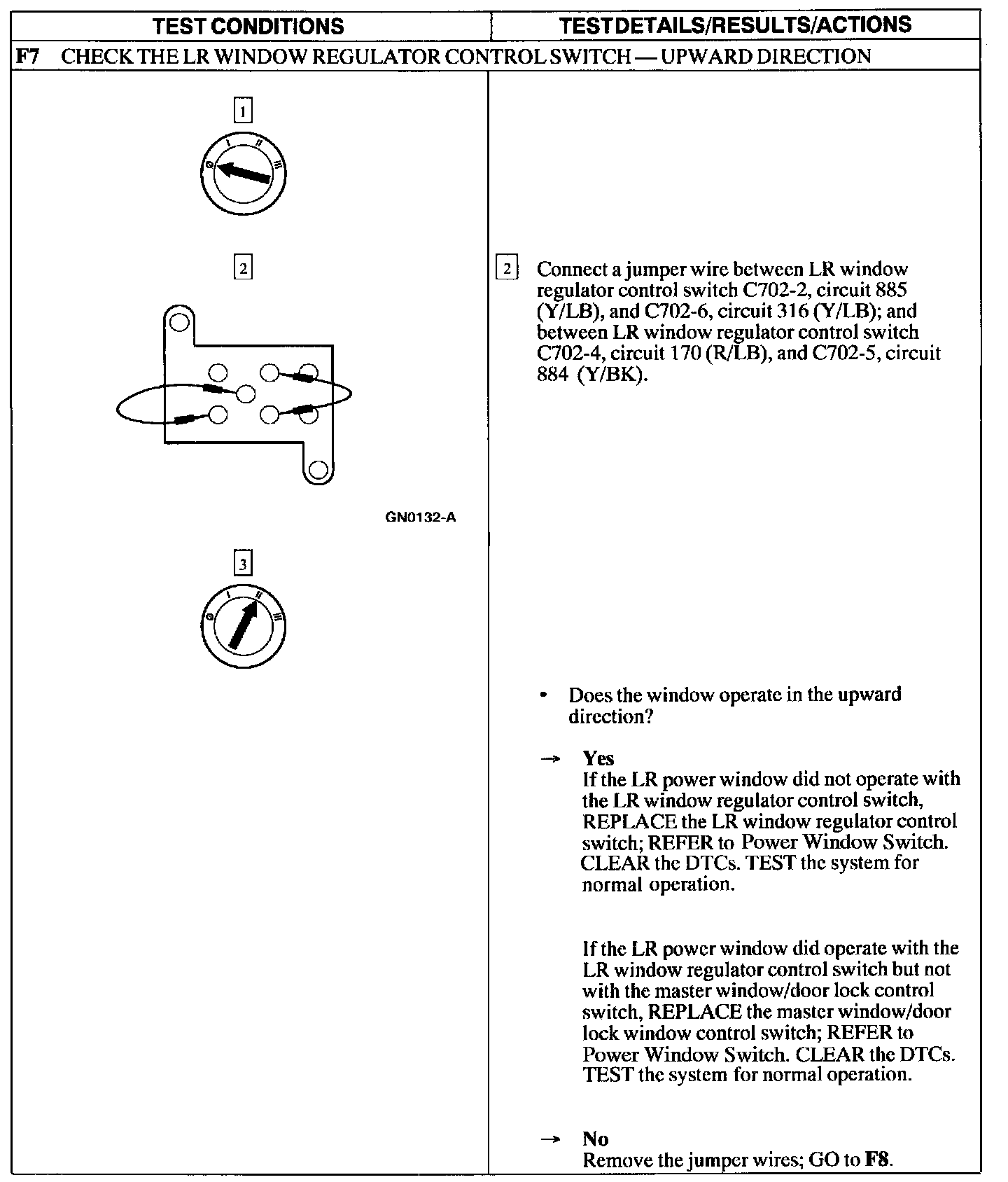

F7:

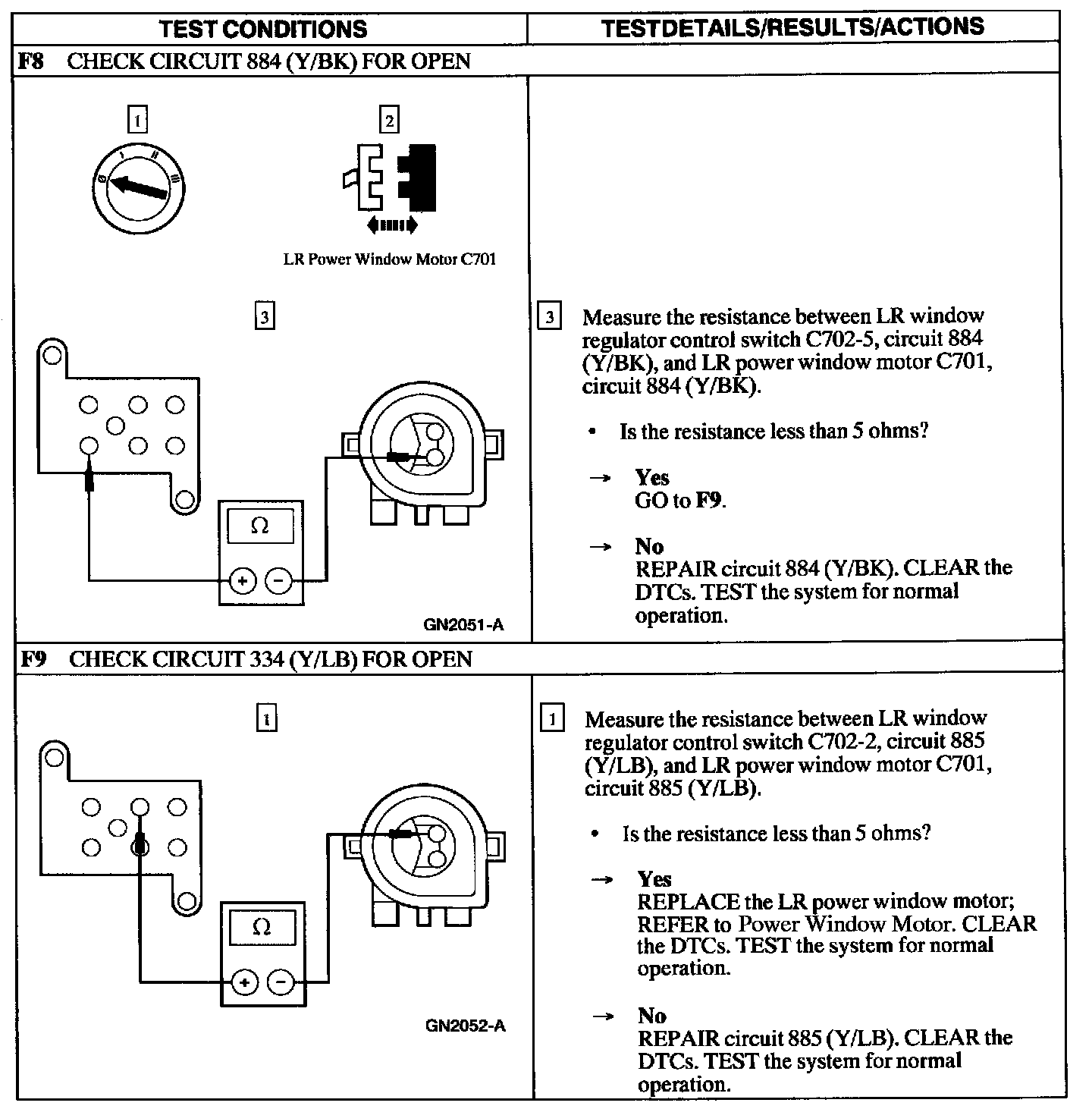

F8 - F9:
