Test C: High/Low Wiper Speeds Do Not Operate Correctly
Test C: High/Low Wiper Speeds Do Not Operate Correctly
C1 - C2:
C3:

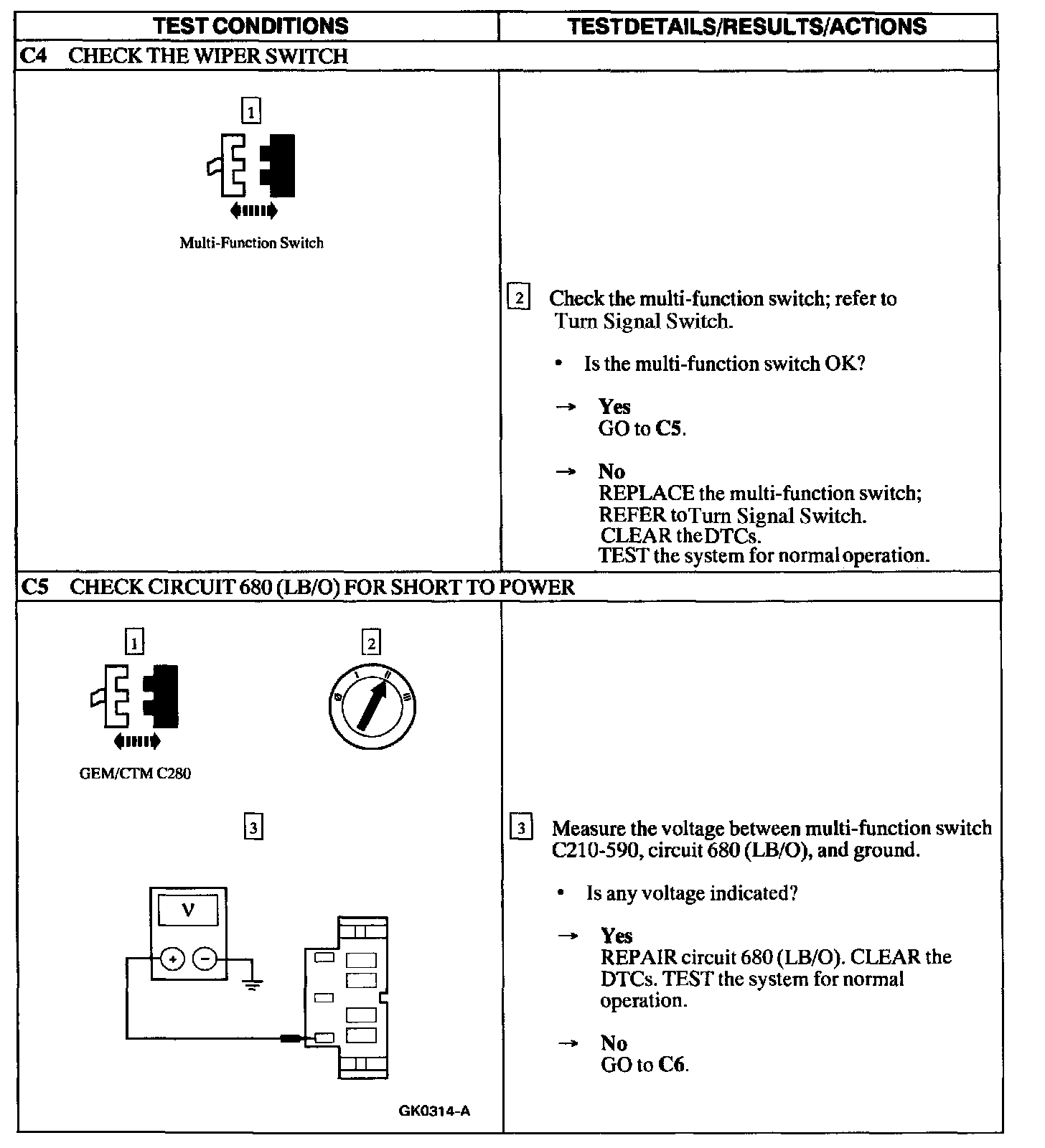

C4 - C5:
C6 - C7:
C8 - C9:
C10 - C11:
C12 - C13:
C14 - C15:
C16:

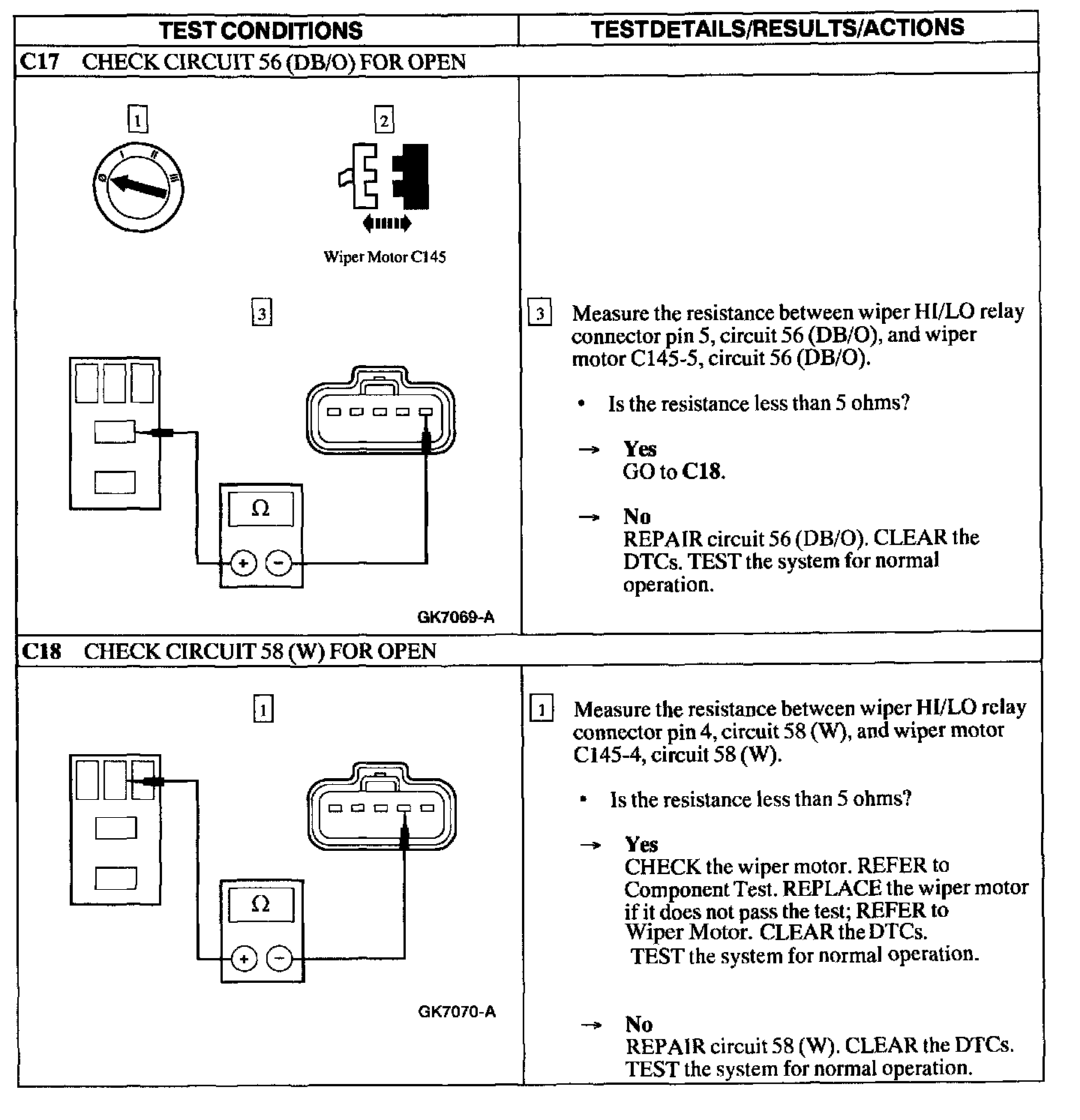

C17 - C18:
