Test B: Headlamp on Reminder Chime Does Not Operate Properly
Test B: Headlamp on Reminder Chime Does Not Operate Properly

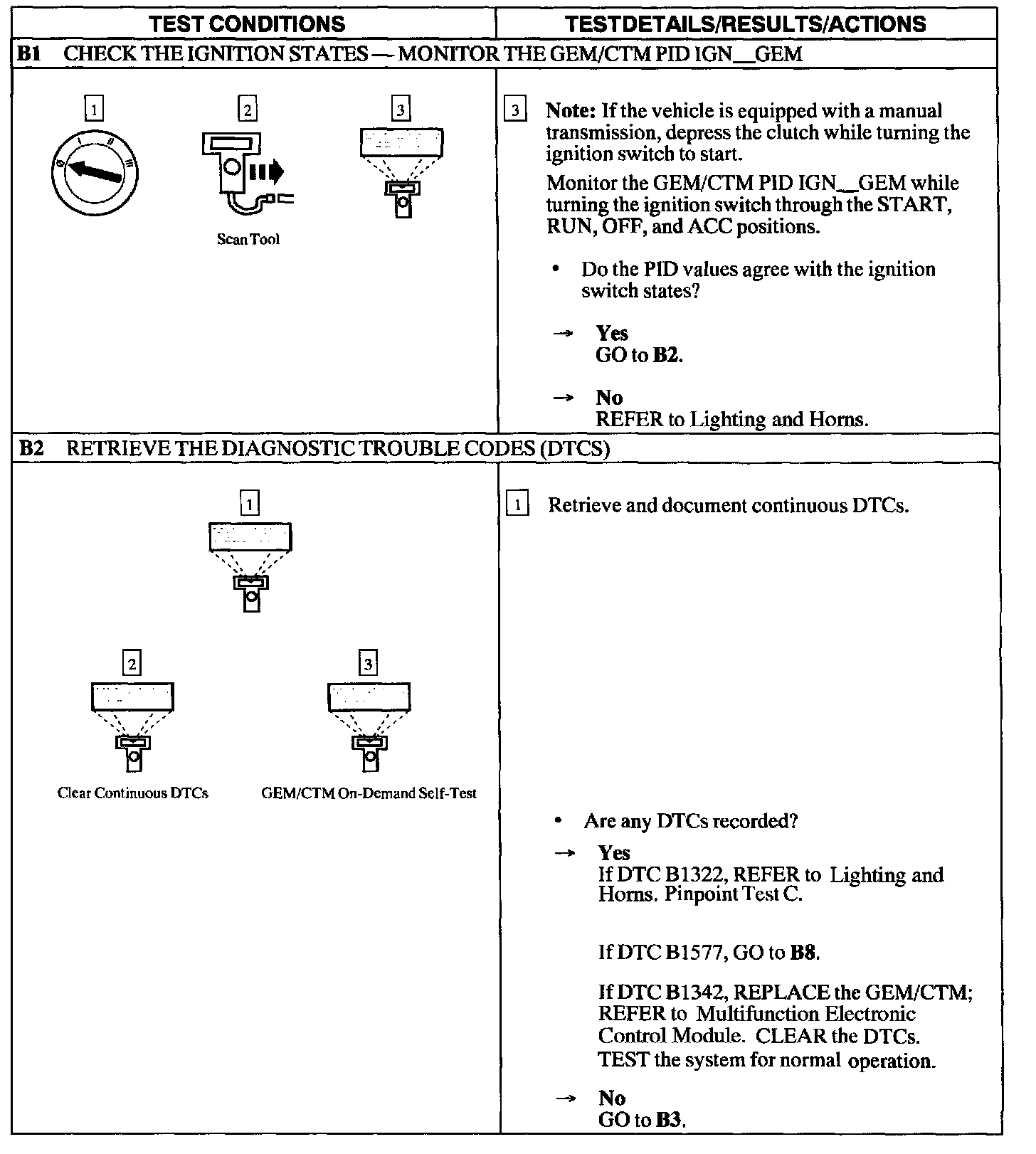

B1 - B2:

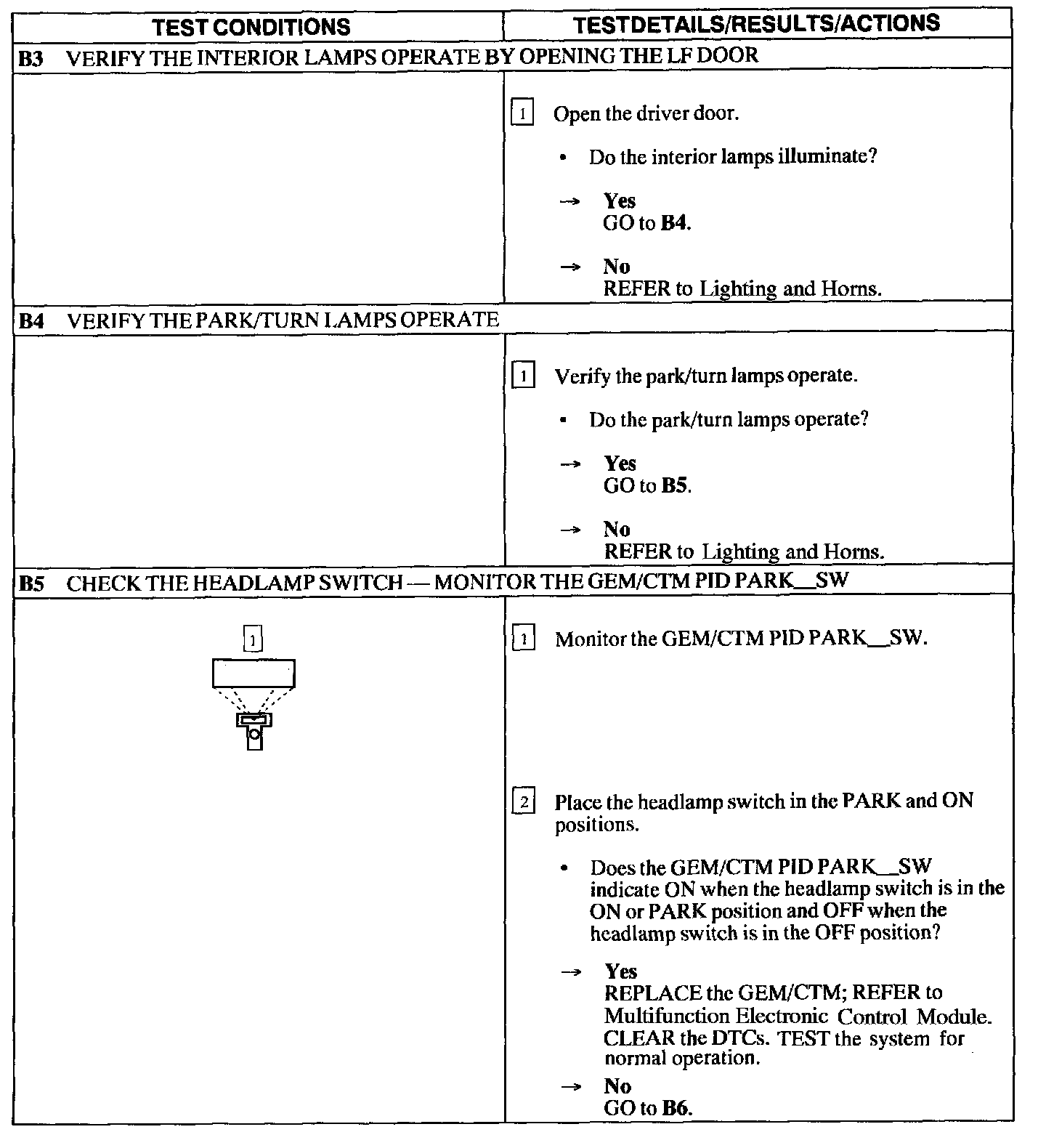

B3 - B5:

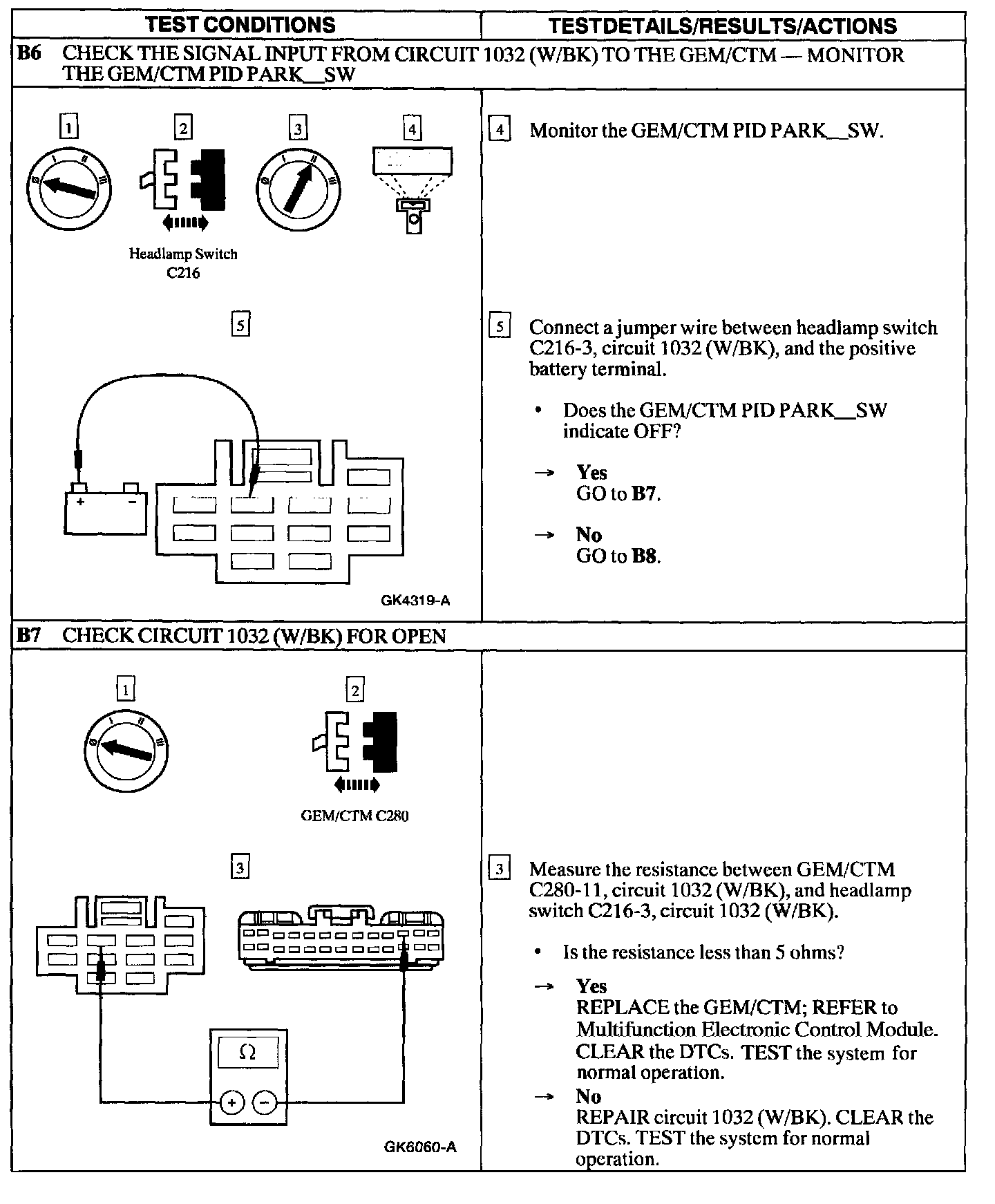

B6 - B7:

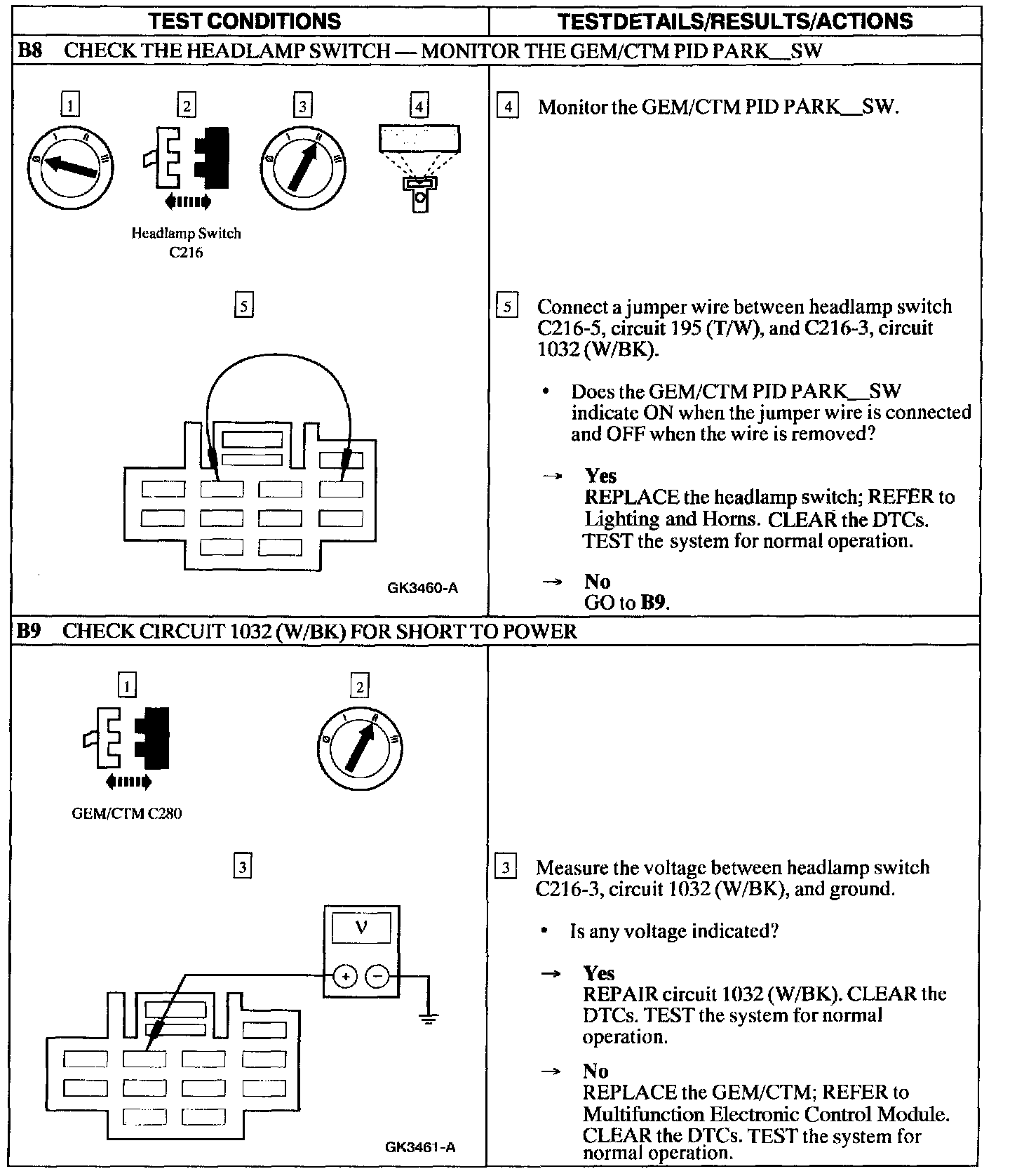

B8 - B9:
