Reference Value Symptom Chart

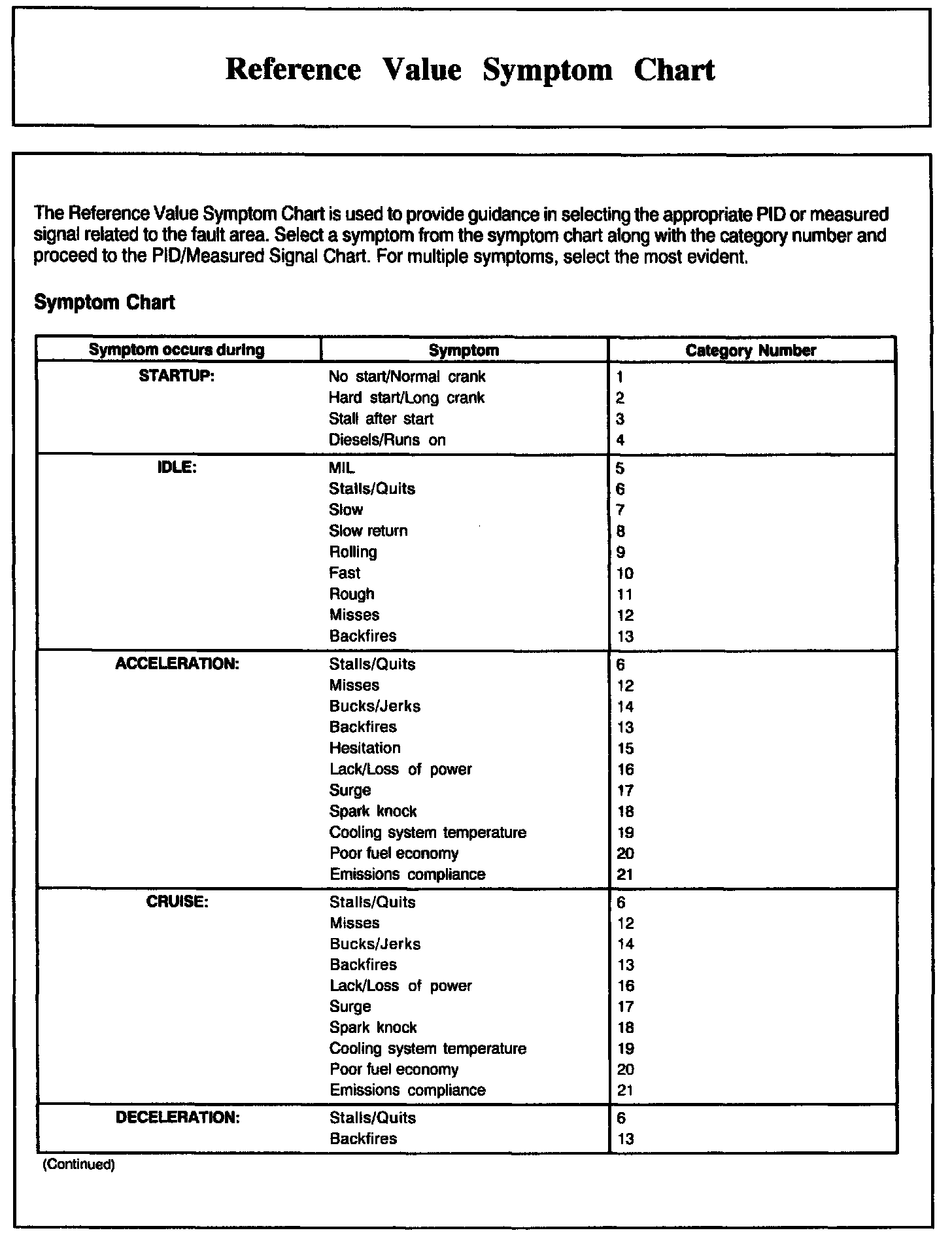

Reference Value Symptom Chart, Part 1:

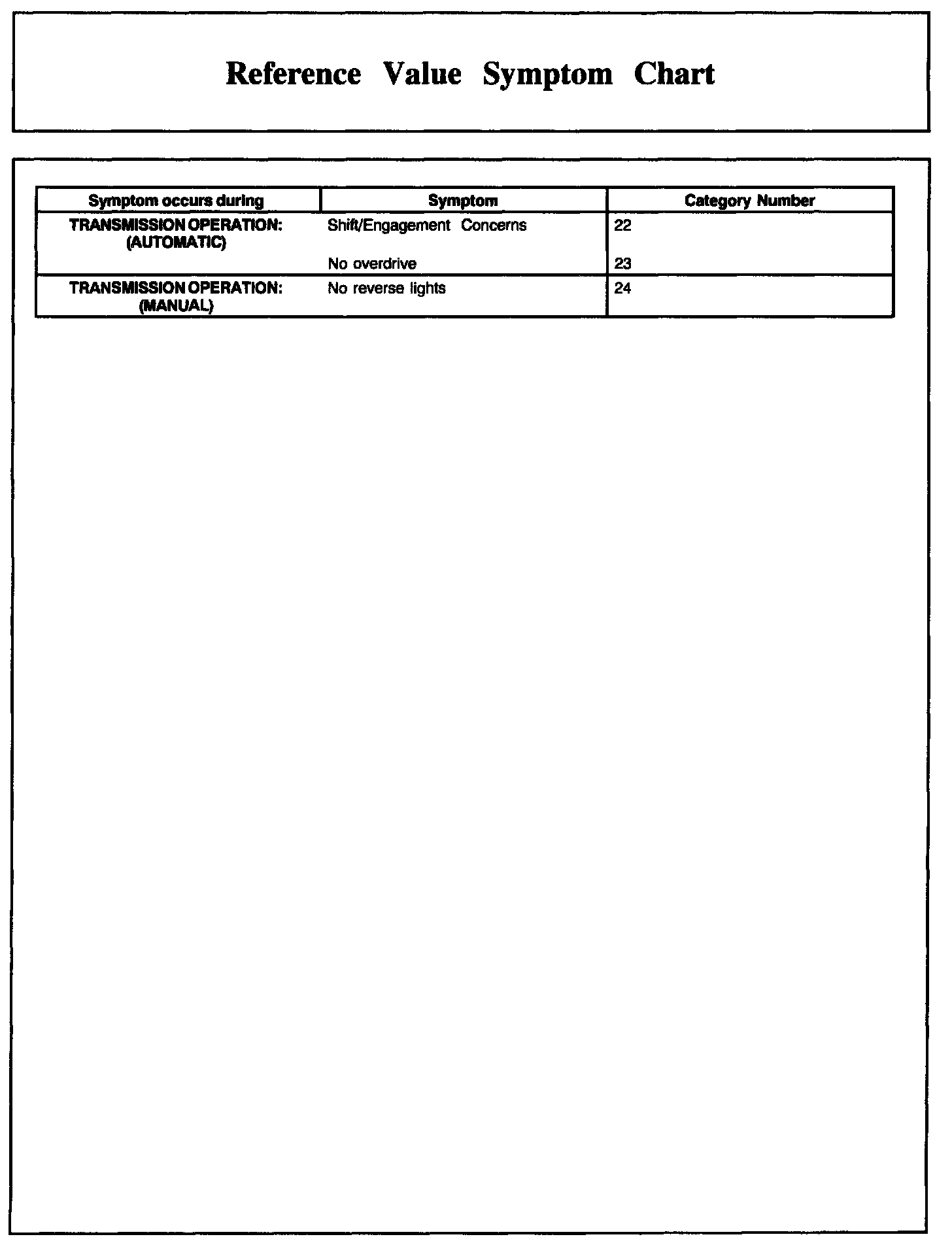

Reference Value Symptom Chart, Part 2:
