Diagnostic Vacuum Diagrams

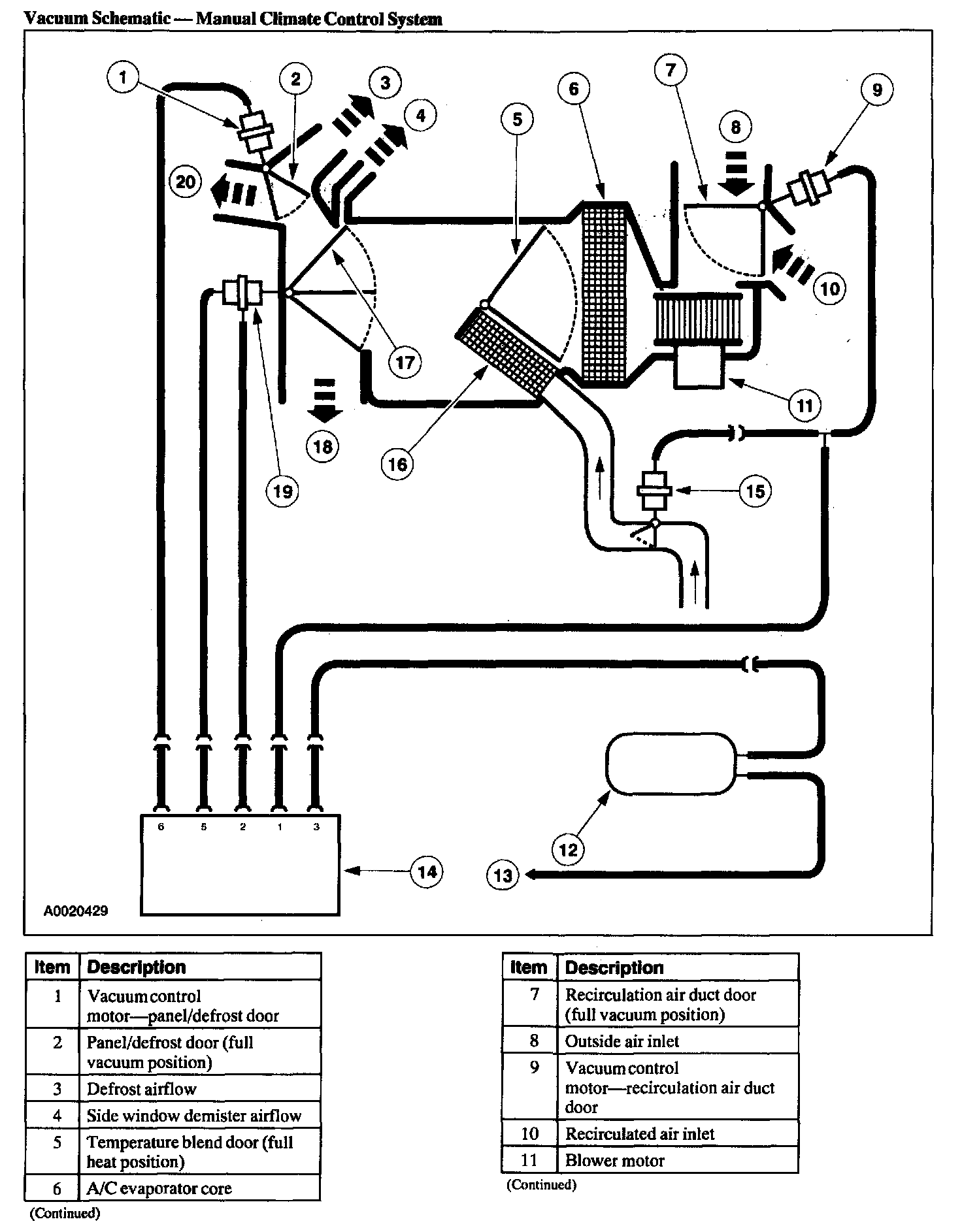

Vacuum Schematic-Manual Climate Control System, Part 1:






Vacuum Schematic-Manual Climate Control System, Part 2:

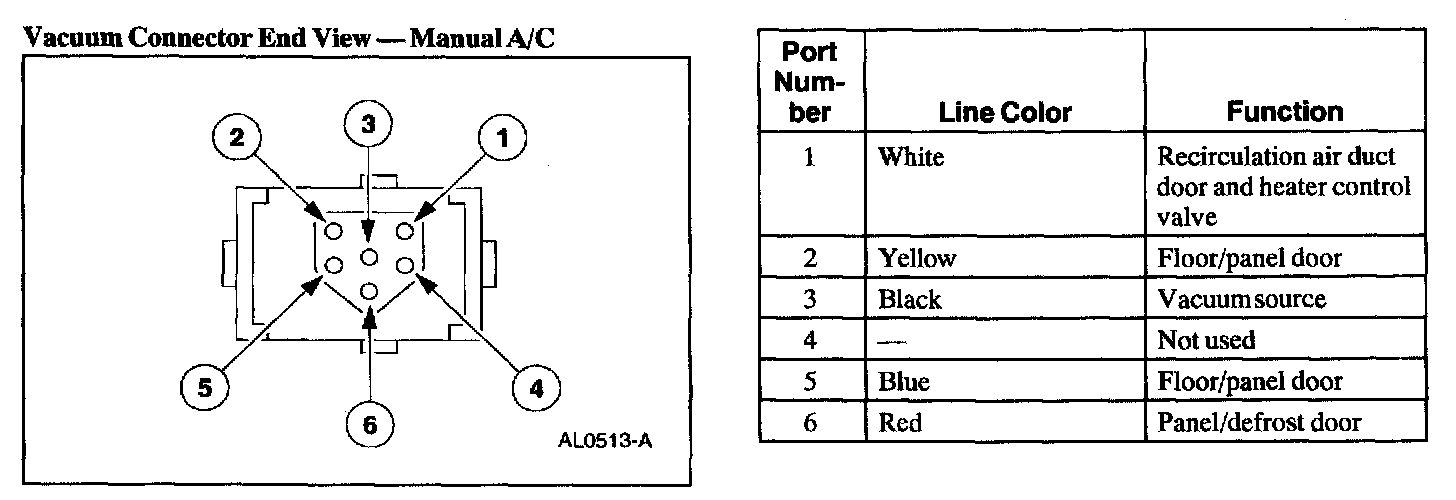

Vacuum Connector End View - Manual A/C:






Vacuum Application Chart-Manual A/C:
