Attachment III - Technical Information

AFFECTED VEHICLES:
CERTAIN 2001 MODEL YEAR SPORT TRAC VEHICLES

SERVICE PROCEDURE

1. Reprogram the Powertrain Control Module (PCM) with the latest calibration using one of the following two (2) methods:

^ Worldwide Diagnostic System (WDS). Use WDS CD-ROM B10 release (or subsequent release if applicable) available via Fordstar, or for Non-Fordstar dealers available at:

http://www.fordtechservice.com/vdirs/wds

^ Service Bay Technical System (SBTS) and the New Generation Star (NGS) Tester with Rotunda Flash Cable (007-00531) and Rotunda Flash Card (007-00532). Use the October release CD-ROM (or subsequent release if applicable).

PREPARING AUTHORIZED MODIFICATION LABEL

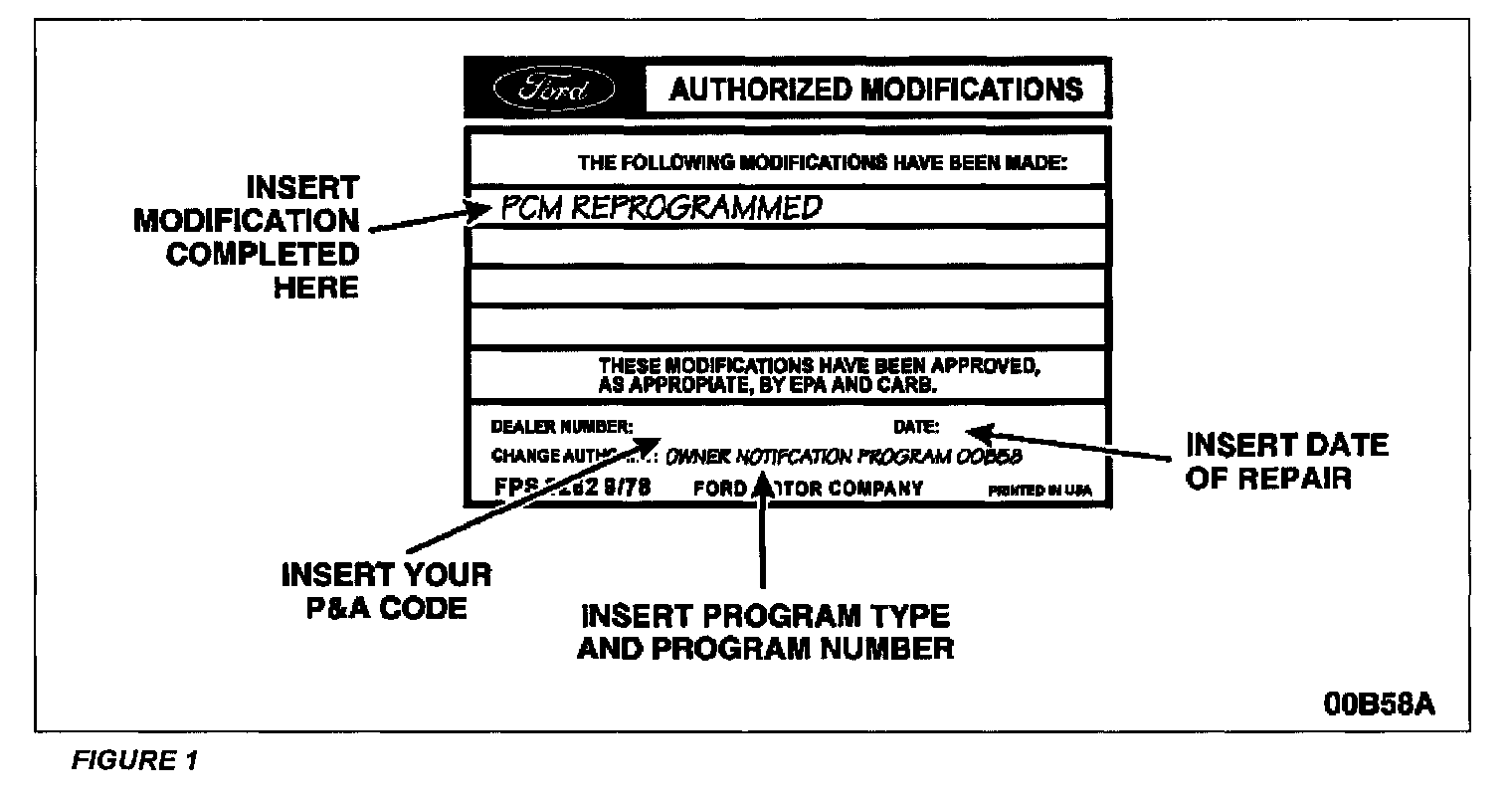

1. Obtain and prepare the Authorized Modification Label. Write the modification completed, your P&A code, the date of repair, the program type and program number as shown below. See Figure 1.

2. Apply the label to a clear area of the upper radiator support.
