Windshield Wiper Motor

REMOVAL







1. Disconnect the washer hose from the LH washer jet nozzle.
2. Remove the cowl grilles.







3. Unsnap the wiper motor clip from the RH wiper mounting arm and pivot shaft.







4. Disconnect the RH wiper mounting arm and pivot shaft from the LH wiper mounting arm and pivot shaft and move both away from the windshield wiper motor.







5. Disconnect the electrical connector.

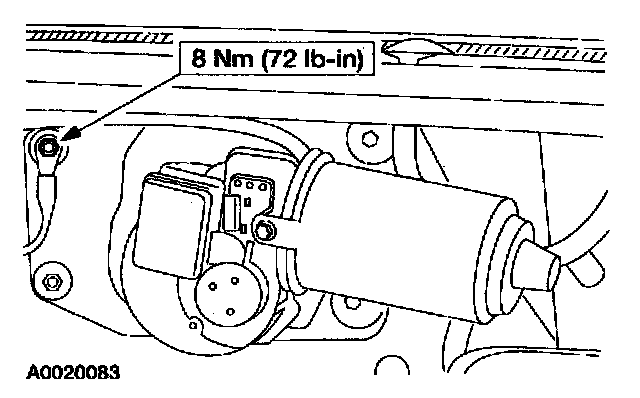

6. Remove the ground strap nut and position the strap aside.







7. Remove the windshield wiper motor.
^ Remove the stud bolts.
^ Remove the bolts.

CAUTION: The internal permanent magnets used in the windshield wiper motor are made of a glass-like material. To avoid damaging the magnets, do not strike the motor with a hammer or any other object.

INSTALLATION







1. Install the windshield wiper motor.
1 Install the windshield wiper motor.
2 Install the stud bolts.
3 Install the bolts.

CAUTION: The internal permanent magnets used in the windshield wiper motor are made of a glass-like material. To avoid damaging the magnets, do not strike the motor with a hammer or any other object.







2. Install the ground strap and nut.







3. Connect the electrical connector.







4. Install the wiper mounting arm and pivot shaft arms to the windshield wiper motor.
1 Install the LH wiper mounting arm and pivot shaft onto the windshield wiper motor crank pin.
2 Install the RH wiper mounting arm and pivot shaft onto the wiper motor crank pin.
3 Push the retaining clip until it snaps into place.
5. Install the cowl grilles.







6. Connect the washer hose to the LH washer jet nozzle.
7. Install the LH wiper pivot arm.
8. Adjust the LH wiper pivot arm.
