System Diagram

Vacuum Schematic-Manual Climate Control System, Part 1:

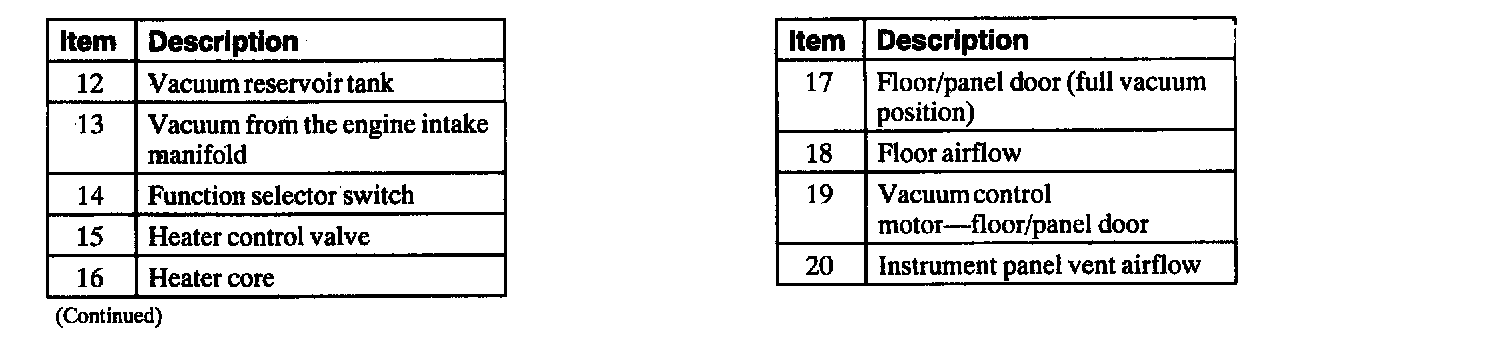

Vacuum Schematic-Manual Climate Control System, Part 2:






Vacuum Connector End View - Manual A/C:

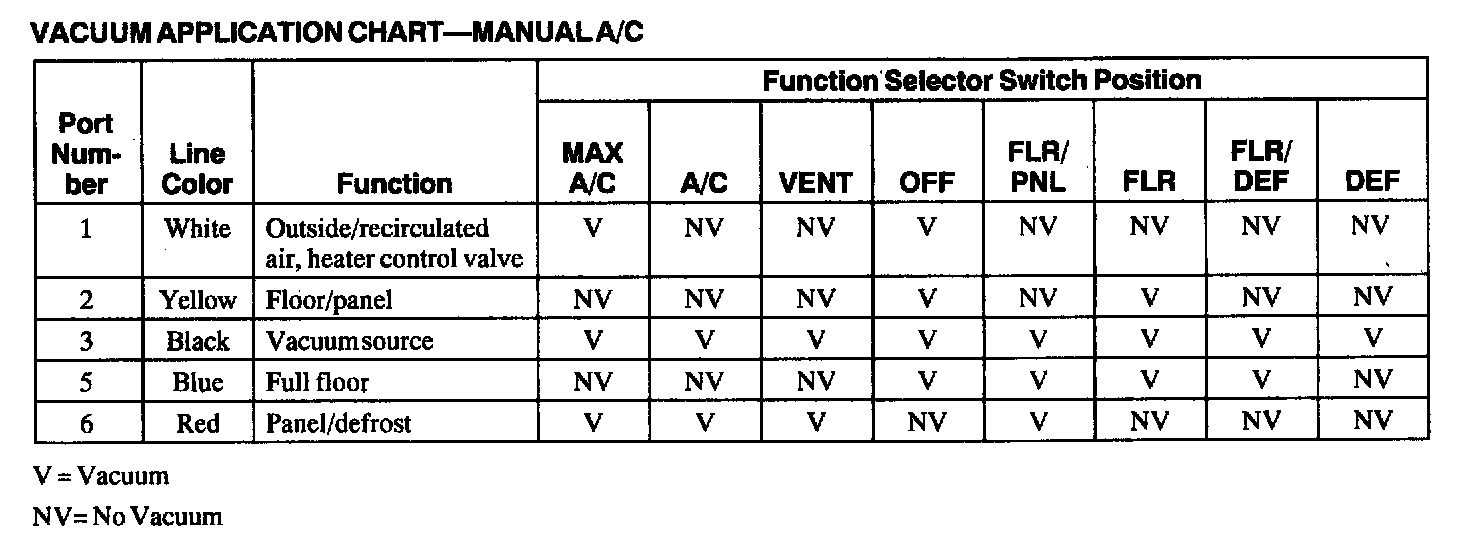

Vacuum Application Chart-Manual A/C:
