Coolant Reservoir: Service and Repair

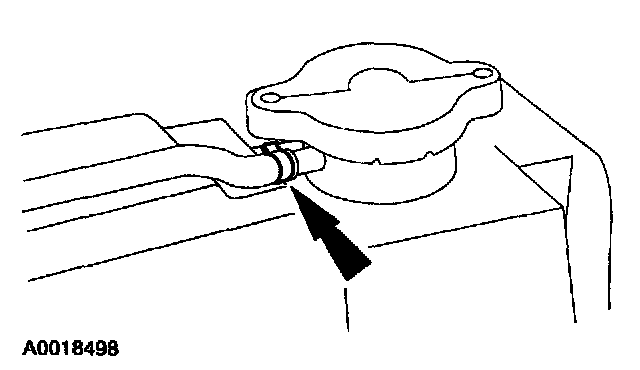

Coolant Expansion Tank

Removal and Installation
1. Remove the air cleaner outlet tube and the engine air cleaner.





2. Remove the bolt and position the speed control servo aside.





3. Disconnect the windshield washer hose from under the dash panel and plug the end of the hose.





4. Disconnect the windshield washer pump electrical connector from the windshield washer reservoir.





5. Disconnect and plug the overflow hose.





6. Remove the two nuts and bolts, and the coolant expansion tank.
7. To install, reverse the removal procedure.
