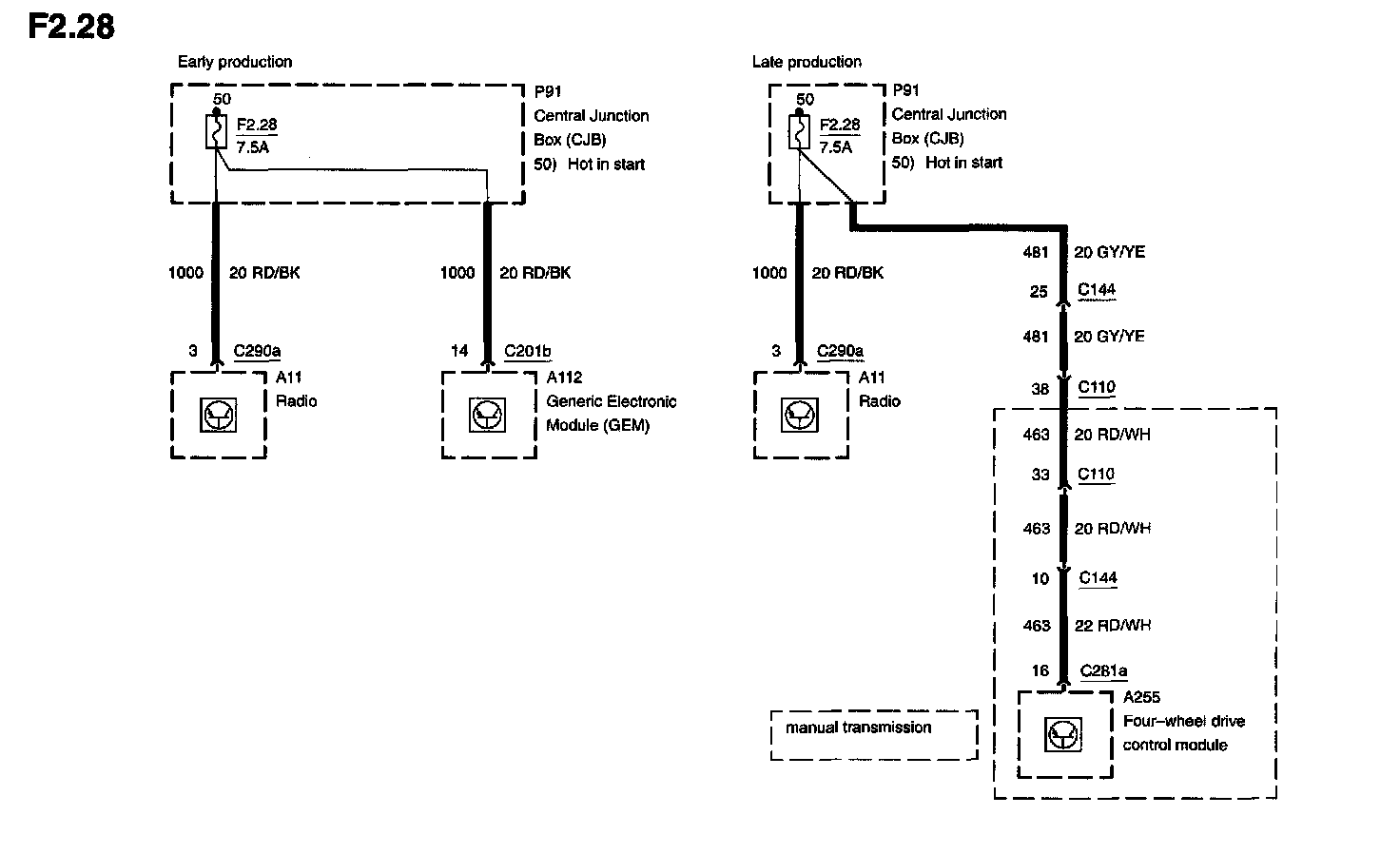

F 2.28

Diagram 700-03-00-28:






Diagram 700-02-00-7:






Diagram 700-02-00-2:






Diagram 700-02-00-1:
