Test C: High/Low Wiper Speeds Do Not Operate Correctly
Test C: High/Low Wiper Speeds Do Not Operate Correctly
C1 - C2:
C3 - C5:

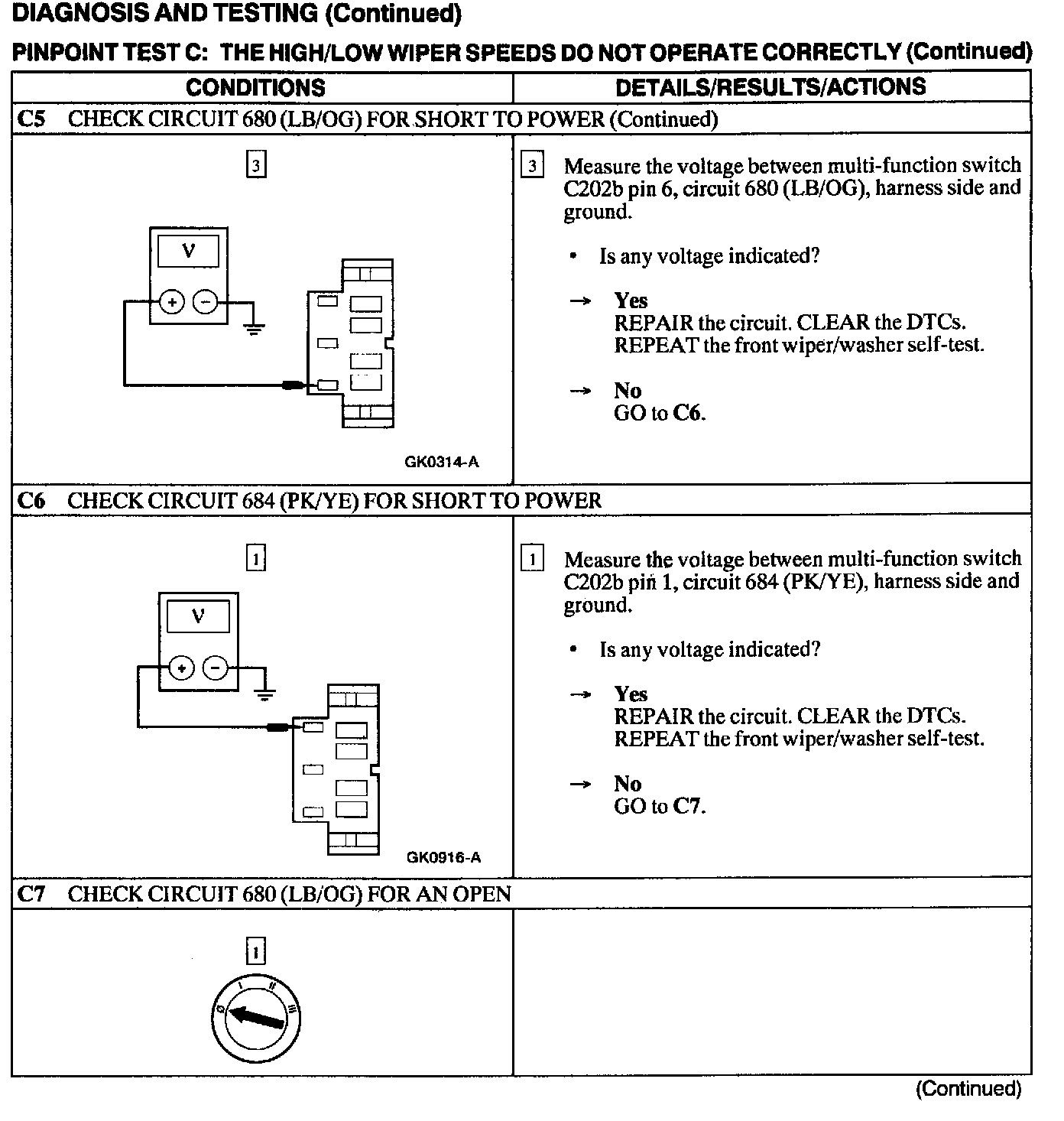

C5 - C7:
C7 - C9:
C10 - C11:
C12 - C13:
C14 - C16:
C16:
C17 - C19:
C19:
