Test S: Doors Do Not Lock/Unlock Using The Keyless Entry Remote Transmitter
Test S: Doors Do Not Lock/Unlock Using The Keyless Entry Remote Transmitter

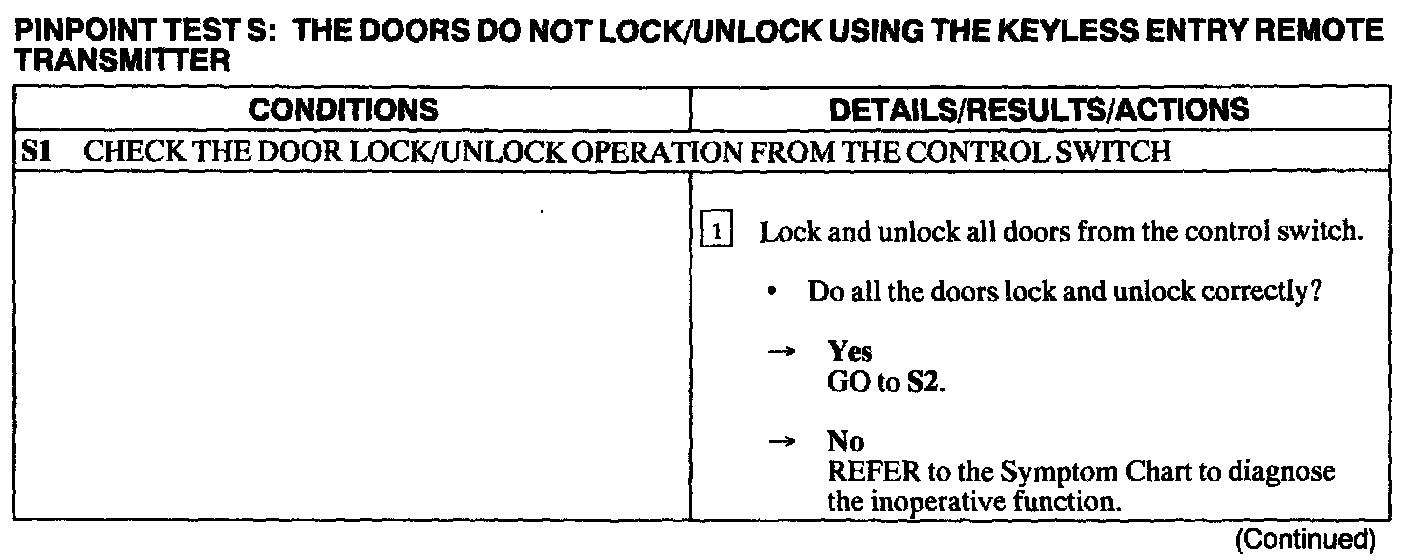

S1:
S2 - S5:
S5 - S7:

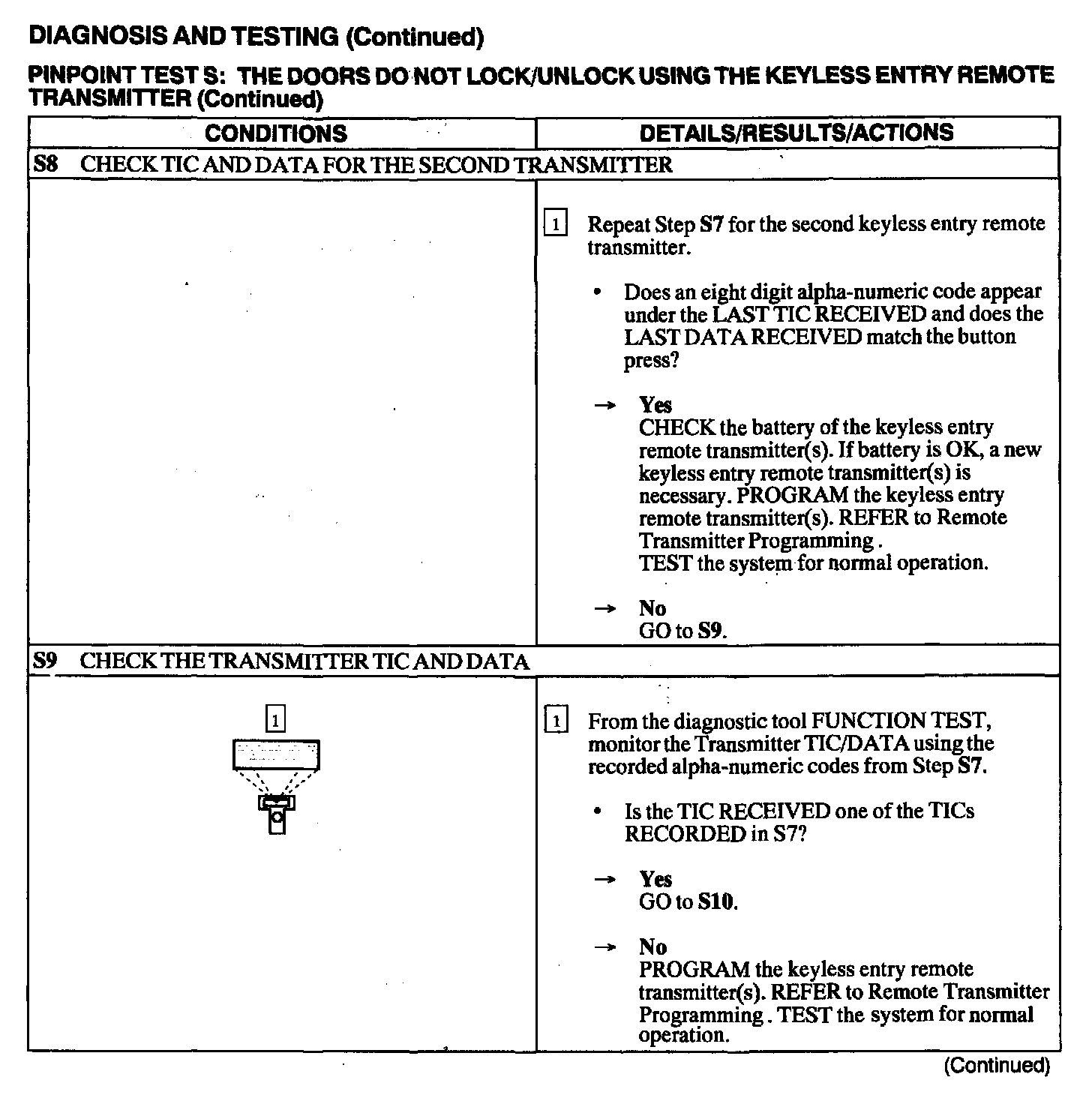

S8 - S9:

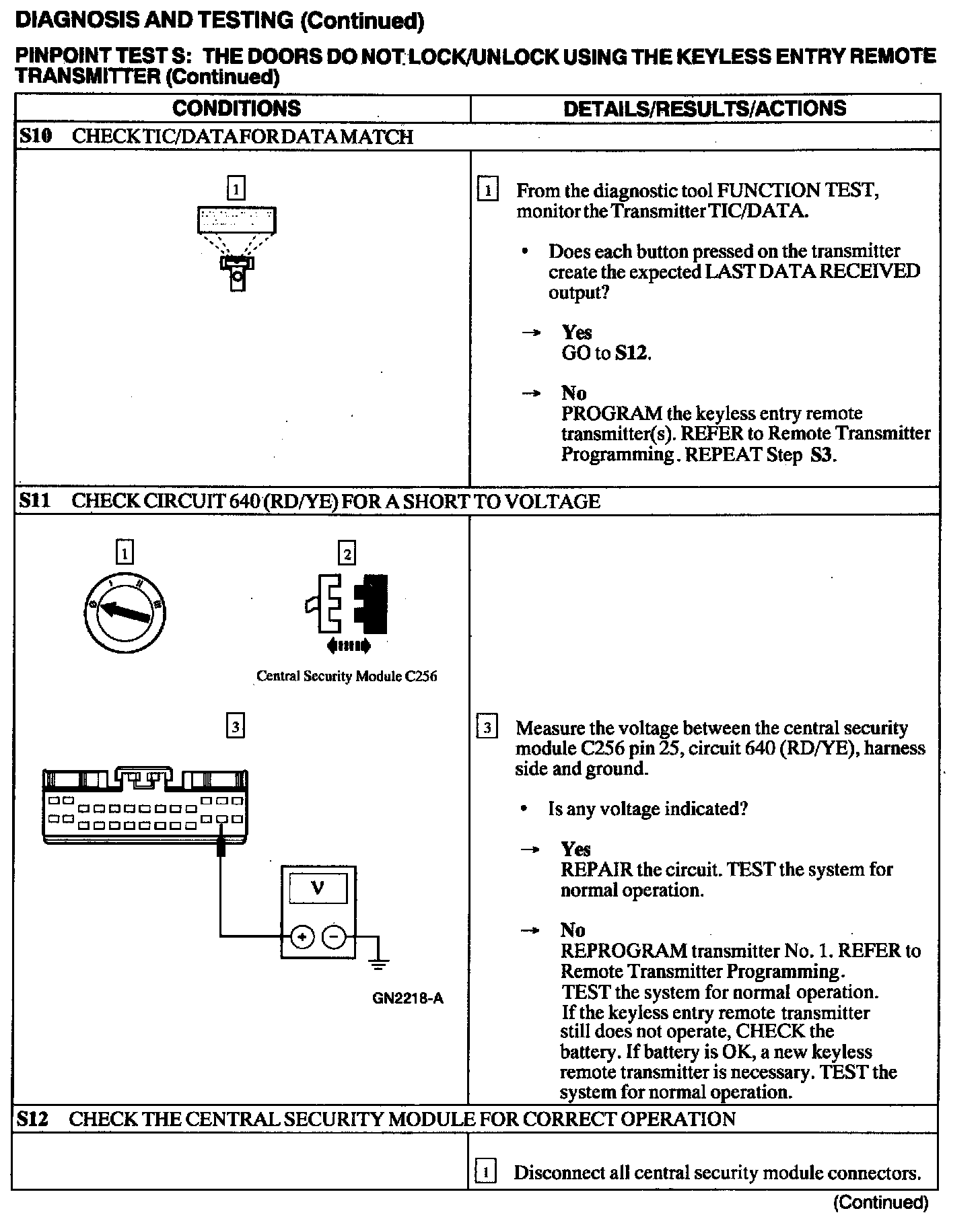

S10 - S12:
S12:
