Test J: Doors Do Not Lock/Unlock Using The Keyless Entry Keypad
Test J: Doors Do Not Lock/Unlock Using The Keyless Entry Keypad

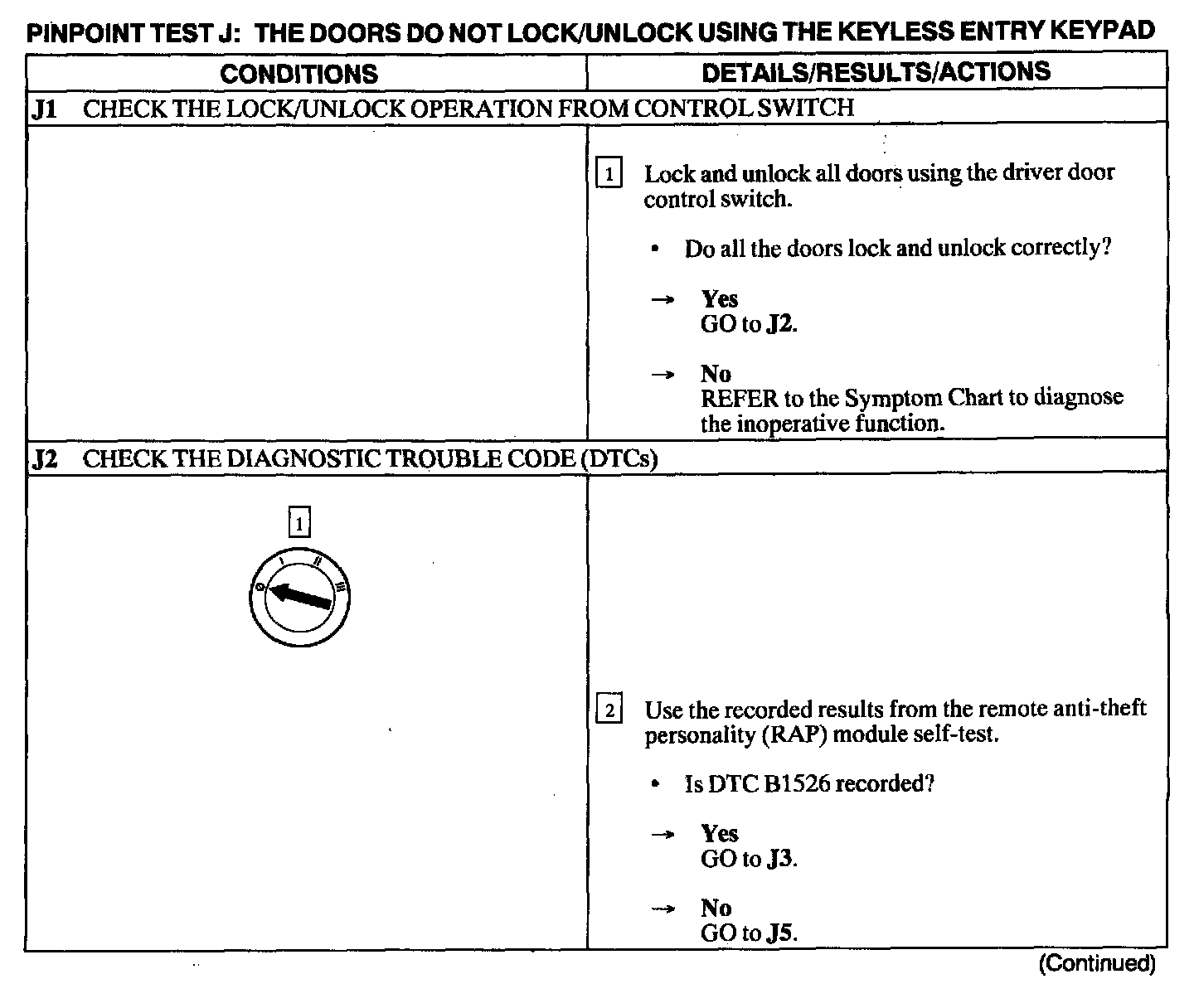

J1 - J2:
J3 - J4:

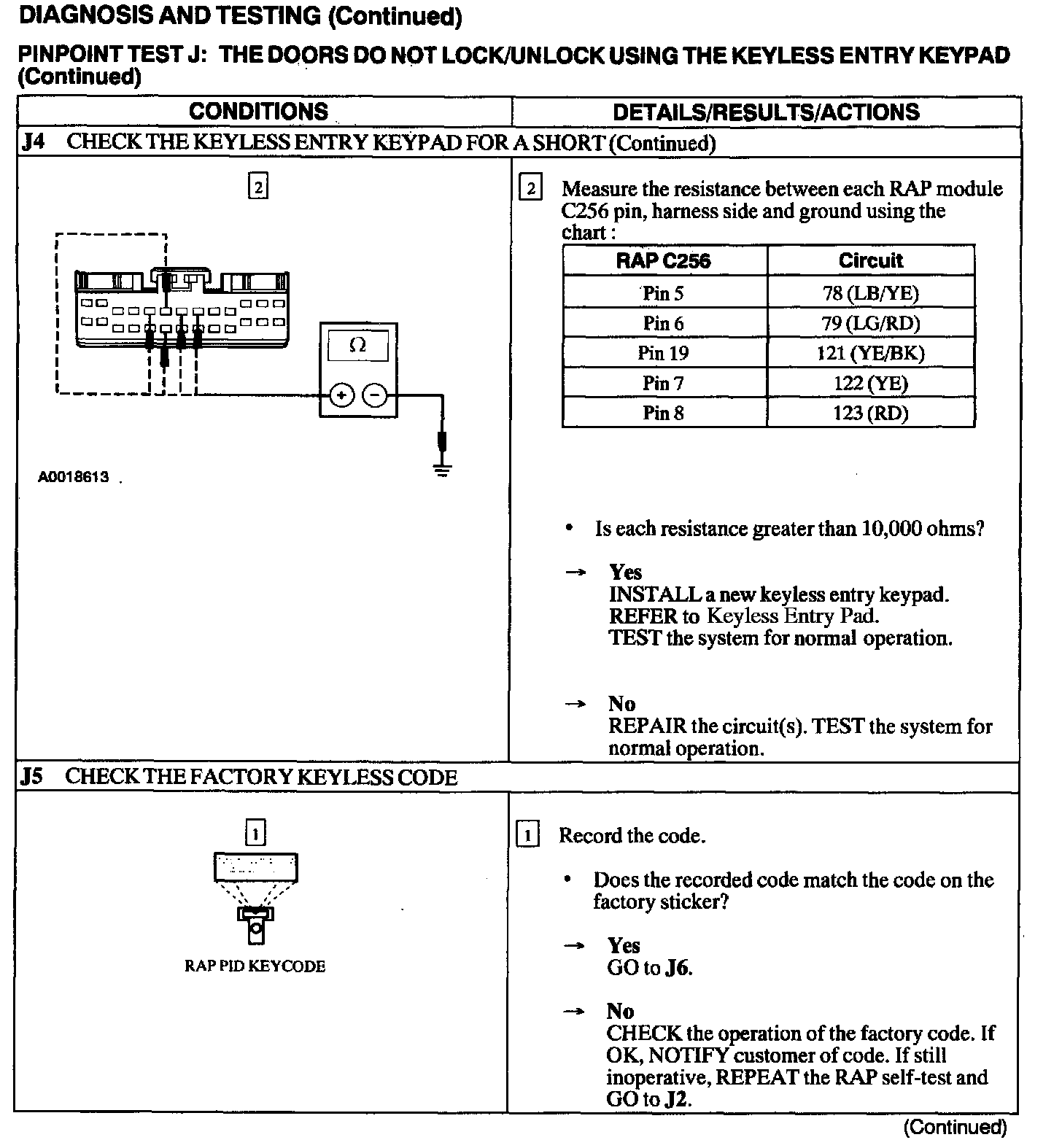

J4 - J5:

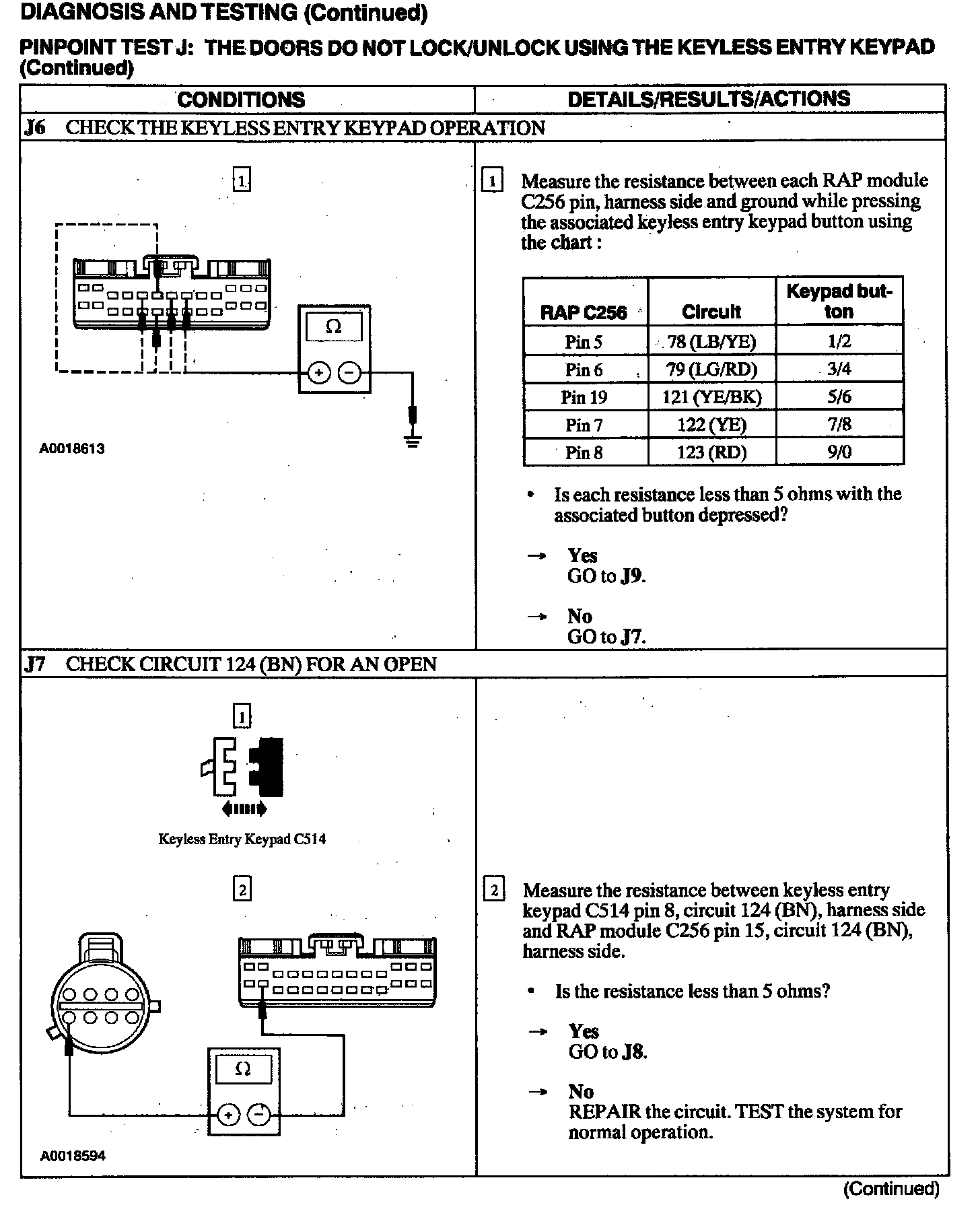

J6 - J7:

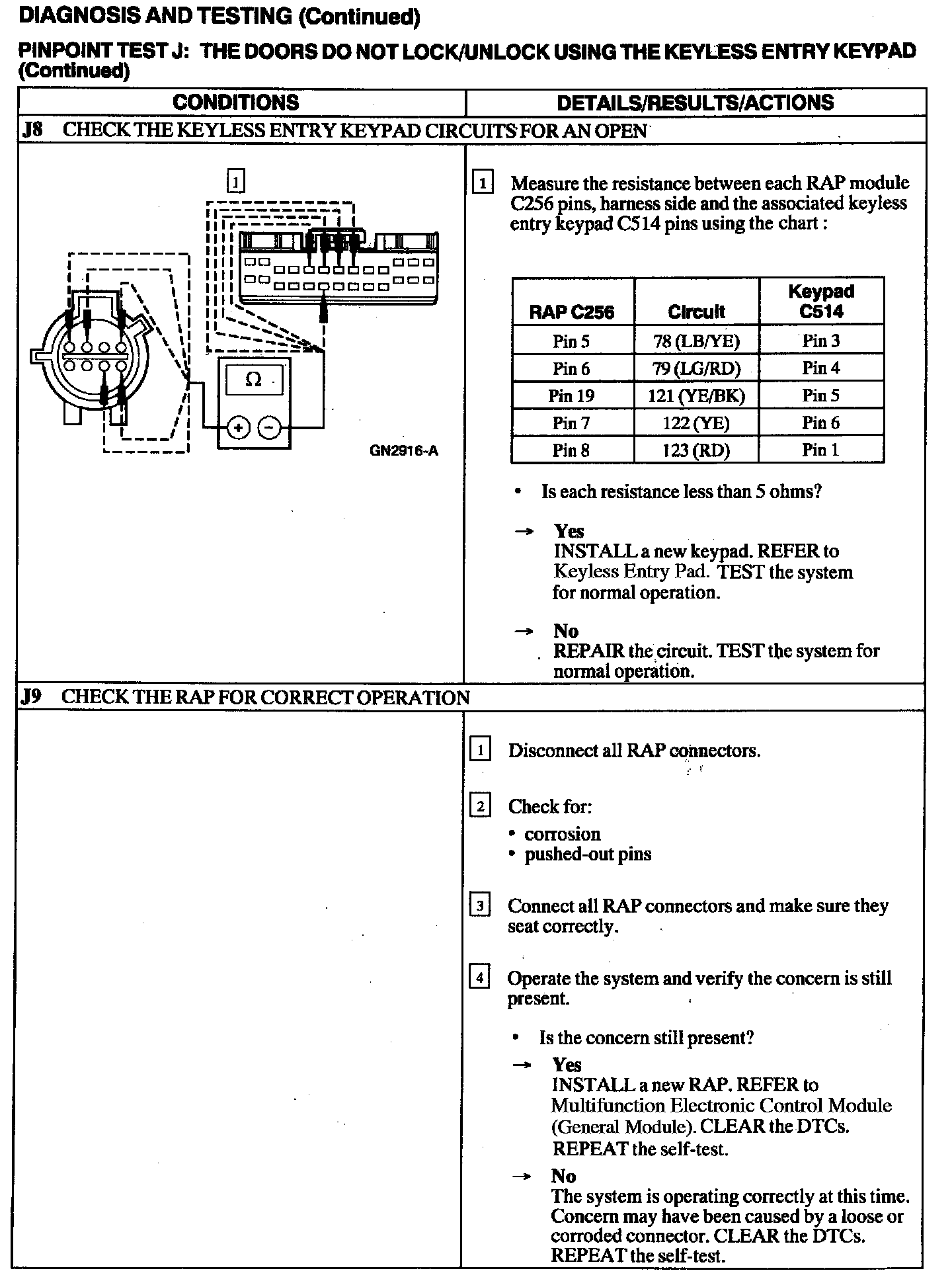

J8 - J9:
