F 150 2WD Pickup V6-4.2L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
General Module
>>

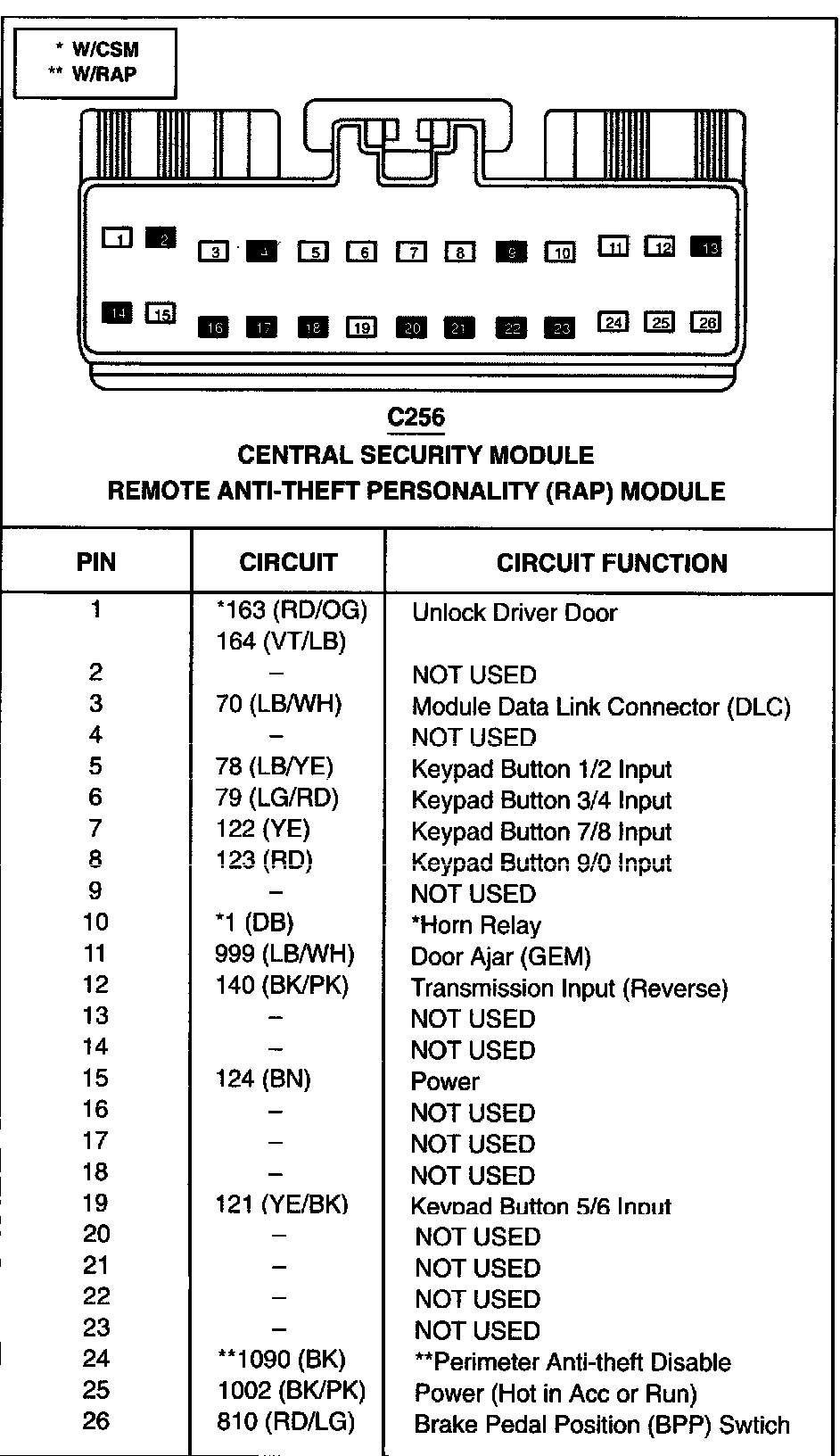

Central Security Module/Remote Anti-Theft Personality Module

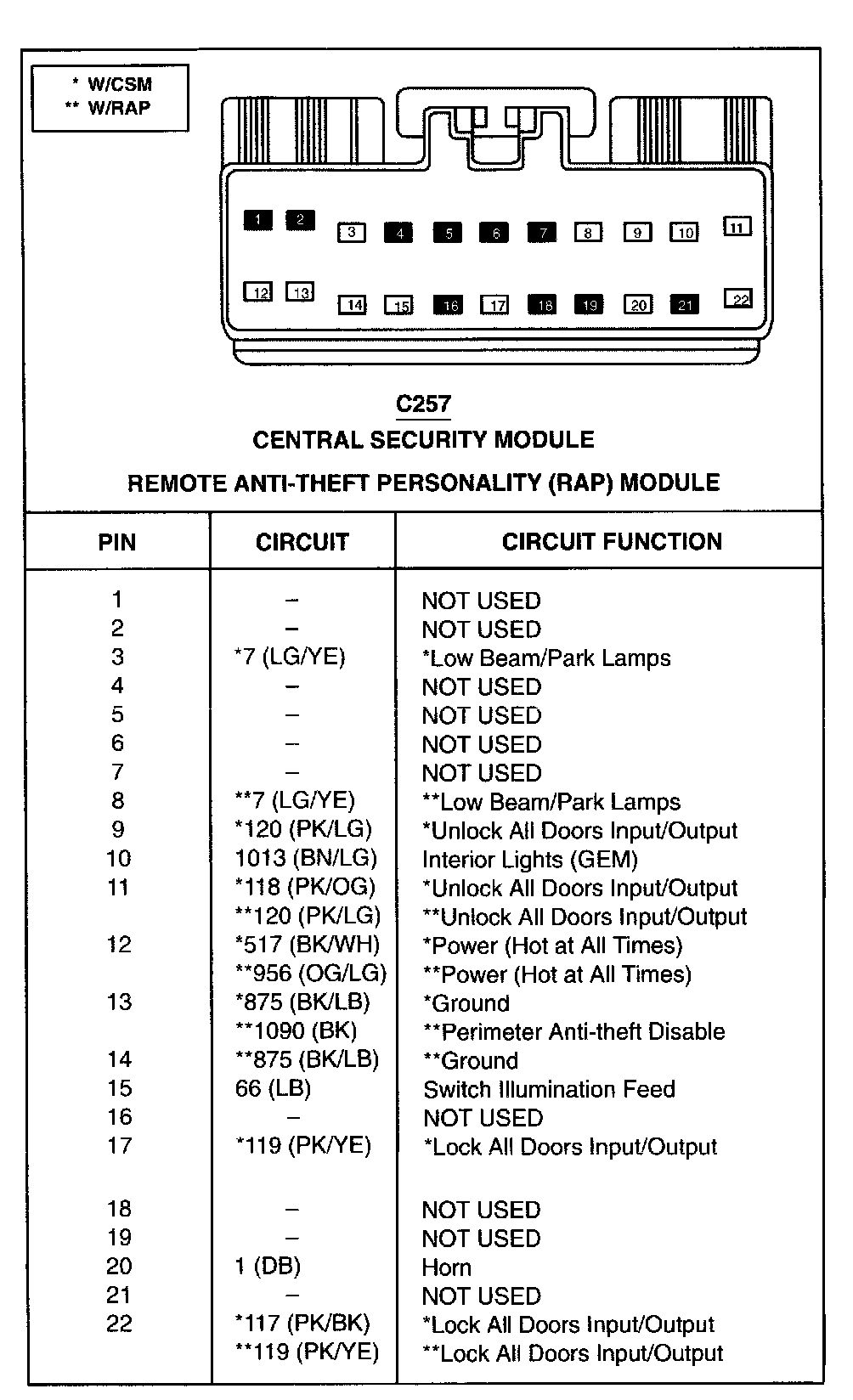

Central Security Module/Remote Anti-Theft Personality Module
